Jenn-Air
Electric Wall Oven

Model # JJW8630CAS Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air JJW8630CAS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

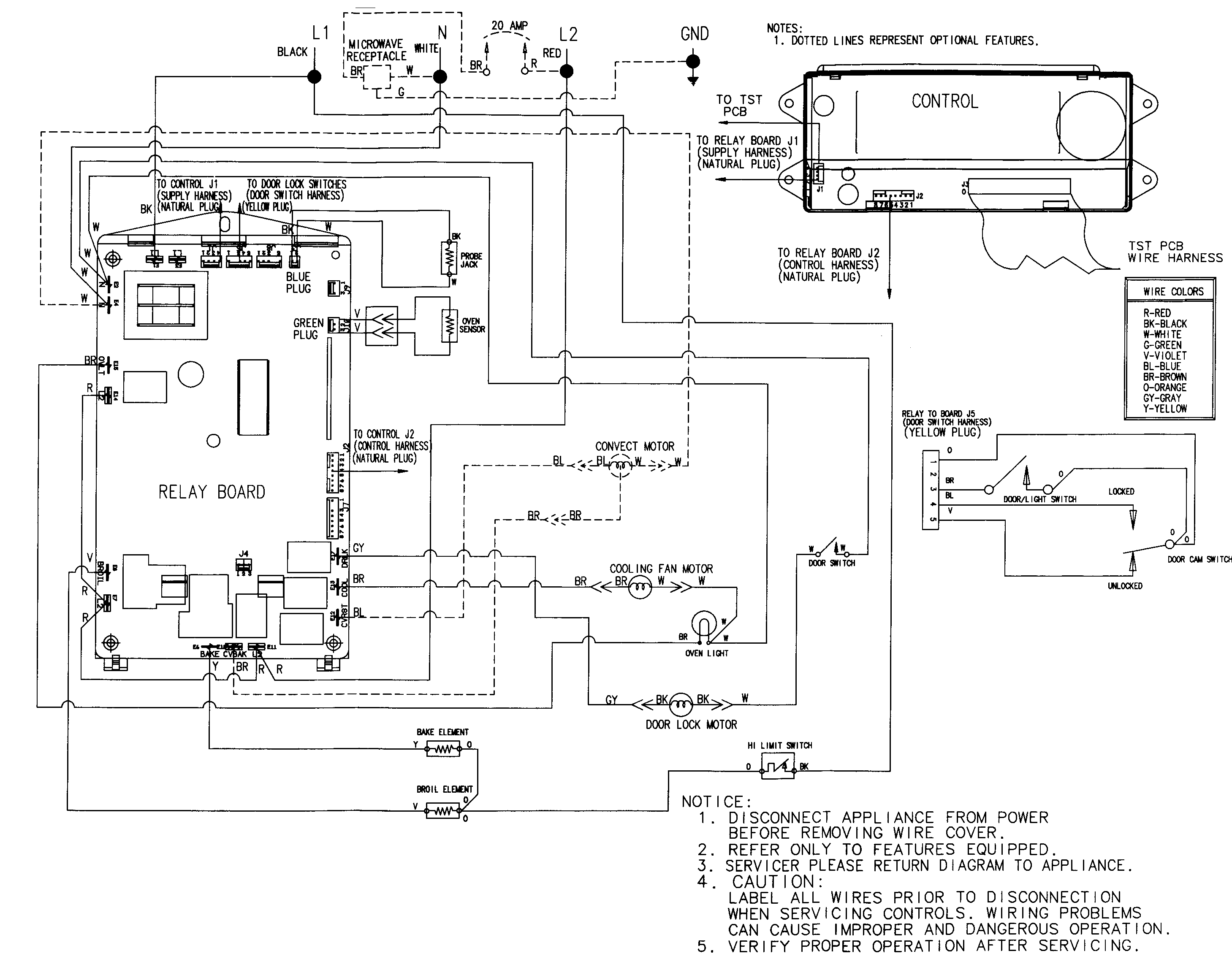

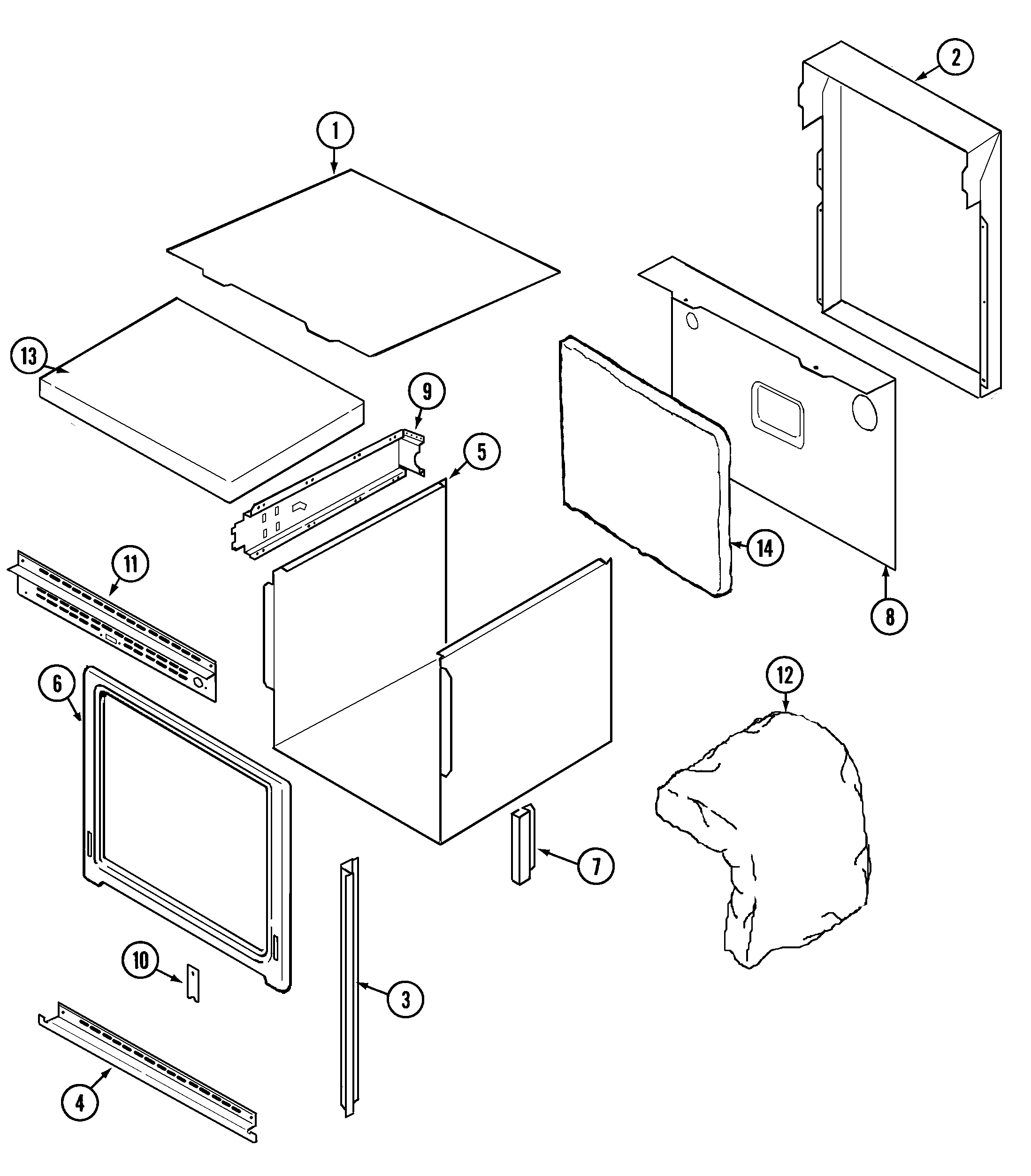

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Oven Bulb 7407P103-60
#11

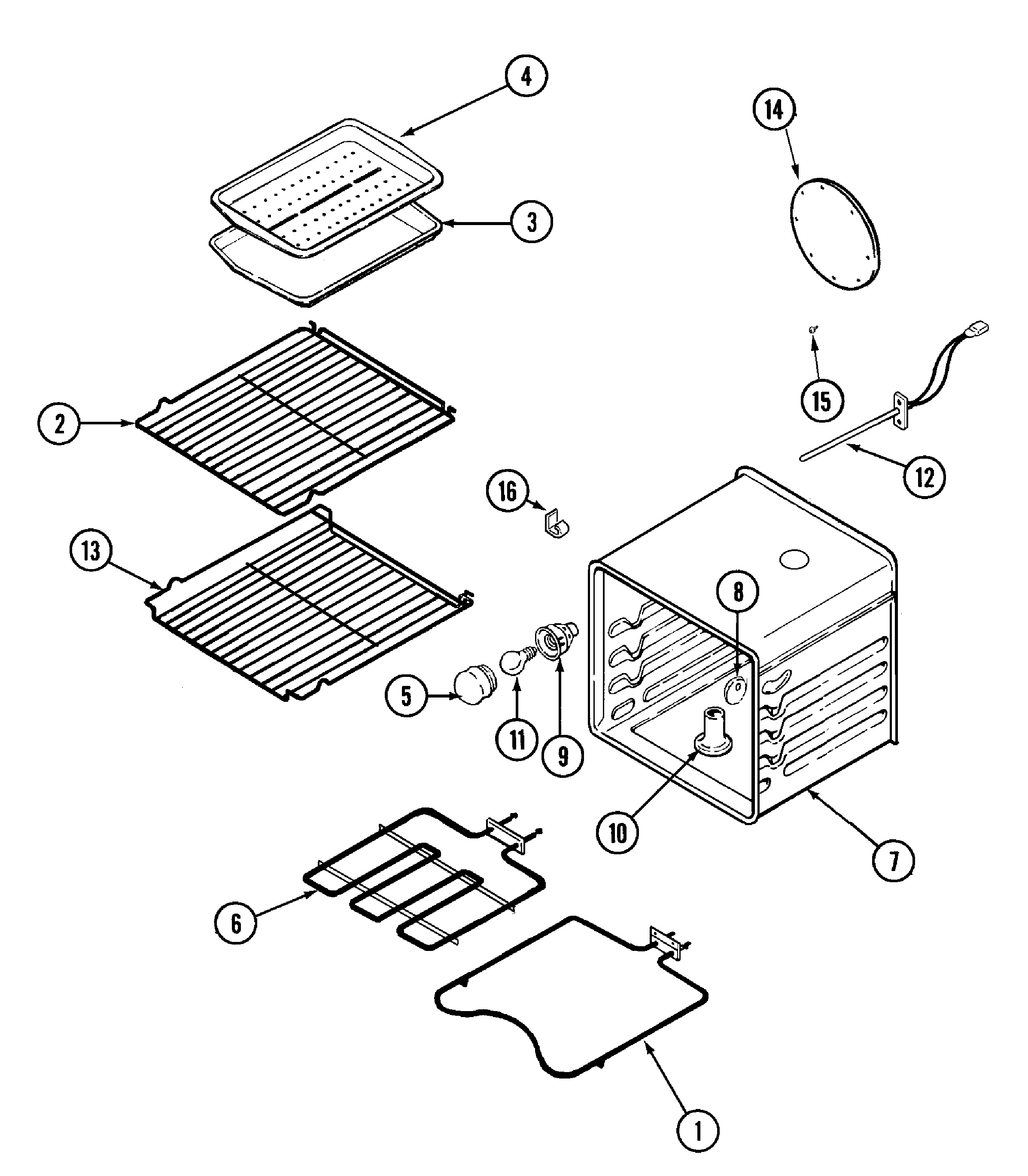

Oven diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Sensor 71003083
#12

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Door Hinge 71003350
#16

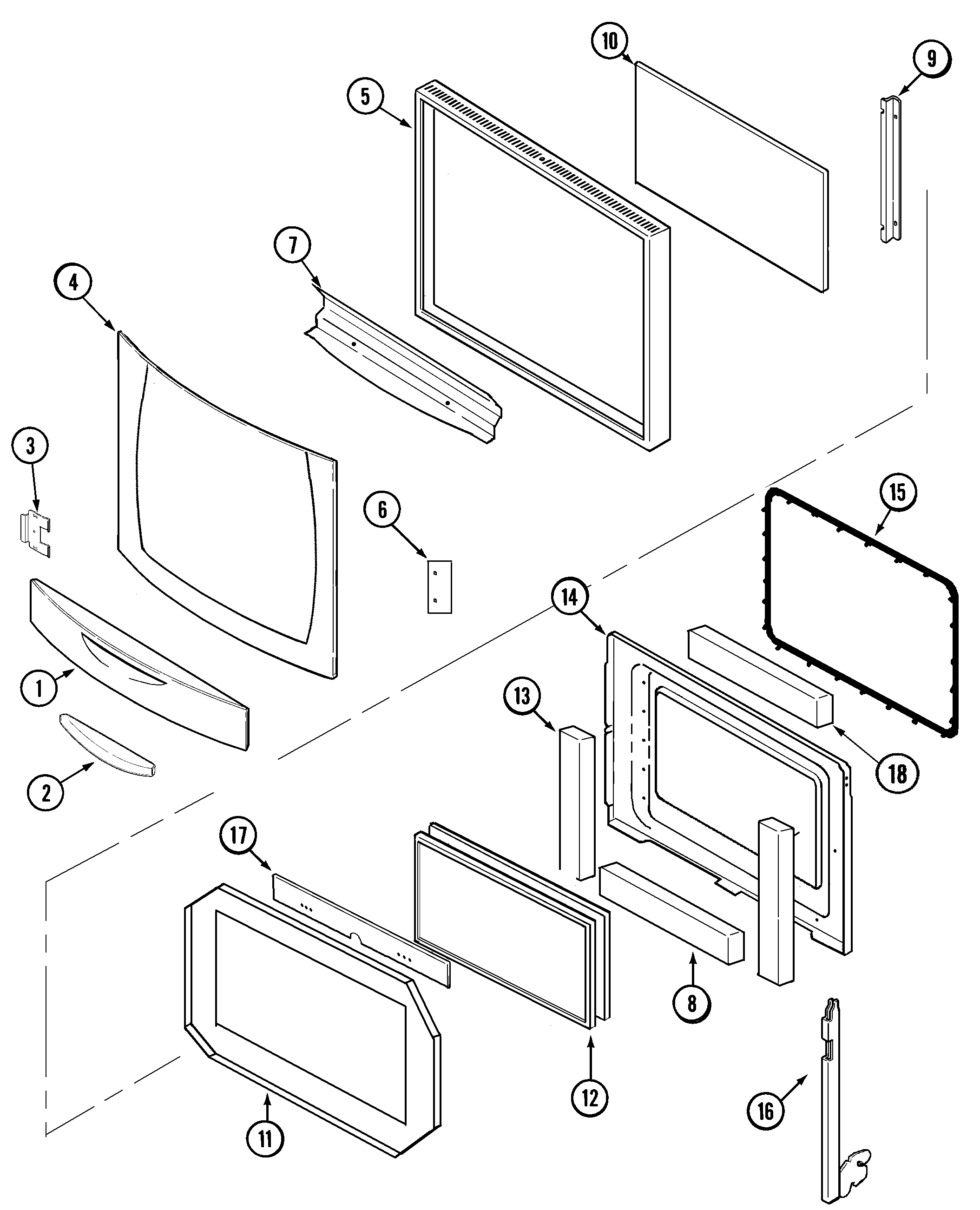

Door (upper & lower)(cas) diagram

Door hinge

Part #71003350

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 71003350. Substitute parts can look different from the original.
BEST SELLER
$67.72 |
8% OFF Phone Price : $73.72
In Stock
Door Switch 71001129
#3

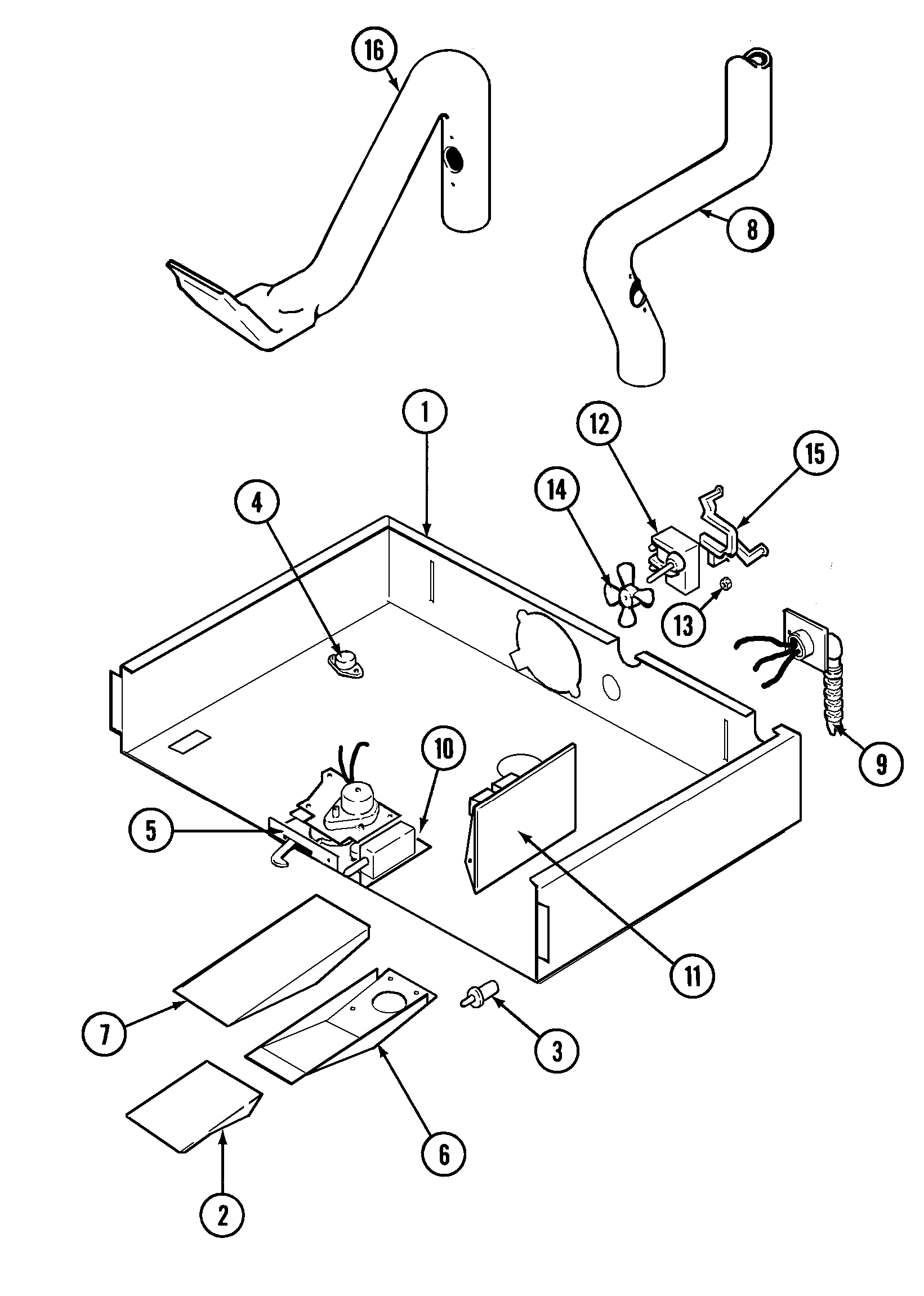

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Bake Element 71001638
#1

Oven diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Nut 715634
#11A

Door (upper & lower)(cas) diagram

Nut

Part #715634

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 715634. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 790448
#6C

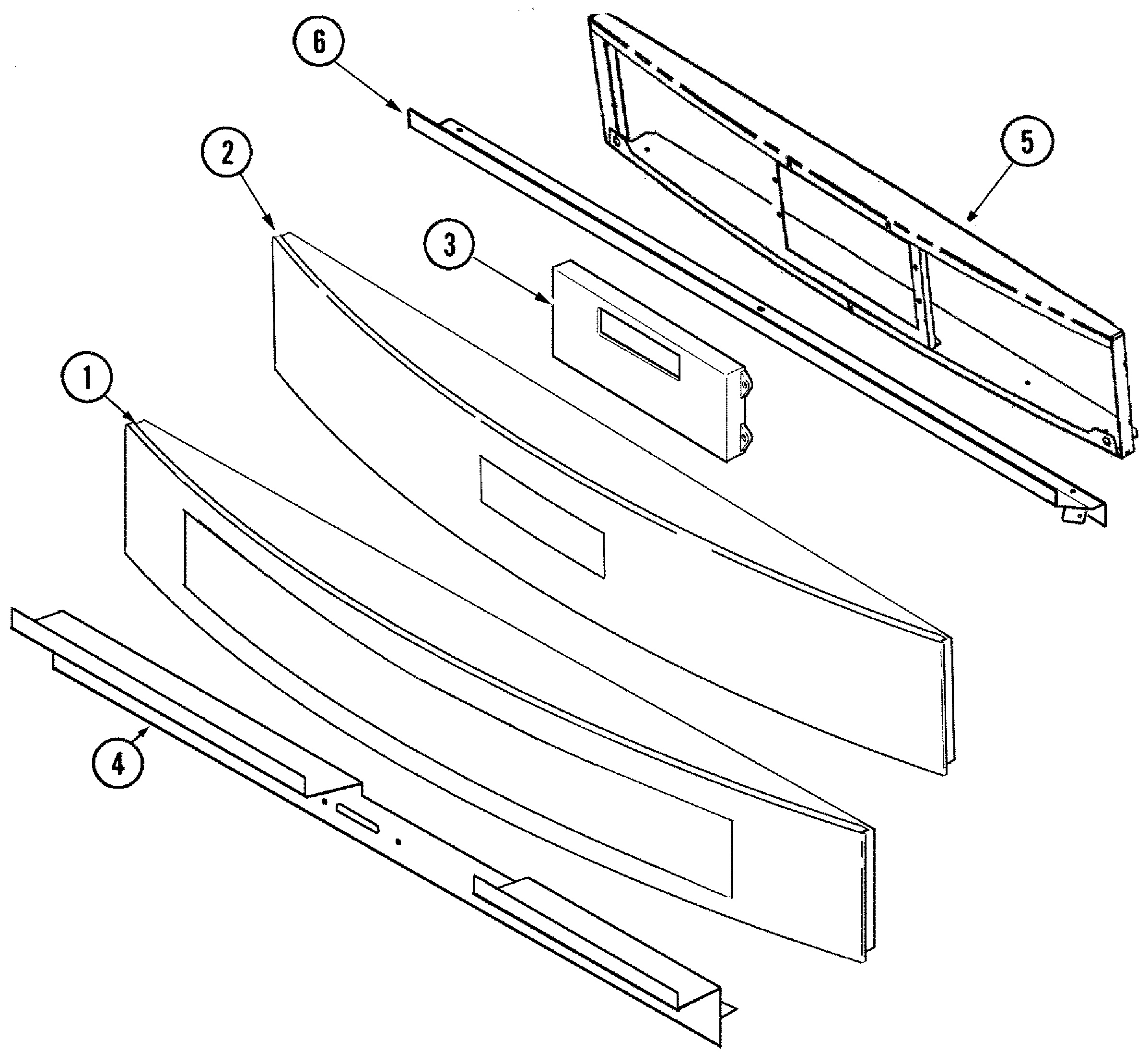

Control panel diagram

Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Oven Rack 71001865
#13

Oven diagram

Oven rack

Part #71001865

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001865. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Range High-limit Thermostat 71001844
#4

Internal controls diagram

Range high-limit thermostat

Part #71001844

Replaced by #WP71001844

?
Manufacturer substitution
This part replaces 71001844. Substitute parts can look different from the original.
$88.79 |
6% OFF Phone Price : $94.79
In Stock
