Model # CDE06RP2NCS1 Official GE refrigerator drawer

Here are the diagrams and repair parts for Official GE CDE06RP2NCS1 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

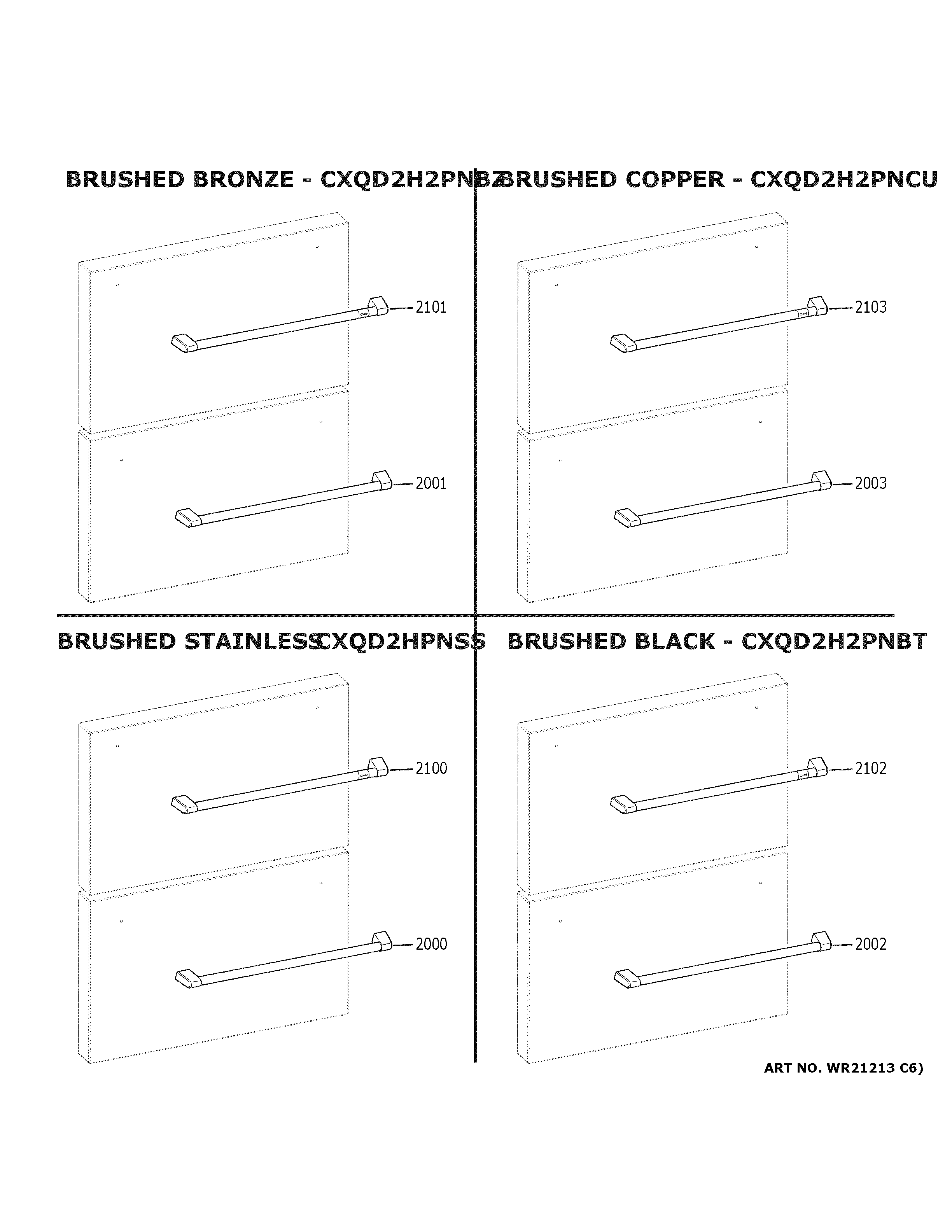

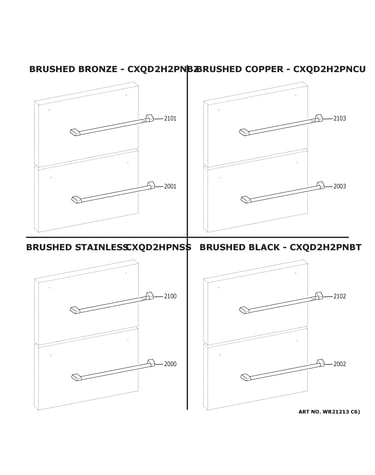

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Drier Filter WR87X33866
#8

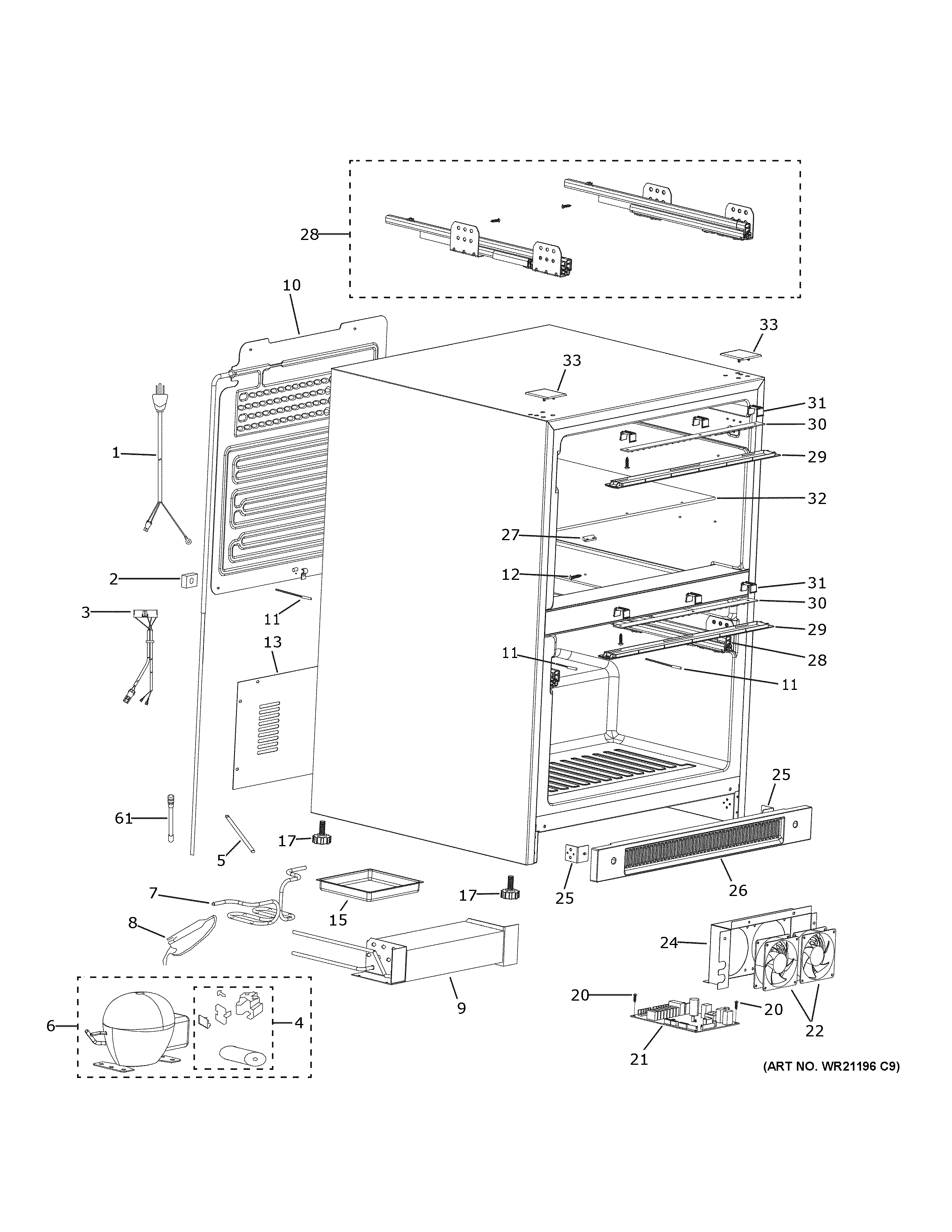

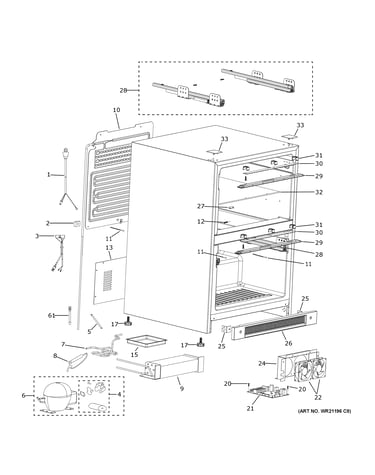

Cabinet diagram

Drier filter

Part #WR87X33866

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR87X33866. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#61

Cabinet diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Clpg5/16-1/4 WR97X10036
#7002

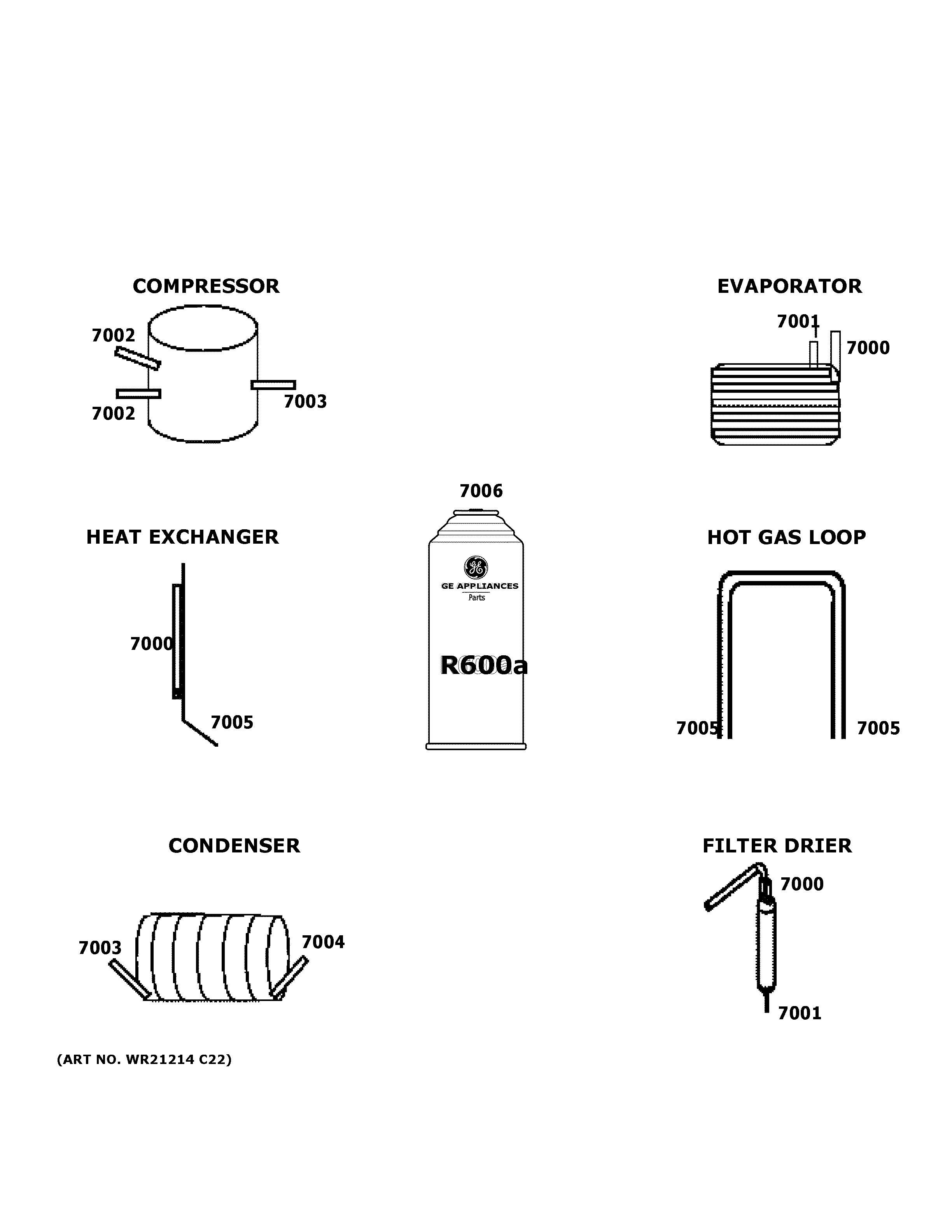

Lokring connectors diagram

Clpg5/16-1/4

Part #WR97X10036

$28.31
In Stock
Refrigerator R600a Refrigerant WR98X50
#7006

Lokring connectors diagram

Refrigerator r600a refrigerant

Part #WR98X50

$68.60
In Stock
Main Control Board WR55X32026
#21

Cabinet diagram

Main control board

Part #WR55X32026

$119.92
In Stock
Compressor Electricals WR87X33865
#4

Cabinet diagram

Compressor electricals

Part #WR87X33865

$62.53
In Stock
Upper Partit WR01X28255
#40

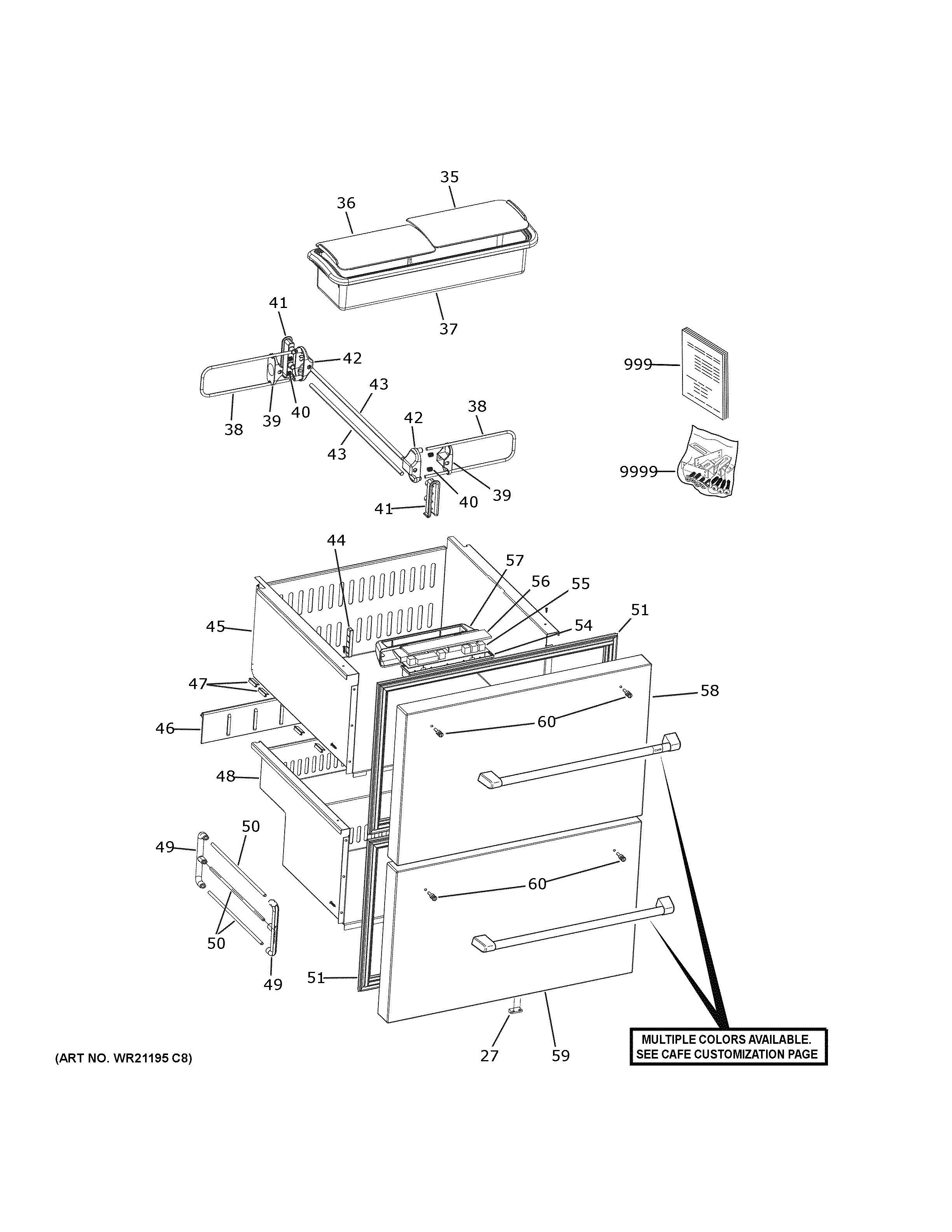

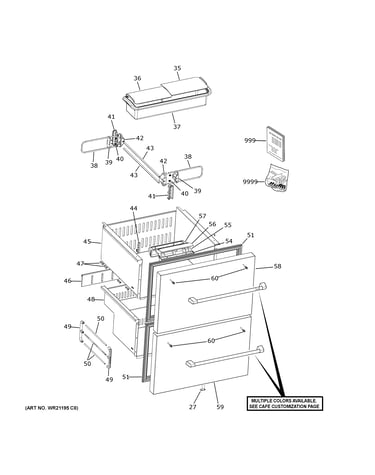

Doors & drawers diagram

Upper partit

Part #WR01X28255

This item is not returnable
$5.00
In Stock
Refrigerator Cable Clamp WR01X28259
#47

Doors & drawers diagram

Refrigerator cable clamp

Part #WR01X28259

$8.11
In Stock
Led Light WR55X28260
#30

Cabinet diagram

Led light

Part #WR55X28260

$66.51 |
8% OFF Phone Price : $72.51
In Stock
Refrigerator Sensor WR55X28281
#11

Cabinet diagram

Refrigerator sensor

Part #WR55X28281

$36.89 |
14% OFF Phone Price : $42.89
In Stock
