Model # LFHT1513LB2 Official Frigidaire refrigerator
Here are the diagrams and repair parts for Official Frigidaire LFHT1513LB2 refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
LFHT1513LB2 Refrigerators
#4

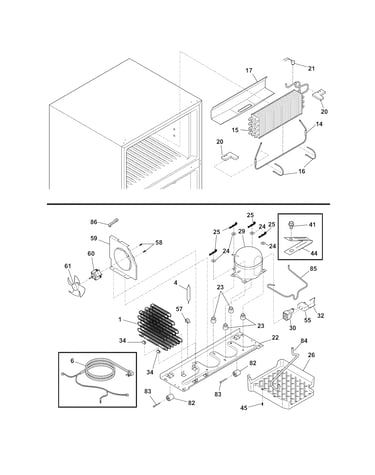

System diagram
Filter drier
Part #218944002
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
$12.47 |
14% OFF Phone Price : $14.47
In Stock
#5

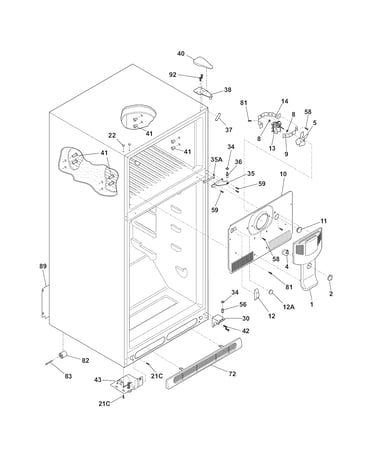

Cabinet diagram
Refrigerator evaporator fan blade
Part #5308000010
$39.89 |
13% OFF Phone Price : $45.89
In Stock
#34
Cabinet diagram
Refrigerator door hinge nylon washer (replaces 240311301)
Part #240311303
$9.69 |
9% OFF Phone Price : $10.69
In Stock
#21

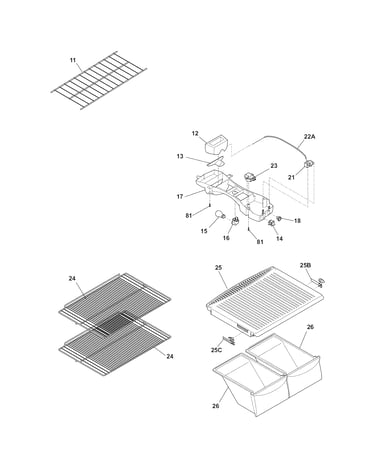

Shelves diagram
Refrigerator temperature control thermostat
Part #5304421256
Replaced by #241537103
?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
This item is not returnable
$60.96 |
9% OFF Phone Price : $66.96
In Stock
#21
System diagram
Refrigerator defrost bi-metal thermostat (replaces 241619705)
Part #5303918202
$15.65 |
43% OFF Was : $27.56
In Stock
#16
System diagram
Refrigerator strap
Part #5308000110
$51.55 |
10% OFF Phone Price : $57.55
In Stock
#12
Shelves diagram
Refrigerator air damper
Part #241542001
$56.15 |
10% OFF Phone Price : $62.15
In Stock
#13
Cabinet diagram
Refrigerator evaporator fan motor
Part #241854301
$115.48 |
9% OFF Phone Price : $127.48
In Stock
#60
System diagram
Motor
Part #241584301
Replaced by #297279500
?
Manufacturer substitution
This part replaces 241584301. Substitute parts can look different from the original.
$93.99 |
6% OFF Phone Price : $99.99
In Stock
#2

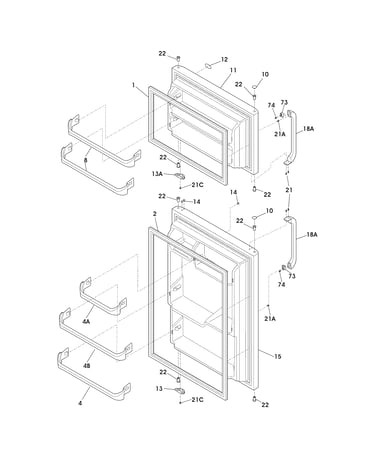

Door diagram
Refrigerator door gasket (white) (replaces 240542114, 5304439518)
Part #241872502
$96.37 |
11% OFF Phone Price : $108.37
In Stock
