Model # 153335844 Official Kenmore gas water heater
Here are the diagrams and repair parts for Official Kenmore 153335844 gas water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153335844 Water Heaters
#26

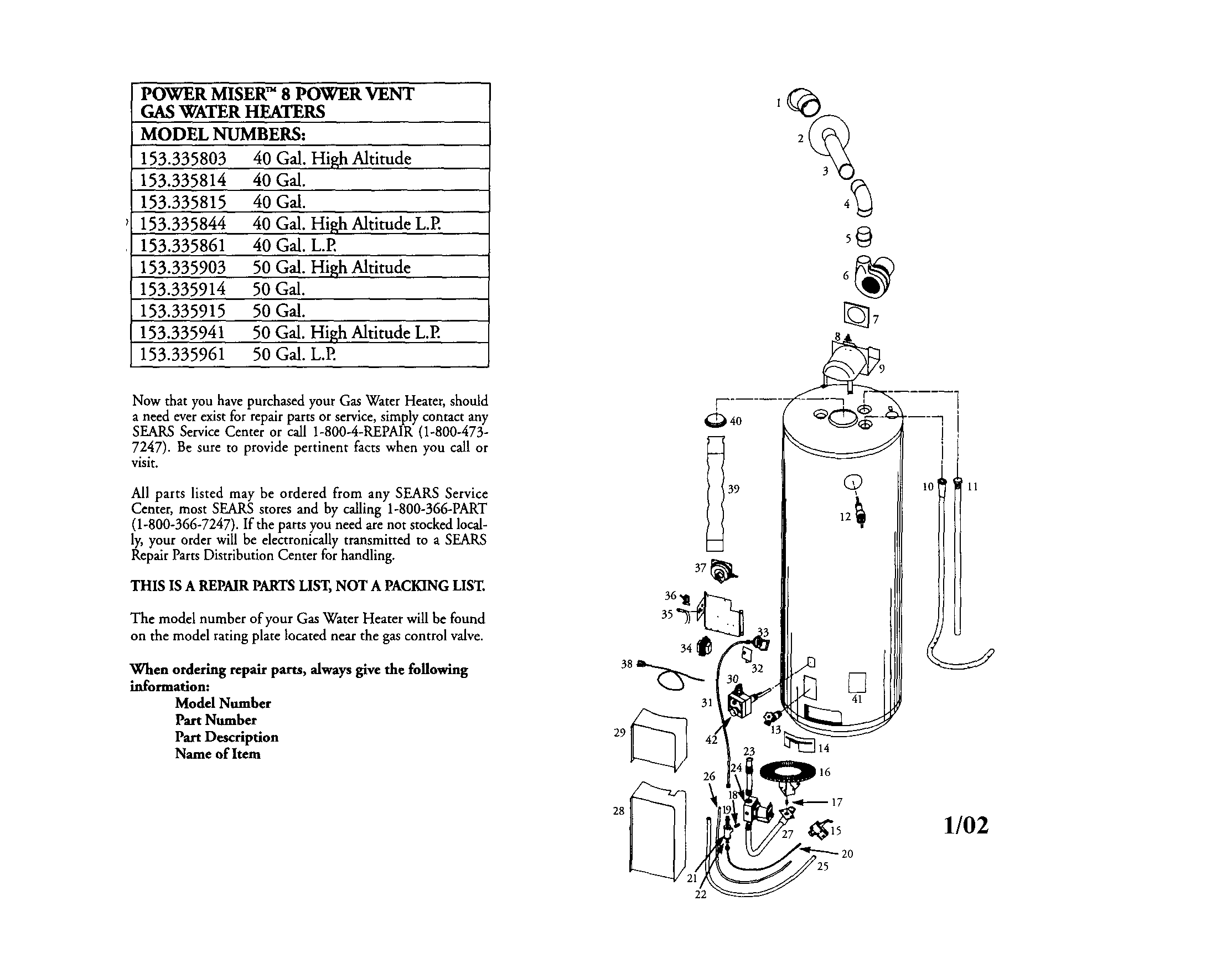

Gas water heater diagram
Thermocouple
Part #42-9231
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
Back Order
#19
Gas water heater diagram
Fitting
Part #9002146
This item is not returnable
$4.99
In Stock
#37
Gas water heater diagram
Water heater exhaust vent blower pressure switch
Part #9001976
$60.59 |
9% OFF Phone Price : $66.59
In Stock
#23A
Gas water heater diagram
Connector
Part #9002142
$10.49
In Stock
#33A
Gas water heater diagram
Pressure switch liquid propane
Part #9002152
$54.49
In Stock
#32
Gas water heater diagram
Bracket
Part #9001973
This item is not returnable
$2.29
In Stock
#39A
Gas water heater diagram
Flue baffle
Part #9001978
$13.99
In Stock
#22A
Gas water heater diagram
Fitting
Part #9002150
$10.49
In Stock
#18
Gas water heater diagram
Nipple
Part #9002147
This item is not returnable
$2.49
In Stock
#35
Gas water heater diagram
Light
Part #9001975
This item is not returnable
$5.49
In Stock
