Kenmore
Side-By-Side Refrigerator

Model # 1069432482 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 1069432482 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

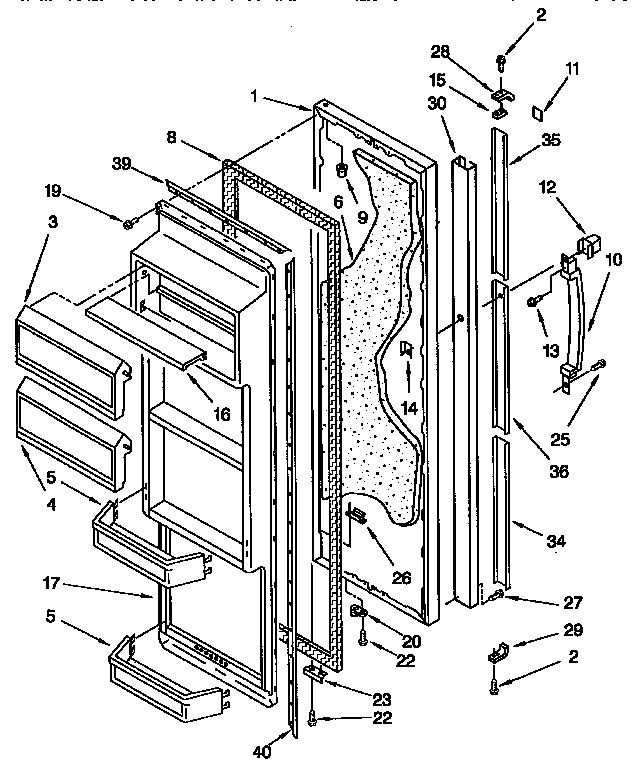

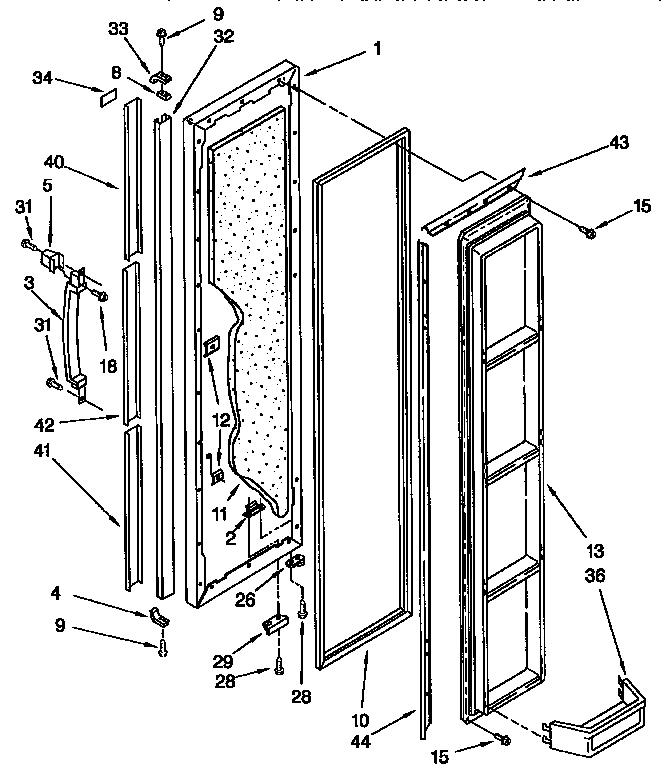

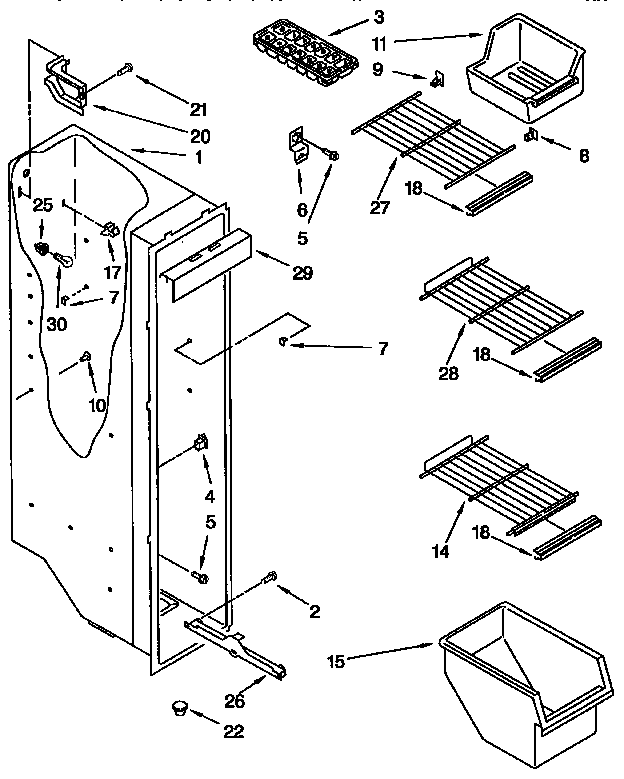

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 265 parts  |
Refrigerator Thermostat 2161284
#9

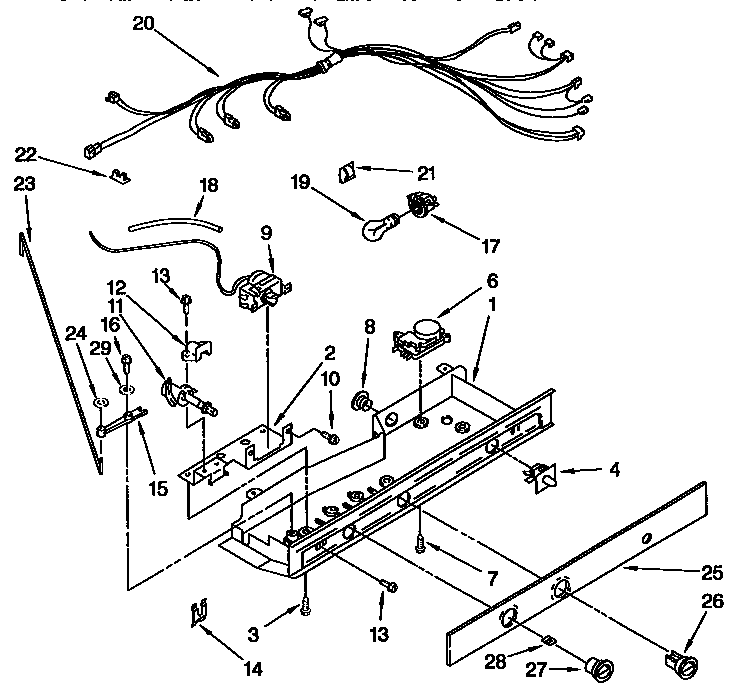

Control diagram

Refrigerator thermostat

Part #2161284

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2161284. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2161331
#35

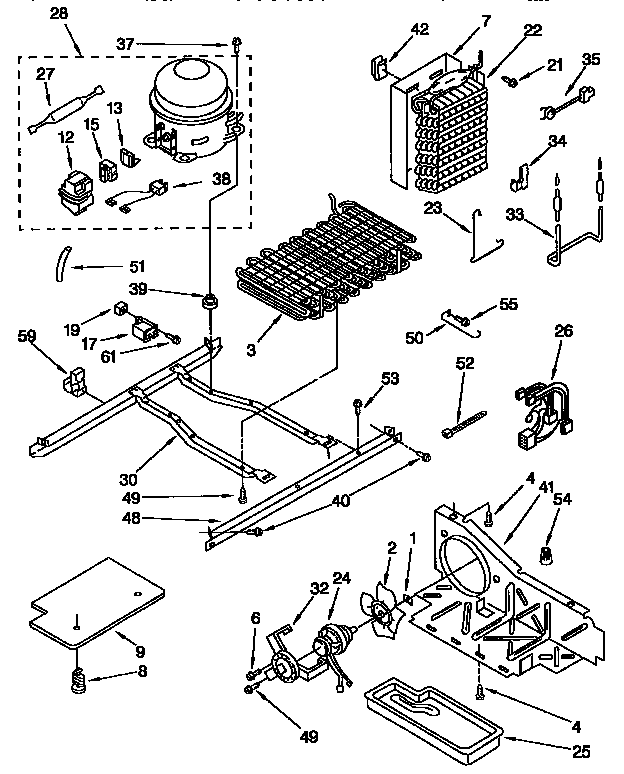

Unit diagram

Refrigerator defrost bi-metal

Part #2161331

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2161331. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Closer Cam 2155311
#54

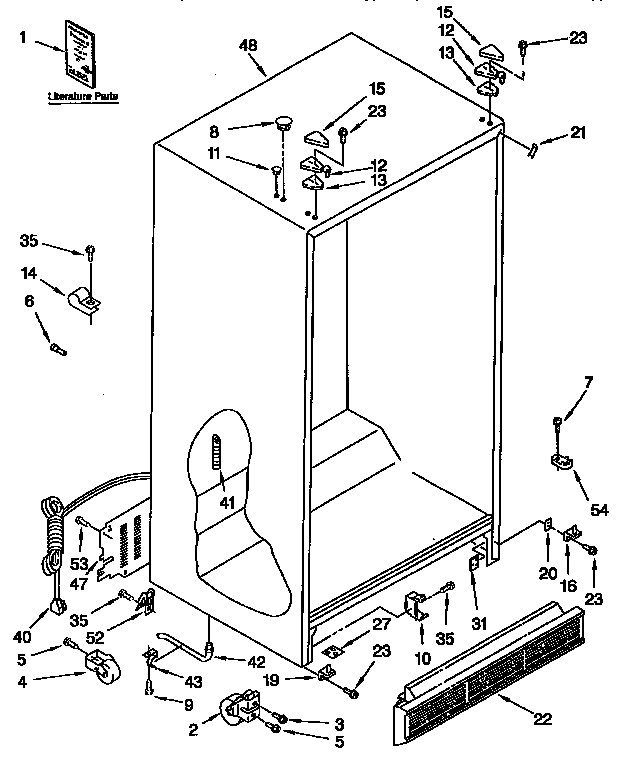

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Defrost Timer 2162046
#6

Control diagram

Refrigerator defrost timer

Part #2162046

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2162046. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

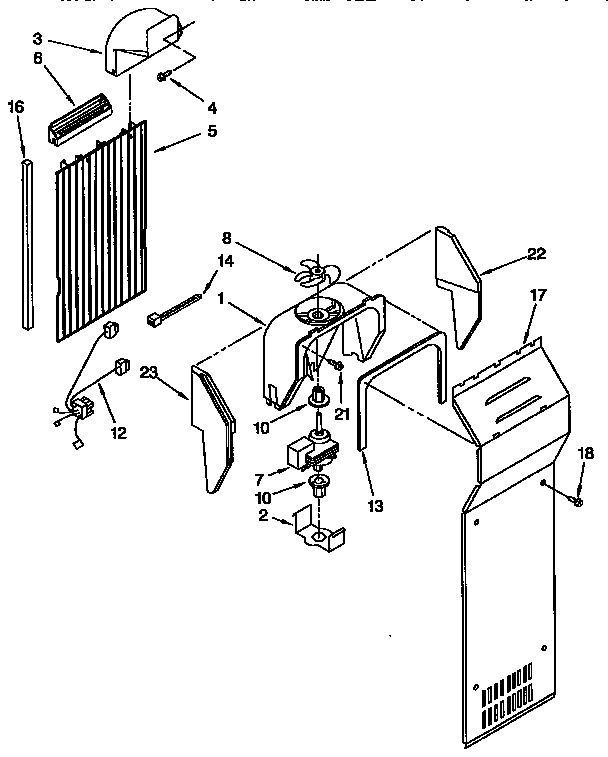

Air flow diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$37.11 |
14% OFF Phone Price : $43.11
In Stock
Refrigerator Compressor 2162354
#28

Unit diagram

Refrigerator compressor

Part #2162354

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2162354. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Diffuser 2161251
#24

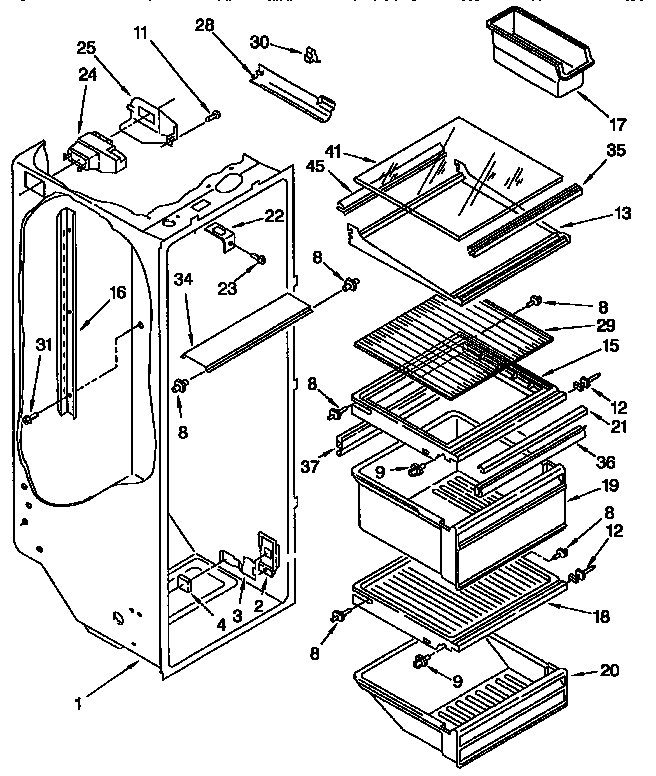

Refrigerator liner diagram

Refrigerator diffuser

Part #2161251

Replaced by #WPW10151374

?
Manufacturer substitution
This part replaces 2161251. Substitute parts can look different from the original.
BEST SELLER
$39.53 |
13% OFF Phone Price : $45.53
In Stock
Refrigerator Evaporator Motor 2149299
#7

Air flow diagram

Refrigerator evaporator motor

Part #2149299

Replaced by #4389144

?
Manufacturer substitution
This part replaces 2149299. Substitute parts can look different from the original.
BEST SELLER
$60.42 |
9% OFF Phone Price : $66.42
In Stock
Refrigerator Light Switch 1123923
#4

Control diagram

Refrigerator light switch

Part #1123923

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 1123923. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Refrigerator Evaporator 2164518
#22

Unit diagram

Refrigerator evaporator

Part #2164518

Replaced by #WP2188822

?
Manufacturer substitution
This part replaces 2164518. Substitute parts can look different from the original.
BEST SELLER
$245.88 |
5% OFF Phone Price : $257.88
In Stock
