KitchenAid
Range Hood

Model # KWCU205HWH1 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KWCU205HWH1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Screw 4360315
#6

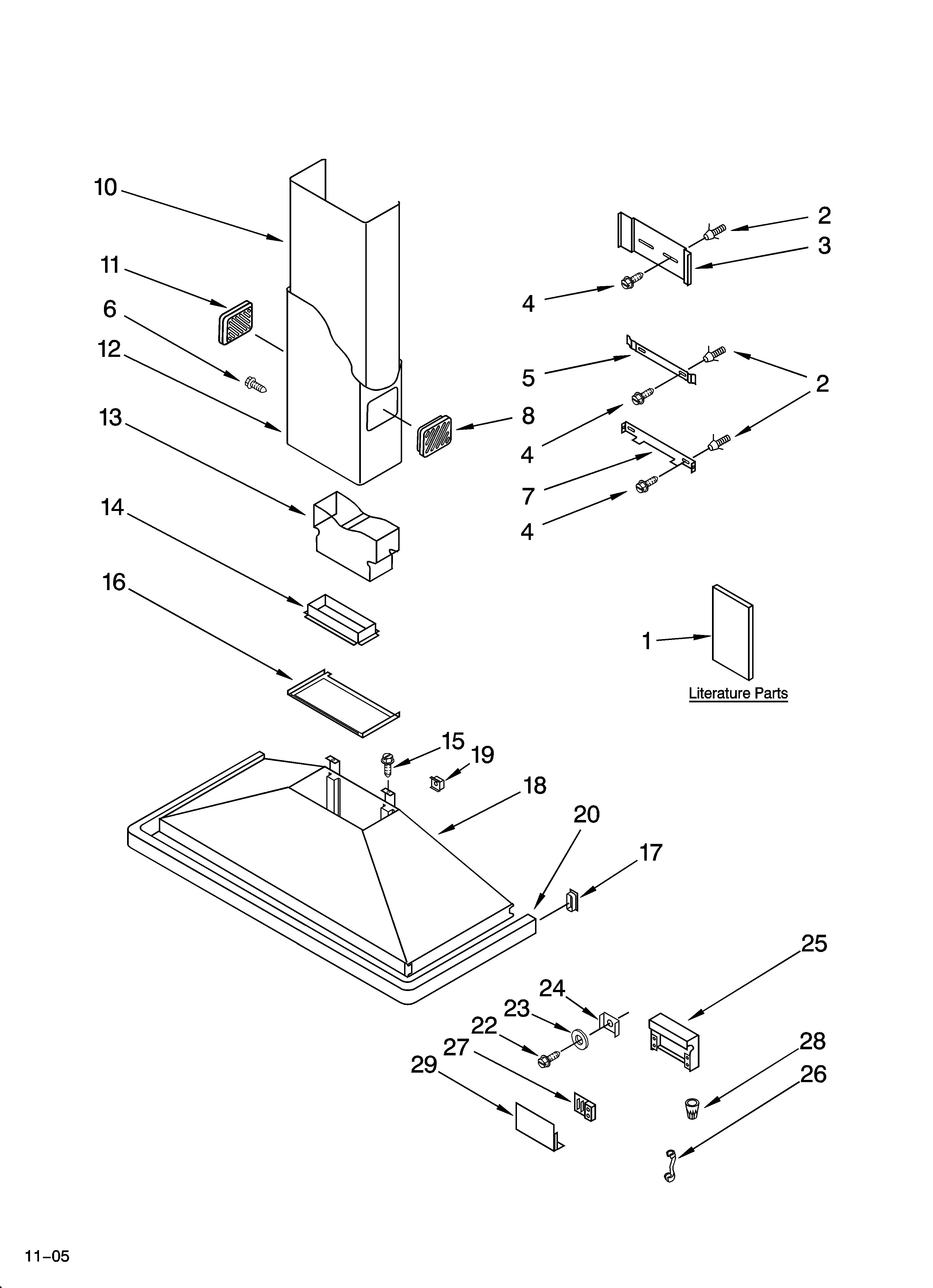

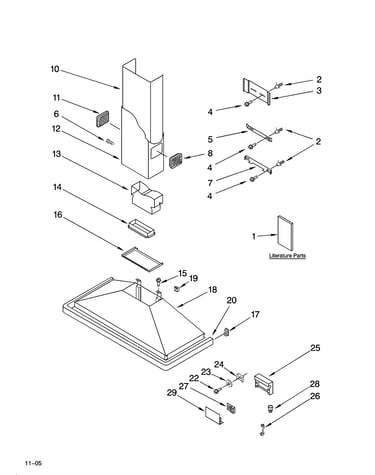

Hood parts diagram

Screw

Part #4360315

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4360315. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Grease Filter 4360265
#31

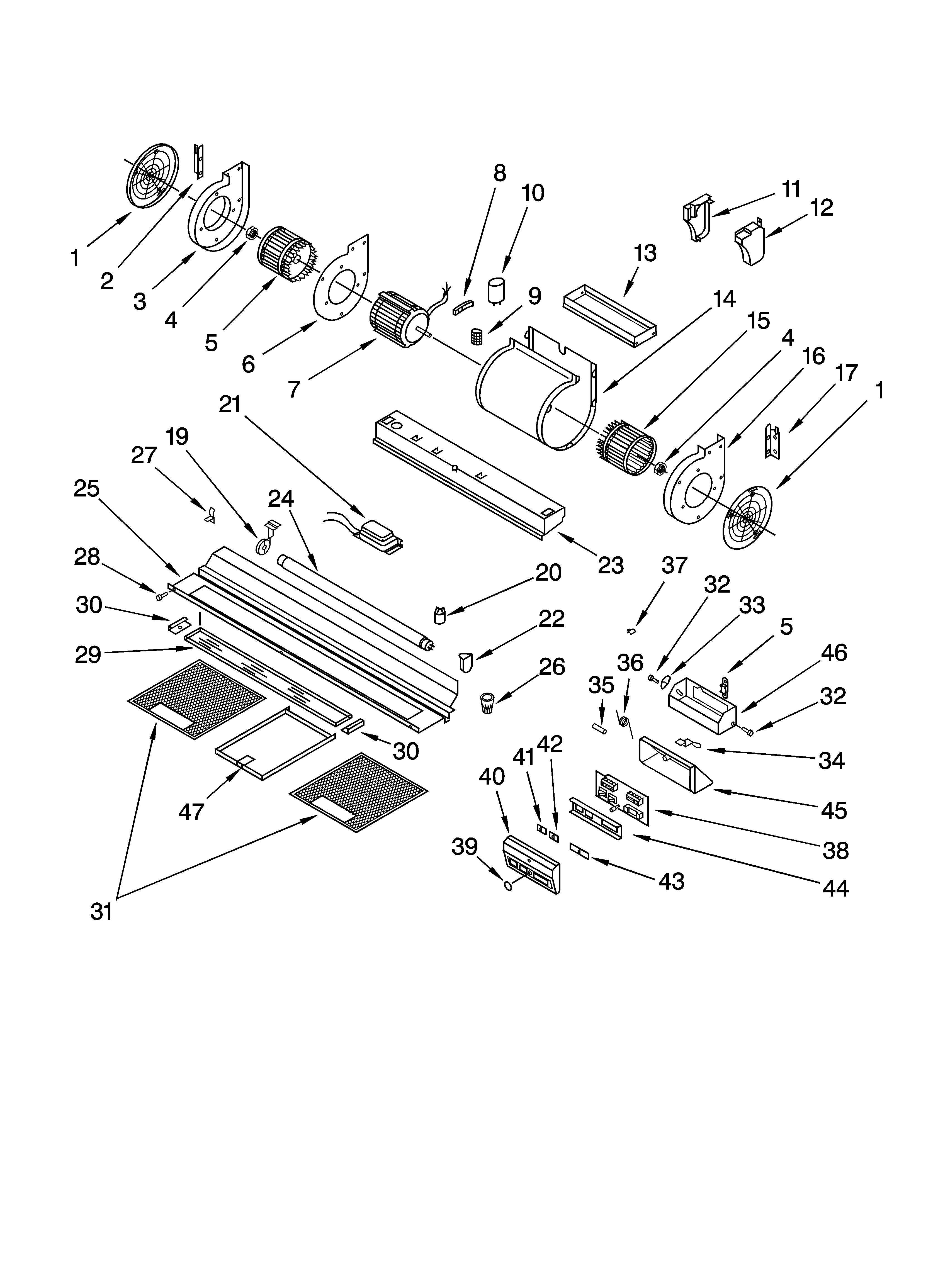

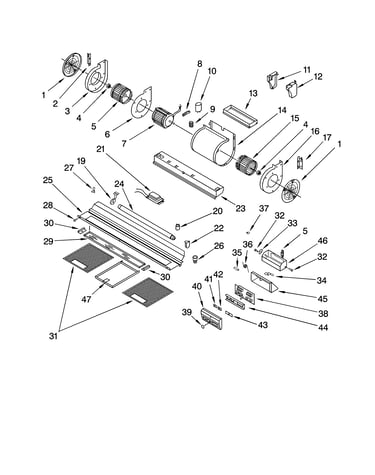

Ventilation parts diagram

Grease filter

Part #4360265

Replaced by #WPW10368696

?
Manufacturer substitution
This part replaces 4360265. Substitute parts can look different from the original.
$89.95 |
6% OFF Phone Price : $95.95
In Stock
Charcoal Filter 4378623
#NI

Ventilation parts diagram

Charcoal filter

Part #4378623

Replaced by #WP4396565

?
Manufacturer substitution
This part replaces 4378623. Substitute parts can look different from the original.
$131.59 |
8% OFF Phone Price : $143.59
In Stock
Case Assembly 4360425
#18B

Hood parts diagram

Case assembly

Part #4360425

The manufacturer no longer makes this part, and there's no substitute part

Grille 4360332
#8A

Hood parts diagram

Grille

Part #4360332

The manufacturer no longer makes this part, and there's no substitute part

Pipe Fitting 4360372
#12E

Hood parts diagram

Pipe fitting

Part #4360372

The manufacturer no longer makes this part, and there's no substitute part

Terminal 4360176
#9

Ventilation parts diagram

Terminal

Part #4360176

The manufacturer no longer makes this part, and there's no substitute part

Support 4360422
#47B

Ventilation parts diagram

Support

Part #4360422

The manufacturer no longer makes this part, and there's no substitute part

Support 4360297
#23

Ventilation parts diagram

Support

Part #4360297

The manufacturer no longer makes this part, and there's no substitute part

Fan Wheel 4360187
#5

Ventilation parts diagram

Fan wheel

Part #4360187

The manufacturer no longer makes this part, and there's no substitute part
