Speed Queen
Trash Compactor

Model # DK5030 Official Speed Queen thrift-o-matic water softener

Here are the diagrams and repair parts for Official Speed Queen DK5030 thrift-o-matic water softener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

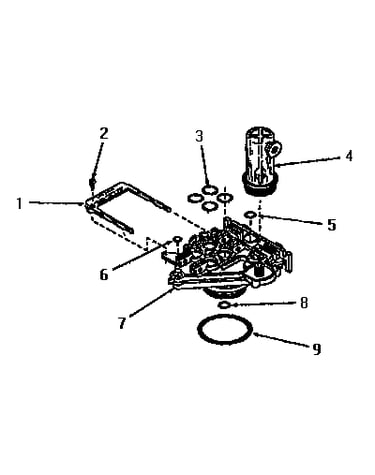

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Phillips Head Screw 70377
#2

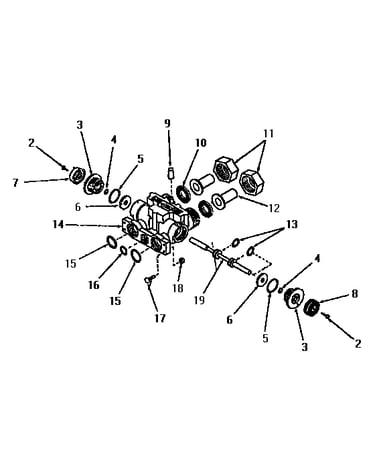

70394 by-pass valve diagram

Phillips head screw

Part #70377

The manufacturer no longer makes this part, and there's no substitute part

Gasket 70387
#10

70394 by-pass valve diagram

Gasket

Part #70387

The manufacturer no longer makes this part, and there's no substitute part

Monogram 70398
#5

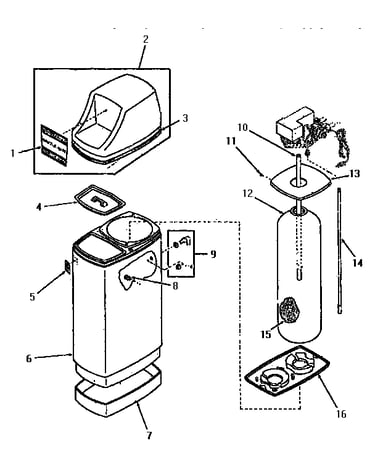

Cabinet, resin tank, control, tank adapter & by-pass valve diagram

Monogram

Part #70398

The manufacturer no longer makes this part, and there's no substitute part

Backwash Control (no. 8) 70412
#5

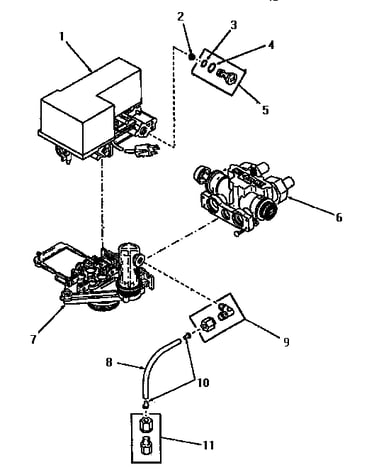

Control, tank adapter and by-pass valve diagram

Backwash control (no. 8)

Part #70412

The manufacturer no longer makes this part, and there's no substitute part

Bottom Retainer 70321
#16

Cabinet, resin tank, control, tank adapter & by-pass valve diagram

Bottom retainer

Part #70321

The manufacturer no longer makes this part, and there's no substitute part

Connector 70328
#11

Control, tank adapter and by-pass valve diagram

Connector

Part #70328

The manufacturer no longer makes this part, and there's no substitute part

Timer (supercedes 70365 Timer And All Component Parts) 70430
#3

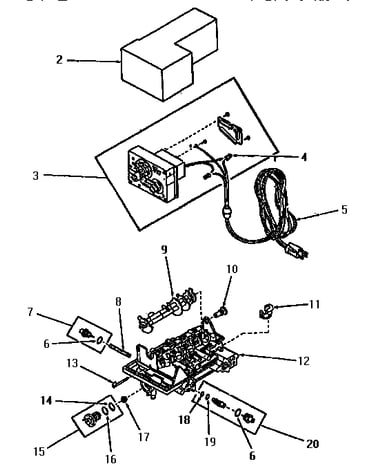

70364 control module diagram

Timer (supercedes 70365 timer and all component parts)

Part #70430

The manufacturer no longer makes this part, and there's no substitute part

Cam Shaft 70351
#9

70364 control module diagram

Cam shaft

Part #70351

The manufacturer no longer makes this part, and there's no substitute part

Spring 70436
#1

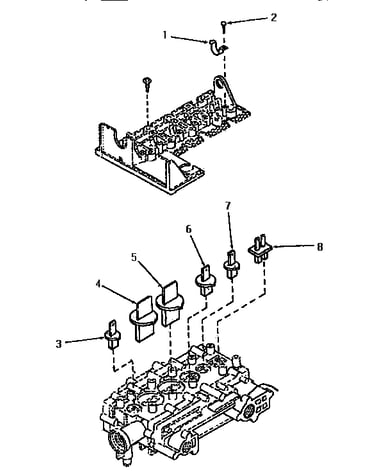

70354 control body diagram

Spring

Part #70436

The manufacturer no longer makes this part, and there's no substitute part

Drain Tubing (not Included In Kits, Order By The Foot) 70408
#2

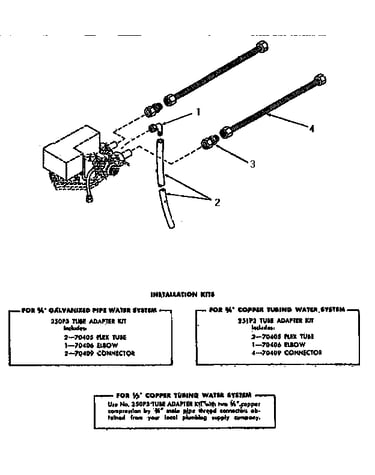

Accessories diagram

Drain tubing (not included in kits, order by the foot)

Part #70408

The manufacturer no longer makes this part, and there's no substitute part
