Model # WAW285H2UC/09 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAW285H2UC-09 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Washer Door Lock (replaces 00635514) 10000916
#211

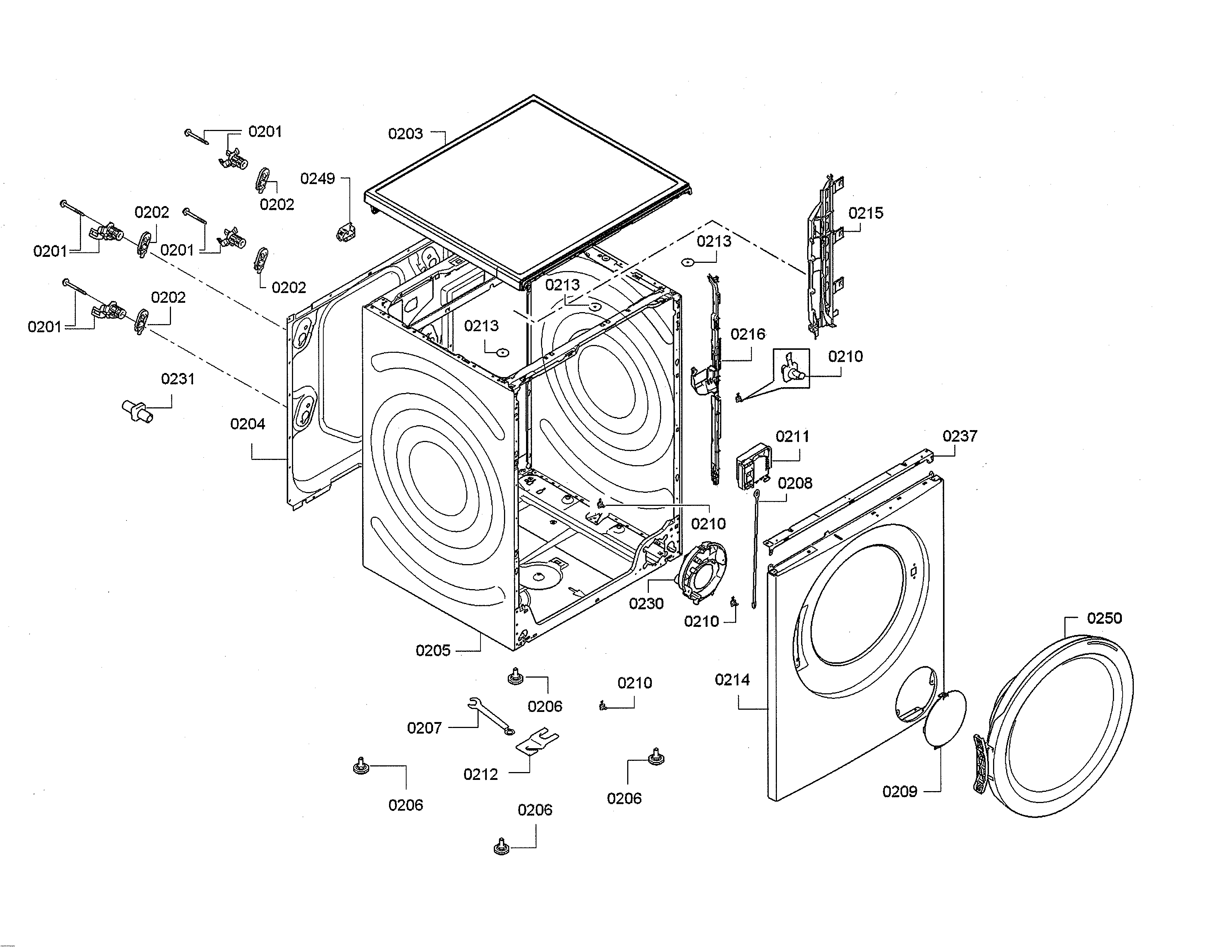

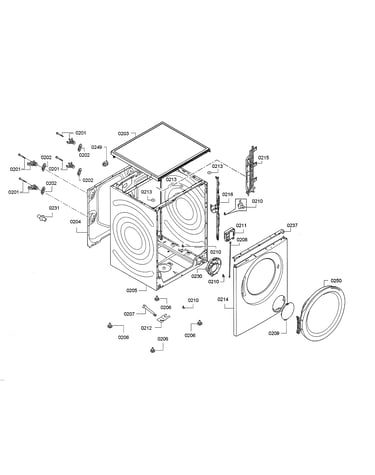

Cabinet diagram

Washer door lock (replaces 00635514)

Part #10000916

$54.79 |
10% OFF Phone Price : $60.79
In Stock
Washer Drain Hose 00656689
#419

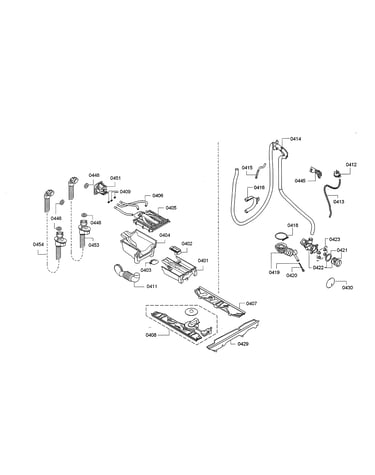

Base/pump-drain/dispenser diagram

Washer drain hose

Part #00656689

$29.49 |
17% OFF Phone Price : $35.49
In Stock
Washer Door Boot Spring Clamp 00670743
#314

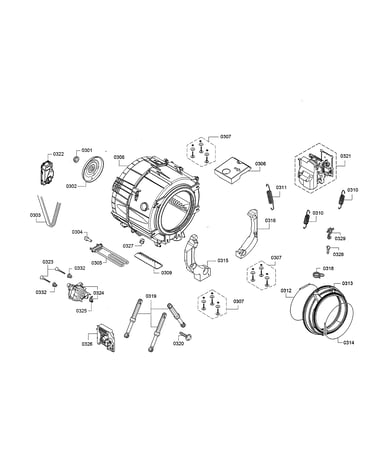

Drum/motor/power module diagram

Washer door boot spring clamp

Part #00670743

$16.63
In Stock
Hose 11006030
#414

Base/pump-drain/dispenser diagram

Hose

Part #11006030

$46.47 |
11% OFF Phone Price : $52.47
In Stock
Washer Door Glass 00675797
#221

Cabinet diagram

Washer door glass

Part #00675797

Replaced by #00742712

?
Manufacturer substitution
This part replaces 00675797. Substitute parts can look different from the original.
$75.19 |
7% OFF Phone Price : $81.19
In Stock
Washer Door Boot Spring Clamp 00702576
#312

Drum/motor/power module diagram

Washer door boot spring clamp

Part #00702576

$7.00 |
13% OFF Phone Price : $8.00
In Stock
Washer Drain Pump Filter (replaces 00605010) 00647920
#421

Base/pump-drain/dispenser diagram

Washer drain pump filter (replaces 00605010)

Part #00647920

This item is not returnable
$28.99 |
17% OFF Phone Price : $34.99
In Stock
Pressure Sensor 00627460
#412

Base/pump-drain/dispenser diagram

Pressure sensor

Part #00627460

$43.62
In Stock
Harness 00635464
#505

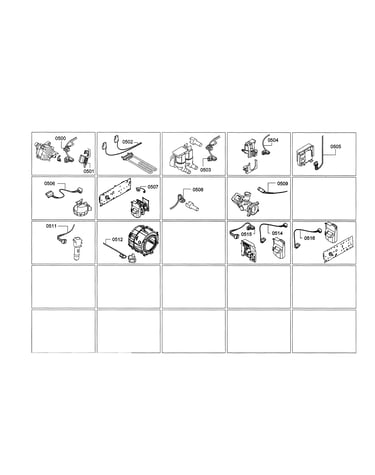

Cable harness diagram

Harness

Part #00635464

This item is not returnable
$30.78
In Stock
Washer Leveling Leg 00610643
#206

Cabinet diagram

Washer leveling leg

Part #00610643

This item is not returnable
$19.89
In Stock
