Frigidaire
Top-Mount Refrigerator

Model # FRT17B3AW6 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT17B3AW6 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Refrigerator Filter Drier 218944001
#4

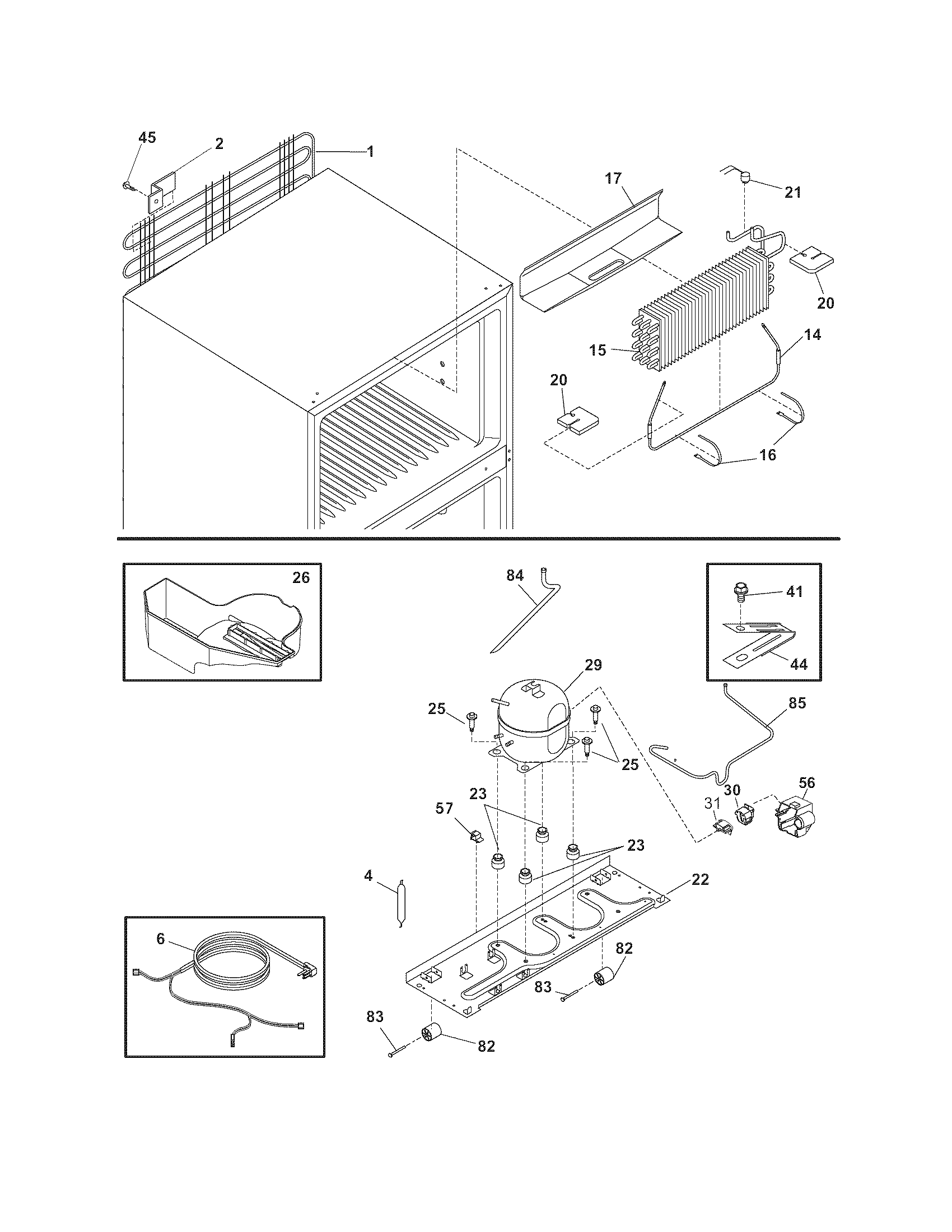

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Door Shelf Rail 240535101
#4

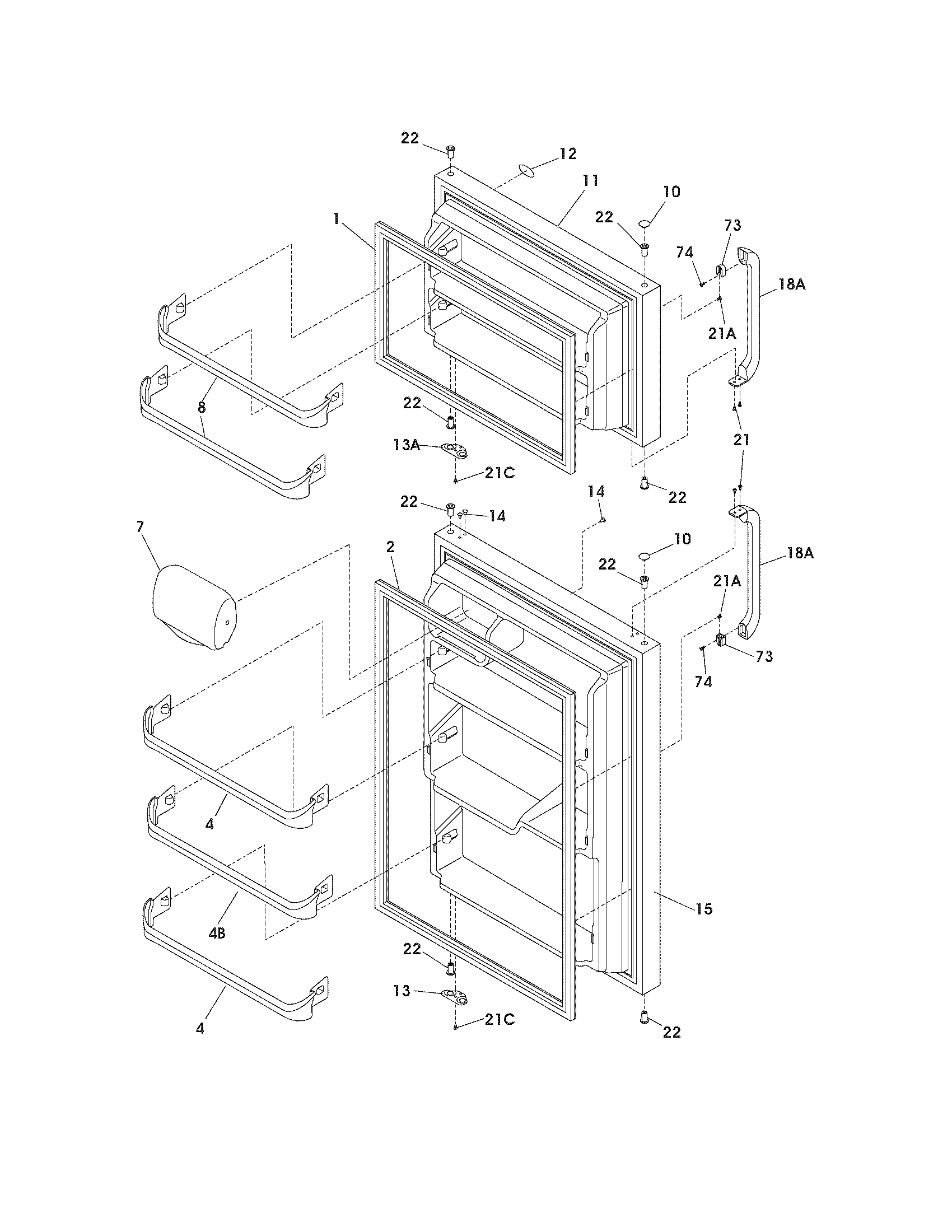

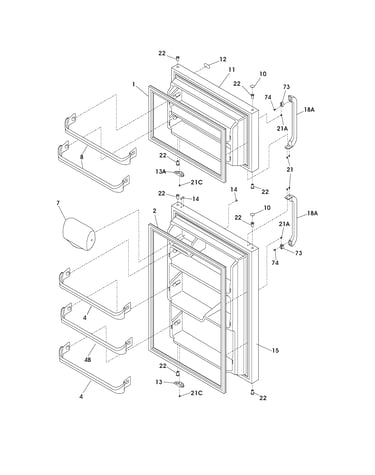

Door diagram

Refrigerator door shelf rail

Part #240535101

BEST SELLER
$31.06 |
16% OFF Phone Price : $37.06
In Stock
Refrigerator Evaporator Motor 240369702
#13

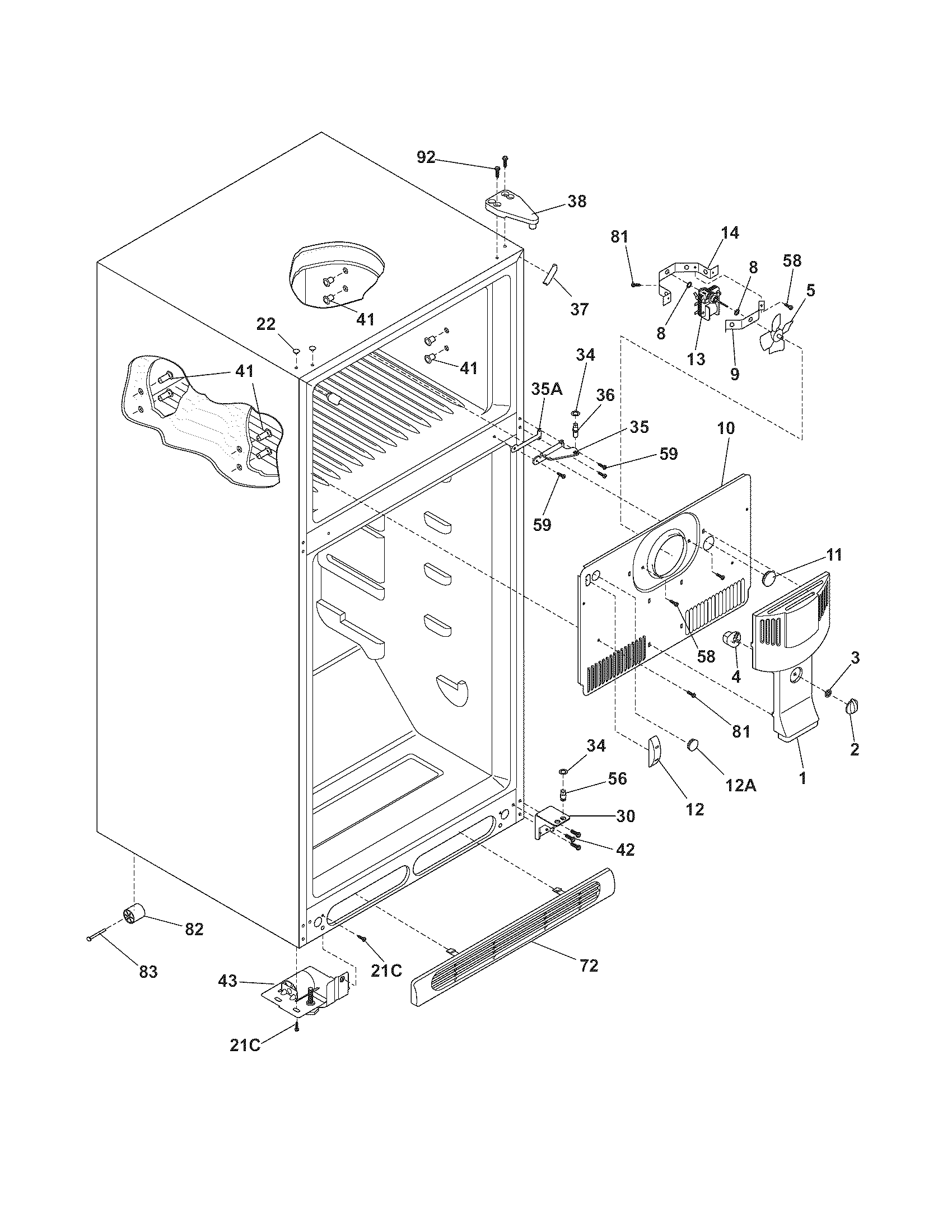

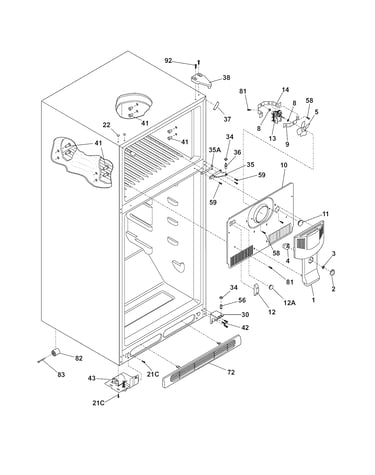

Cabinet diagram

Refrigerator evaporator motor

Part #240369702

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369702. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Defrost Timer 241621501
#23

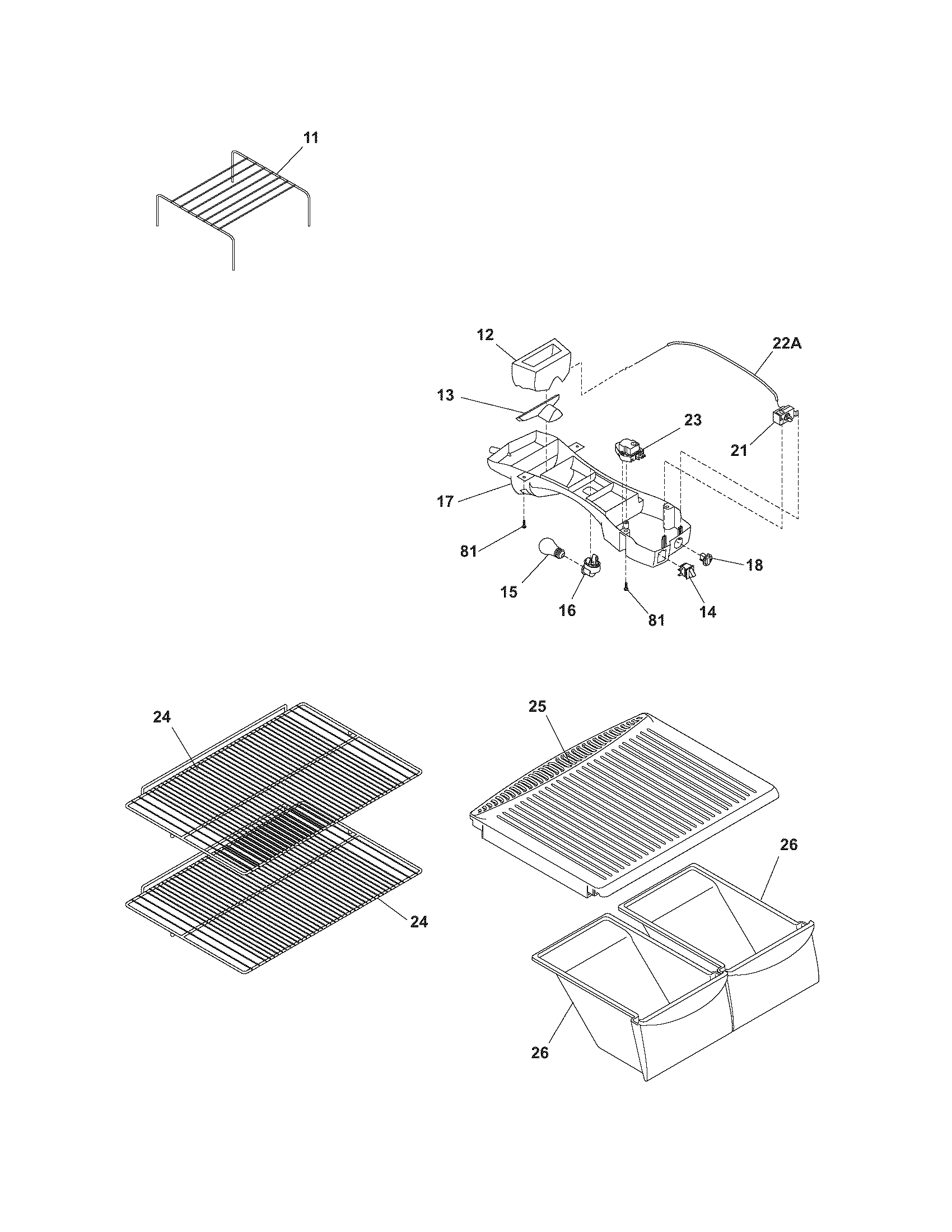

Shelves diagram

Refrigerator defrost timer

Part #241621501

Replaced by #215846602

?
Manufacturer substitution
This part replaces 241621501. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Door Shelf Rail 240535201
#4B

Door diagram

Refrigerator door shelf rail

Part #240535201

BEST SELLER
$35.99 |
14% OFF Phone Price : $41.99
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
Refrigerator Freezer Door Handle Screw 240383401
#21

Door diagram

Refrigerator freezer door handle screw

Part #240383401

Replaced by #5304515677

?
Manufacturer substitution
This part replaces 240383401. Substitute parts can look different from the original.
BEST SELLER
$8.79 |
10% OFF Phone Price : $9.79
In Stock
Refrigerator Door Hinge Bushing 240527101
#22

Door diagram

Refrigerator door hinge bushing

Part #240527101

Replaced by #5304507146

?
Manufacturer substitution
This part replaces 240527101. Substitute parts can look different from the original.
BEST SELLER
$6.65 |
13% OFF Phone Price : $7.65
In Stock
Screw 240521301
#21A

Door diagram

Screw

Part #240521301

Replaced by #240521303

?
Manufacturer substitution
This part replaces 240521301. Substitute parts can look different from the original.
BEST SELLER
$14.79 |
12% OFF Phone Price : $16.79
In Stock
