Model # 1037136304 Official Kenmore 30" gas range
Here are the diagrams and repair parts for Official Kenmore 1037136304 30" gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for1037136304 Ranges
- #92B

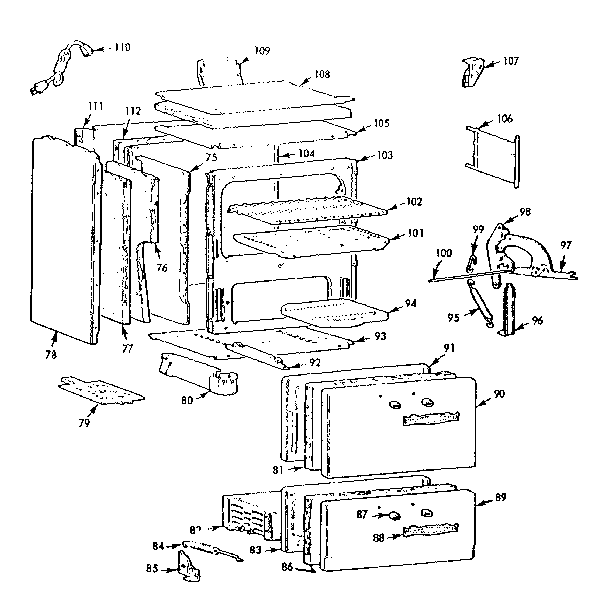

Body section diagram
Drawer guidePart #97820
This item is not returnable$3.99In Stock - #124

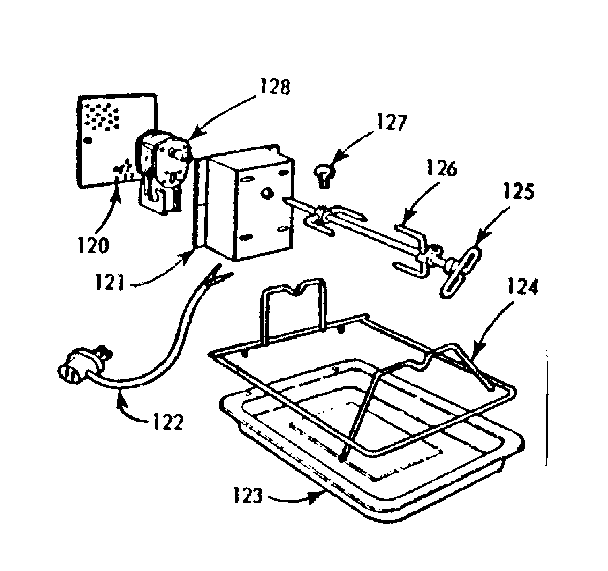

Optional equipment-oven rotisserie diagram
FramePart #75857
The manufacturer no longer makes this part, and there's no substitute part
- #102
Body section diagram
Oven rackPart #87004
The manufacturer no longer makes this part, and there's no substitute part
- #94
Body section diagram
Broiler panPart #97837
The manufacturer no longer makes this part, and there's no substitute part
- #96
Body section diagram
HangerPart #70400
The manufacturer no longer makes this part, and there's no substitute part
- #7

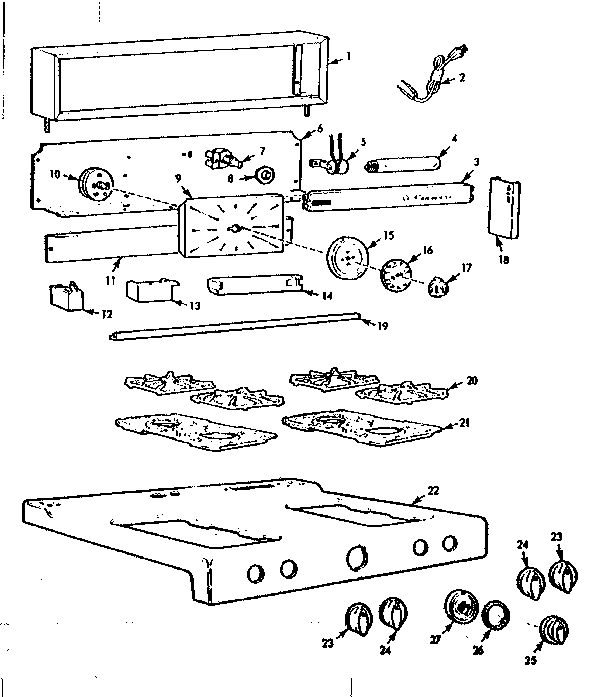

Backguard & maintop diagram
Push switchPart #89977
The manufacturer no longer makes this part, and there's no substitute part
- #5
Backguard & maintop diagram
Lamp holderPart #99570
The manufacturer no longer makes this part, and there's no substitute part
- #27
Backguard & maintop diagram
Therm bezelPart #72755
The manufacturer no longer makes this part, and there's no substitute part
- #25
Backguard & maintop diagram
Thermostat knobPart #88080
The manufacturer no longer makes this part, and there's no substitute part
- #50A

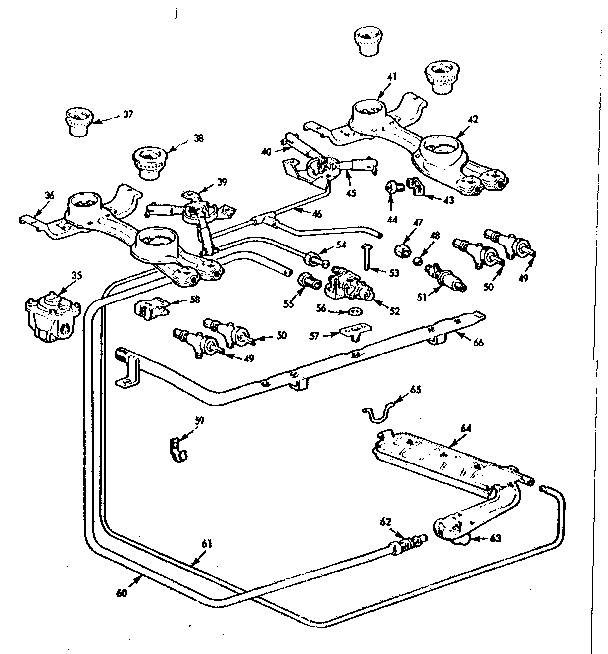

Burner section diagram
Gas valvePart #73265
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Beeping oven driving you nuts? Find out what your oven is trying to tell you.…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
