Fisher & Paykel
Washer

Model # WL4227P1-96207-A Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel WL4227P1-96207-A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Fisher & Paykel Washer Agitator Cap And Bolt 421040P
#1

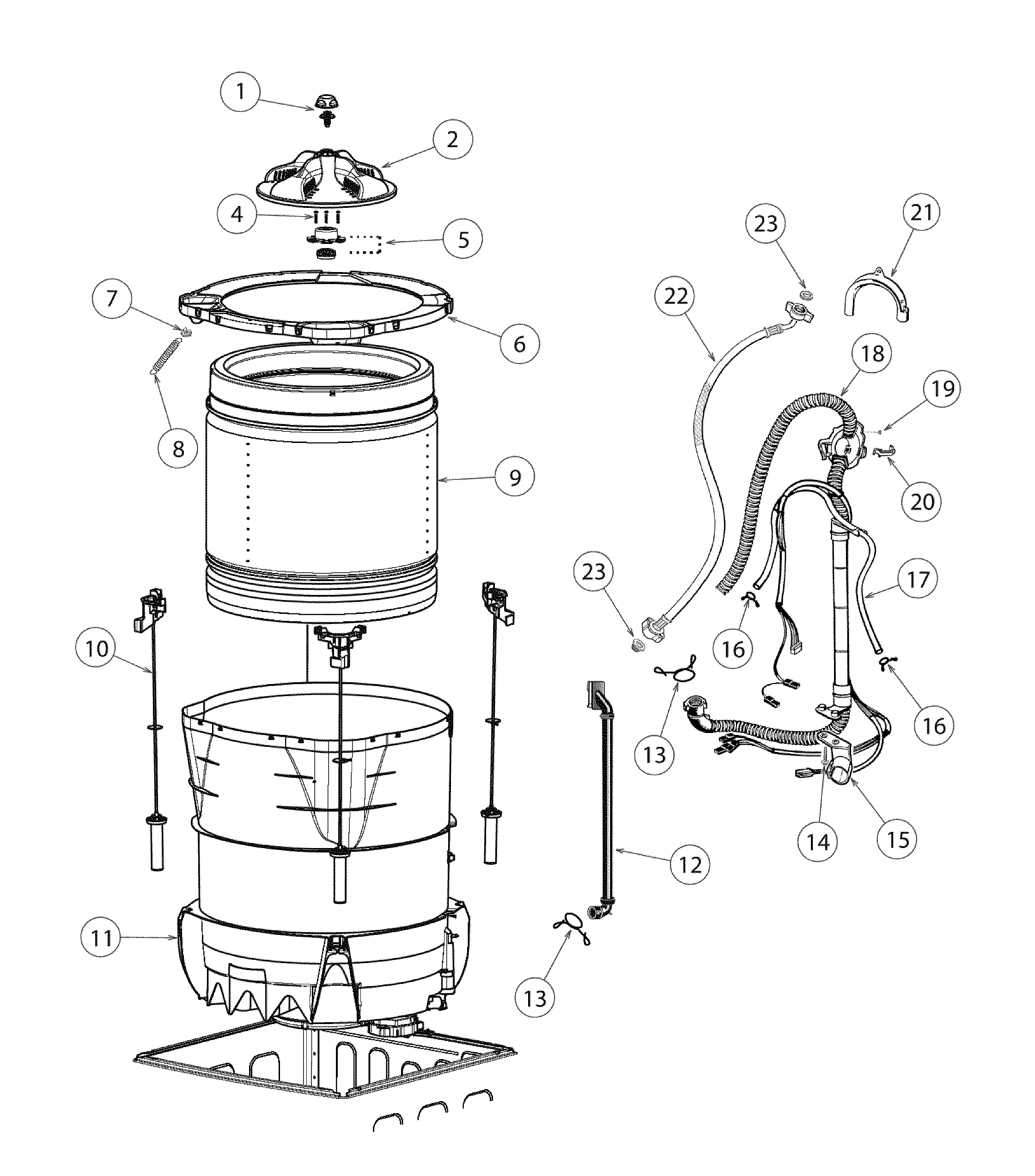

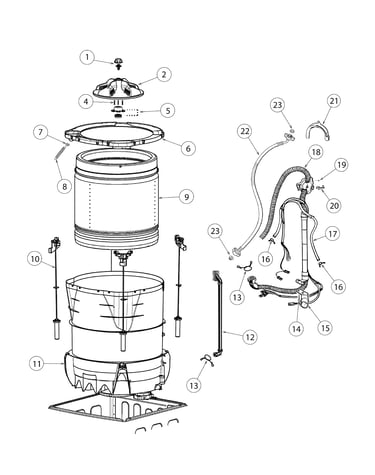

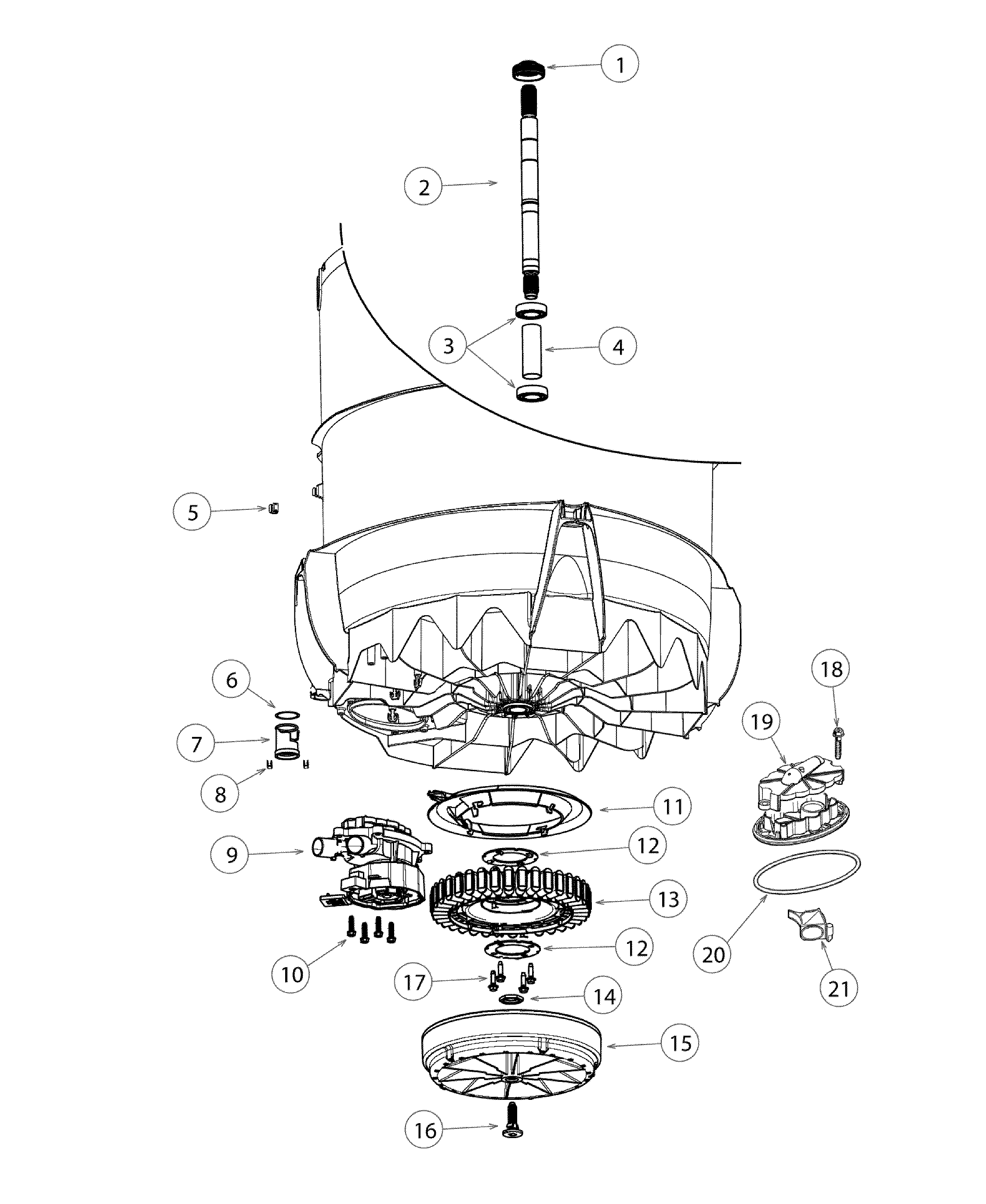

Inner & outer bowl diagram

Fisher & paykel washer agitator cap and bolt

Part #421040P

This item is not returnable
$22.91 |
21% OFF Phone Price : $28.91
In Stock
Fisher & Paykel Washer Tub Fill Nozzle 420833P
#25

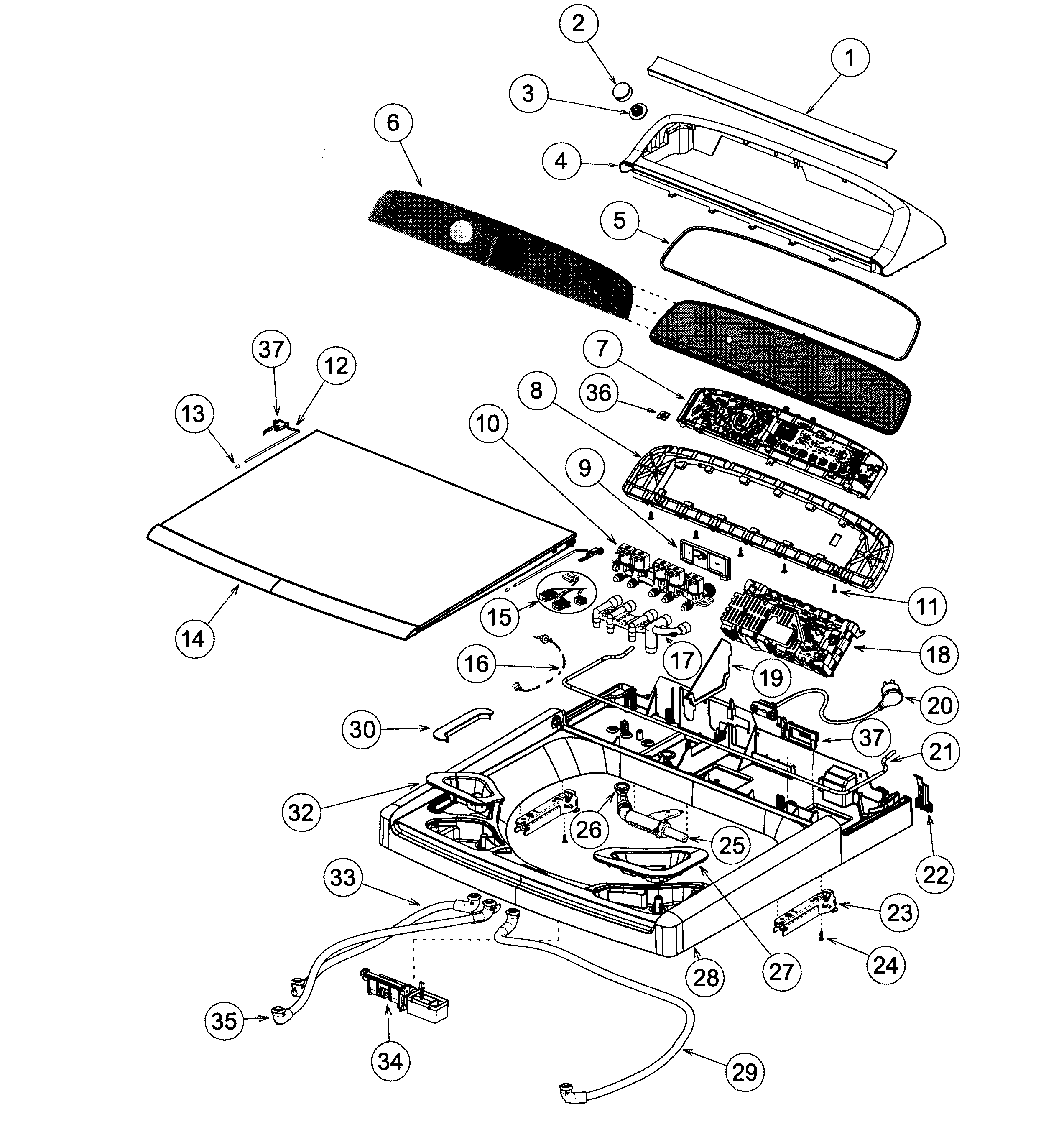

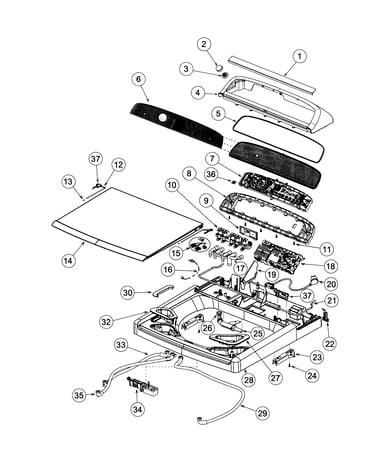

Top deck assy diagram

Fisher & paykel washer tub fill nozzle

Part #420833P

$55.45 |
10% OFF Phone Price : $61.45
In Stock
Fisher & Paykel Washer Drain Pump Bellows O-ring 425149
#6

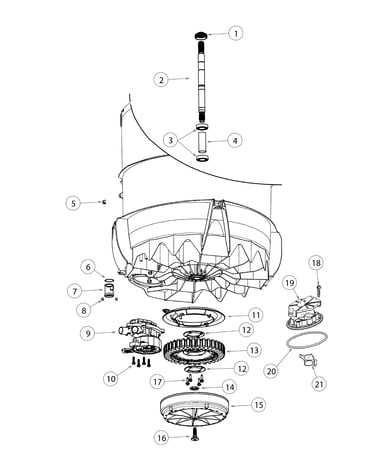

Motor,pump & drive diagram

Fisher & paykel washer drain pump bellows o-ring

Part #425149

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Sound Pad 424142
#4

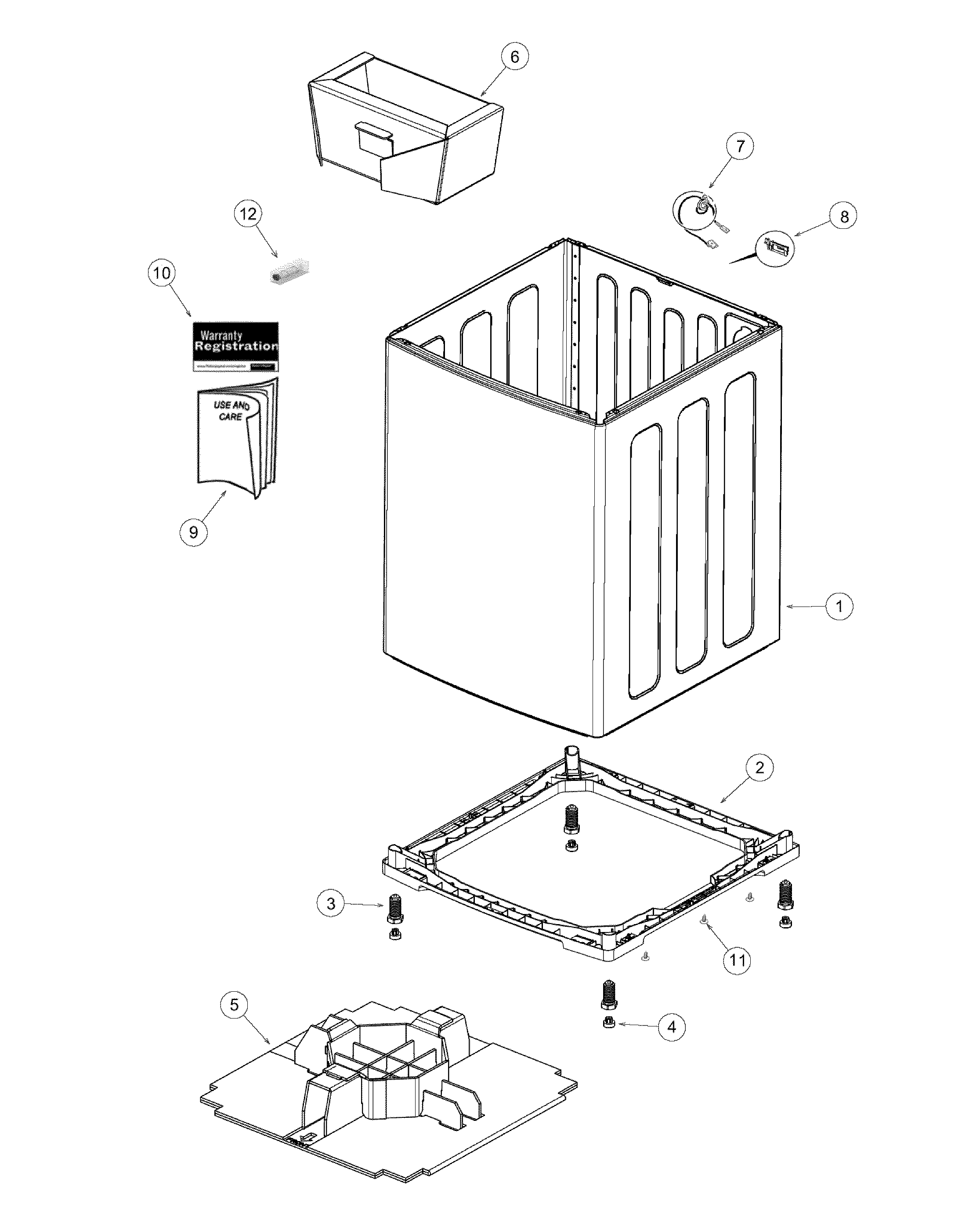

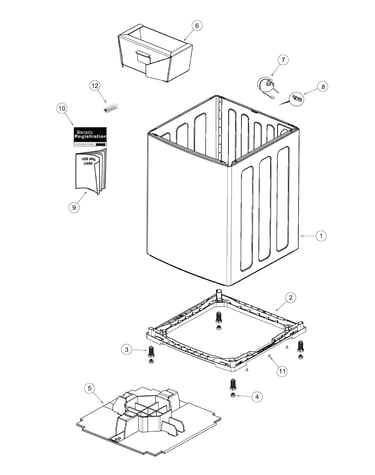

Wrapper diagram

Sound pad

Part #424142

$7.99
In Stock
Fisher & Paykel Fisher & Paykel Hinge 421952
#23

Top deck assy diagram

Fisher & paykel fisher & paykel hinge

Part #421952

$50.95 |
11% OFF Phone Price : $56.95
In Stock
Bleach Cover 421965
#27

Top deck assy diagram

Bleach cover

Part #421965

$11.49
In Stock
Fisher & Paykel Hood And Cap (smartpump) Kit 479418
#19

Motor,pump & drive diagram

Fisher & paykel hood and cap (smartpump) kit

Part #479418

$16.20 |
11% OFF Phone Price : $18.20
In Stock
Fisher & Paykel Dial 424224
#2

Top deck assy diagram

Fisher & paykel dial

Part #424224

$33.10 |
15% OFF Phone Price : $39.10
In Stock
Gasket Control 426071
#21

Top deck assy diagram

Gasket control

Part #426071

This item is not returnable
$6.99
In Stock
Fisher & Paykel Fisher & Paykel Arm 424359
#13

Top deck assy diagram

Fisher & paykel fisher & paykel arm

Part #424359

This item is not returnable
$7.15 |
12% OFF Phone Price : $8.15
In Stock
