Model # PVWS600LY0 Official Whirlpool personal valet

Here are the diagrams and repair parts for Official Whirlpool PVWS600LY0 personal valet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

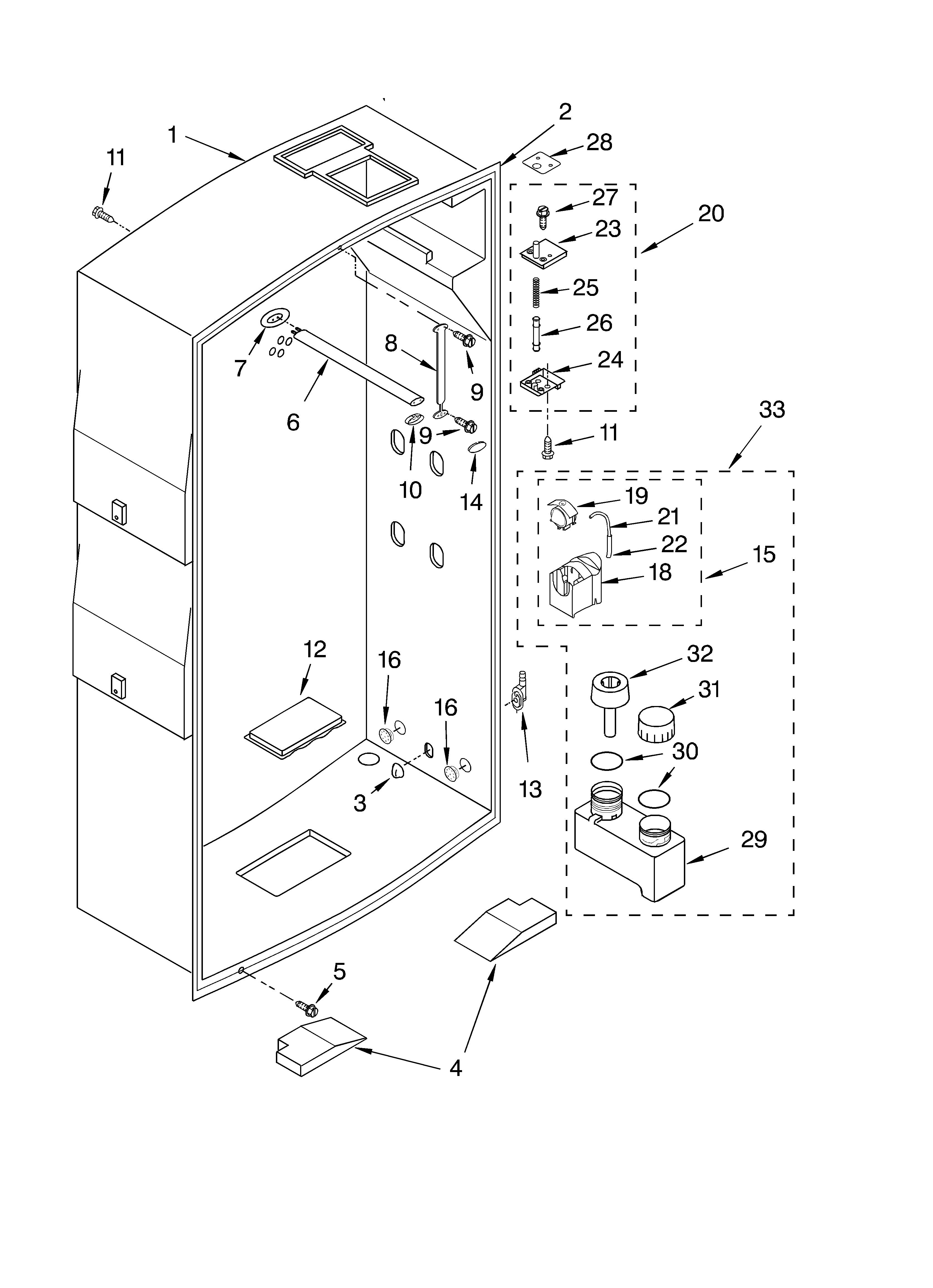

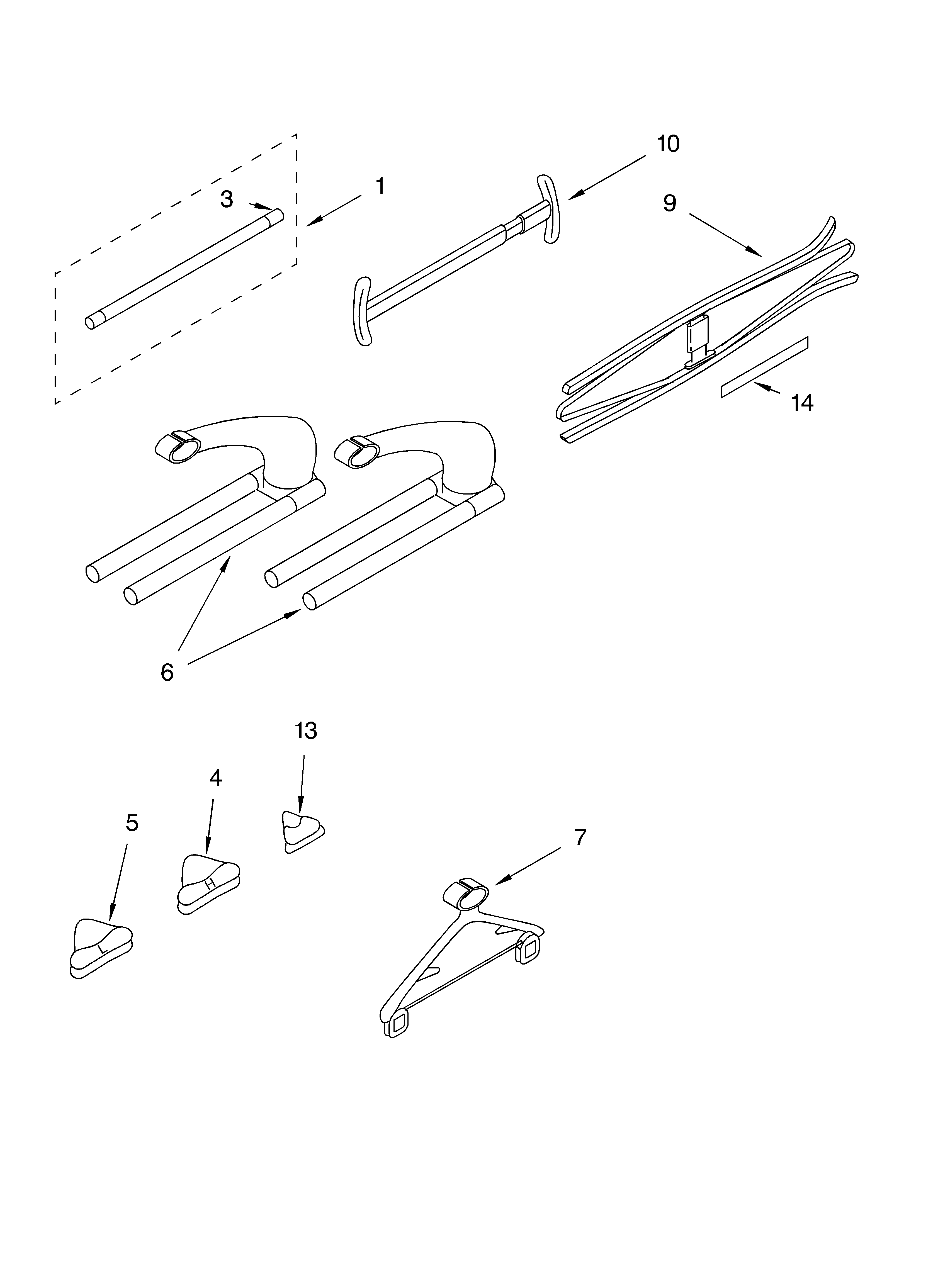

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Clamp 8526325
#22

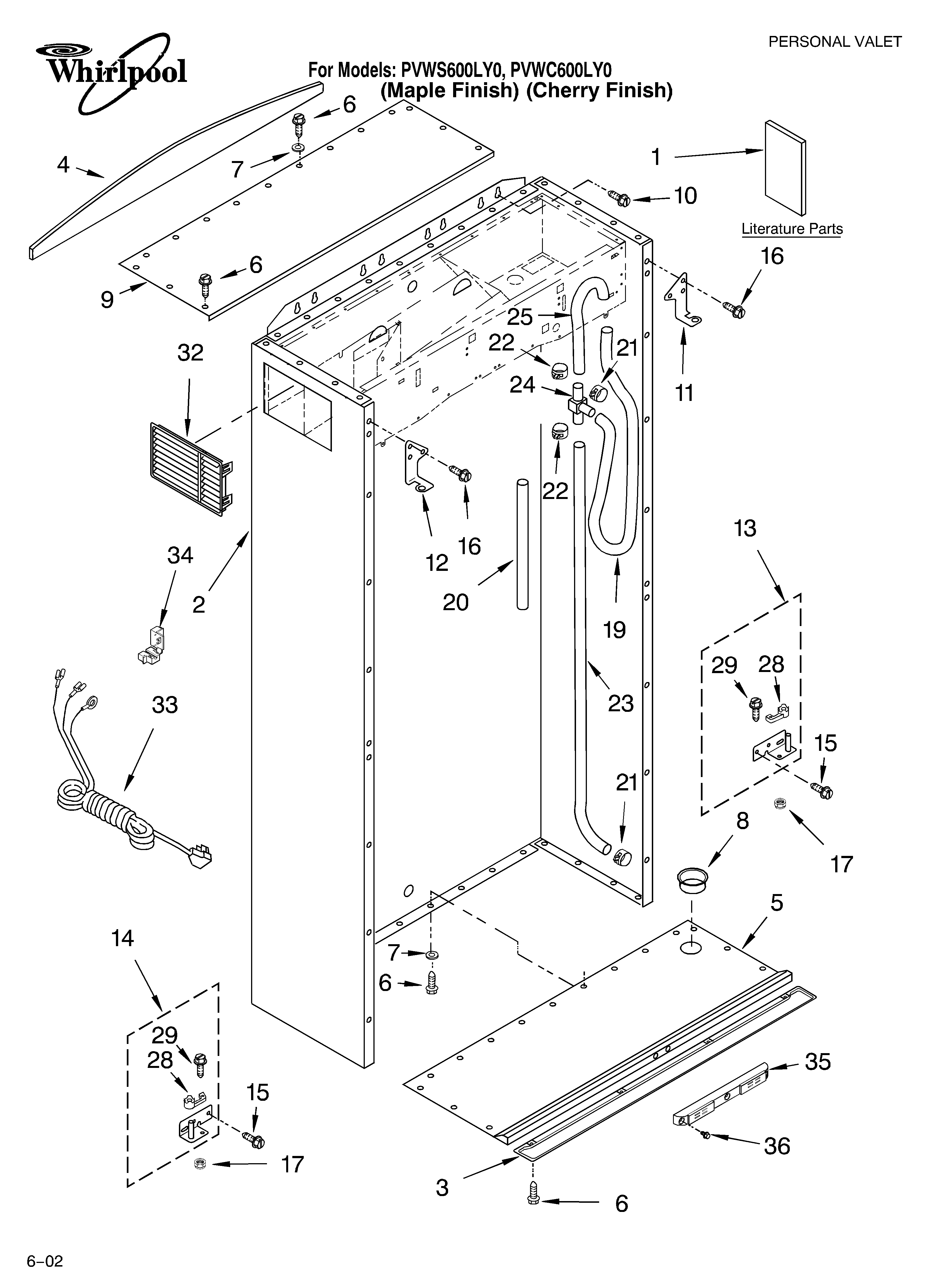

Cabinet/literature diagram

Clamp

Part #8526325

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 8526325. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 8526324
#21

Cabinet/literature diagram

Clamp

Part #8526324

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 8526324. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Appliance Screw 304392
#2

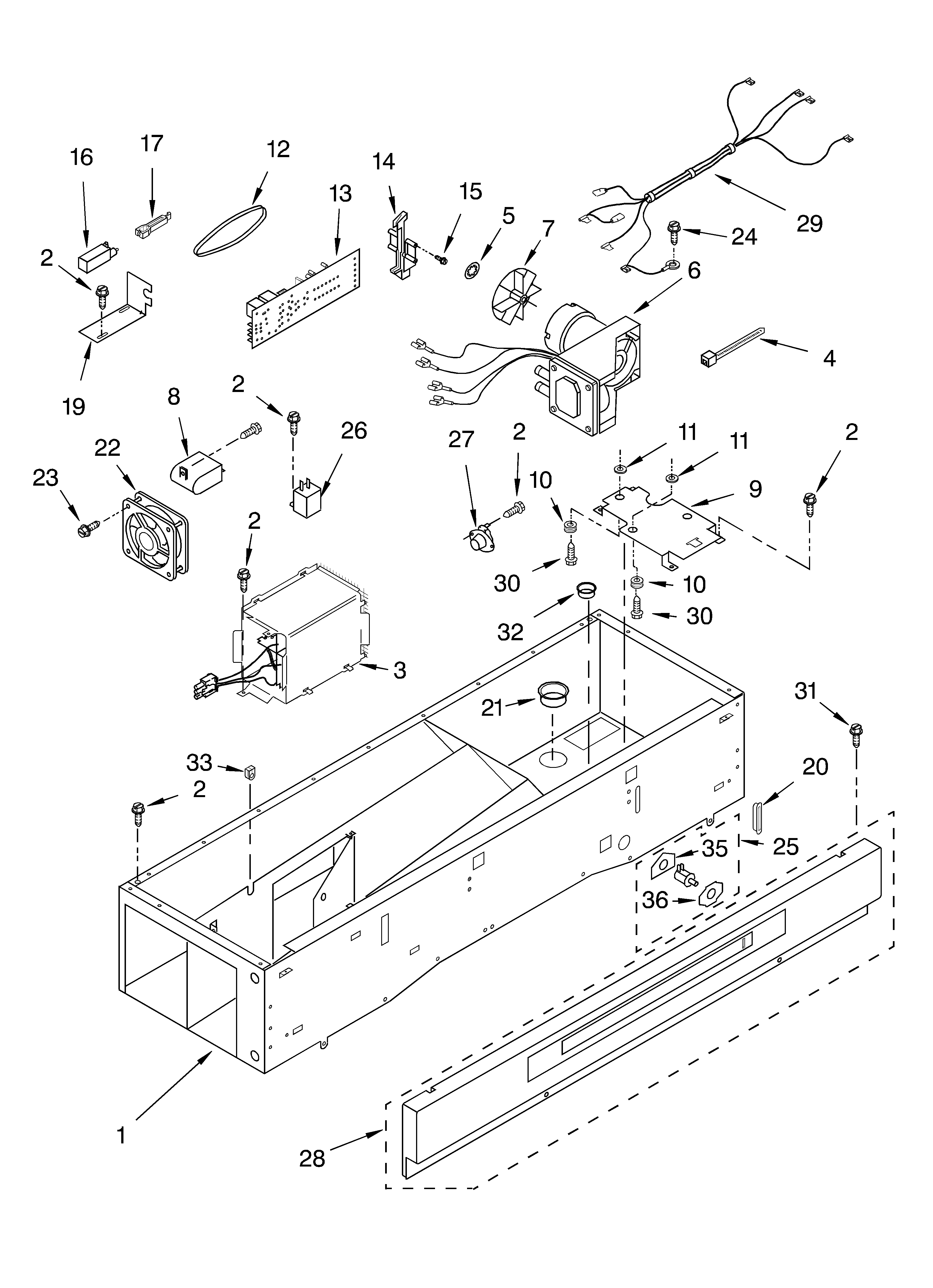

Top box diagram

Appliance screw

Part #304392

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 304392. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Pad 8527268
#NI

Cabinet/literature diagram

Pad

Part #8527268

$52.27
In Stock
Grommet 8526412
#32

Top box diagram

Grommet

Part #8526412

$8.73
In Stock
Magic Chef Screw (white) 3196166
#10

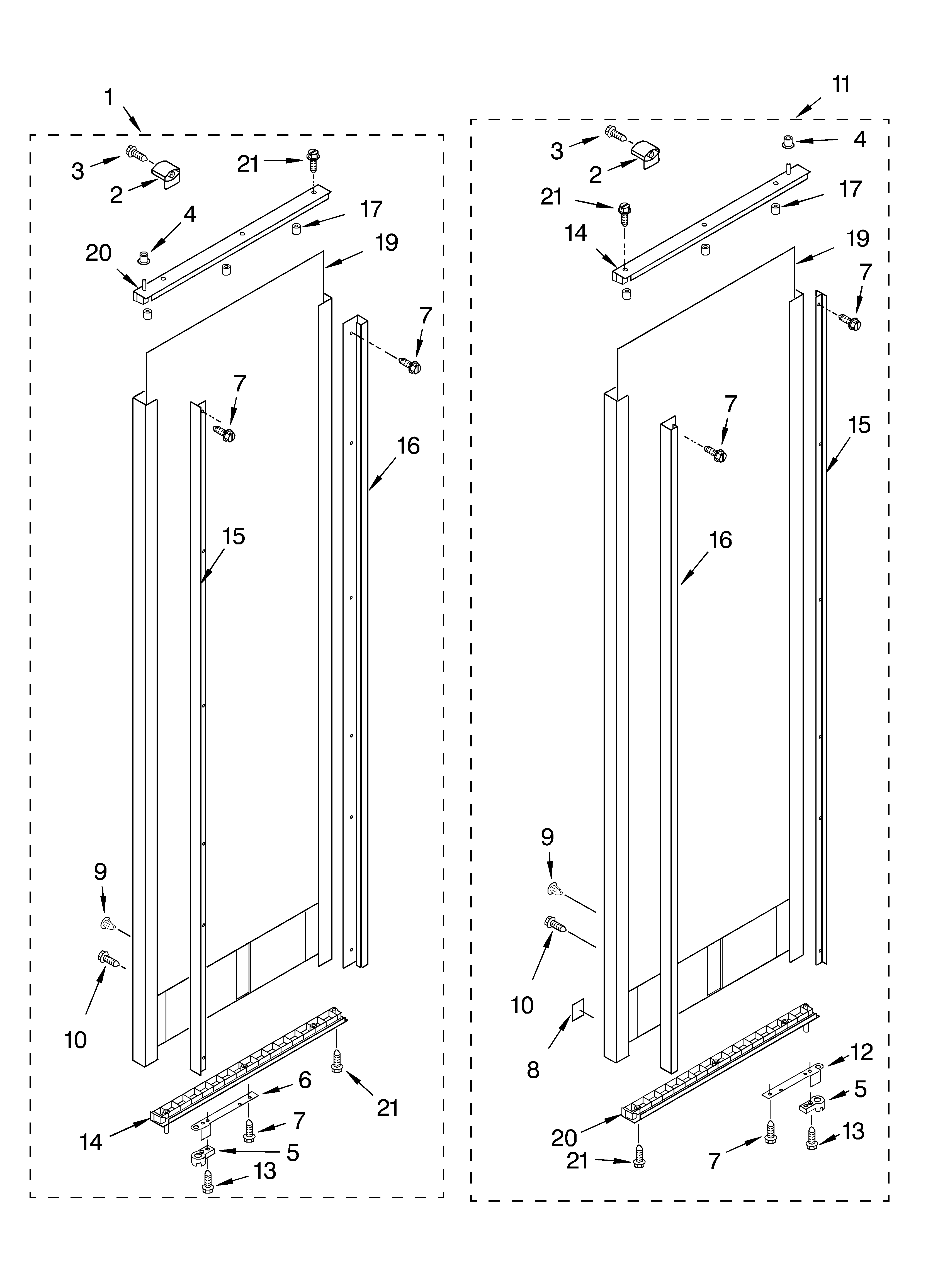

Door diagram

Magic chef screw (white)

Part #3196166

This item is not returnable
$6.39
In Stock
Grommet 8526350
#21

Top box diagram

Grommet

Part #8526350

$20.36
In Stock
Washer 8526417
#11

Top box diagram

Washer

Part #8526417

$11.19
In Stock
Capacitor 8526316
#8

Top box diagram

Capacitor

Part #8526316

Replaced by #WP2201147

?
Manufacturer substitution
This part replaces 8526316. Substitute parts can look different from the original.
$54.80
In Stock
Nut 487939
#10A

Cabinet/literature diagram

Nut

Part #487939

Replaced by #WP487939

?
Manufacturer substitution
This part replaces 487939. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
