Model # FFUE2024AW8 Official Frigidaire upright freezer

Here are the diagrams and repair parts for Official Frigidaire FFUE2024AW8 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Door Handles

Screws

ALL PARTS

Showing 10 of 88 parts |

#10

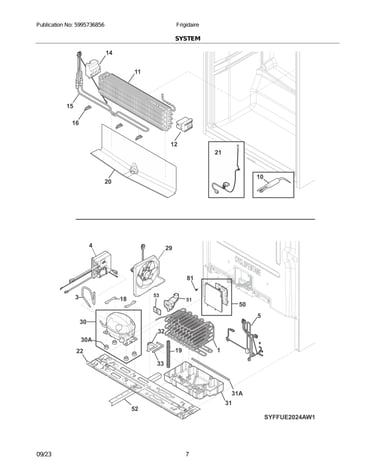

System diagram

Refrigerator filter dryer

Part #A19676501

$81.09

In Stock

Qty

#79

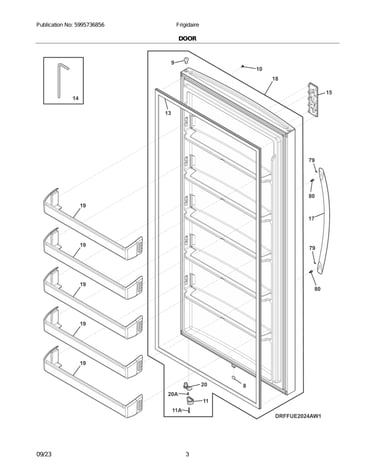

Door diagram

Screw

Part #218755407

Replaced by #218755402

This item is not returnable

$6.89 |

13% OFF Phone Price : $7.89

In Stock

Qty

#16

System diagram

Refrigerator strap

Part #5308000110

$52.30 |

10% OFF Phone Price : $58.30

In Stock

Qty

#15

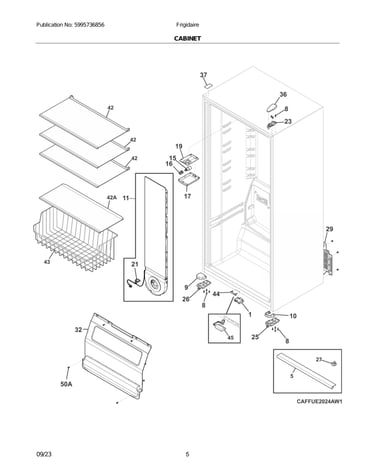

Cabinet diagram

Refrigerator light bulb

Part #5304522314

$32.22 |

16% OFF Phone Price : $38.22

In Stock

Qty

#11

System diagram

Coil

Part #5304523830

$115.46

In Stock

Qty

Freezer Door Gasket (replaces 5304523811) 5304524887

#13

Door diagram

Freezer door gasket (replaces 5304523811)

Part #5304524887

$180.77 |

6% OFF Phone Price : $192.77

In Stock

Qty

#11

Door diagram

Hook,door closer ,white

Part #5304519789

This item is not returnable

$2.47

In Stock

Qty

Door diagram

Refrigerator door hinge bearing (gray)

Part #5304522194

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

Refrigerator Door Closer Hook (gray) 5304522238

#11

Door diagram

Refrigerator door closer hook (gray)

Part #5304522238

This item is not returnable

$8.59 |

10% OFF Phone Price : $9.59

In Stock

Qty

Freezer Electronic Control Board (replaces 5304524125) 5304529280

#50

System diagram

Freezer electronic control board (replaces 5304524125)

Part #5304529280

This item is not returnable

$108.59 |

10% OFF Phone Price : $120.59

In Stock

Qty
