Model # UF12K/P60250-9W Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana UF12K-P60250-9W upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

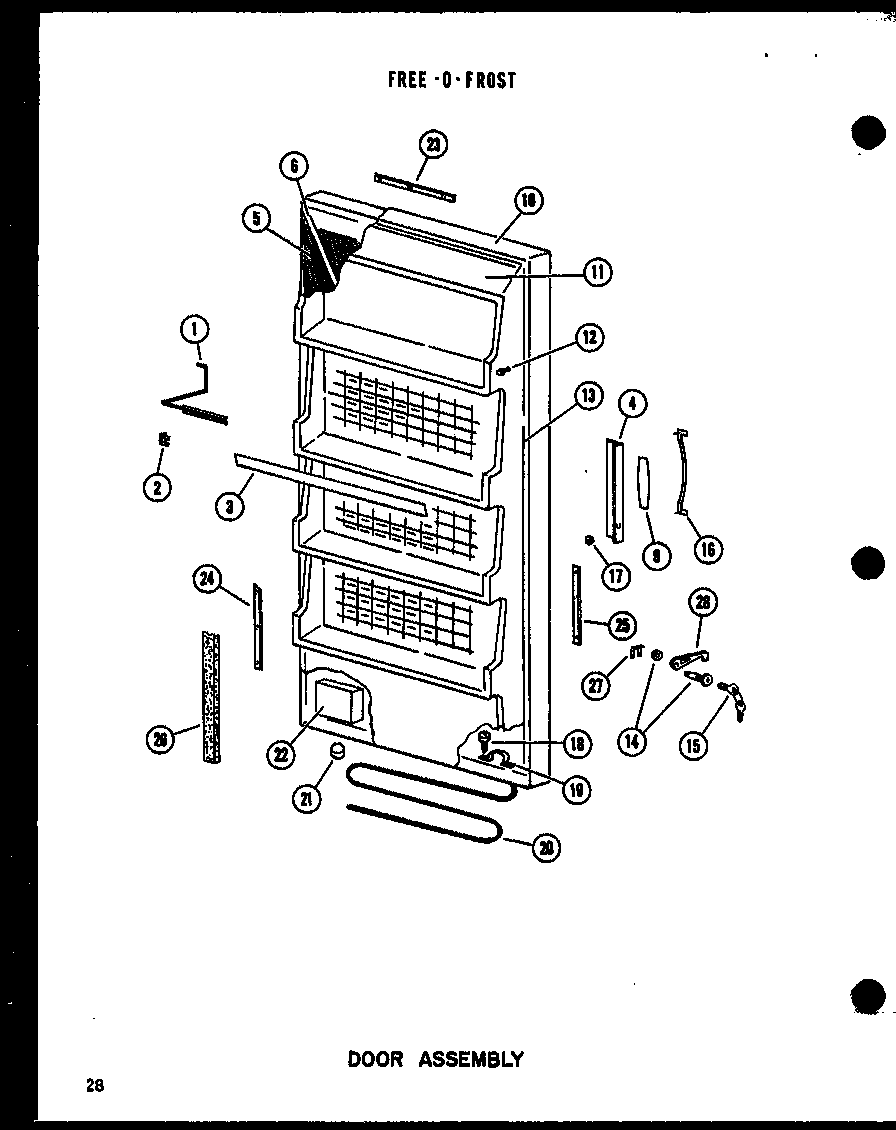

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 299 parts  |
Drier B2150501
#174

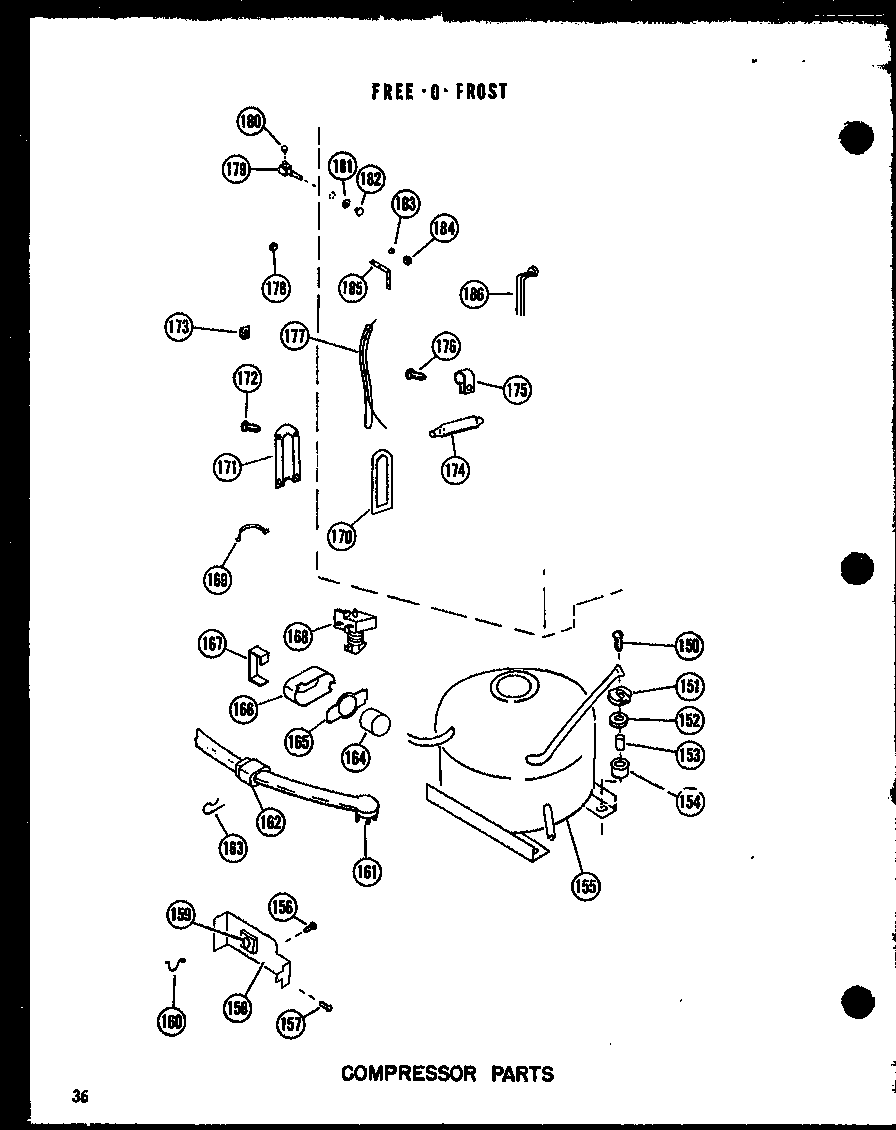

Compressor parts diagram

Drier

Part #B2150501

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150501. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Water Valve D7036803
#361

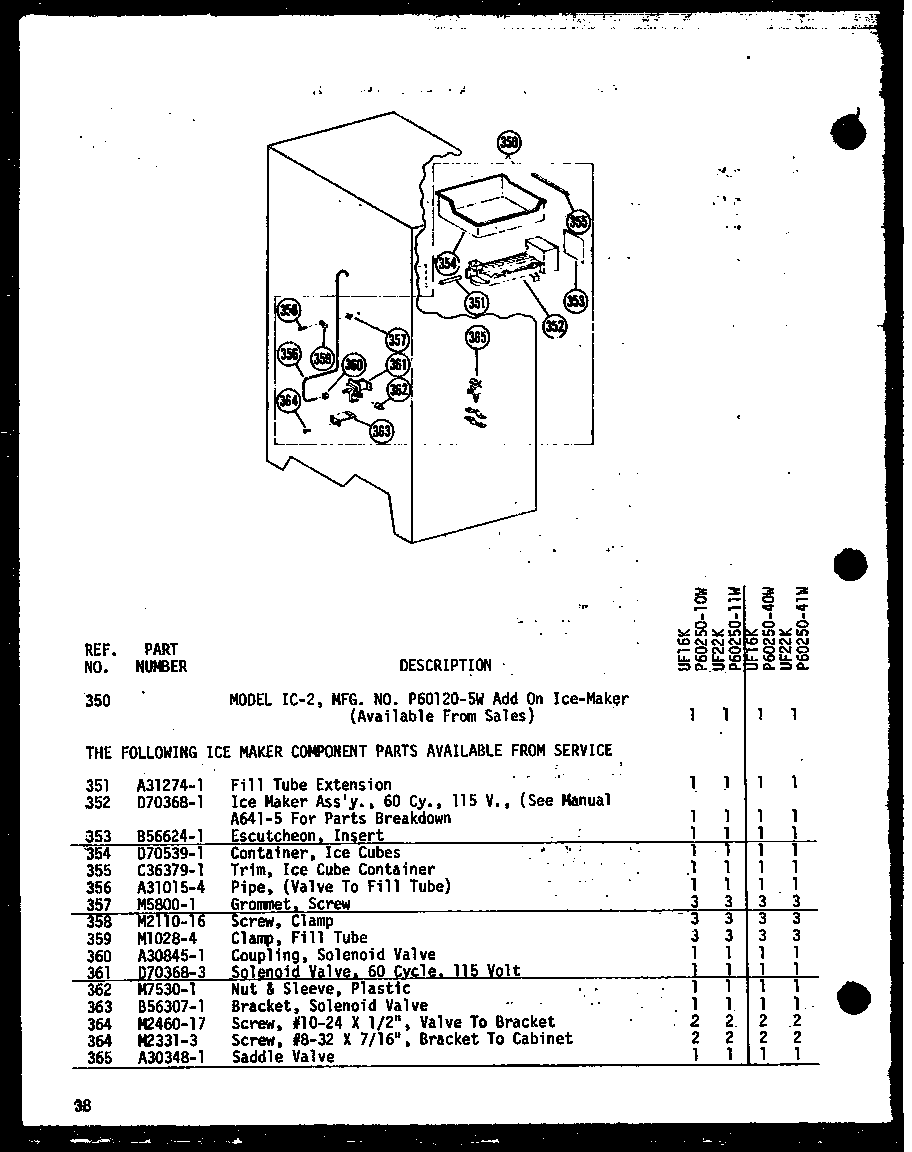

(uf16k/p60250-10w) (uf16k-c/p60250-10wc) (uf16k-ag/p60250-10wg) (uf16k-a/p60250-10wa) (uf22k-ag/p60250-11wg) (uf22k-a/p60250-11wa) (uf22k/p60250-11w) (uf22k-c/p60250-11wc) (uf16k-c/p60250-40wc) (uf16k-a/p60250-40wa) (uf16k/p60250-40w) (uf16k-ag/p60250-40 diagram

Water valve

Part #D7036803

Replaced by #4318047

?
Manufacturer substitution
This part replaces D7036803. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Valve 627143
#1

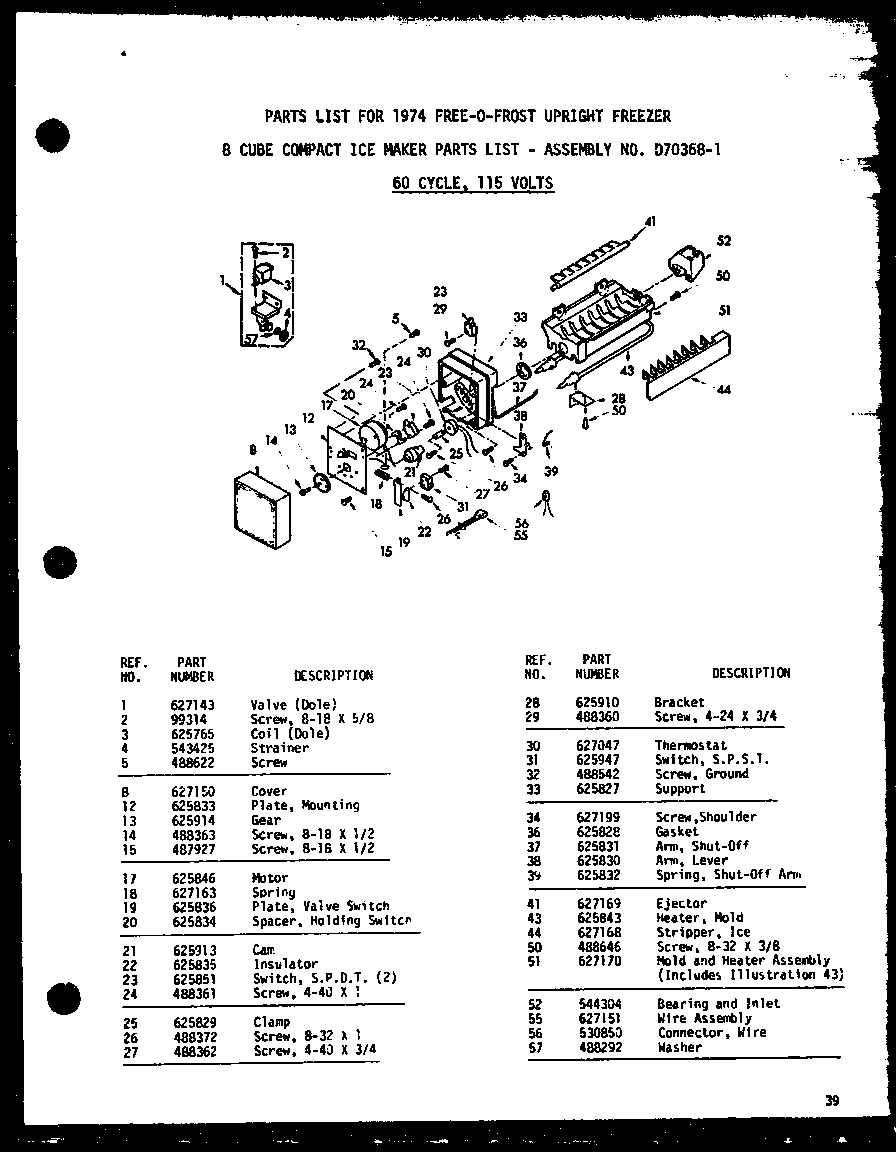

8 cubecompact ice maker (uf16k/p60250-10w) (uf16k-c/p60250-10wc) (uf16k-ag/p60250-10wg) (uf16k-a/p60250-10wa) (uf22k-ag/p60250-11wg) (uf22k-a/p60250-11wa) (uf22k/p60250-11w) (uf22k-c/p60250-11wc) (uf16k-c/p60250-40wc) (uf16k-a/p60250-40wa) (uf16k/p60250-4 diagram

Valve

Part #627143

Replaced by #4318047

?
Manufacturer substitution
This part replaces 627143. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Fitting M0753001
#362

(uf16k/p60250-10w) (uf16k-c/p60250-10wc) (uf16k-ag/p60250-10wg) (uf16k-a/p60250-10wa) (uf22k-ag/p60250-11wg) (uf22k-a/p60250-11wa) (uf22k/p60250-11w) (uf22k-c/p60250-11wc) (uf16k-c/p60250-40wc) (uf16k-a/p60250-40wa) (uf16k/p60250-40w) (uf16k-ag/p60250-40 diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Screw M0211217
Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0233103
#364B

(uf16k/p60250-10w) (uf16k-c/p60250-10wc) (uf16k-ag/p60250-10wg) (uf16k-a/p60250-10wa) (uf22k-ag/p60250-11wg) (uf22k-a/p60250-11wa) (uf22k/p60250-11w) (uf22k-c/p60250-11wc) (uf16k-c/p60250-40wc) (uf16k-a/p60250-40wa) (uf16k/p60250-40w) (uf16k-ag/p60250-40 diagram

Screw

Part #M0233103

Replaced by #WP489399

?
Manufacturer substitution
This part replaces M0233103. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Plug (white) M0310701
#183

Compressor parts diagram

Plug (white)

Part #M0310701

Replaced by #WP67001130

?
Manufacturer substitution
This part replaces M0310701. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Machine Screw M0257244
#27

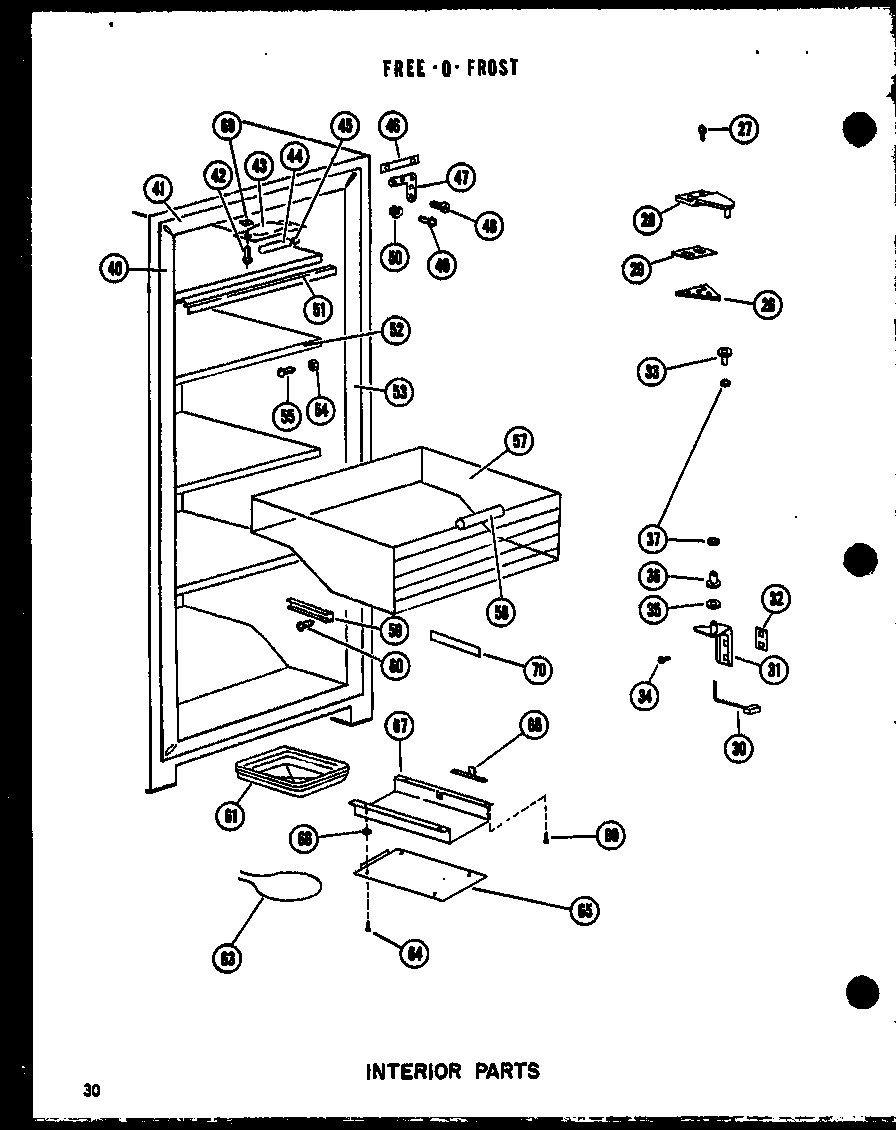

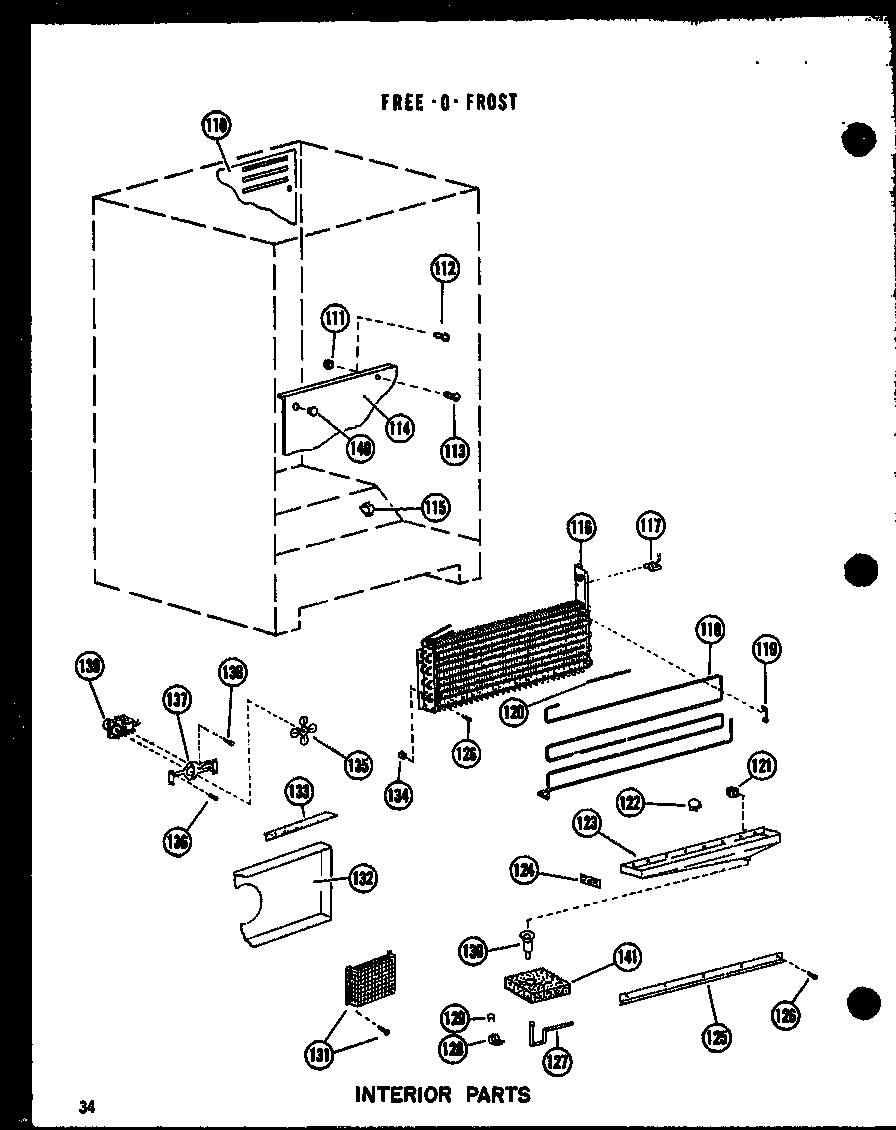

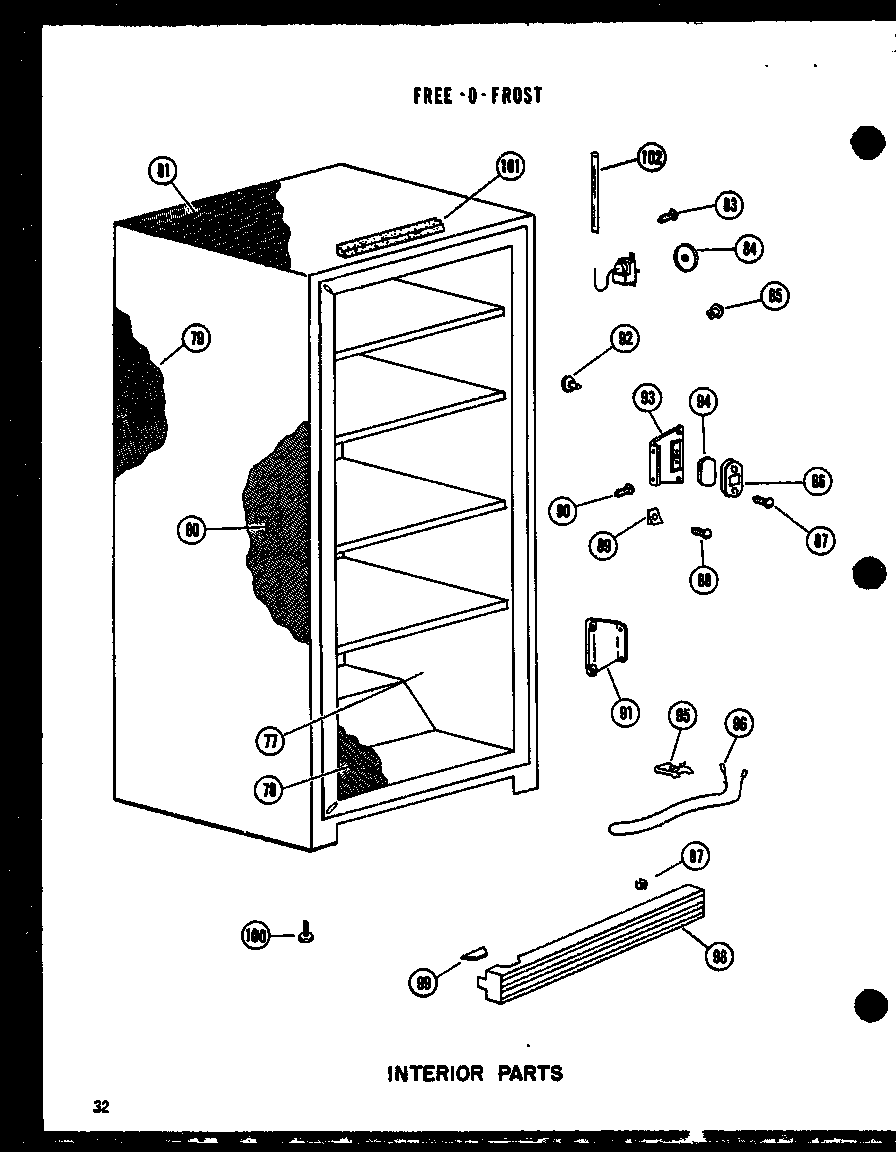

Interior parts diagram
