Kenmore
Humidifier

Model # 758144510 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 758144510 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Emerson Humidifier Fan Blade 822406-1
#6

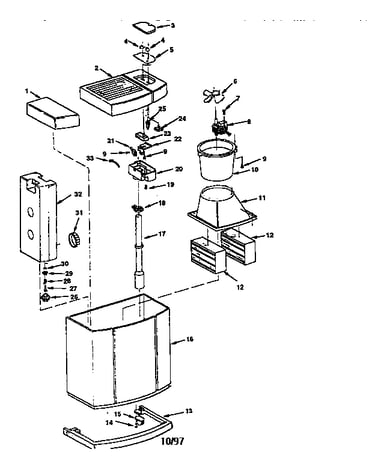

Unit parts diagram

Emerson humidifier fan blade

Part #822406-1

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Label 825857
#5

Unit parts diagram

Kenmore label

Part #825857

The manufacturer no longer makes this part, and there's no substitute part

Emerson Humidifier Fill Cap 824690
#31

Unit parts diagram

Emerson humidifier fill cap

Part #824690

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Float Retainer 824101-1
Humidifier float retainer

Part #824101-1

The manufacturer no longer makes this part, and there's no substitute part

Filter 32-14909
#12

Unit parts diagram

Filter

Part #32-14909

The manufacturer no longer makes this part, and there's no substitute part

Reservoir Cap 822419-2
#26

Unit parts diagram

Reservoir cap

Part #822419-2

The manufacturer no longer makes this part, and there's no substitute part

Valve Spring 819026
#28

Unit parts diagram

Valve spring

Part #819026

The manufacturer no longer makes this part, and there's no substitute part

Screw 14909
#14

Unit parts diagram

Screw

Part #14909

The manufacturer no longer makes this part, and there's no substitute part

O-ring 821421-1
#29

Unit parts diagram

O-ring

Part #821421-1

The manufacturer no longer makes this part, and there's no substitute part

Valve Stem 819027
#27

Unit parts diagram

Valve stem

Part #819027

The manufacturer no longer makes this part, and there's no substitute part
