Model # MER6775ACS Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER6775ACS electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

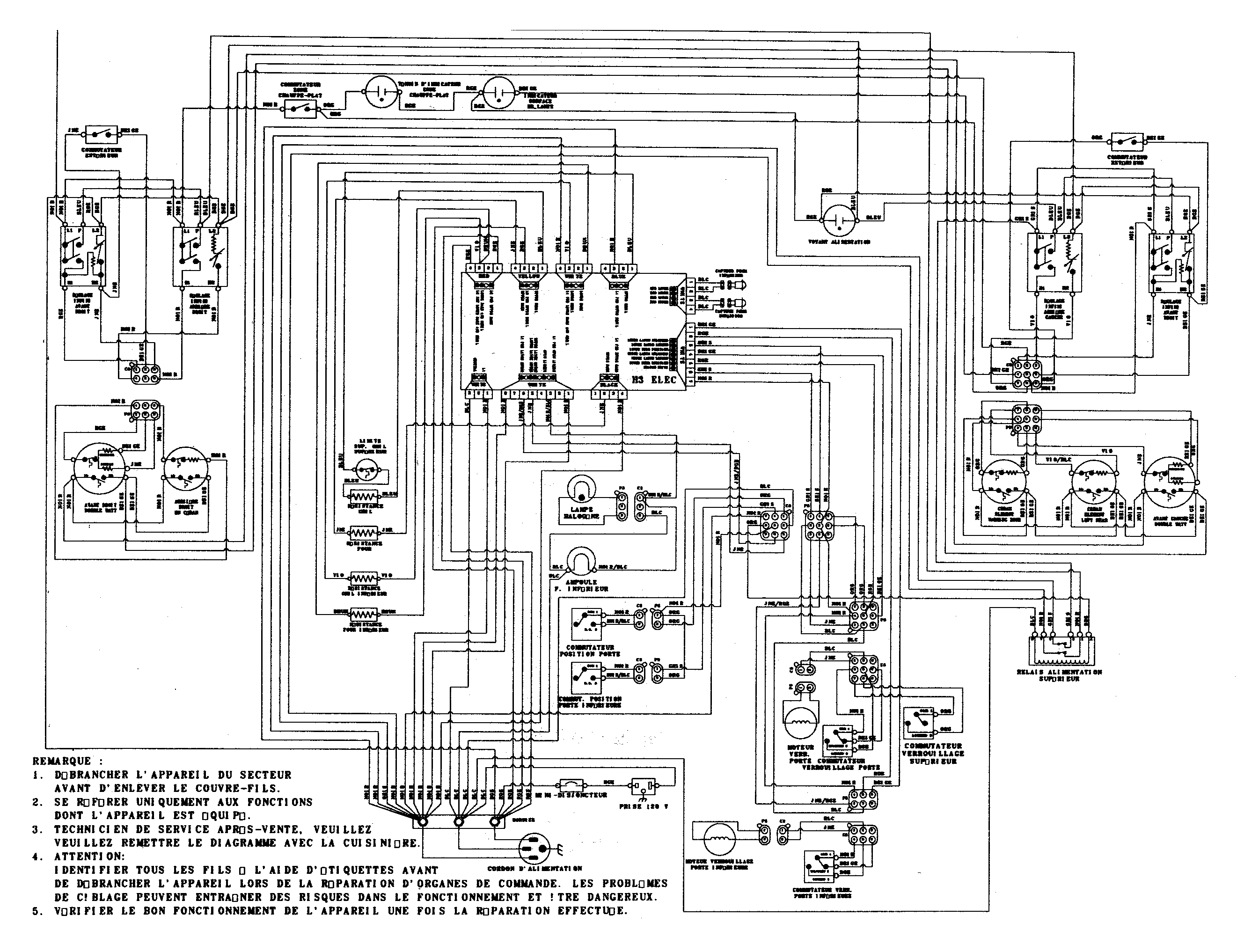

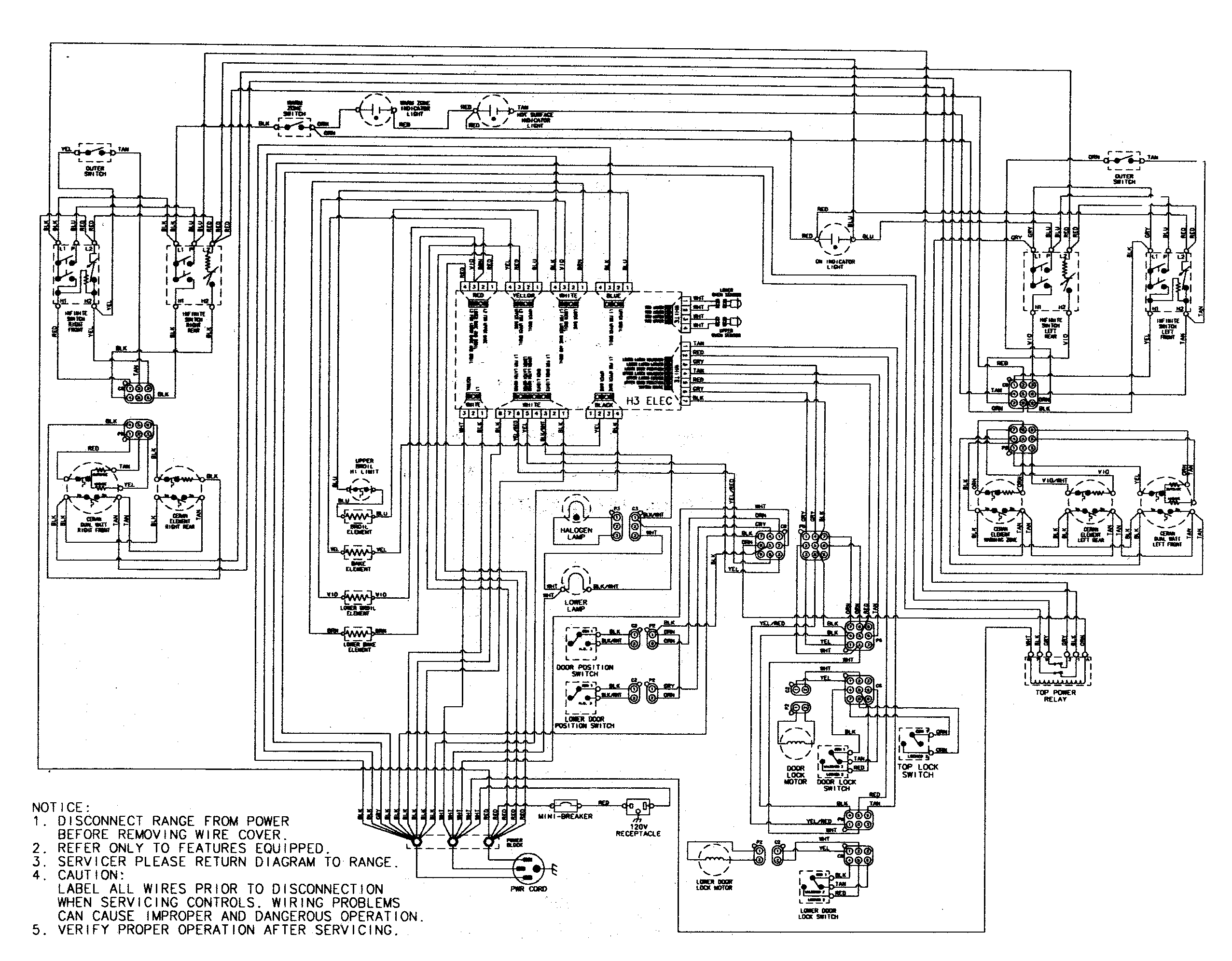

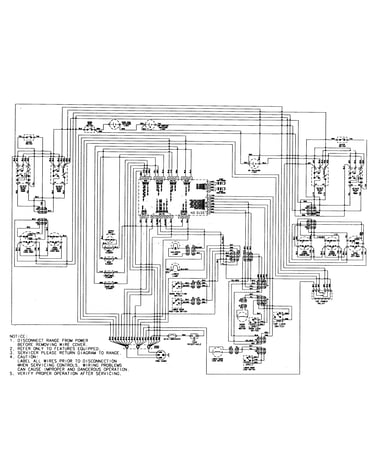

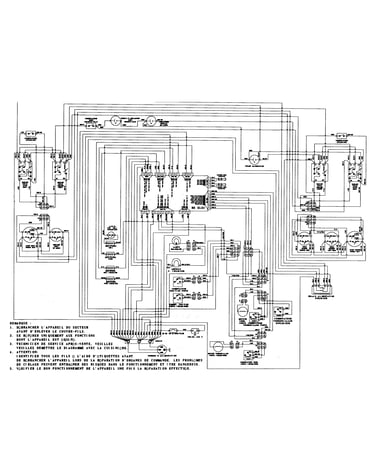

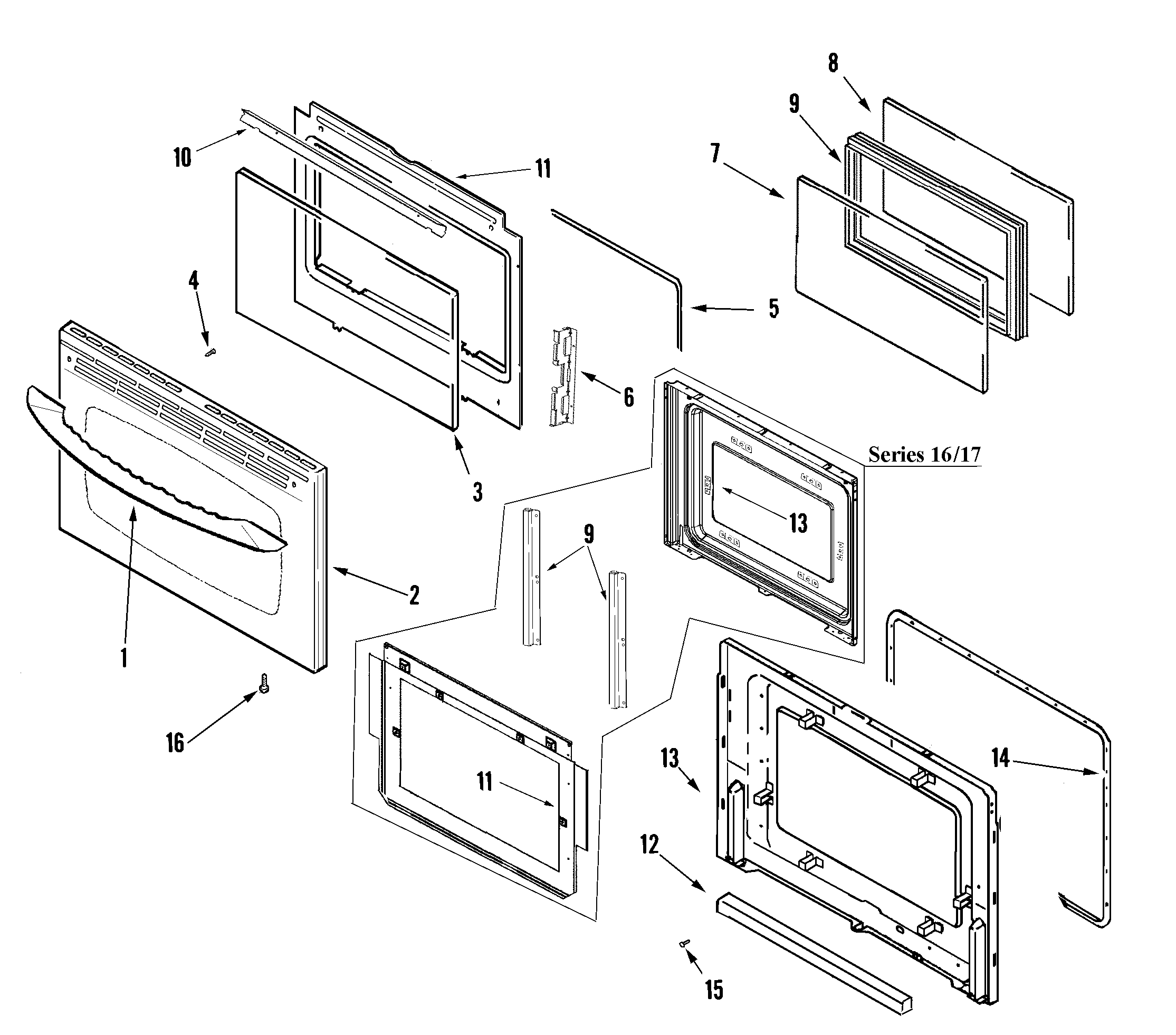

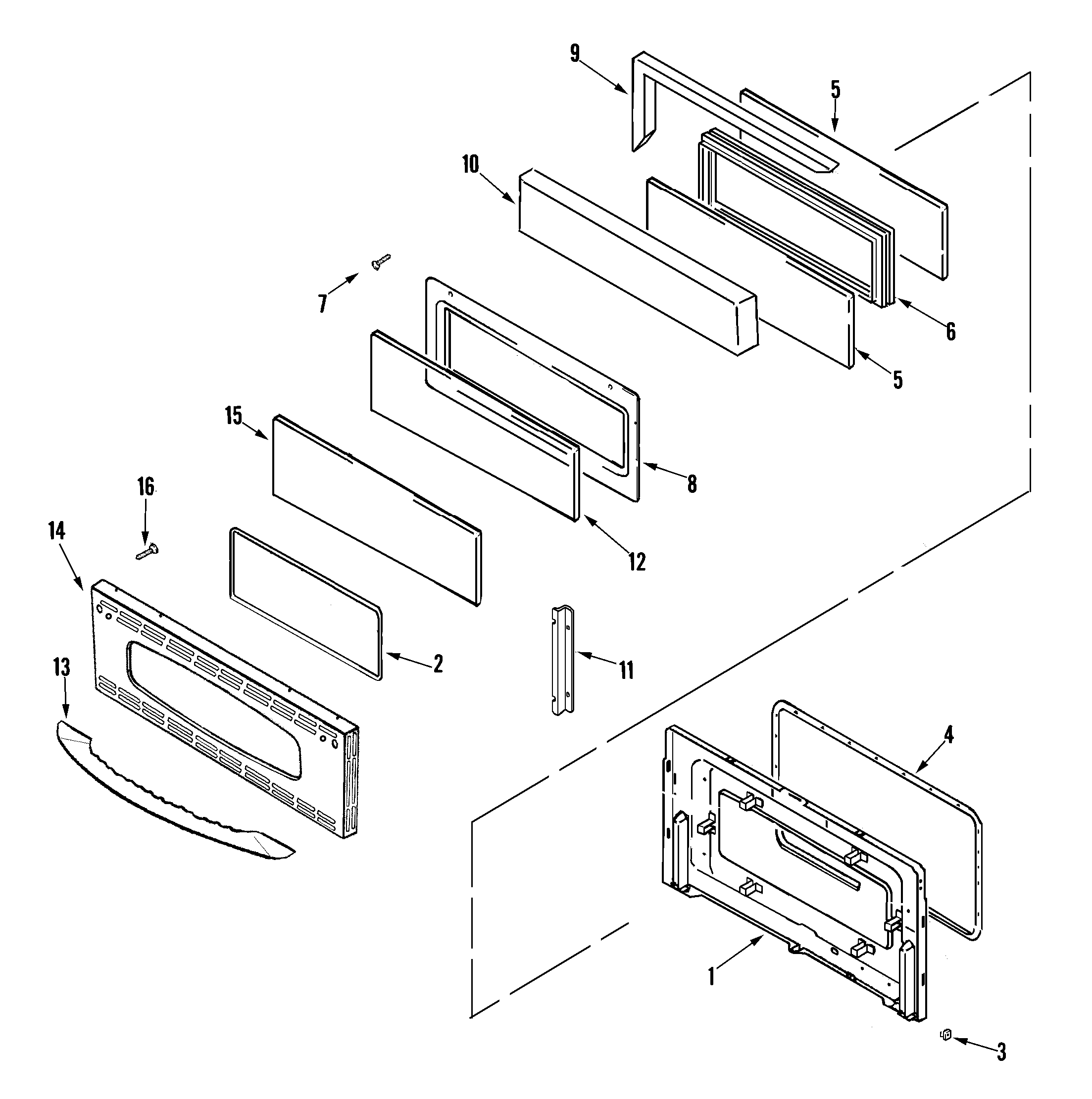

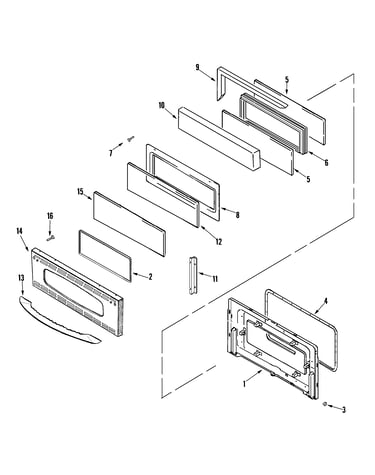

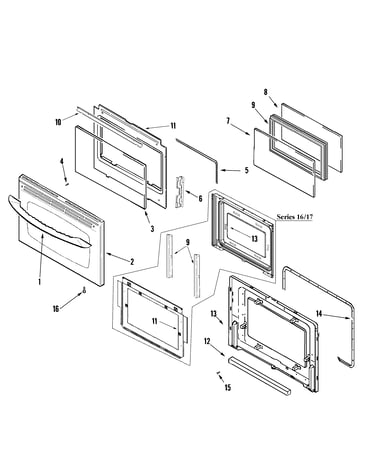

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Grill Element 74004107
#2

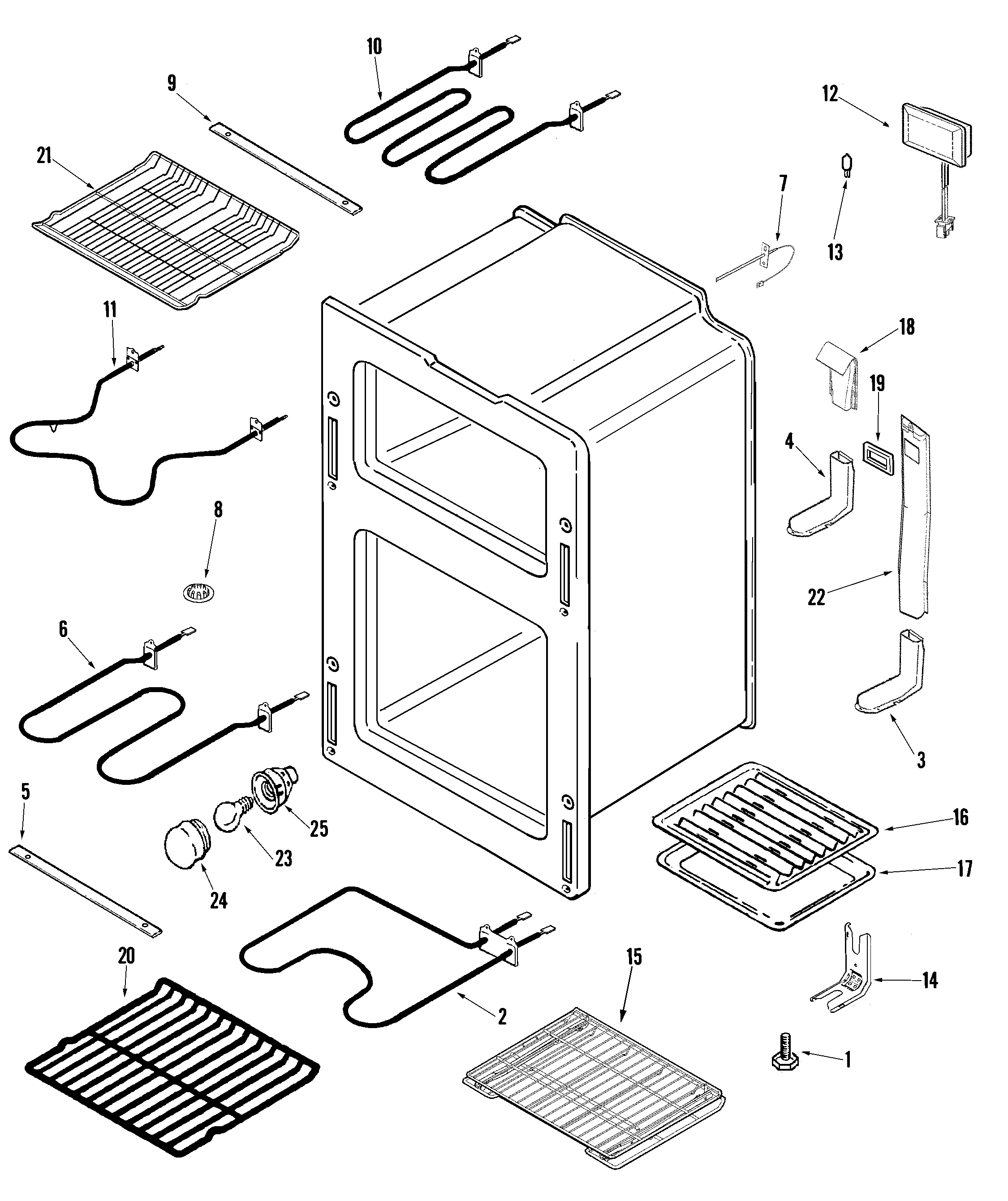

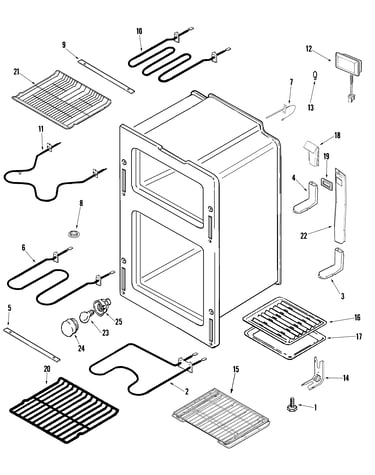

Oven diagram

Grill element

Part #74004107

Replaced by #WP7406P428-60

?
Manufacturer substitution
This part replaces 74004107. Substitute parts can look different from the original.
BEST SELLER
$38.23 |
14% OFF Phone Price : $44.23
In Stock
Terminal Block 7401P038-60
#30

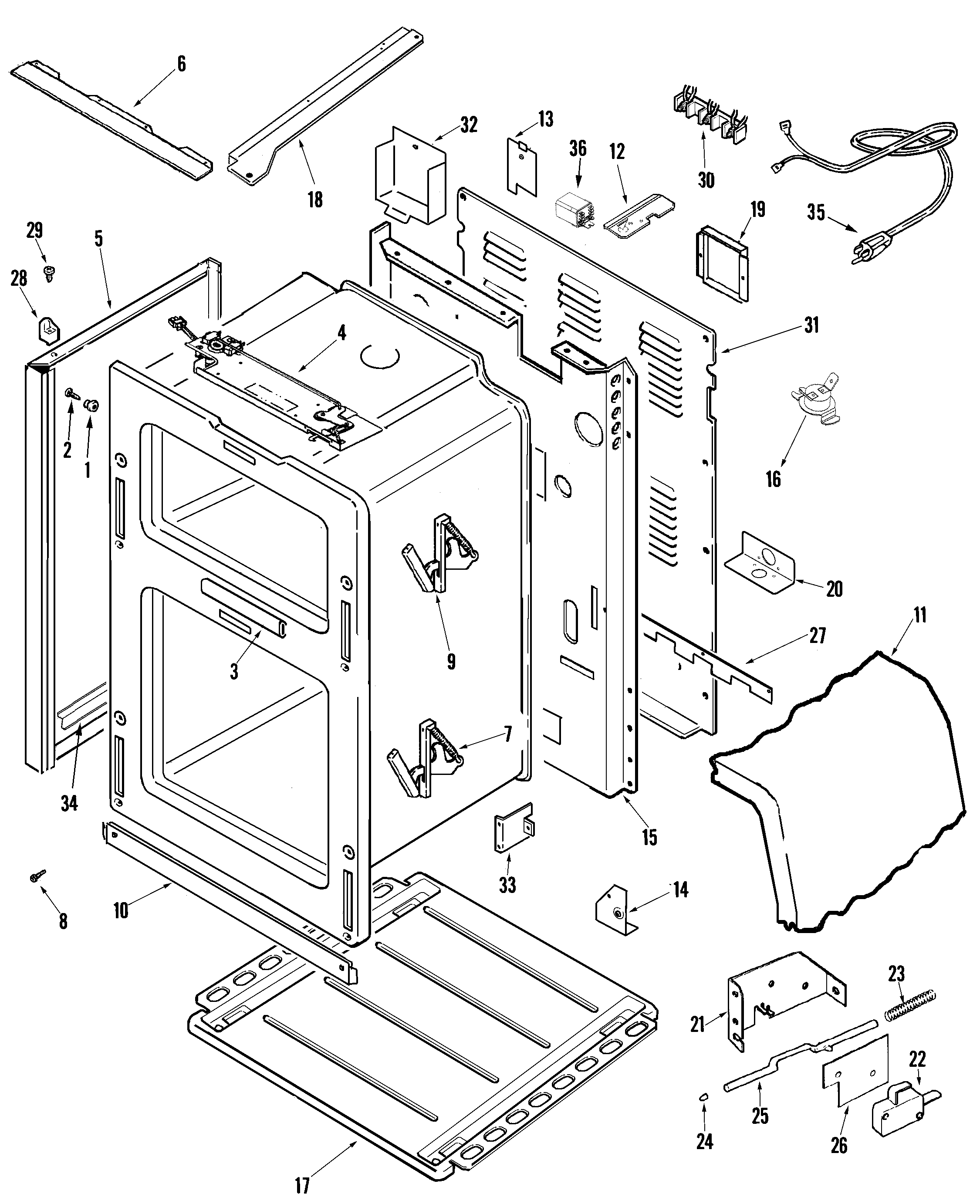

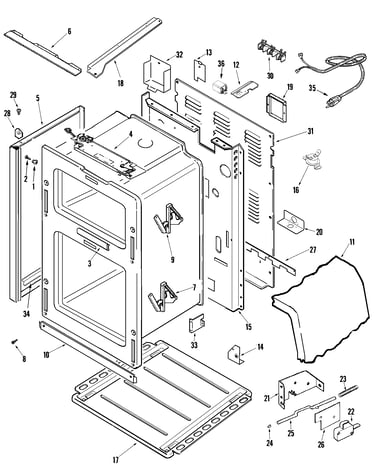

Body diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Cook Top Cle 20000001
#11

Supplemental information diagram

Cook top cle

Part #20000001

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20000001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Surface Element Control Switch 7403P238-60
#6A

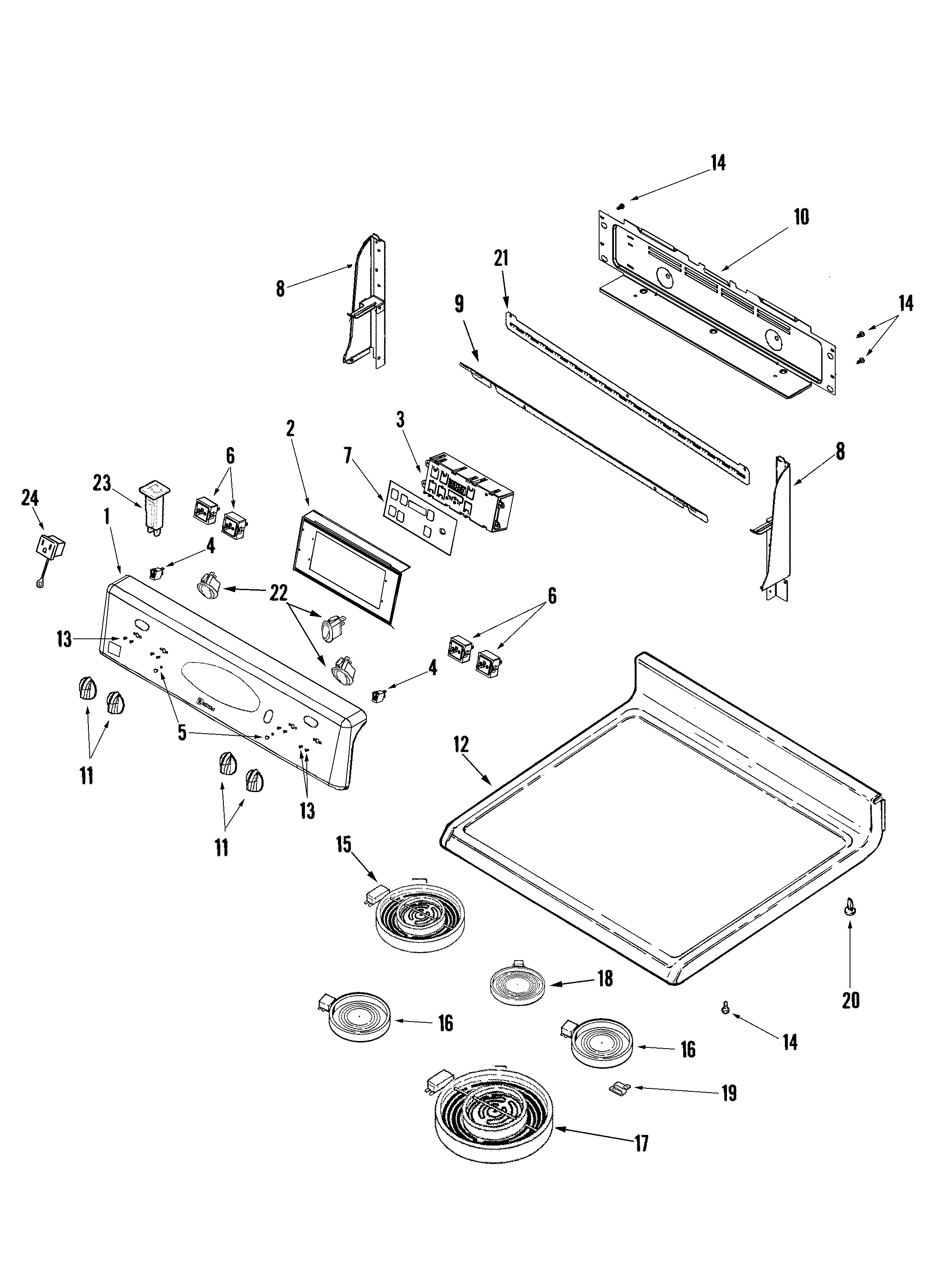

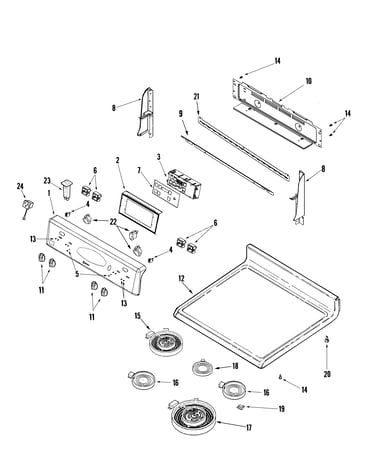

Control panel/top assembly diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Oven Sensor 74010385
#7A

Oven diagram

Oven sensor

Part #74010385

Replaced by #WP7430P044-60

?
Manufacturer substitution
This part replaces 74010385. Substitute parts can look different from the original.
BEST SELLER
$90.48 |
6% OFF Phone Price : $96.48
In Stock
Range Oven Light Bulb 74009925
#13

Oven diagram

Range oven light bulb

Part #74009925

Replaced by #WP74009925

?
Manufacturer substitution
This part replaces 74009925. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.82 |
10% OFF Phone Price : $20.82
In Stock
Range Dual Surface Burner Control Switch 74003122
#6

Control panel/top assembly diagram

Range dual surface burner control switch

Part #74003122

Replaced by #WP74003122

?
Manufacturer substitution
This part replaces 74003122. Substitute parts can look different from the original.
$64.79 |
8% OFF Phone Price : $70.79
In Stock
Screw 7101P313-60
#29

Body diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Oven Broiler Element 74003041
#6

Oven diagram

Oven broiler element

Part #74003041

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces 74003041. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
