Washer

Model # AWM592 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AWM592 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

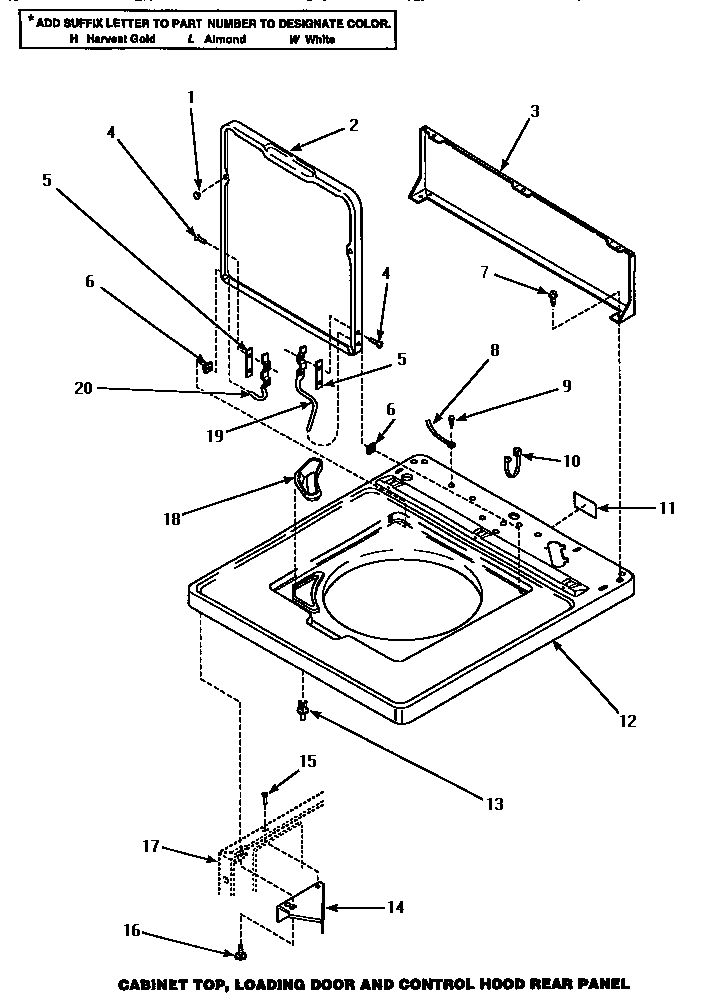

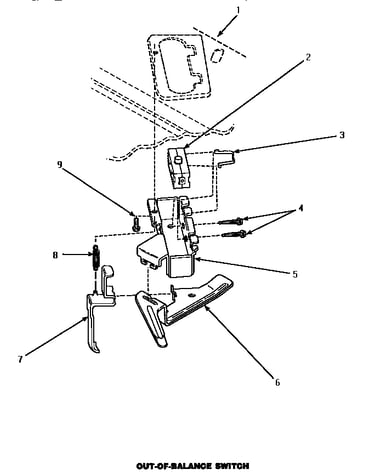

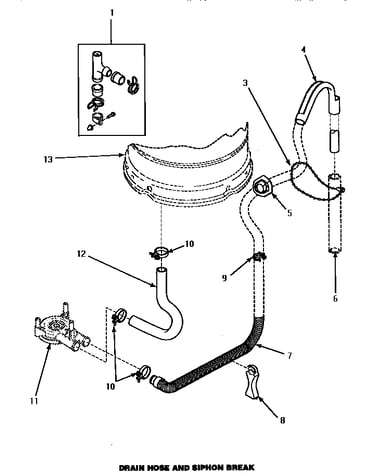

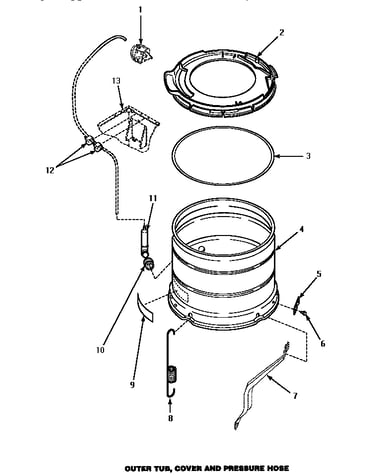

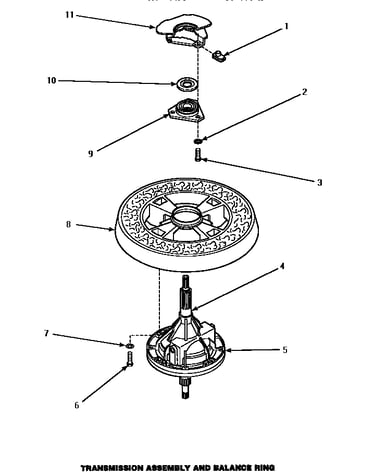

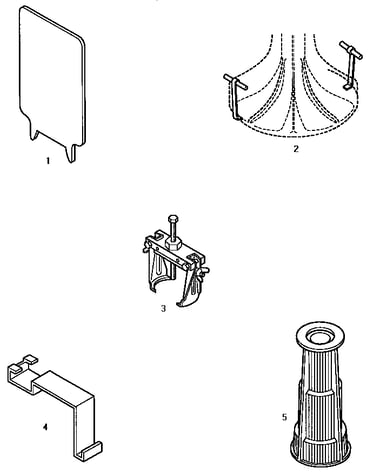

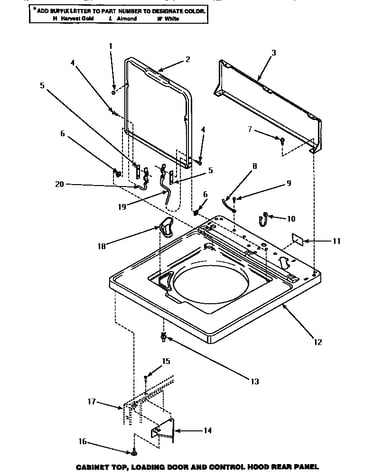

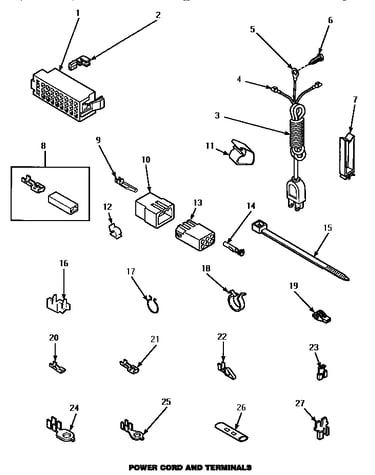

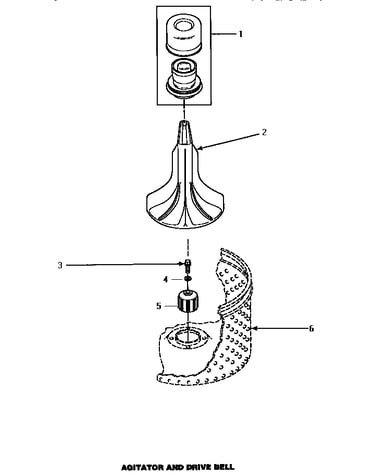

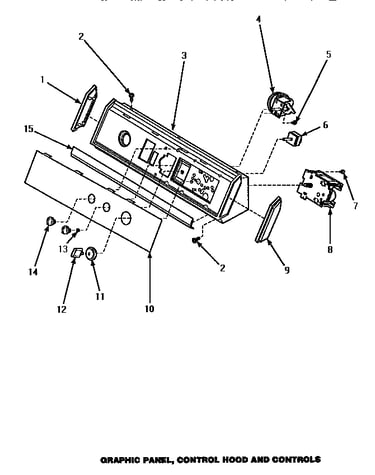

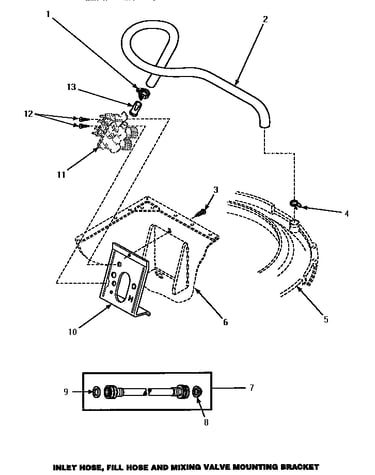

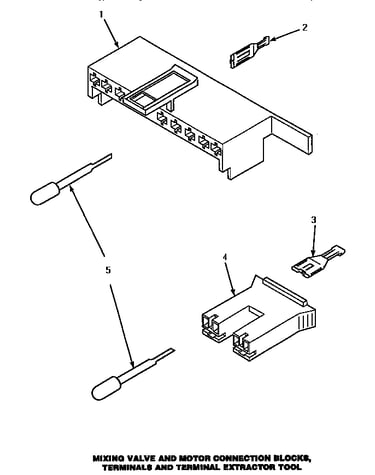

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Speed Queen Screen Mixing Valve 24122
#6

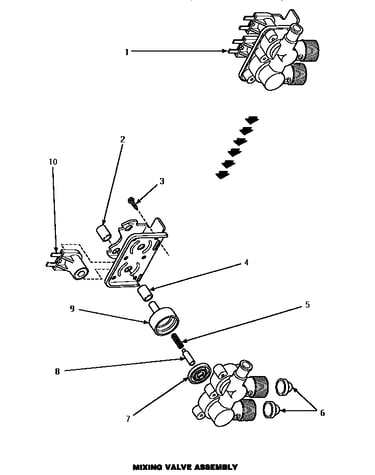

Mixing valve assembly (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen screen mixing valve

Part #24122

$10.71
In Stock
Speed Queen Washer 26509
Speed queen washer

Part #26509

$10.00
In Stock
Speed Queen Hex Nut 52566
#4

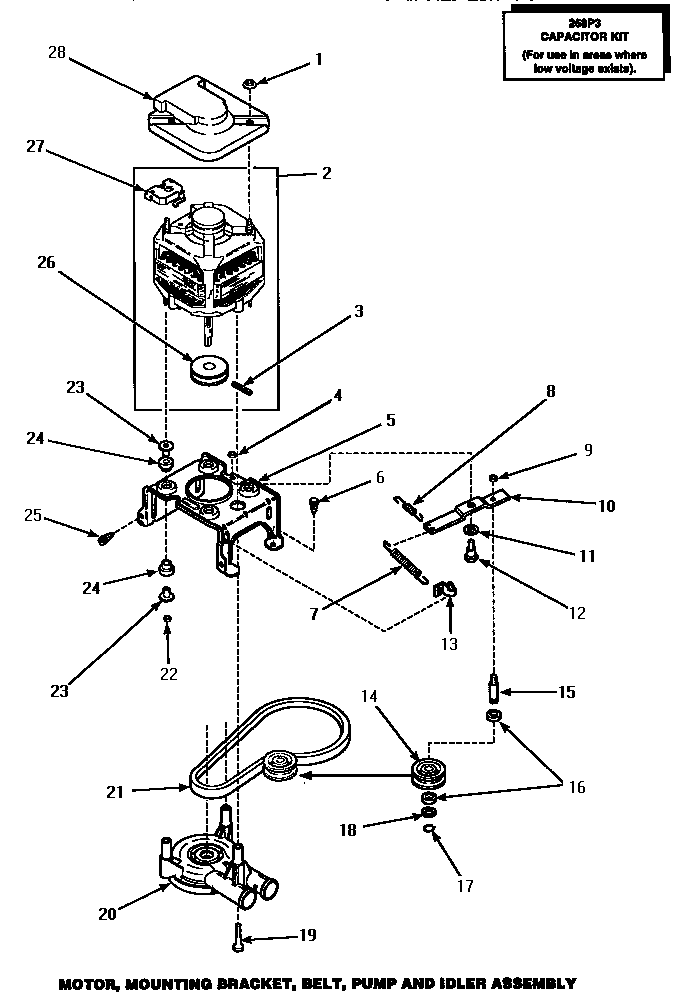

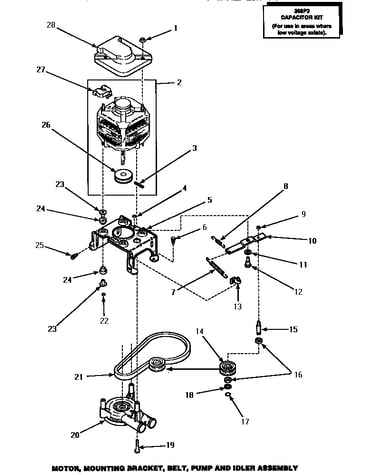

Motor, mounting bracket, belt, pump & idler assembly (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen hex nut

Part #52566

This item is not returnable
$3.49
In Stock
Speed Queen Screw 27220
#11

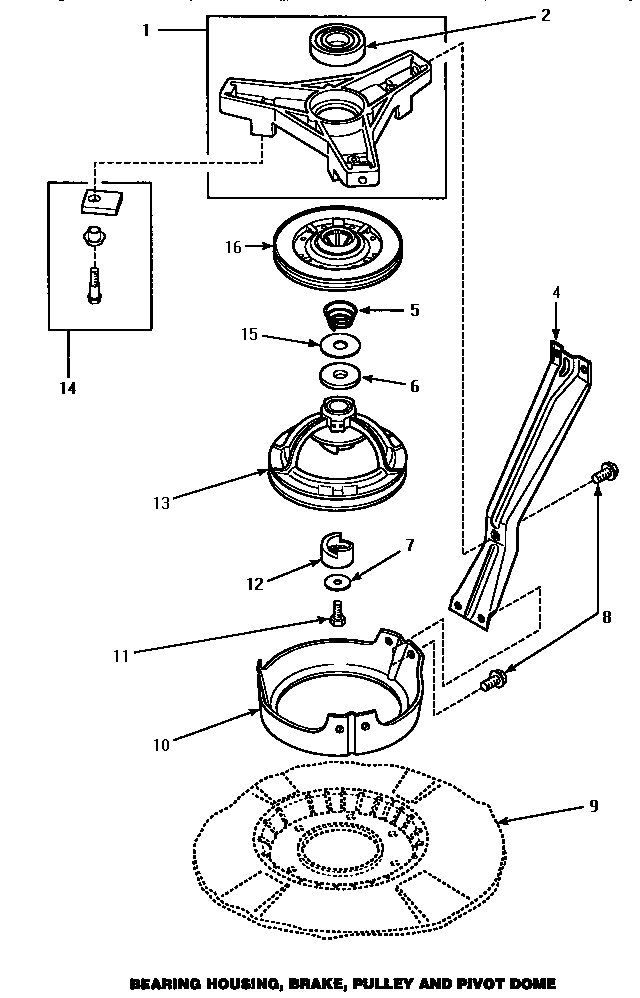

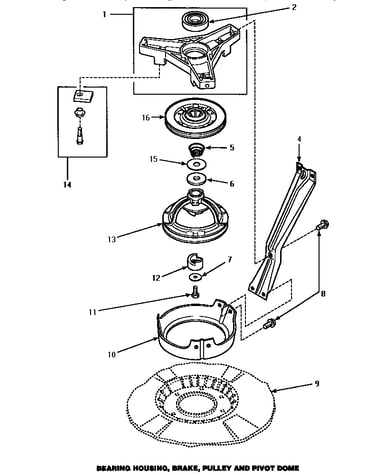

Bearing housing, brake, pulley & pivot dome (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen screw

Part #27220

$10.71
In Stock
Bearing 28944R
#2

Bearing housing, brake, pulley & pivot dome (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Bearing

Part #28944R

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces 28944R. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock
Speed Queen Slide 26493
#19

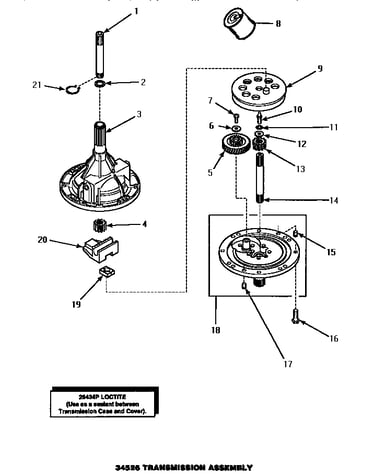

34526 transmission assembly (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen slide

Part #26493

$12.54
In Stock
Speed Queen Insert 29728
#8

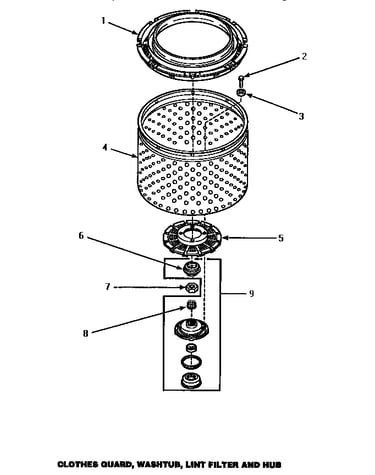

Clothes guard, washtub, lint filter & hub (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen insert

Part #29728

This item is not returnable
$3.86
In Stock
Speed Queen Washer 27015
#6

Bearing housing, brake, pulley & pivot dome (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen washer

Part #27015

$8.46
In Stock
Speed Queen Pinion 27003
#4

34526 transmission assembly (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen pinion

Part #27003

$24.20
In Stock
Speed Queen Locater-panel 56079
#23

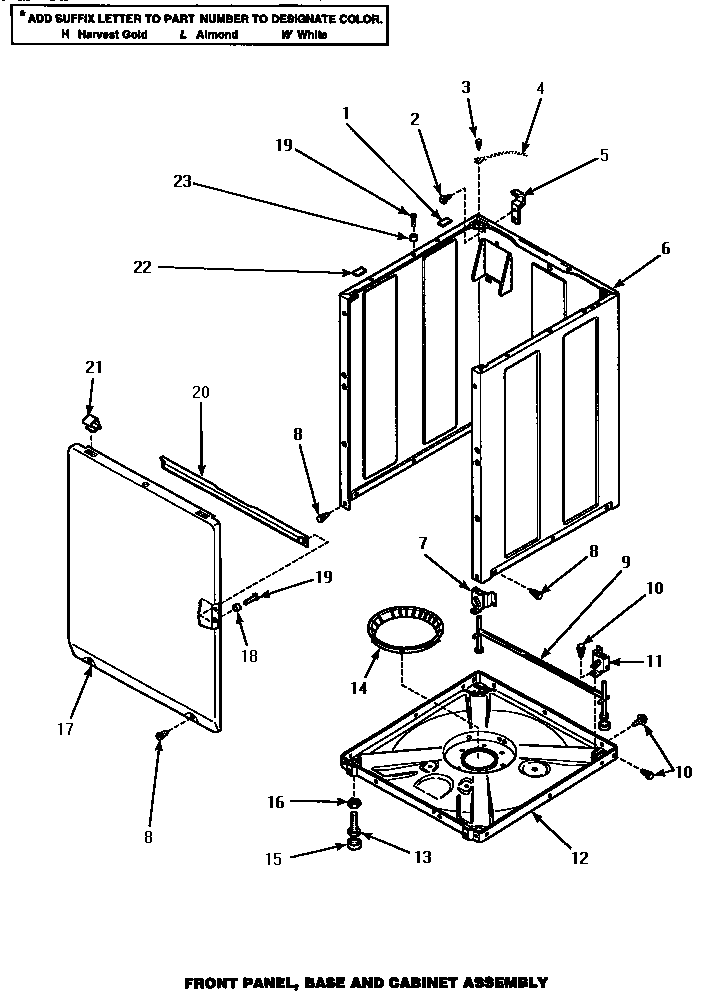

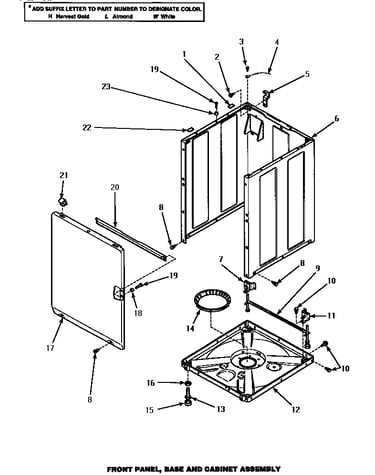

Front panel, base & cabinet assembly (awm492) (awm493) (awm592) (awm593l) (awm593w) diagram

Speed queen locater-panel

Part #56079

This item is not returnable
$4.14
In Stock
