Model # 11319837 Official Craftsman 1/3-hp split-phase ac motor

Here are the diagrams and repair parts for Official Craftsman 11319837 1/3-hp split-phase ac motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

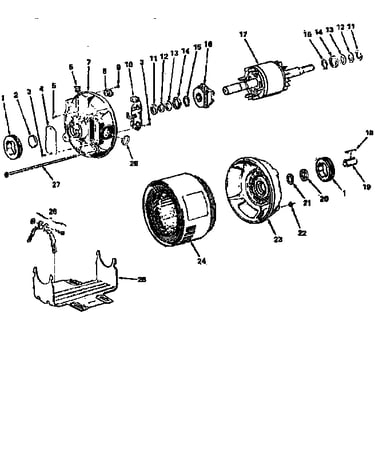

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Kenmore Power Tool Washer 30767
#12

Unit diagram

Kenmore power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Washer E P 64051
#11

Unit diagram

Washer e p

Part #64051

The manufacturer no longer makes this part, and there's no substitute part

Screw 448005
#9

Unit diagram

Screw

Part #448005

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 64350
#24

Unit diagram

Stator assembly

Part #64350

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 64169
#29

Unit diagram

Owner's manual

Part #64169

The manufacturer no longer makes this part, and there's no substitute part

Screw 64030
#27

Unit diagram

Screw

Part #64030

The manufacturer no longer makes this part, and there's no substitute part

Base 64265
#25

Unit diagram

Base

Part #64265

The manufacturer no longer makes this part, and there's no substitute part

Cap Brng 34274
#20

Unit diagram

Cap brng

Part #34274

The manufacturer no longer makes this part, and there's no substitute part

Protector 37074
#8

Unit diagram

Protector

Part #37074

The manufacturer no longer makes this part, and there's no substitute part

Retainer 37021
#14

Unit diagram

Retainer

Part #37021

The manufacturer no longer makes this part, and there's no substitute part
