Model # 6984A Official Eureka home cleaning system

Here are the diagrams and repair parts for Official Eureka 6984A home cleaning system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

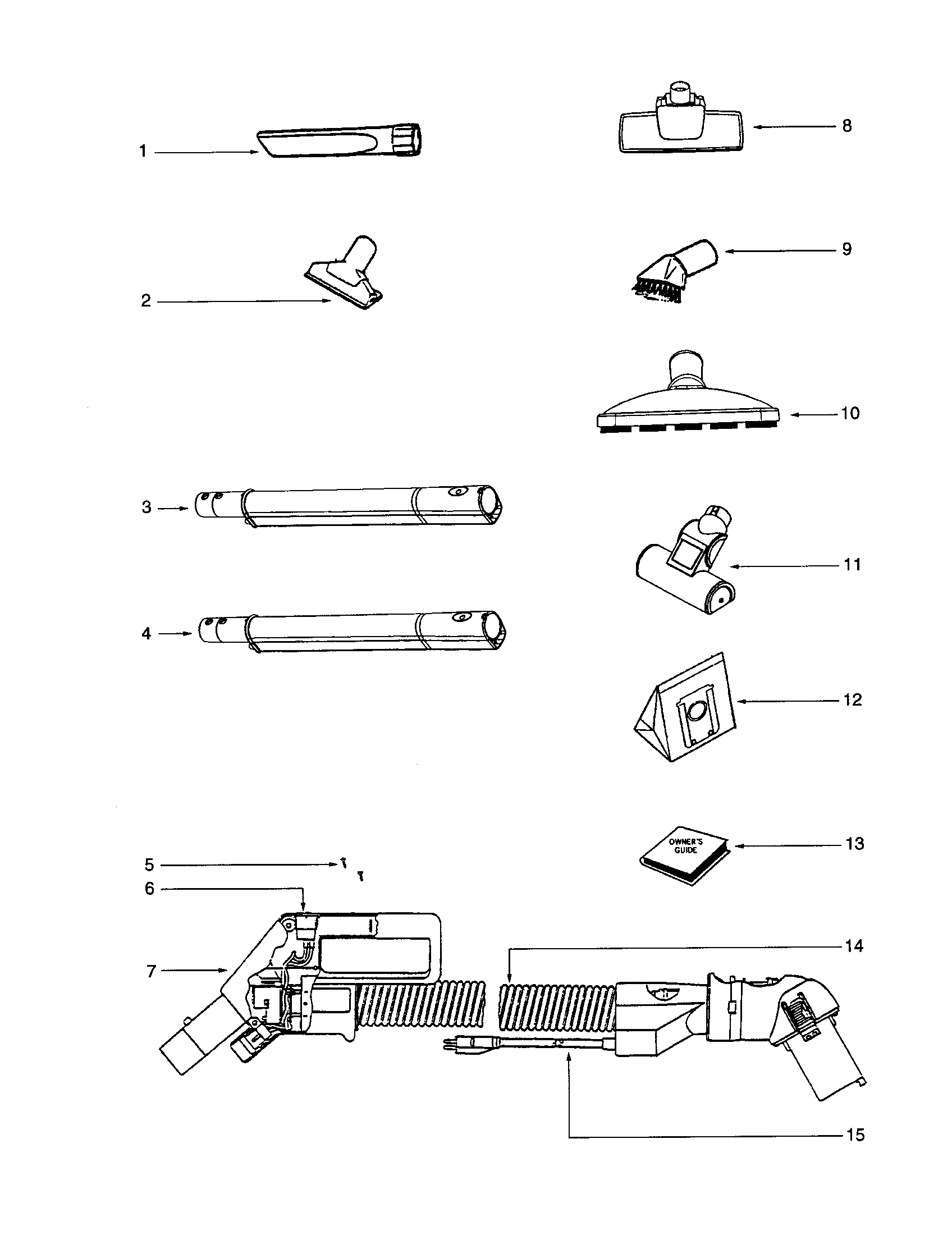

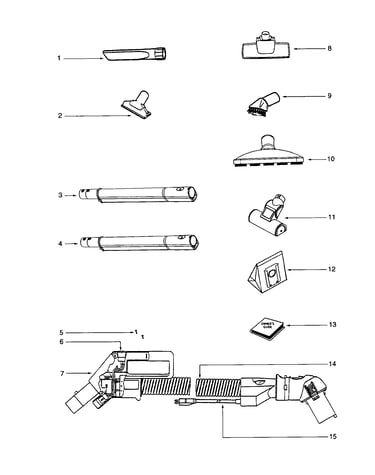

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Switch Button 54889-3
#23

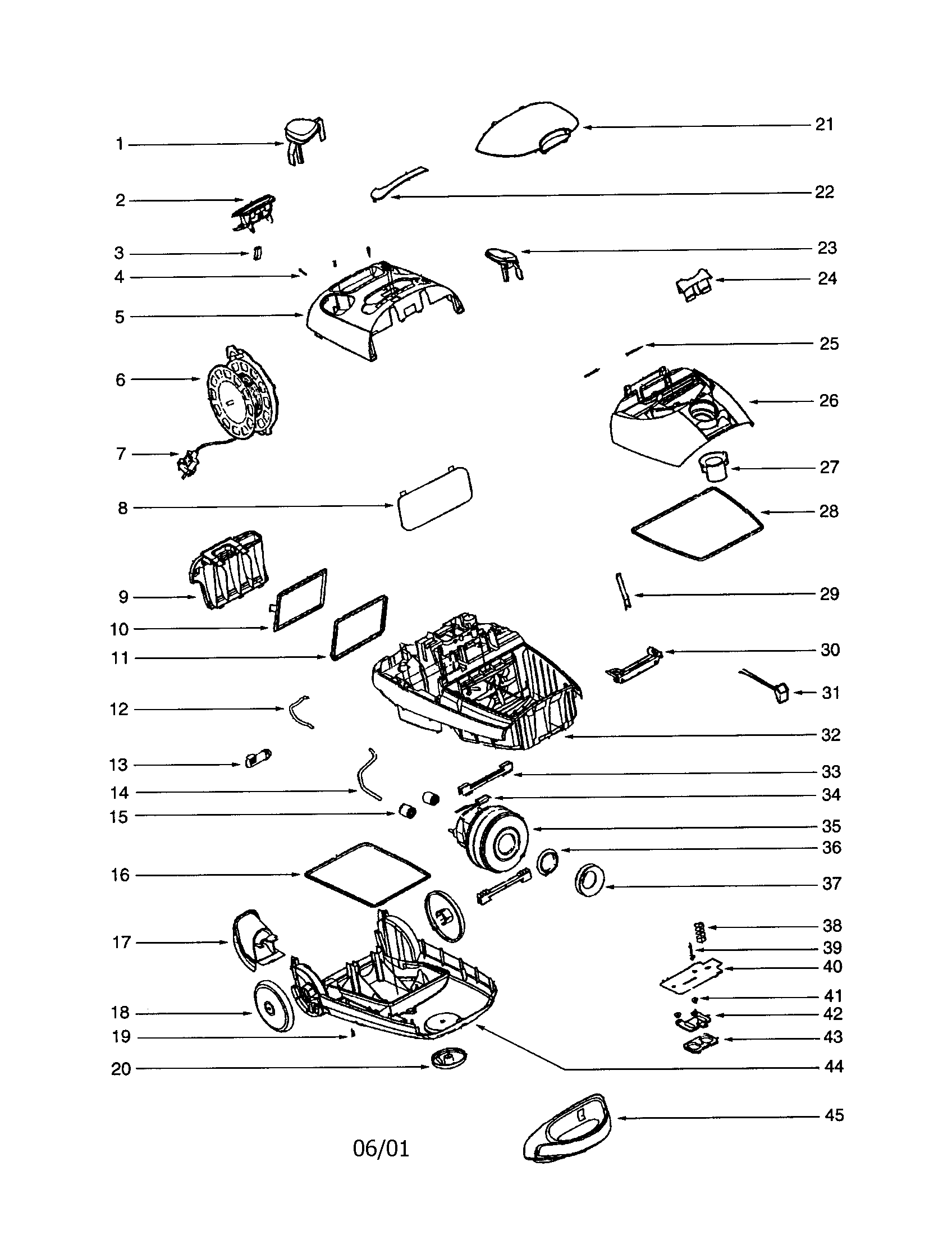

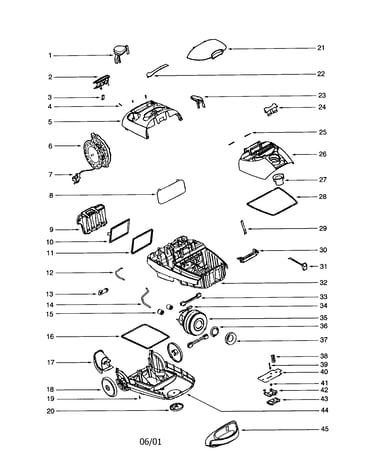

Body diagram

Switch button

Part #54889-3

The manufacturer no longer makes this part, and there's no substitute part

Shaft 54894
#25

Body diagram

Shaft

Part #54894

The manufacturer no longer makes this part, and there's no substitute part

Bearing 61747
#26

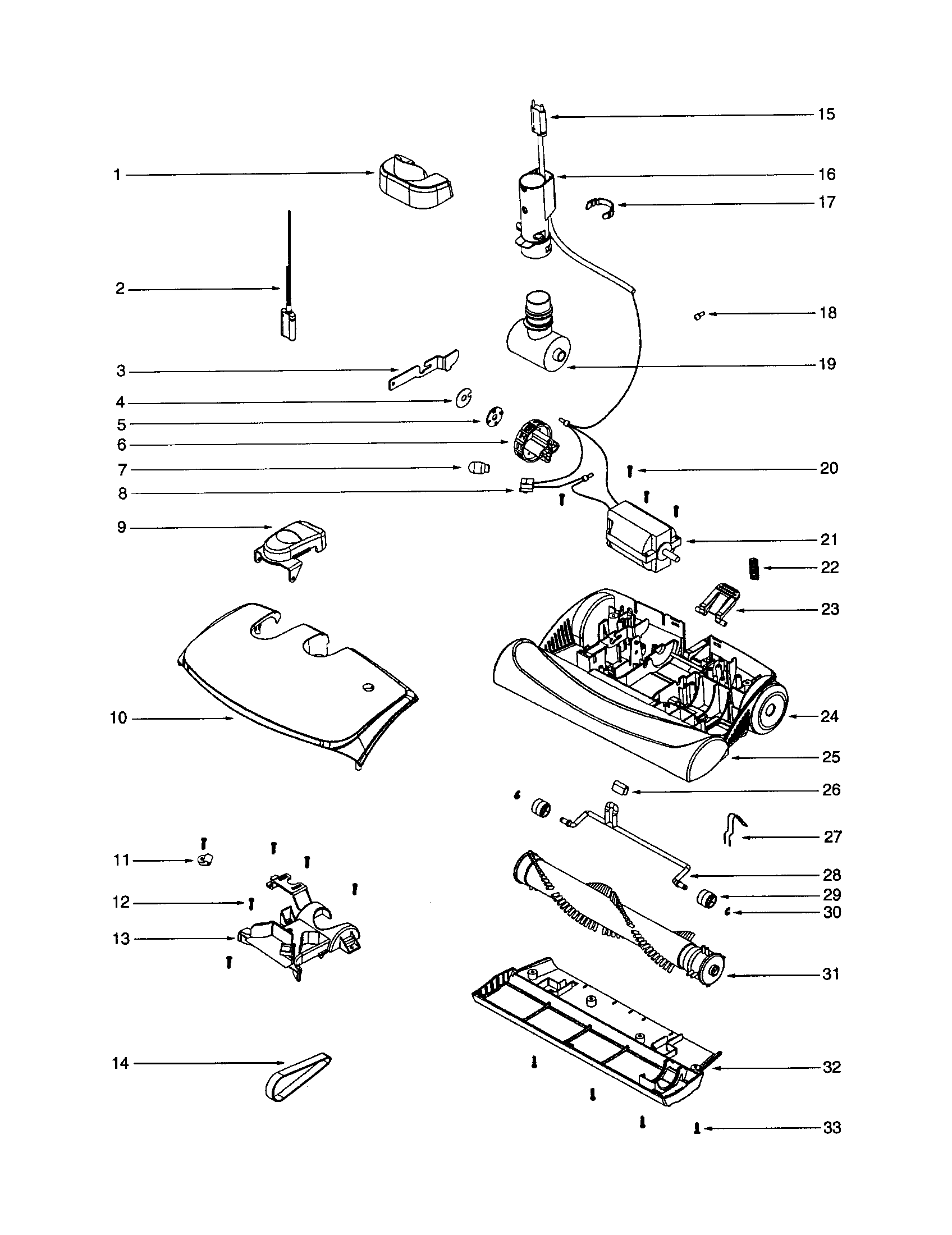

Powerhead diagram

Bearing

Part #61747

The manufacturer no longer makes this part, and there's no substitute part

Disk 61724
#4

Powerhead diagram

Disk

Part #61724

The manufacturer no longer makes this part, and there's no substitute part

Indicator 54893
#13

Body diagram

Indicator

Part #54893

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 61744
#24

Powerhead diagram

Rear wheel

Part #61744

The manufacturer no longer makes this part, and there's no substitute part

Eureka Pcb 61706-3
#40

Body diagram

Eureka pcb

Part #61706-3

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 61698
#34

Body diagram

Thermostat

Part #61698

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 60638-1
#27

Body diagram

Sleeve

Part #60638-1

The manufacturer no longer makes this part, and there's no substitute part

Lever 60651-1
#24

Body diagram

Lever

Part #60651-1

The manufacturer no longer makes this part, and there's no substitute part
