Model # ZDP366LP5SS Official GE dual fuel range

Here are the diagrams and repair parts for Official GE ZDP366LP5SS dual fuel range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

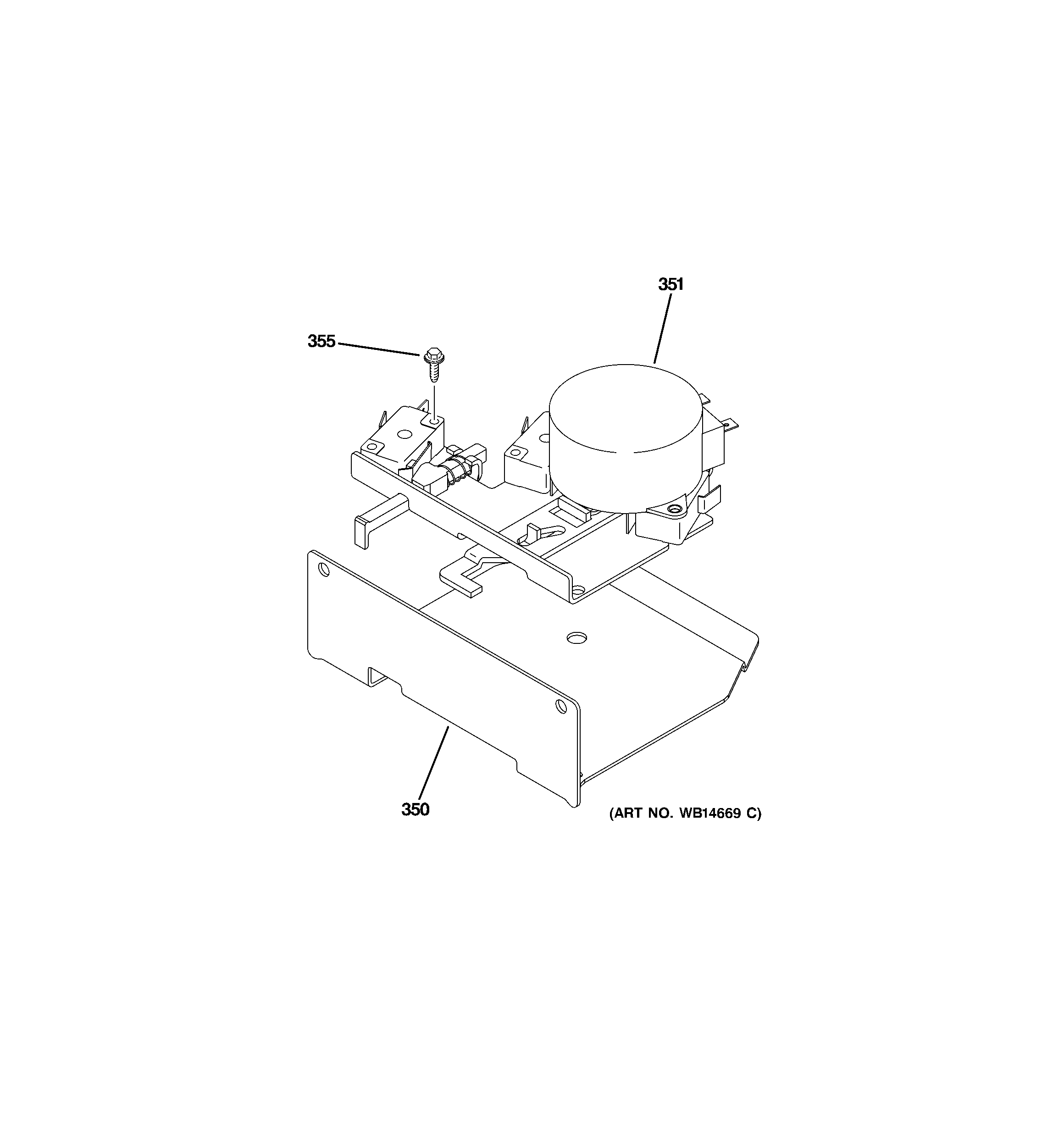

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ZDP366LP5SS DUAL FUEL RANGE
Wall Oven Temperature Sensor WB21T10007
#242

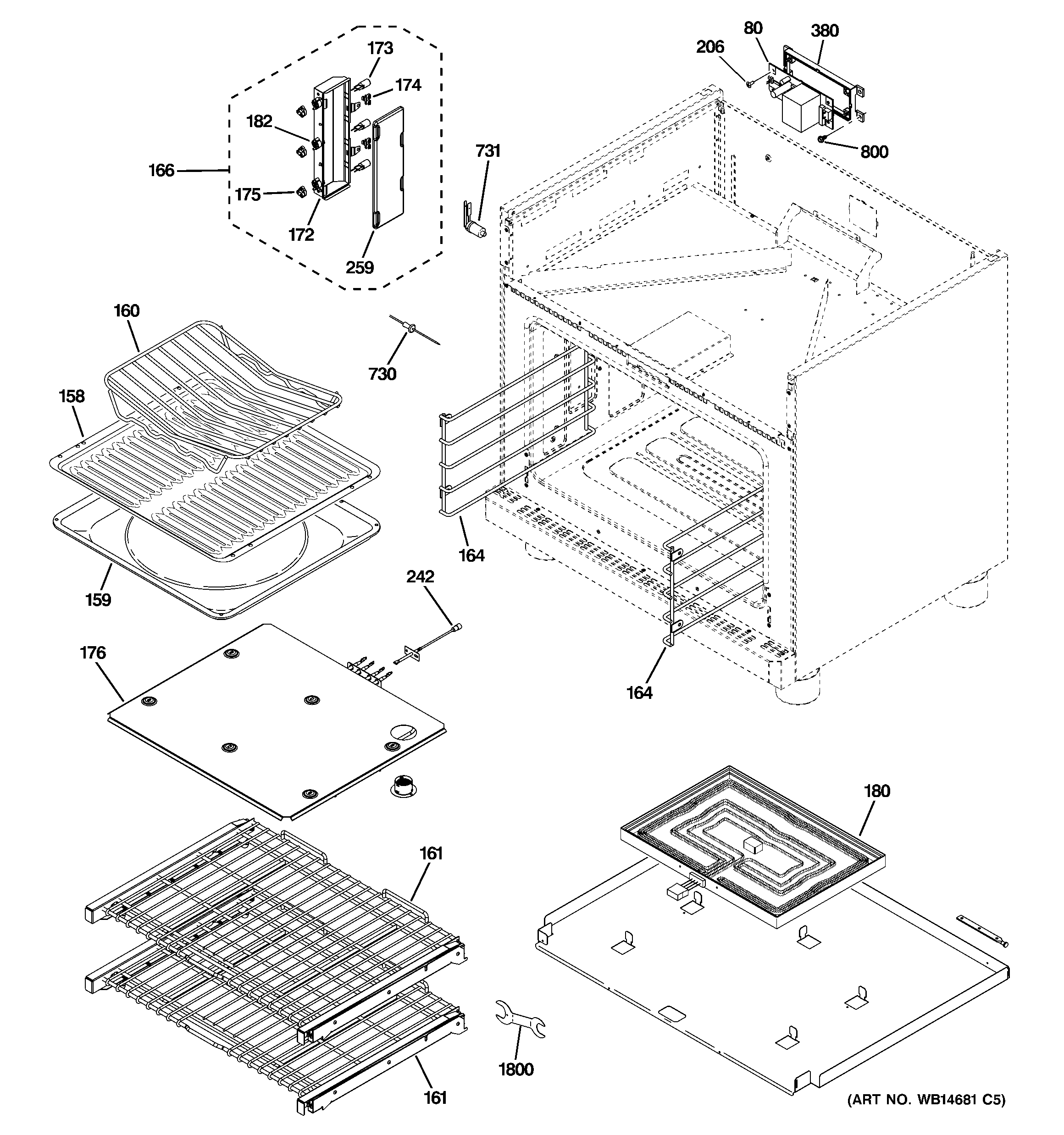

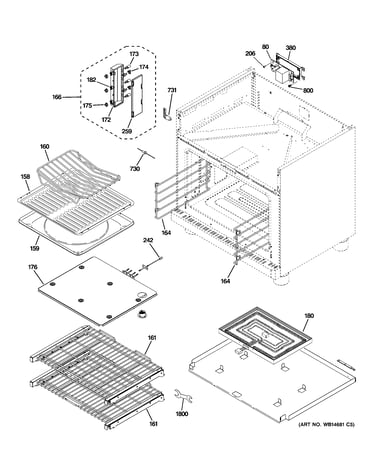

Oven cavity parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$22.96
21% OFF Phone Price : $28.96
In Stock
Terminal Block WB17T10016
#203

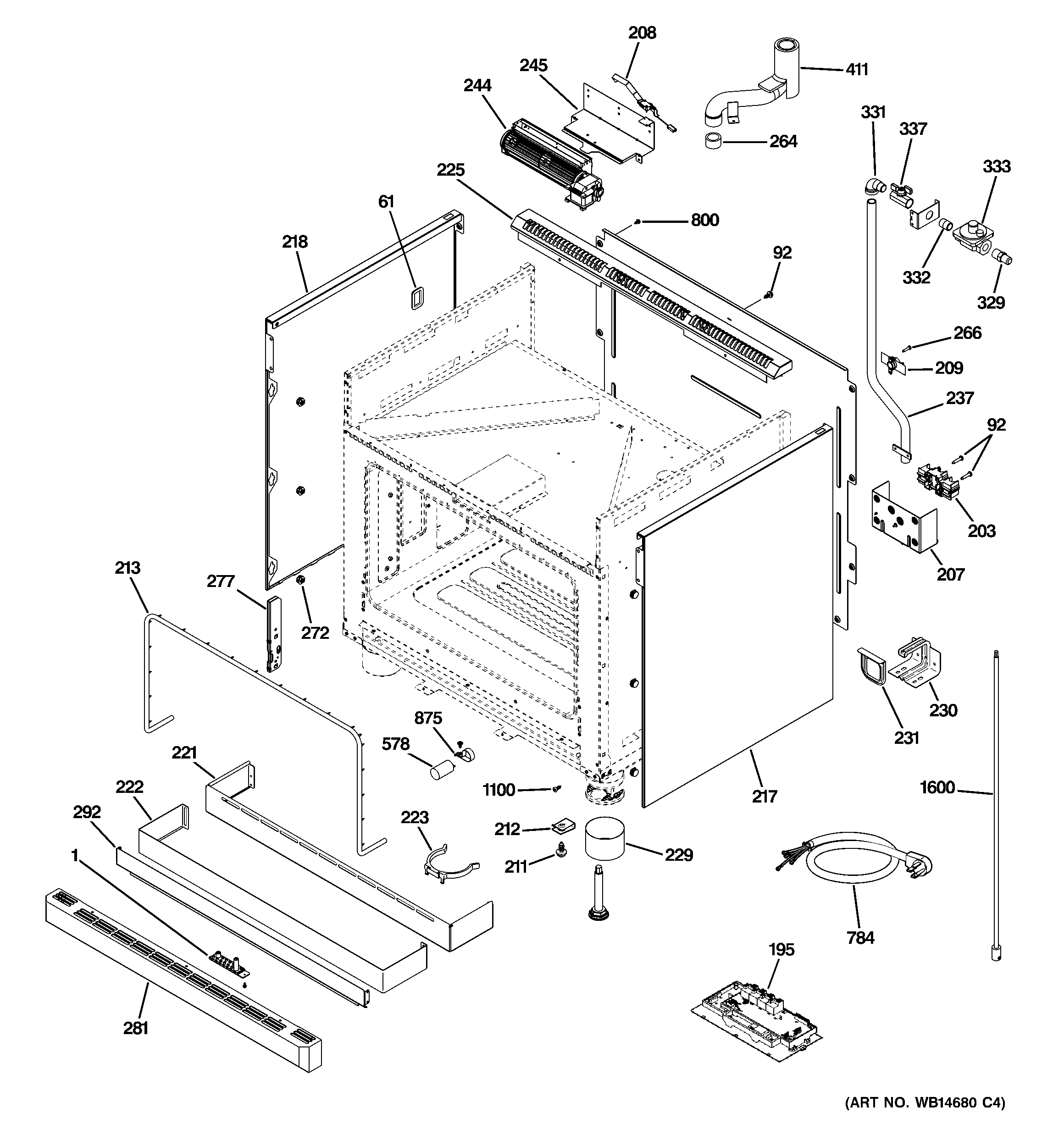

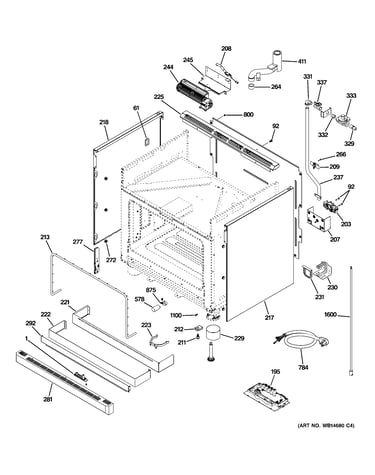

Body parts diagram

Terminal block

Part #WB17T10016

Replaced by #WB17T10011

?
Manufacturer substitution
This part replaces WB17T10016. Substitute parts can look different from the original.
BEST SELLER
$40.67
13% OFF Phone Price : $46.67
In Stock
G.e. Cooking Appliance Oven Rack Lubricant WB02T10303
G.e. cooking appliance oven rack lubricant

Part #WB02T10303

BEST SELLER
$38.98
13% OFF Phone Price : $44.98
In Stock
Nut WB02T10017
#404

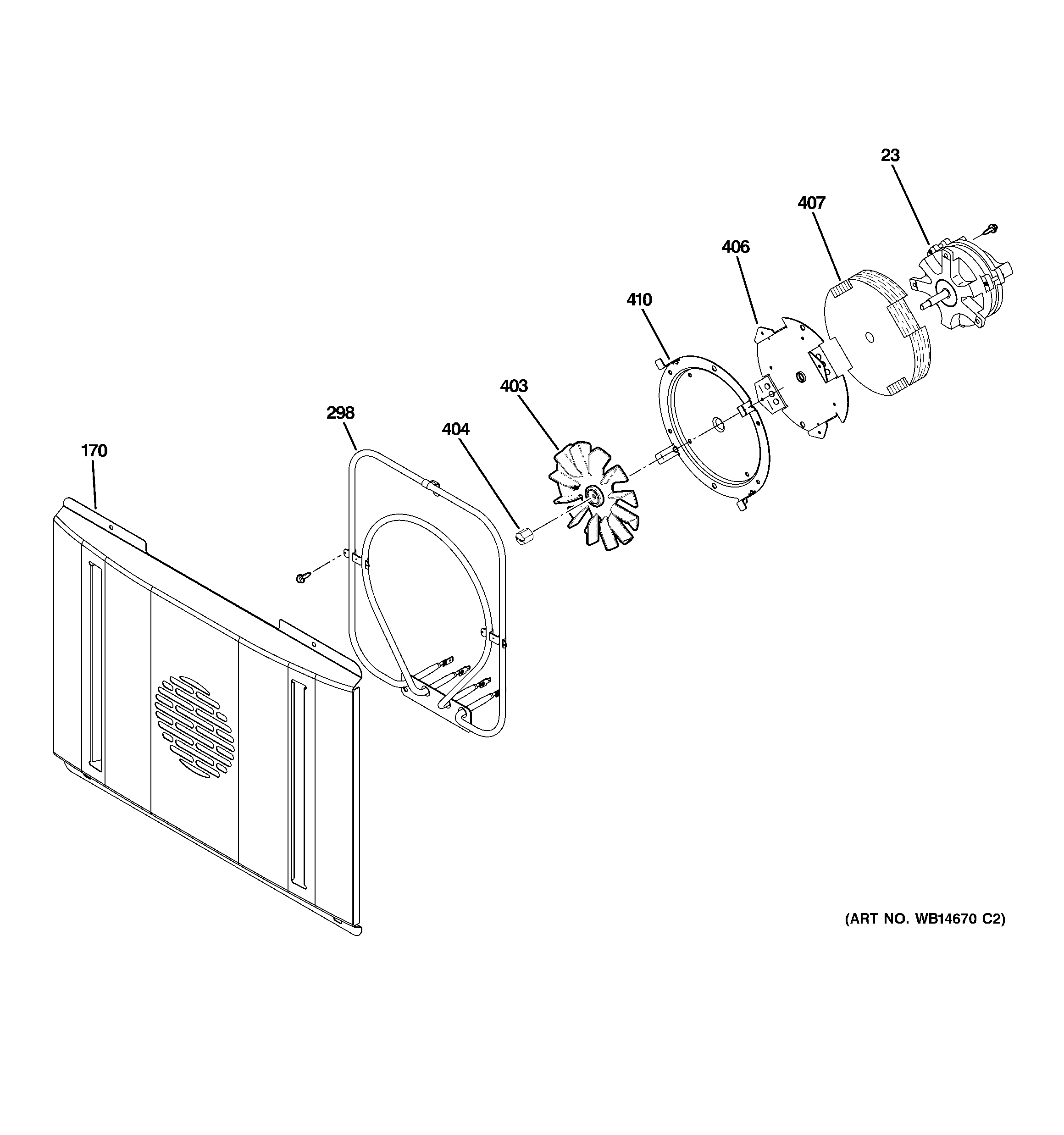

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$11.02
15% OFF Phone Price : $13.02
In Stock
Range Spark Module WB13K10038
#30

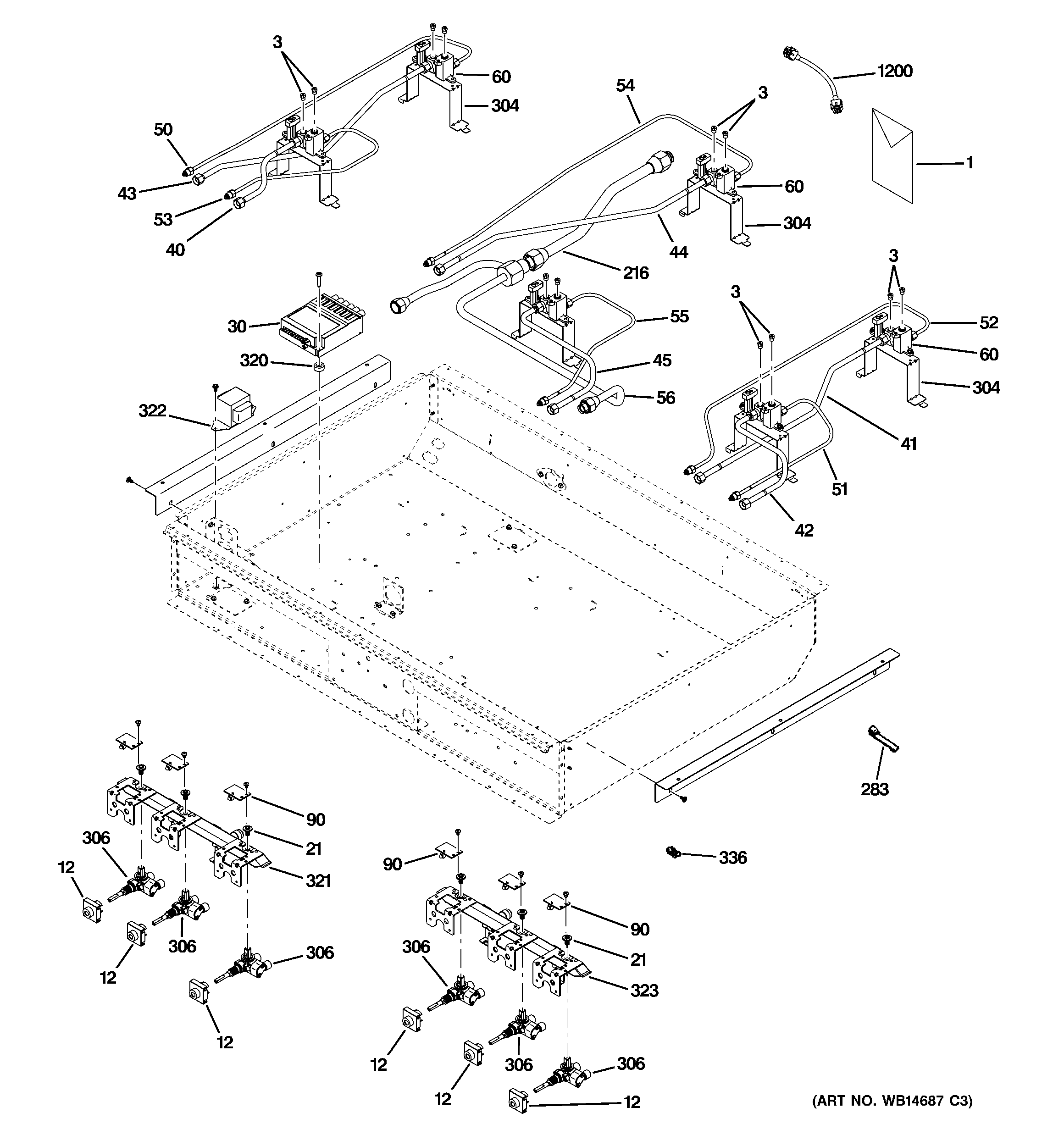

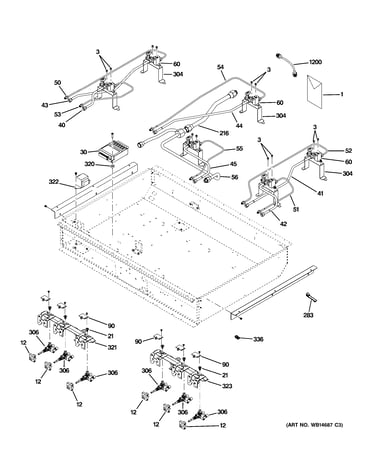

Gas & burner parts diagram

Range spark module

Part #WB13K10038

Replaced by #WB13K10031

?
Manufacturer substitution
This part replaces WB13K10038. Substitute parts can look different from the original.
$265.84
$12.00 OFF Phone Price : $277.84
In Stock
Range Surface Burner Igniter Clip WB02T10323
#480

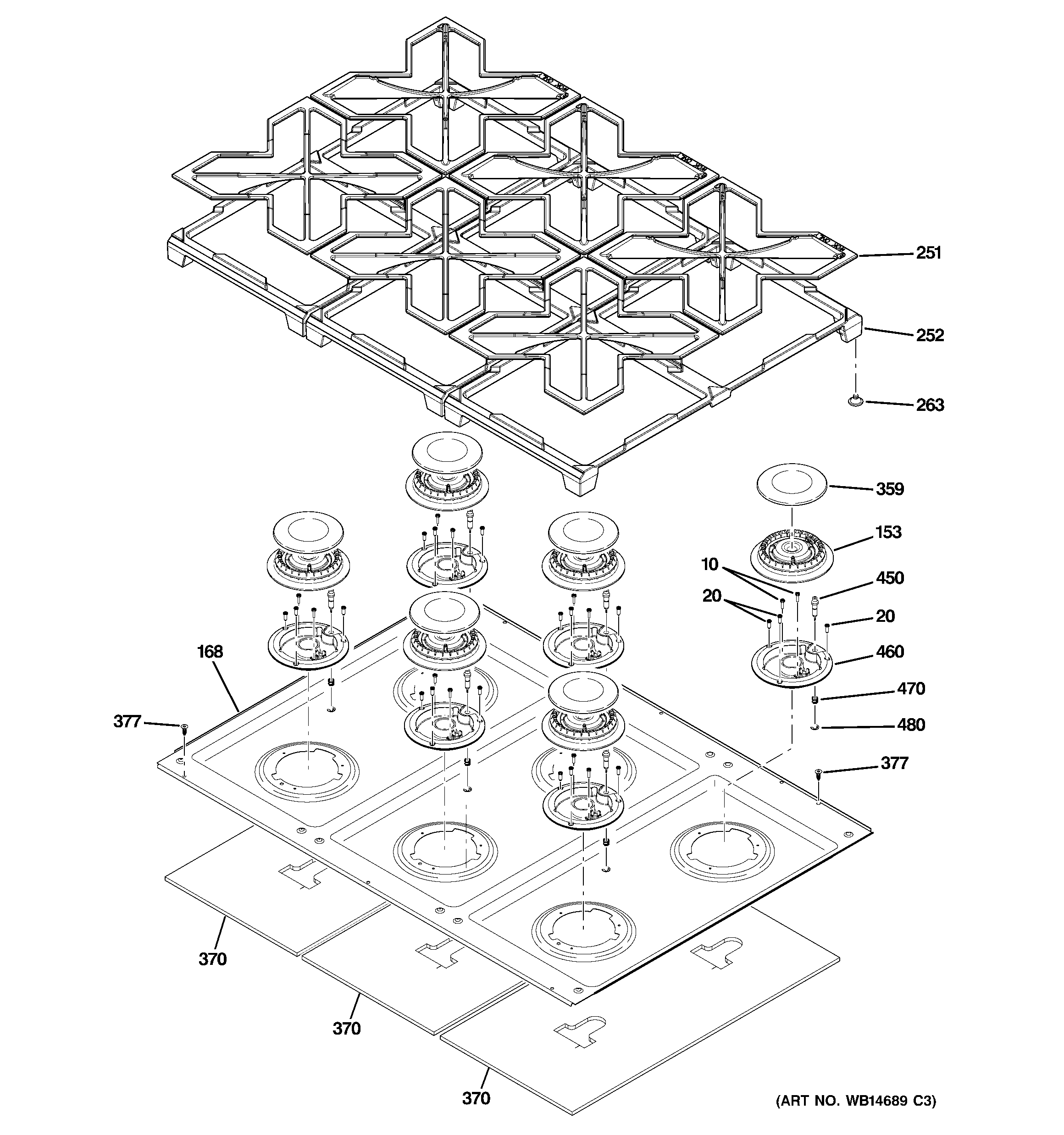

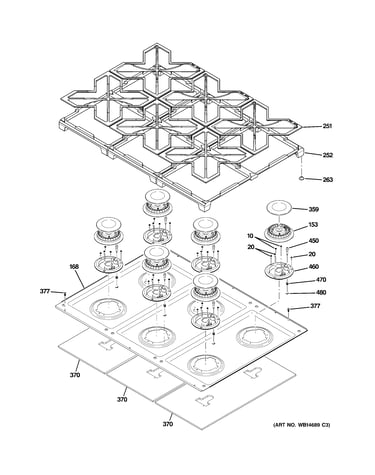

Cooktop diagram

Range surface burner igniter clip

Part #WB02T10323

In Stock
Range Encoder Board WB24K10048
#70

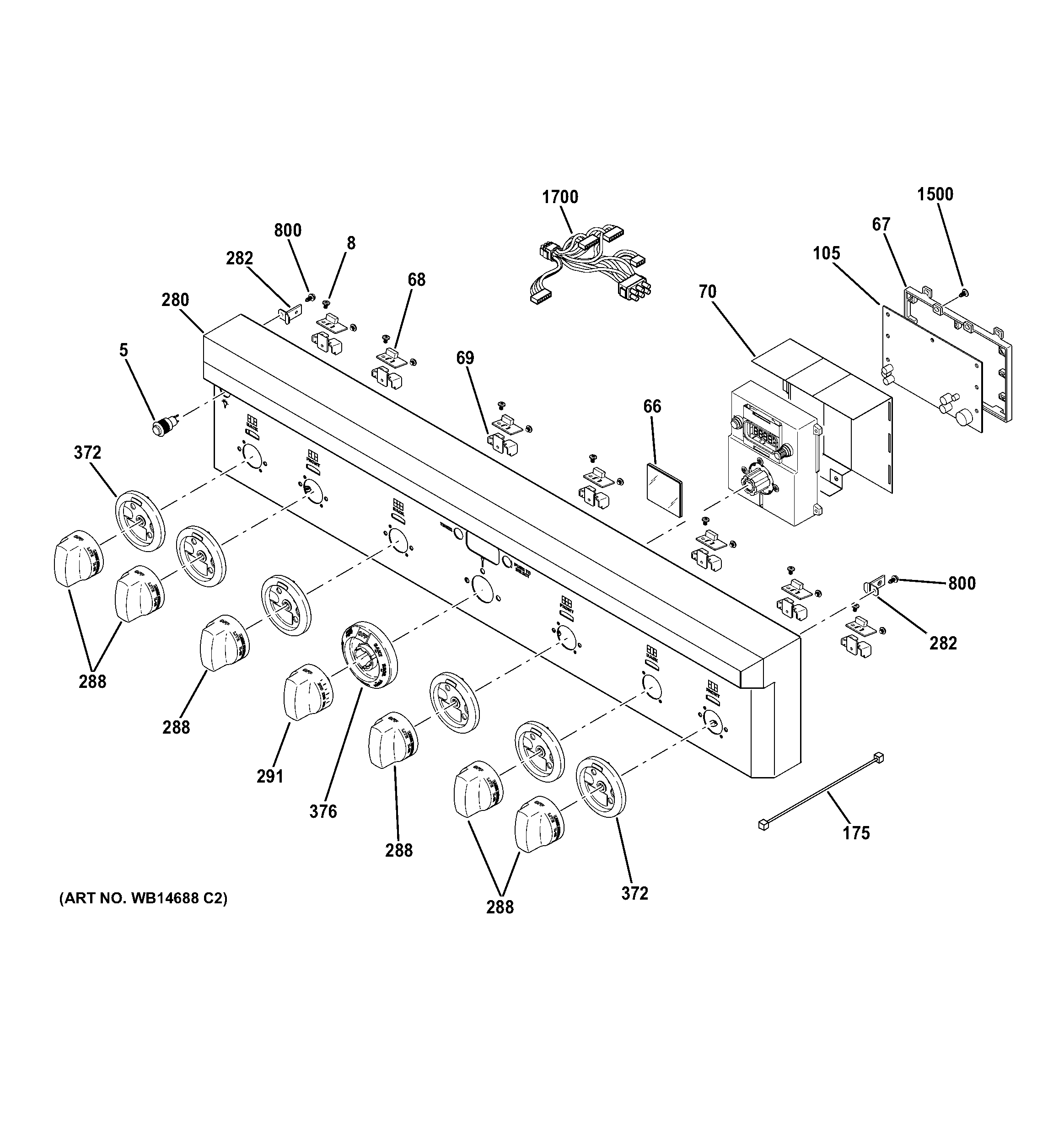

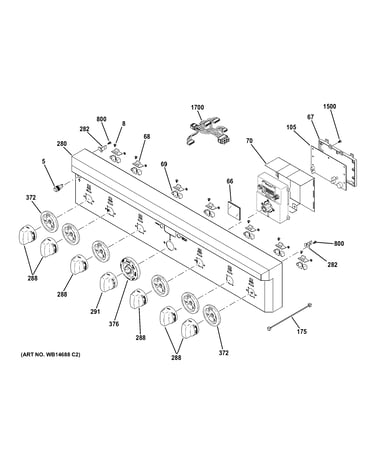

Control panel diagram

Range encoder board

Part #WB24K10048

$223.60
5% OFF Phone Price : $235.60
In Stock
Range Surface Burner Grate Support (replaces Wb31k10225) WB31K10253
#252

Cooktop diagram

Range surface burner grate support (replaces wb31k10225)

Part #WB31K10253

$188.19
6% OFF Phone Price : $200.19
In Stock
Range Surface Burner Base WB28T10114
#60

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69
8% OFF Phone Price : $75.69
In Stock
Screw (black) WB01K0042
#204

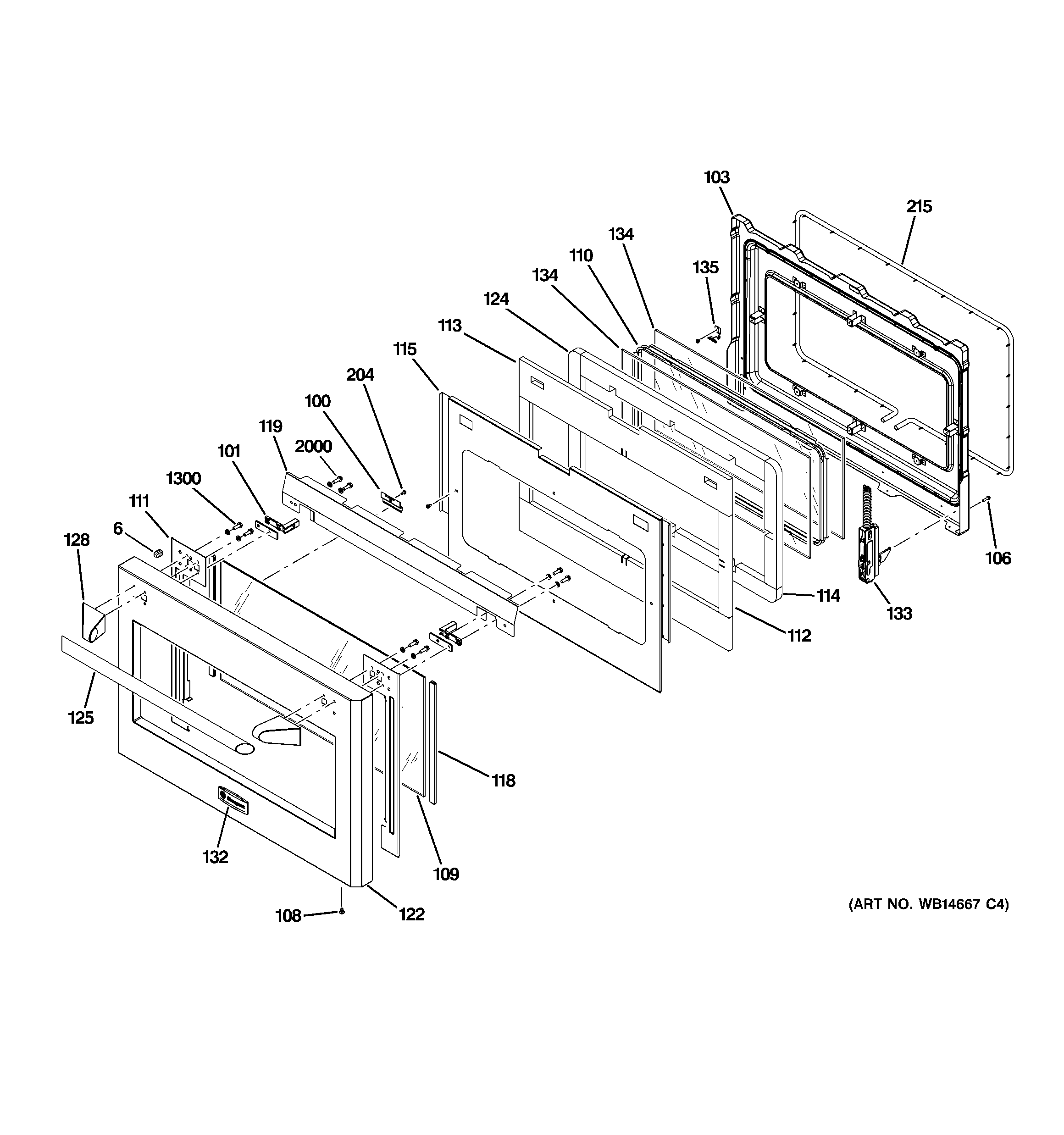

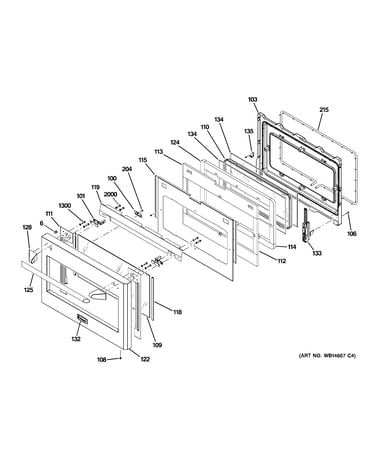

Door diagram

Screw (black)

Part #WB01K0042

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K0042. Substitute parts can look different from the original.
This item is not returnable
$8.67
10% OFF Phone Price : $9.67
In Stock
