Microwave/Hood Combo

Model # JNM7196DK5BB Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE JNM7196DK5BB microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJNM7196DK5BB Microwave/Hood Combo

  • Magnetron WB27X10876
    #5009

    Interior parts (1) diagram

    Magnetron

    Part #WB27X10876

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Door Interlock Switch WB24X25397
    #4003

    Latch board parts diagram

    Microwave door interlock switch

    Part #WB24X25397

    BEST SELLER
    $28.71
    17% OFF Phone Price : $34.71
    In Stock
  • Body Latch Asm WB10X35573
    #4001

    Latch board parts diagram

    Body latch asm

    Part #WB10X35573

    BEST SELLER
    In Stock
  • Microwave Fuse WB27X25389
    #5001

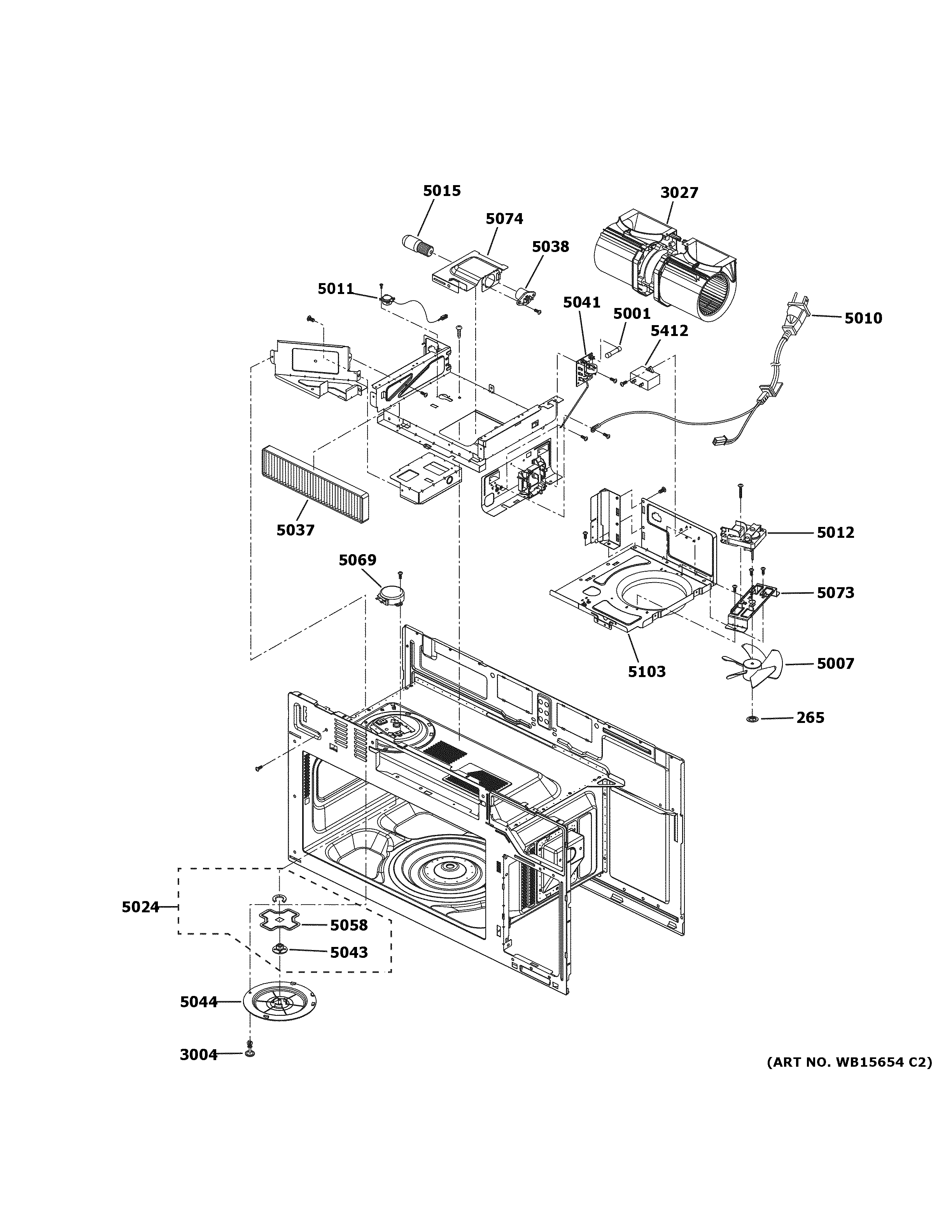

    Interior parts (2) diagram

    Microwave fuse

    Part #WB27X25389

    BEST SELLER
    This item is not returnable
    $7.78
    11% OFF Phone Price : $8.78
    In Stock
  • Thermostat WB18X35517
    #5016

    Interior parts (1) diagram

    Thermostat

    Part #WB18X35517

    BEST SELLER
    In Stock
  • Charcoal Filter WB06X10807
    #5037

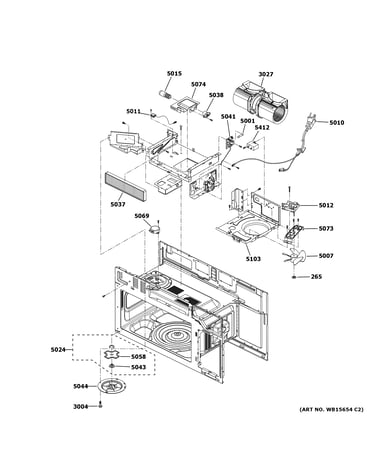

    Interior parts (2) diagram

    Charcoal filter

    Part #WB06X10807

    Replaced by #WB02X35607

    ?
    Manufacturer substitution
    This part replaces WB06X10807. Substitute parts can look different from the original.
    $26.69
    18% OFF Phone Price : $32.69
    In Stock
  • Halogen Lamp WB02X35488
    #3028

    Oven cavity parts diagram

    Halogen lamp

    Part #WB02X35488

    In Stock
  • Transformer, WB26X35514
    #5008

    Interior parts (1) diagram

    Transformer,

    Part #WB26X35514

    $150.64
    7% OFF Phone Price : $162.64
    In Stock
  • Microwave Door Latch Spring WB09X10017
    #1007

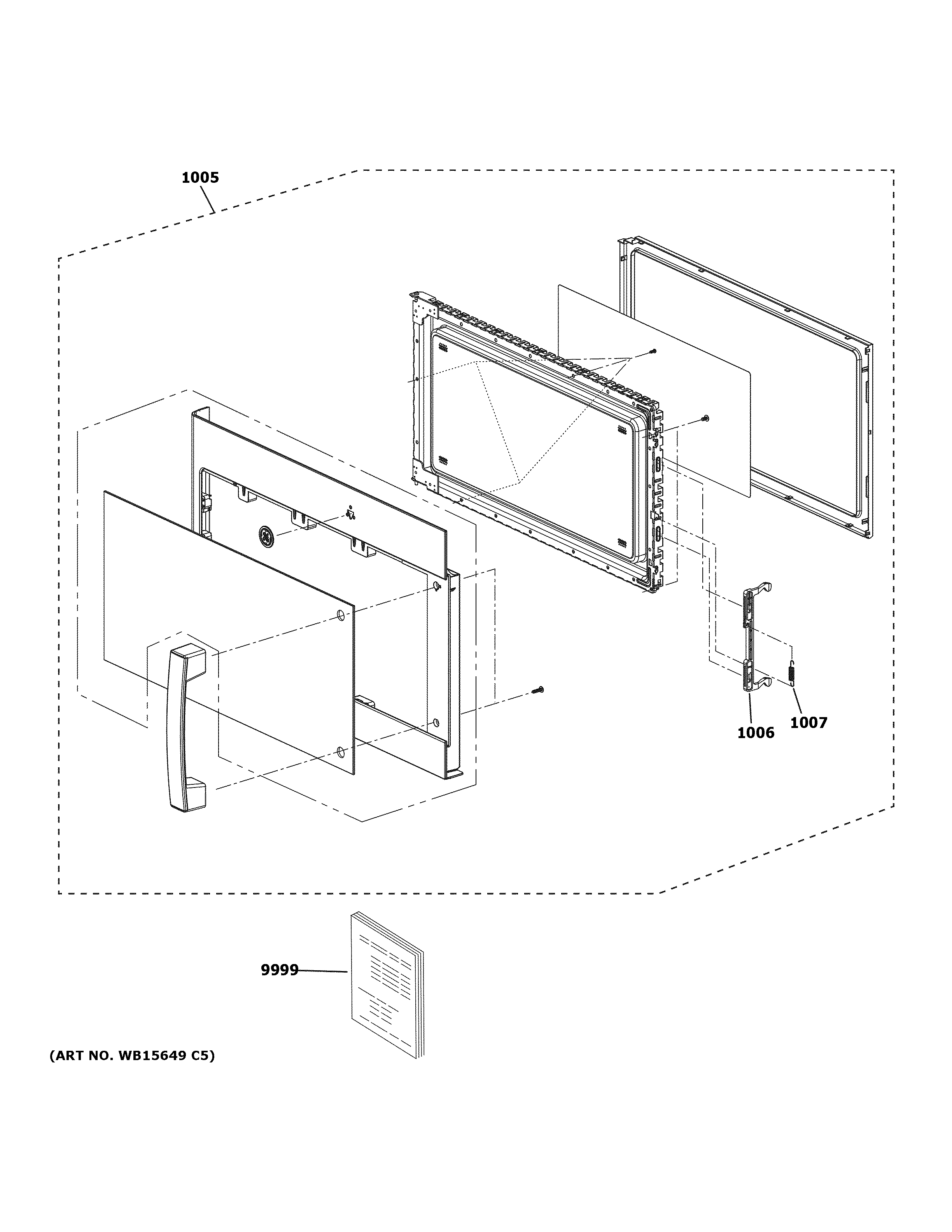

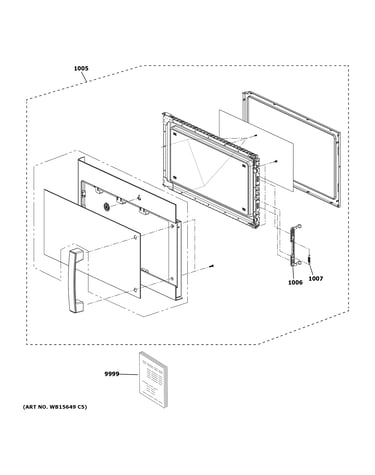

    Door parts diagram

    Microwave door latch spring

    Part #WB09X10017

    $12.51
    14% OFF Phone Price : $14.51
    In Stock
  • Microwave Humidity Sensor WB27X10857
    #5011

    Interior parts (2) diagram

    Microwave humidity sensor

    Part #WB27X10857

    $98.16
    11% OFF Phone Price : $110.16
    In Stock
