Kenmore
Upright Freezer

Model # 25326202100 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25326202100 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Filter Drier 216938600
#4

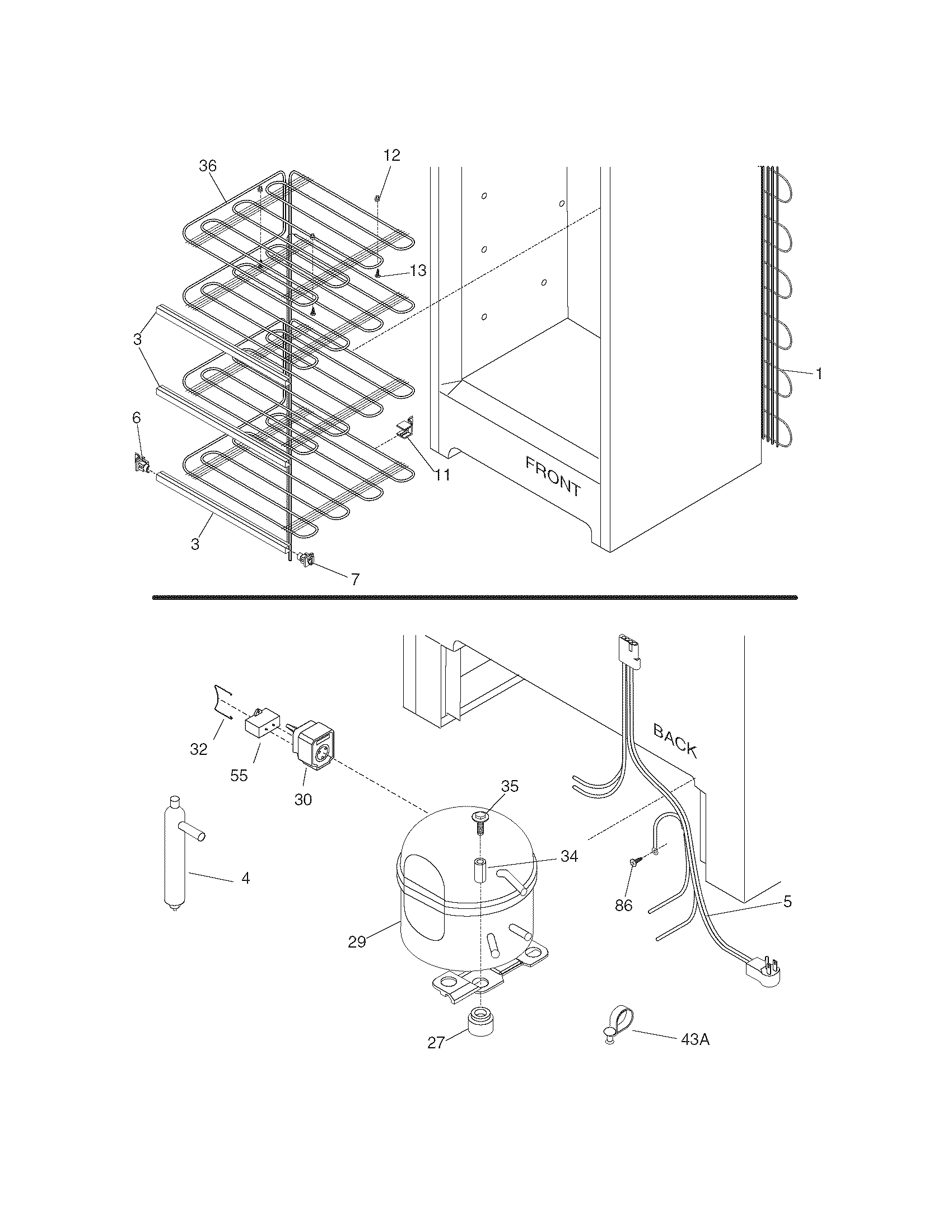

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Closer Bearing 216503300
#26

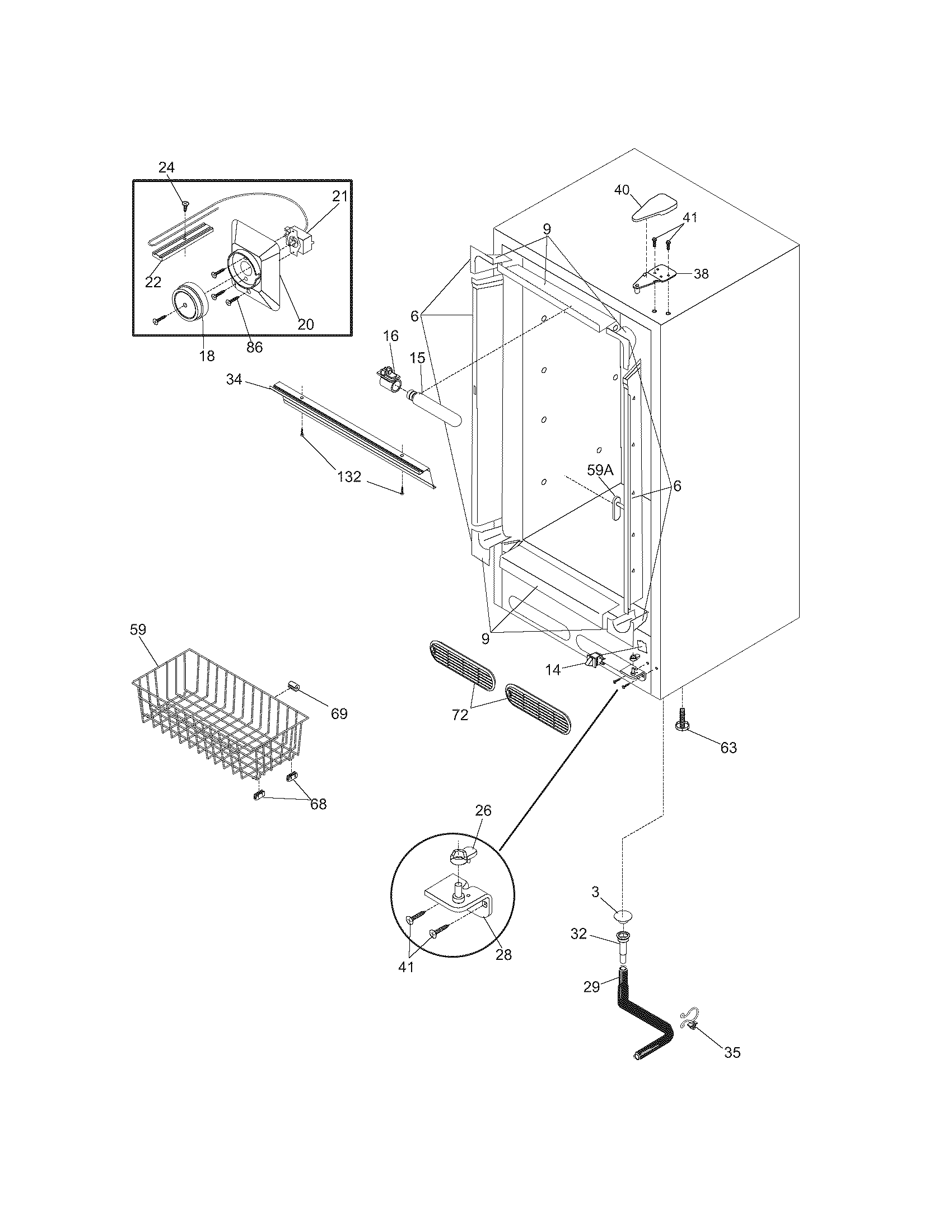

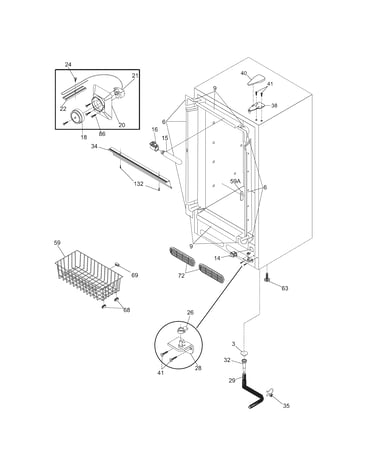

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Refrigerator Run Capacitor 216985000
#55

System diagram

Refrigerator run capacitor

Part #216985000

Replaced by #297286802

?
Manufacturer substitution
This part replaces 216985000. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Freezer Door Gasket 216522303
#1

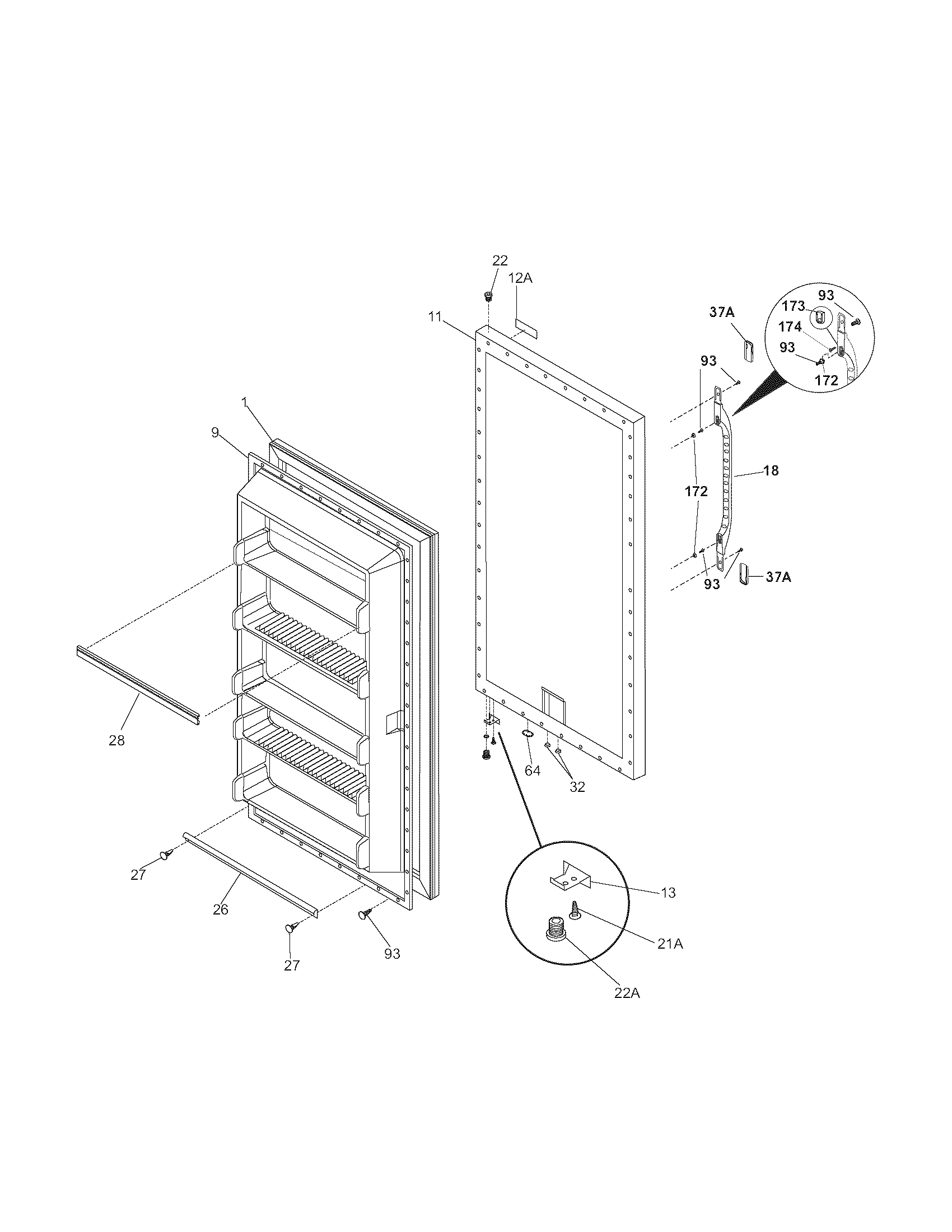

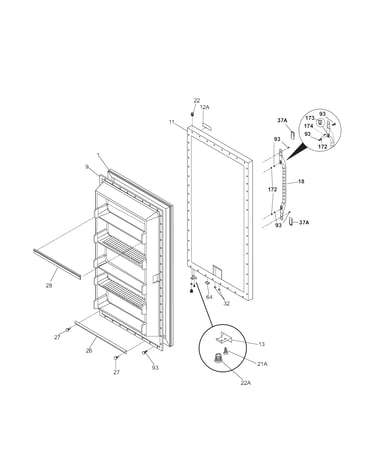

Door diagram

Freezer door gasket

Part #216522303

Replaced by #5304507202

?
Manufacturer substitution
This part replaces 216522303. Substitute parts can look different from the original.
BEST SELLER
$125.91 |
9% OFF Phone Price : $137.91
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Door Hinge Bearing 216970800
#22

Door diagram

Freezer door hinge bearing

Part #216970800

Replaced by #216970802

?
Manufacturer substitution
This part replaces 216970800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
#173

Door diagram

Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
