Model # DCT305SNG Official Dacor gas cooktop

Here are the diagrams and repair parts for Official Dacor DCT305SNG gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Cooktop Dual Burner Knob 106859-02
#6

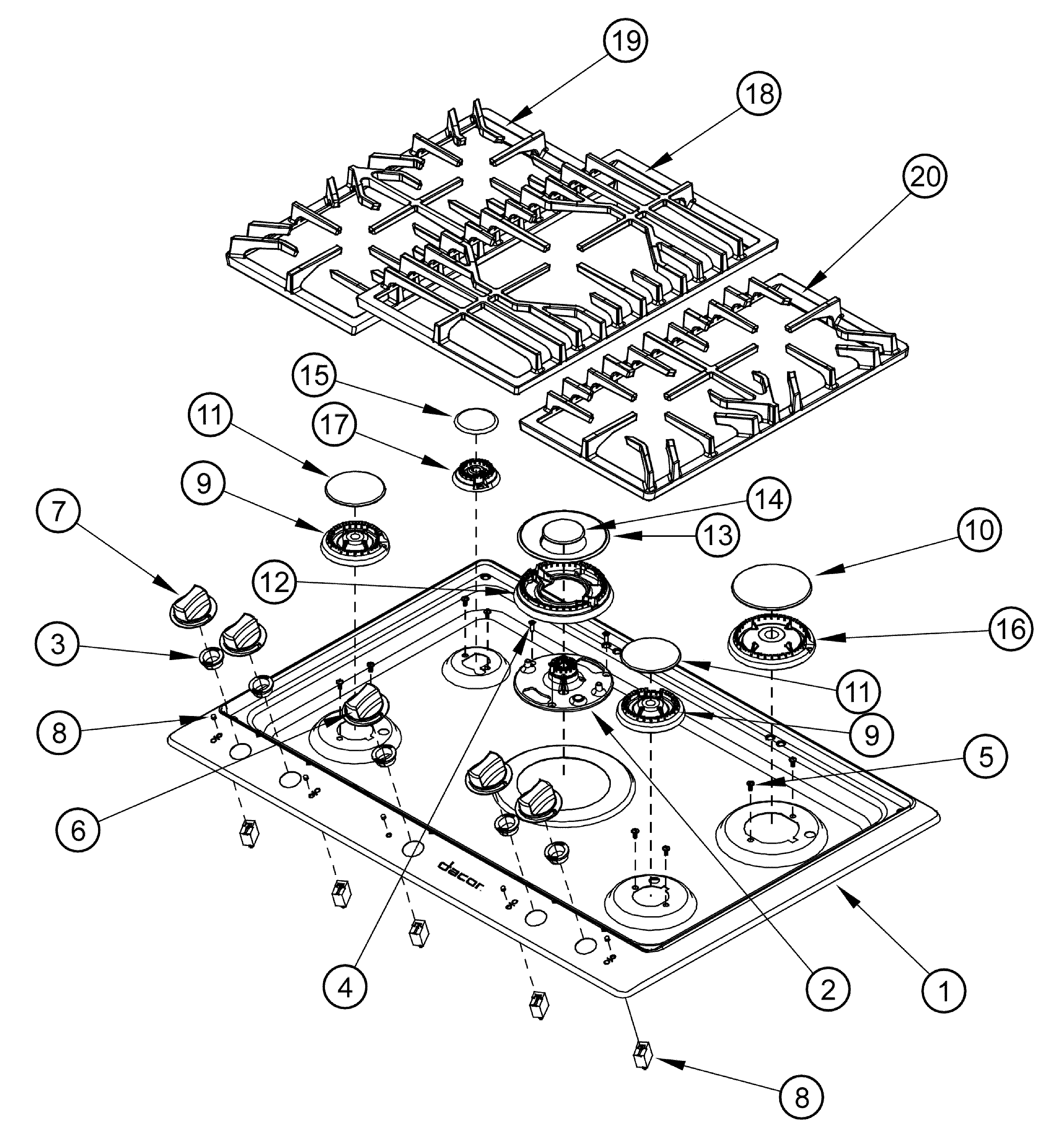

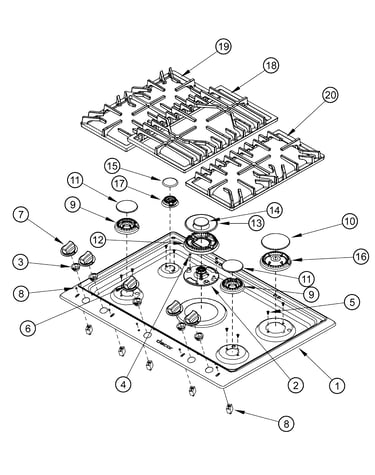

Top frame diagram

Cooktop dual burner knob

Part #106859-02

Back Order
Outer Cap 102586
#13

Top frame diagram

Outer cap

Part #102586

In Stock
Range Burner Head Mounting Screw, 4 X 12-mm 103755
#4

Top frame diagram

Range burner head mounting screw, 4 x 12-mm

Part #103755

This item is not returnable
In Stock
Inner Cap 102585
#14

Top frame diagram

Inner cap

Part #102585

This item is not returnable
In Stock
Range Surface Burner Cap 102590
#10

Top frame diagram

Range surface burner cap

Part #102590

In Stock
Range Surface Burner Gasket 103552
#8

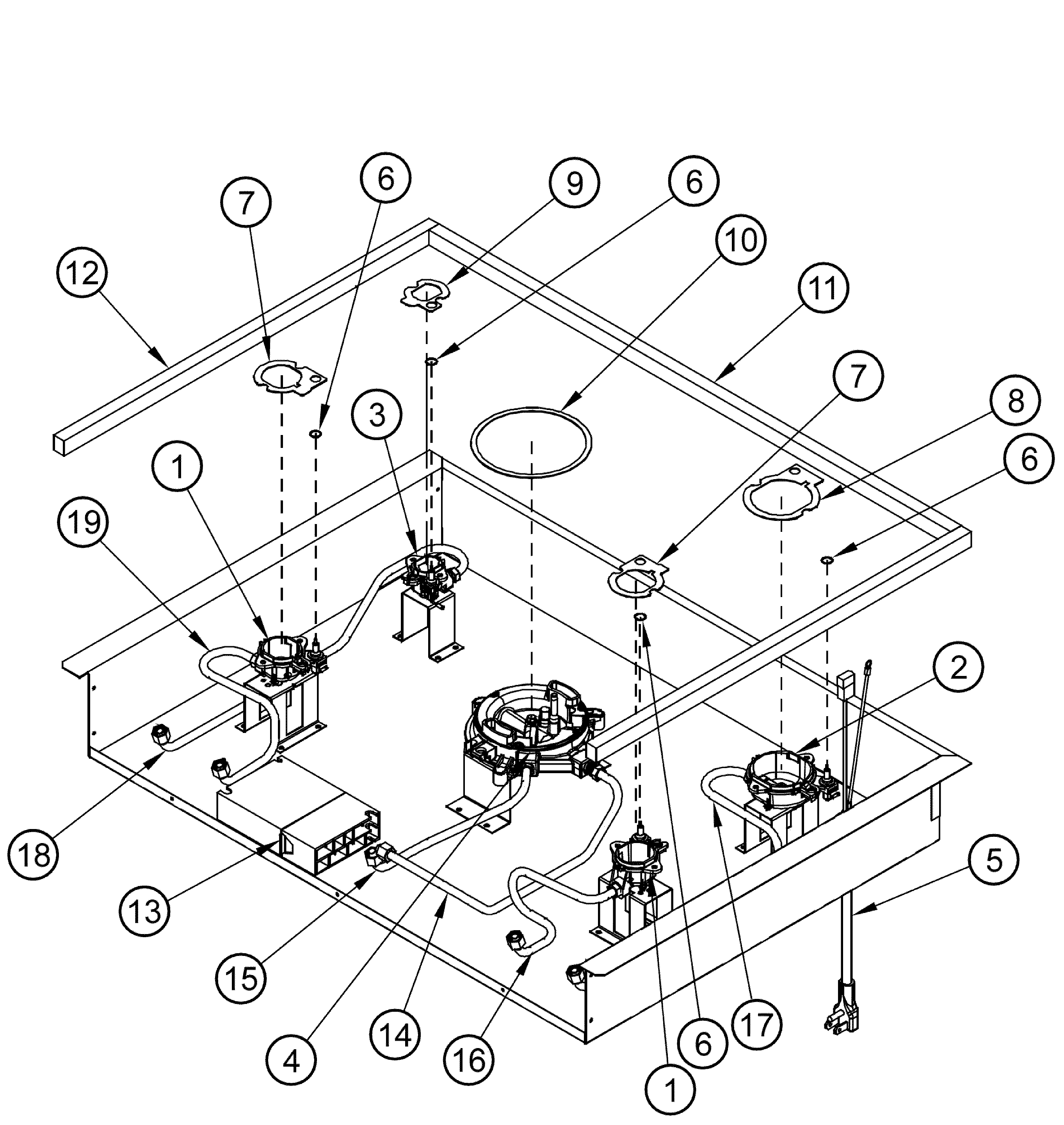

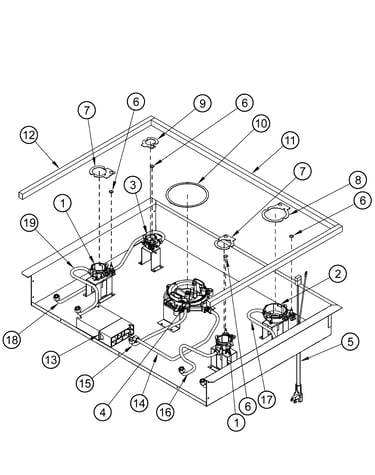

Cabinet diagram

Range surface burner gasket

Part #103552

This item is not returnable
In Stock
Reducer Burner 83458
#9

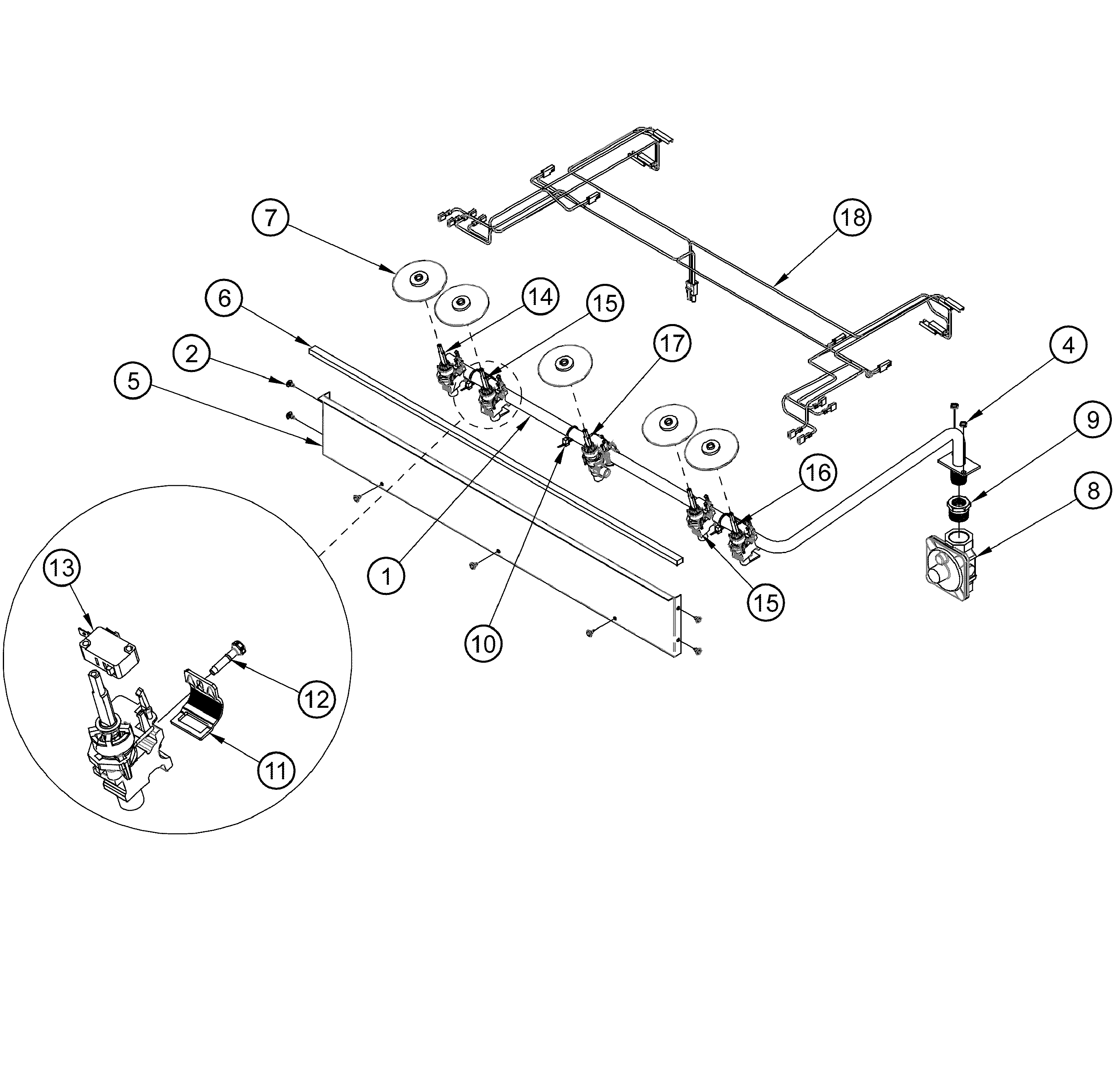

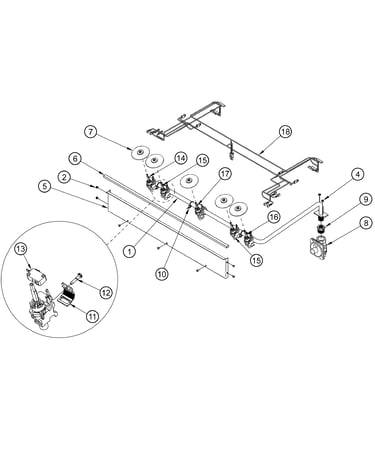

Manifold diagram

Reducer burner

Part #83458

This item is not returnable
In Stock
Dacor Burner 701363-05
#2

Cabinet diagram

Dacor burner

Part #701363-05

In Stock
Cooktop Burner Head, 7,000-btu 105407
#17

Top frame diagram

Cooktop burner head, 7,000-btu

Part #105407

In Stock
Cooktop Burner Base Gasket 103551
#7

Cabinet diagram

Cooktop burner base gasket

Part #103551

This item is not returnable
In Stock
