Model # 39719370 Official Craftsman 1/2-hp grinder

Here are the diagrams and repair parts for Official Craftsman 39719370 1/2-hp grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#36

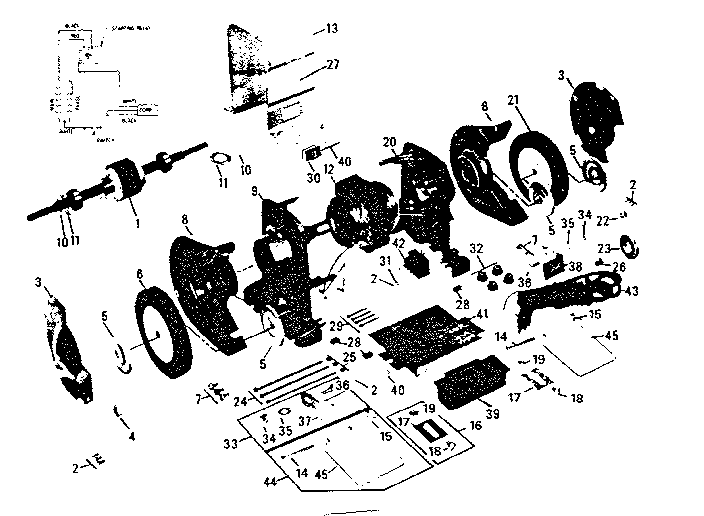

Unit parts diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551031
#35

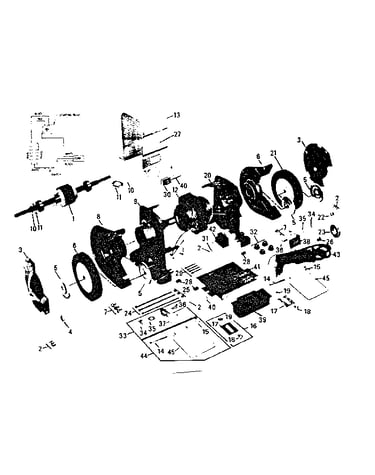

Unit parts diagram

Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Sprk Arstr 3175504
#17

Unit parts diagram

Sprk arstr

Part #3175504

The manufacturer no longer makes this part, and there's no substitute part

Shield Pack 3161437
#44

Unit parts diagram

Shield pack

Part #3161437

The manufacturer no longer makes this part, and there's no substitute part

Eye Shield 3161434
#45

Unit parts diagram

Eye shield

Part #3161434

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 4978534
#43

Unit parts diagram

Cable assembly

Part #4978534

The manufacturer no longer makes this part, and there's no substitute part

Cover Band 4990628
#13

Unit parts diagram

Cover band

Part #4990628

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3169206
#26

Unit parts diagram

Grommet

Part #3169206

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8-32 X 3/8 Hex Hd Self Tap STD600803
#2

Unit parts diagram

Screw, 8-32 x 3/8 hex hd self tap

Part #STD600803

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut, 1/4-20 STD541625
#15

Unit parts diagram

Wing nut, 1/4-20

Part #STD541625

The manufacturer no longer makes this part, and there's no substitute part
