Model # DBLR333GT1AA Official GE gas dryer
Here are the diagrams and repair parts for Official GE DBLR333GT1AA gas dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
DBLR333GT1AA Gas Dryer
#717

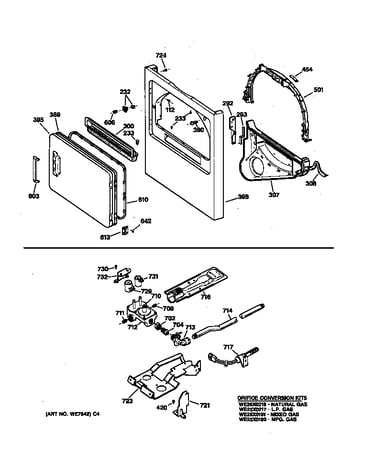

Cabinet front, gas valve & burner asm. diagram
Dryer burner igniter
Part #WE4X739
Replaced by #WE04X25996
?
Manufacturer substitution
This part replaces WE4X739. Substitute parts can look different from the original.
$50.70 |
11% OFF Phone Price : $56.70
In Stock
#508

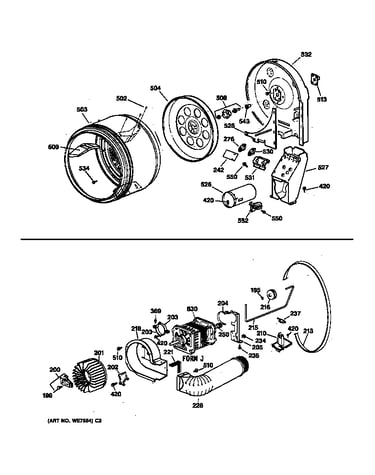

Drum, duct, blower & drive asm. diagram
Shft-brkt
Part #WE3X39
Replaced by #WE25M40
?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
$61.52 |
9% OFF Phone Price : $67.52
In Stock
#552
Drum, duct, blower & drive asm. diagram
Dryer radiant sensor (replaces we04x0448)
Part #WE4X448
$47.23 |
11% OFF Phone Price : $53.23
In Stock
#201
Drum, duct, blower & drive asm. diagram
Dryer blower wheel
Part #WE16X30
Replaced by #WE16M15
?
Manufacturer substitution
This part replaces WE16X30. Substitute parts can look different from the original.
$60.14 |
9% OFF Phone Price : $66.14
In Stock
#19
Control assembly diagram
Washer control knob (replaces we01x10033, we01x10156, we01x2721, we1x1207, we1x1208, we1x2721, wh01x2721)
Part #WH1X2721
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#729
Cabinet front, gas valve & burner asm. diagram
Dryer valve coil (replaces we04x0692)
Part #WE4X692
$39.58 |
13% OFF Phone Price : $45.58
In Stock
#19
Control assembly diagram
Timer knob
Part #WE1X1208
Replaced by #WH1X2721
?
Manufacturer substitution
This part replaces WE1X1208. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#300
Cabinet front, gas valve & burner asm. diagram
G.e. dryer lint screen (replaces we18x0054)
Part #WE18X54
$58.30 |
9% OFF Phone Price : $64.30
In Stock
#7
Control assembly diagram
Dryer timer knob (white) (replaces we01x10036)
Part #WE1X1263
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
#606
Cabinet front, gas valve & burner asm. diagram
Dryer door strike (replaces we01x1192)
Part #WE1X1192
This item is not returnable
$8.16 |
11% OFF Phone Price : $9.16
In Stock
