Model # 81220175 Official Craftsman weld pak 155

Here are the diagrams and repair parts for Official Craftsman 81220175 weld pak 155, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

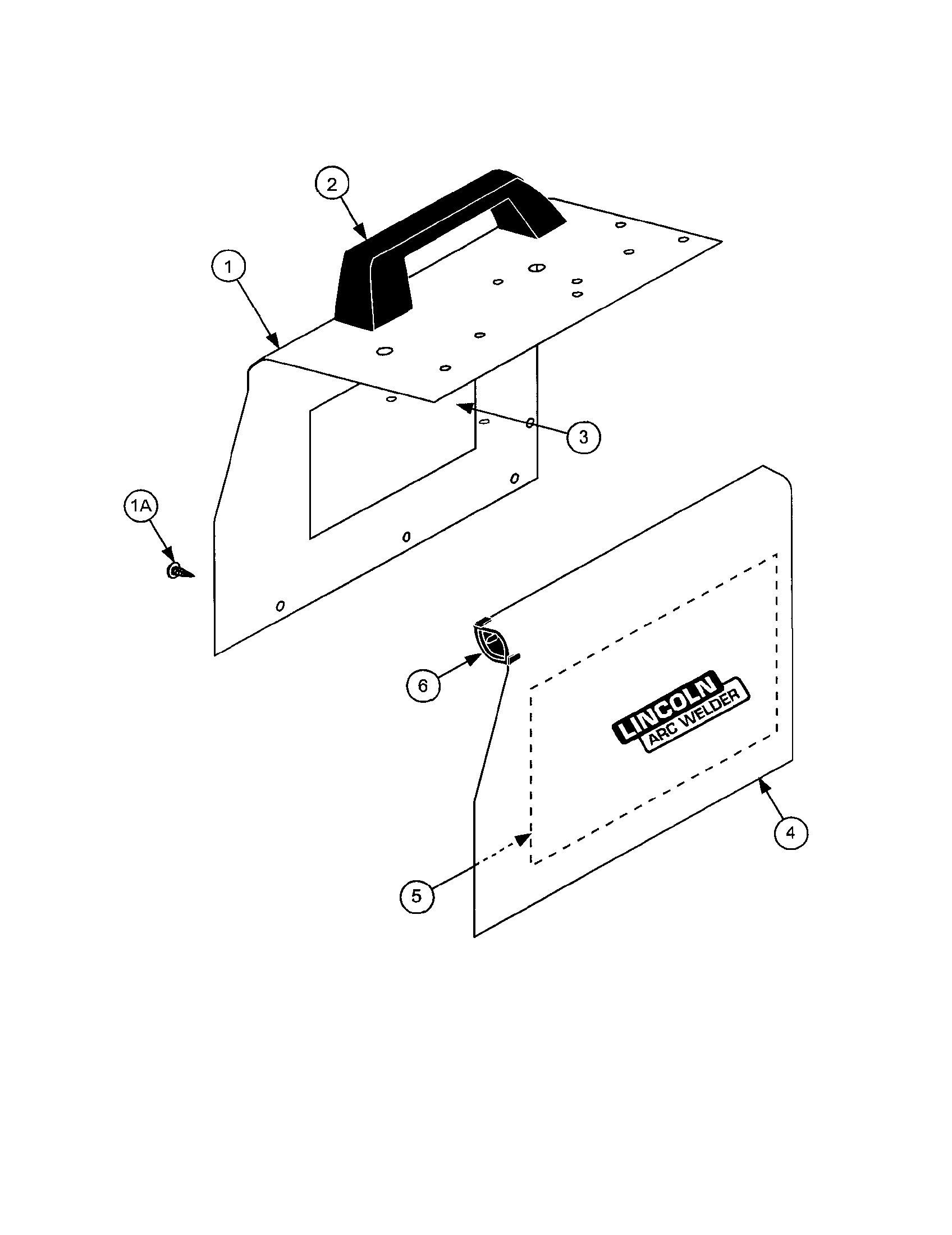

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
230v 50a Receptacle K667-1

#NI04

All parts diagram

230v 50a receptacle

Part #K667-1

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut #10-24
#7B

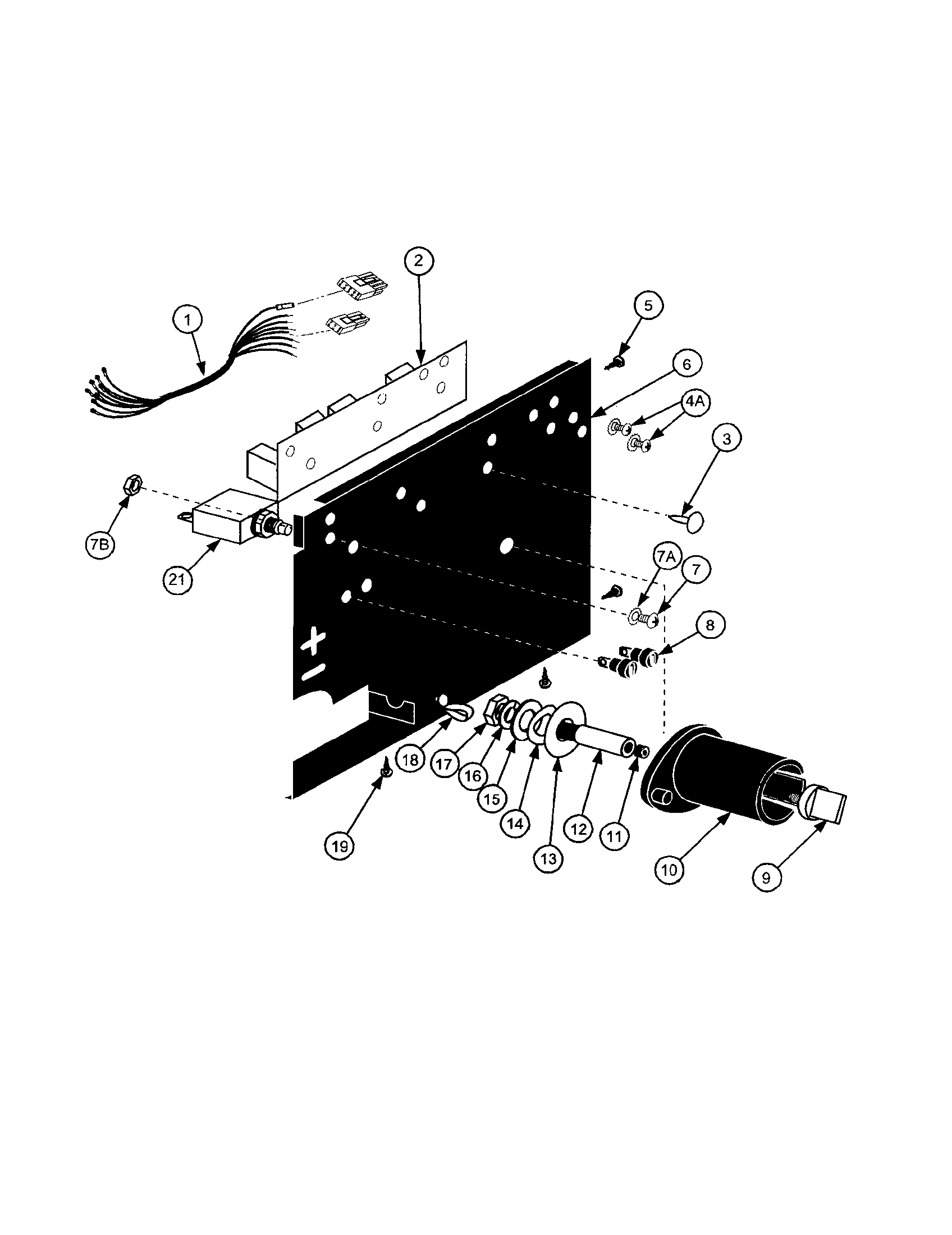

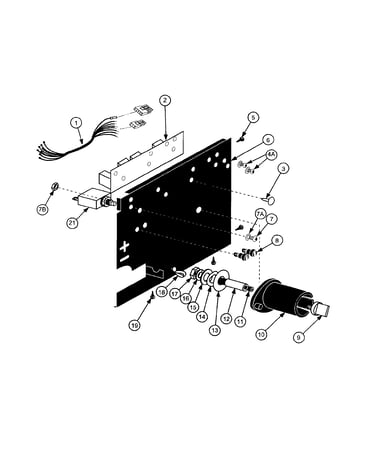

Center panel assembly diagram

Hex nut

Part ##10-24

The manufacturer no longer makes this part, and there's no substitute part

Nameplate M17594
#15

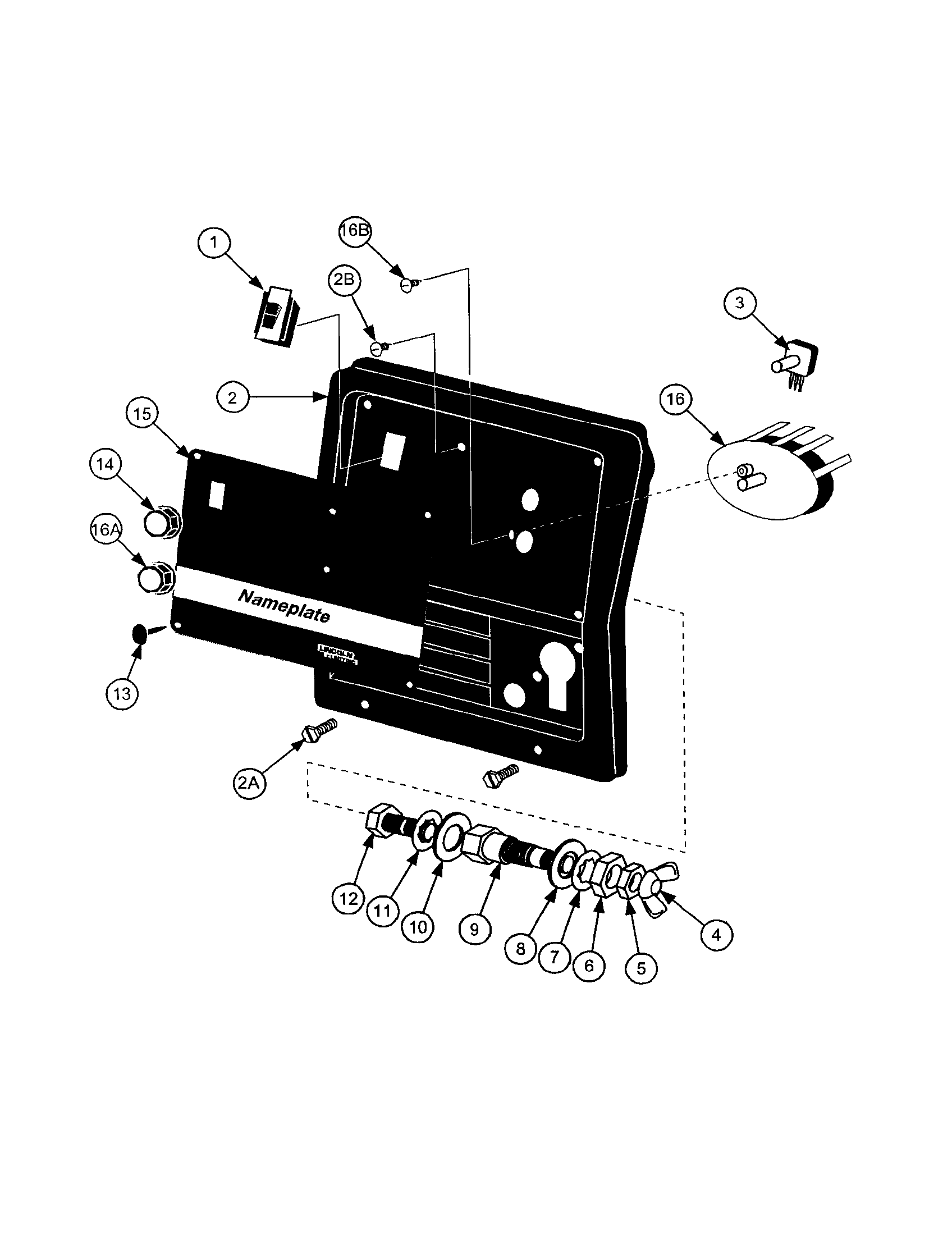

Case front assembly diagram

Nameplate

Part #M17594

The manufacturer no longer makes this part, and there's no substitute part

Thread-forming Screw S9225-36
#7

Center panel assembly diagram

Thread-forming screw

Part #S9225-36

The manufacturer no longer makes this part, and there's no substitute part

Box Connector (not Shown) T9639-2
#3A

Case base and bottom diagram

Box connector (not shown)

Part #T9639-2

The manufacturer no longer makes this part, and there's no substitute part

Receptacle (2) T14530-1
#8

Center panel assembly diagram

Receptacle (2)

Part #T14530-1

The manufacturer no longer makes this part, and there's no substitute part

Fan And Heat Sink Bracket G1839
#2

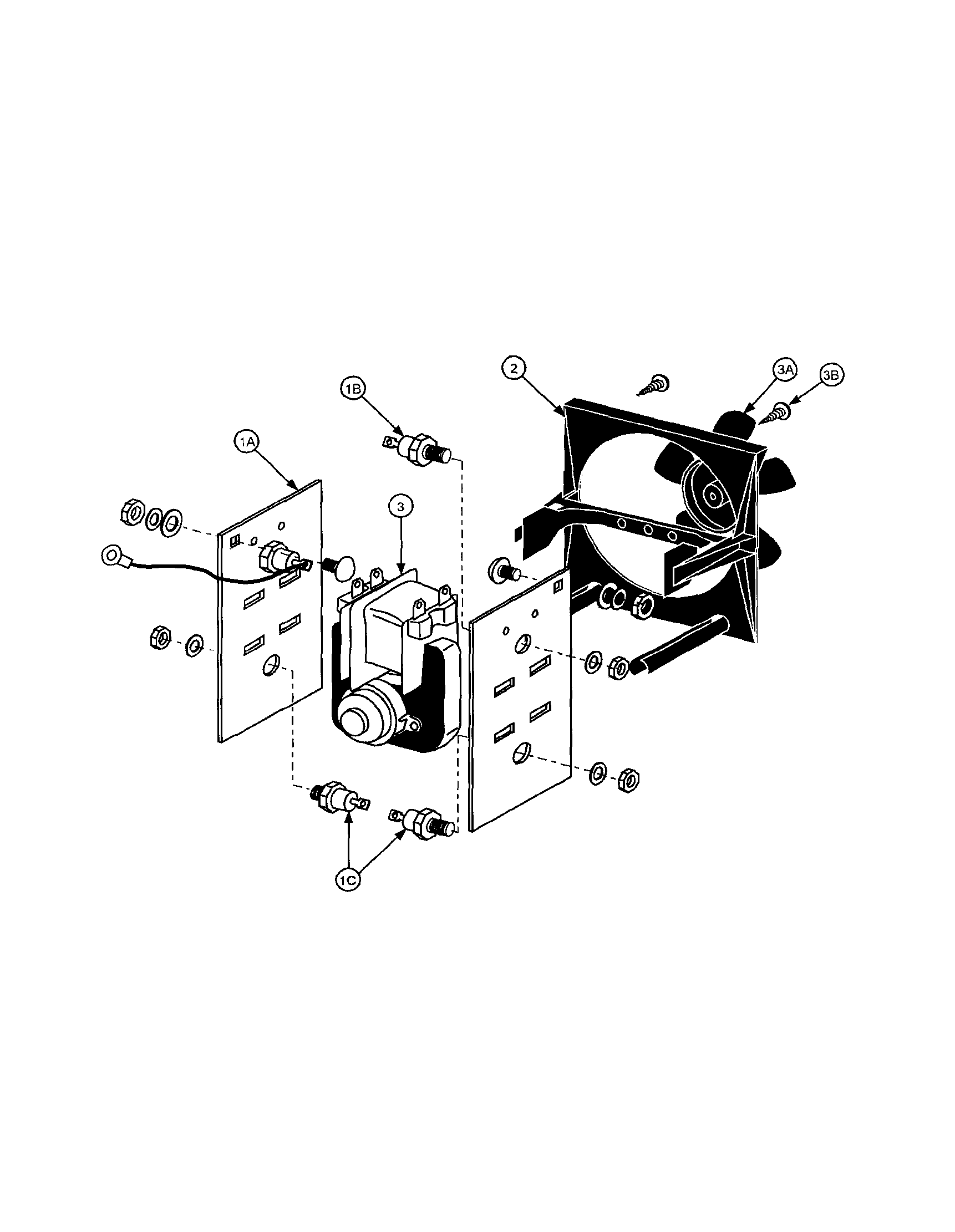

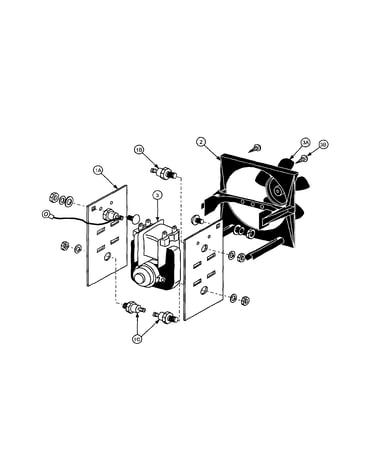

Rectifiter and fan motor diagram

Fan and heat sink bracket

Part #G1839

The manufacturer no longer makes this part, and there's no substitute part

Transformer, Choke And Switch Assembly L8353
#1

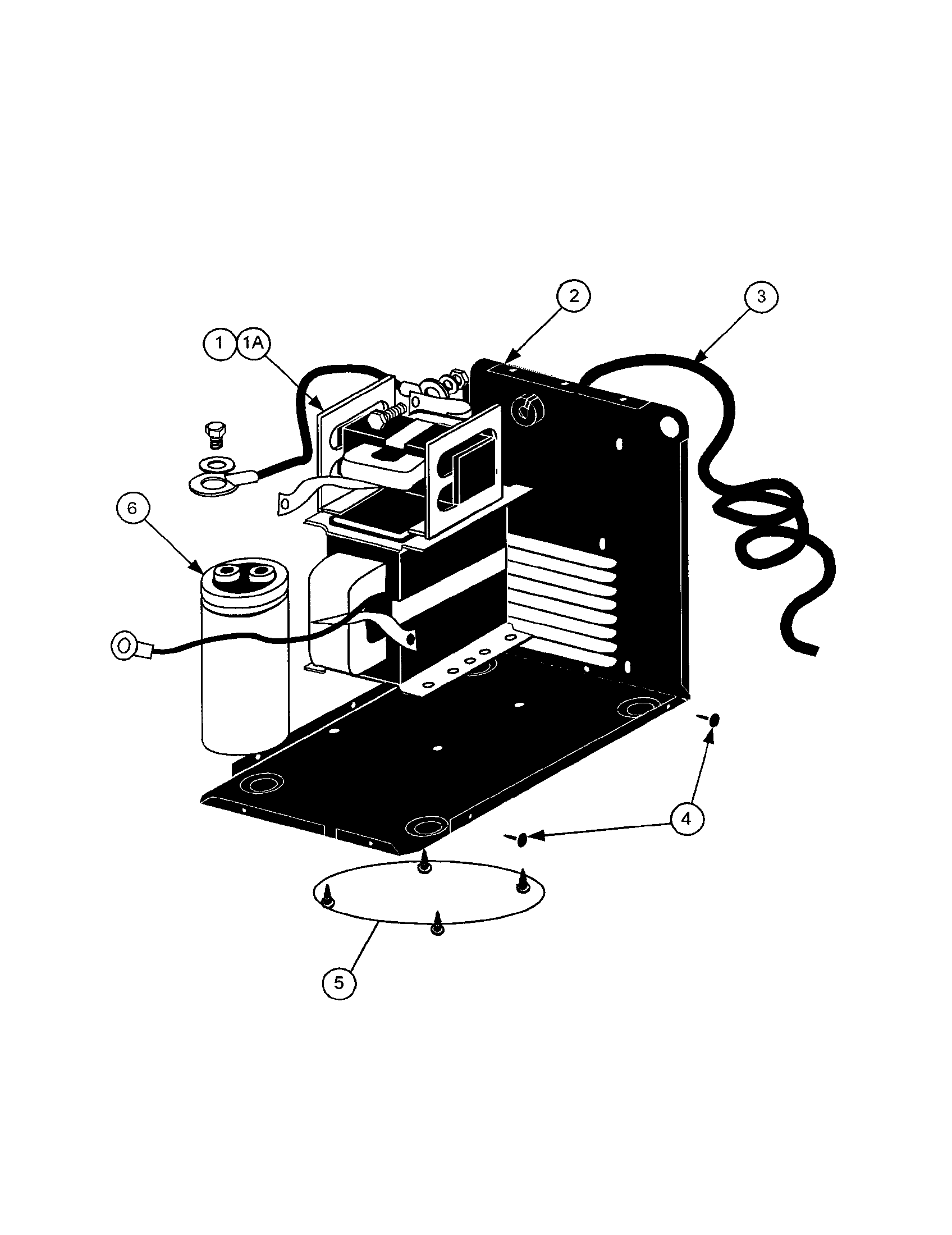

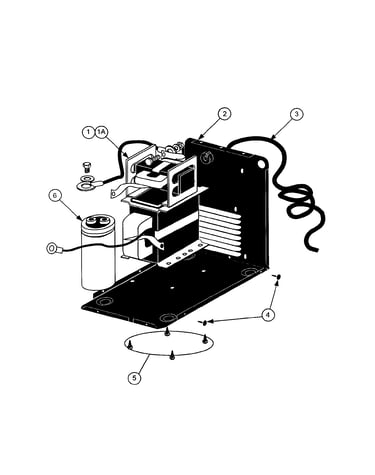

Case base and bottom diagram

Transformer, choke and switch assembly

Part #L8353

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer E106A-2
#11

Case front assembly diagram

Lock washer

Part #E106A-2

The manufacturer no longer makes this part, and there's no substitute part

Nameplate M17851-1
#15B

Case front assembly diagram

Nameplate

Part #M17851-1

The manufacturer no longer makes this part, and there's no substitute part
