WC Wood
Chest Freezer

Model # C17WCE Official WC Wood chest freezer

Here are the diagrams and repair parts for Official WC Wood C17WCE chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Capacitor 3-34542-010
#23C

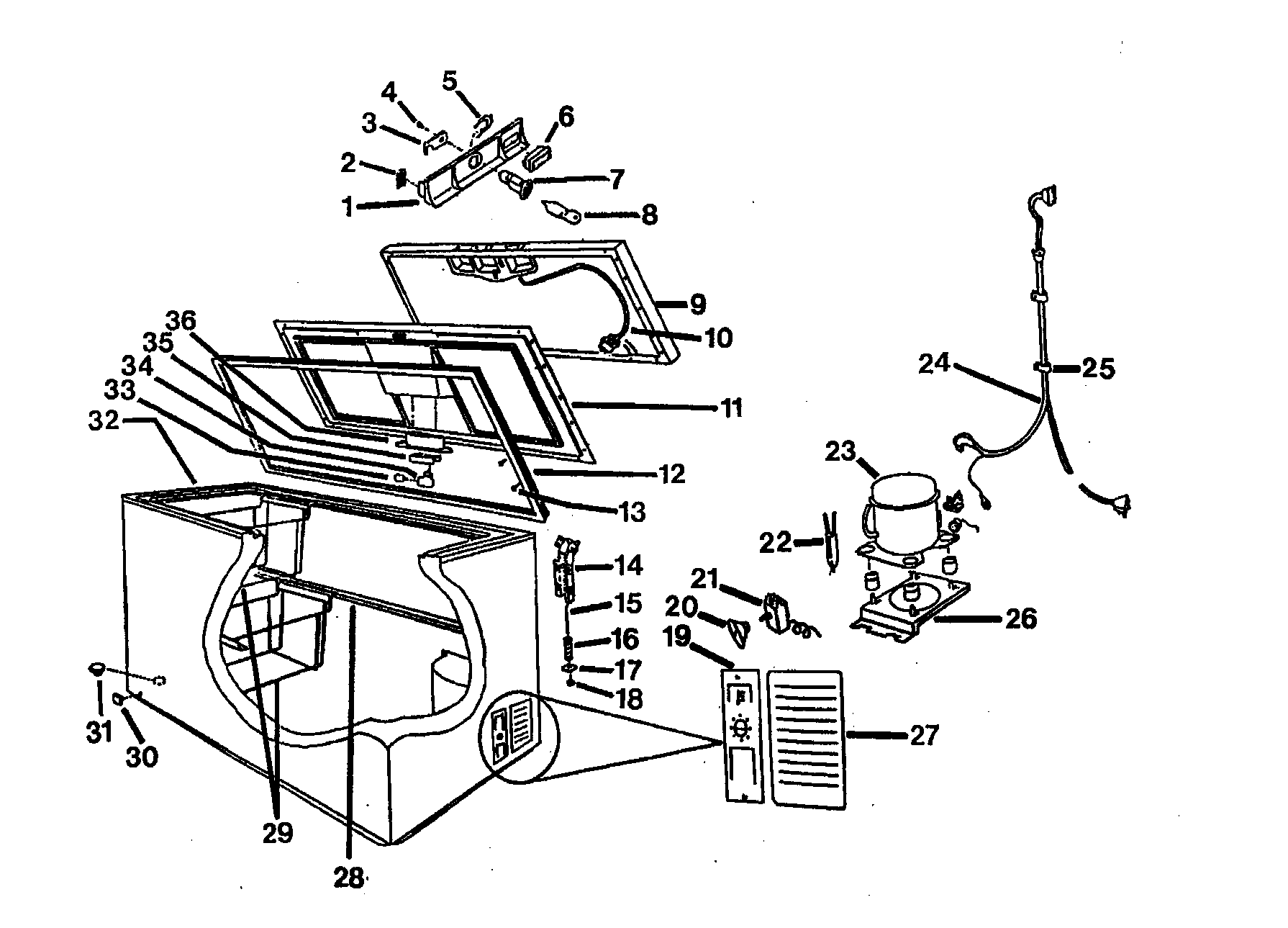

Cabinet parts diagram

Capacitor

Part #3-34542-010

The manufacturer no longer makes this part, and there's no substitute part

Compressor 0-90006-133
#23

Cabinet parts diagram

Compressor

Part #0-90006-133

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 1-24397-001
#33

Cabinet parts diagram

Light bulb

Part #1-24397-001

The manufacturer no longer makes this part, and there's no substitute part

Clip 3-24059-024
#2

Cabinet parts diagram

Clip

Part #3-24059-024

The manufacturer no longer makes this part, and there's no substitute part

Protector 2-34286-022
#23B

Cabinet parts diagram

Protector

Part #2-34286-022

The manufacturer no longer makes this part, and there's no substitute part

Control Box 0-90058-001
#19

Cabinet parts diagram

Control box

Part #0-90058-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Key 2-80060-106
#8

Cabinet parts diagram

Lock key

Part #2-80060-106

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-32307
#19C

Cabinet parts diagram

Switch

Part #2-32307

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4-35626-004
#21

Cabinet parts diagram

Thermostat

Part #4-35626-004

The manufacturer no longer makes this part, and there's no substitute part

Reflector 0-90014-001
#36

Cabinet parts diagram

Reflector

Part #0-90014-001

The manufacturer no longer makes this part, and there's no substitute part
