Model # RF267AZWP/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF267AZWP-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

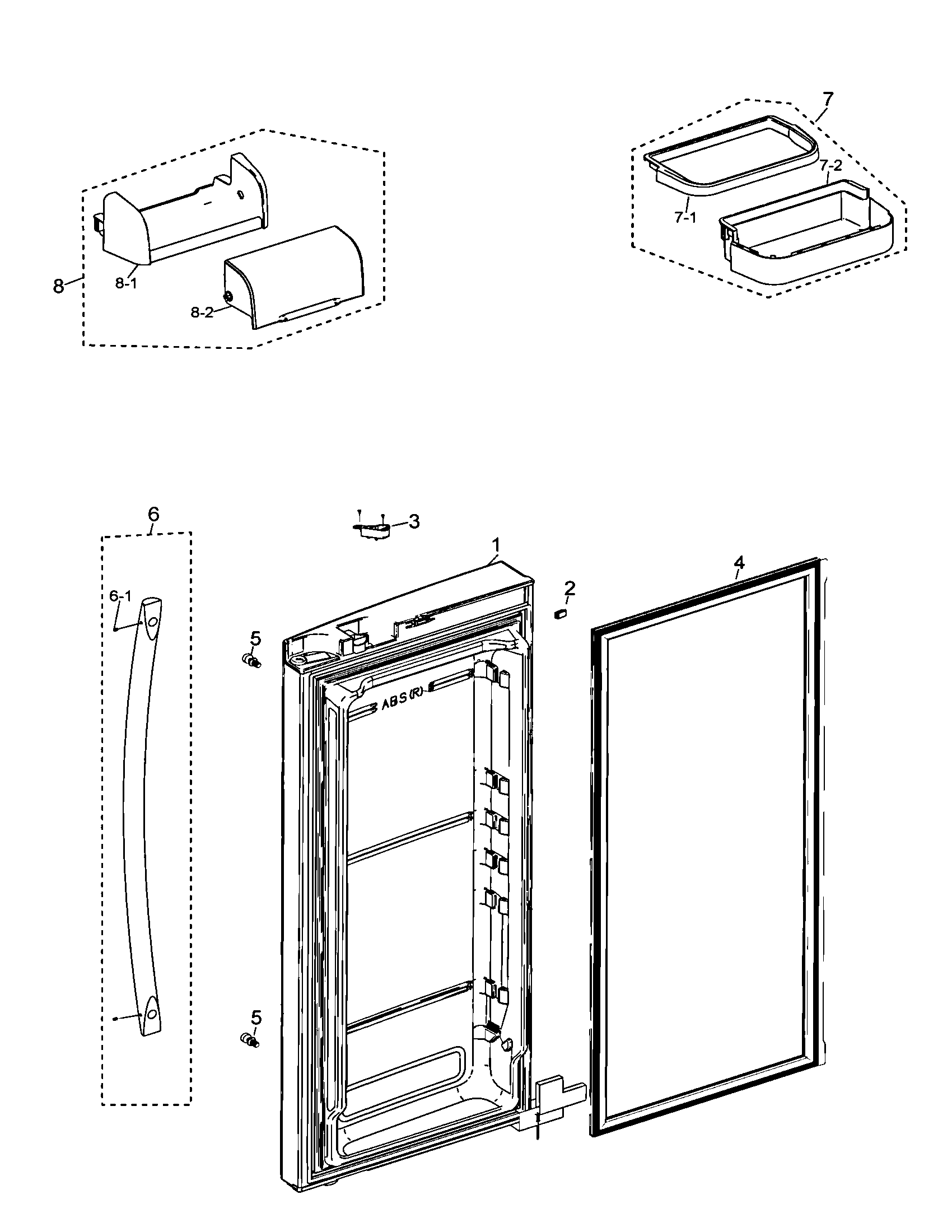

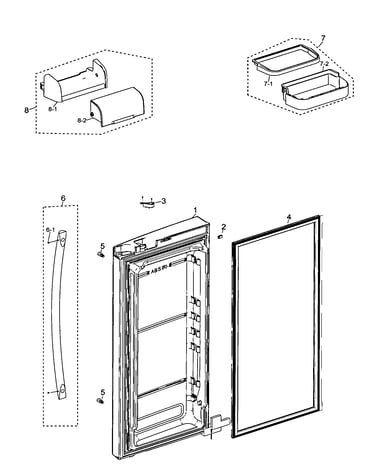

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 265 parts  |
Refrigerator Defrost Bi-metal Thermostat (replaces Da47-00243b, Da47-00243c, Da47-00243j) DA47-00243K
#1-3

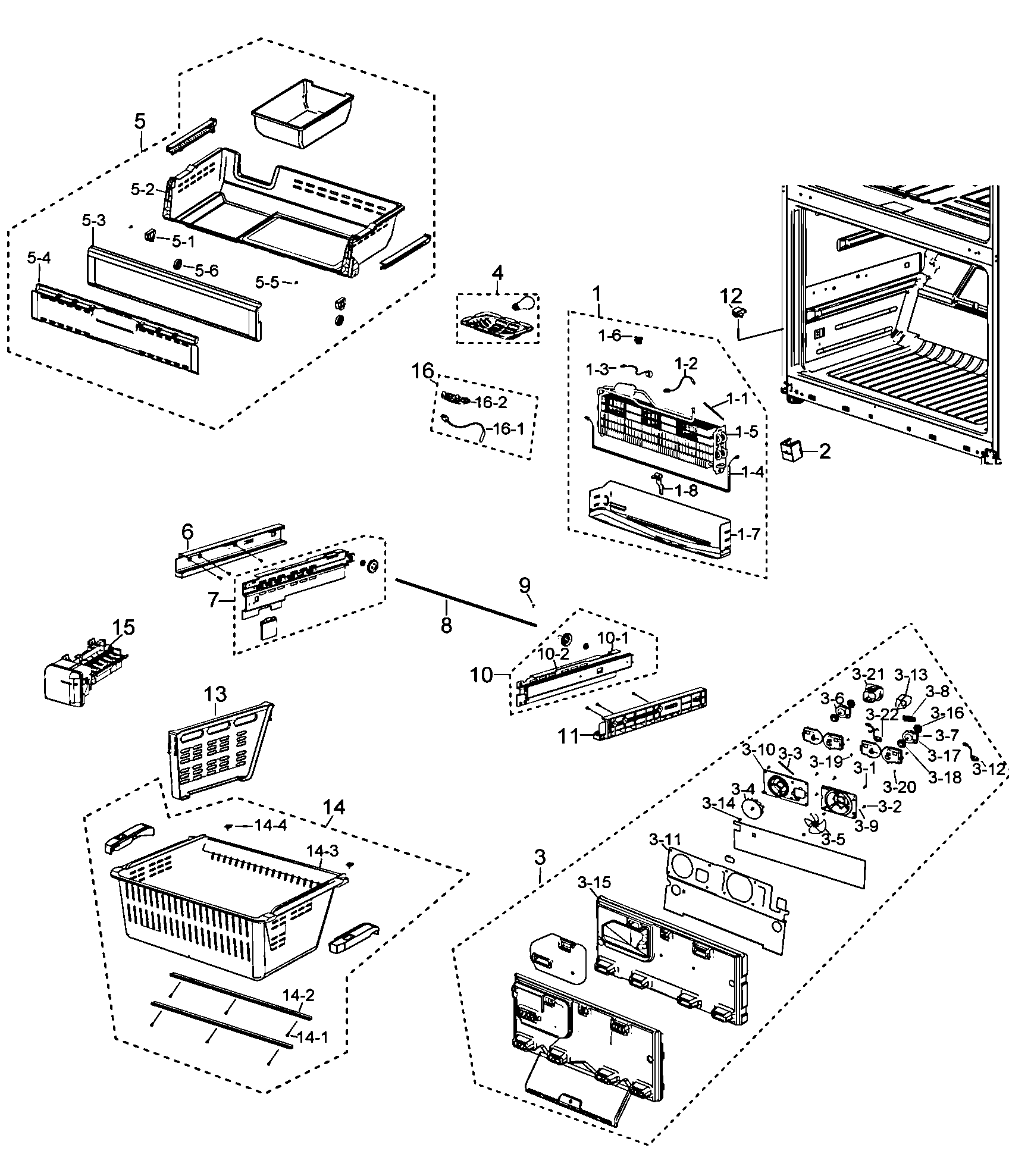

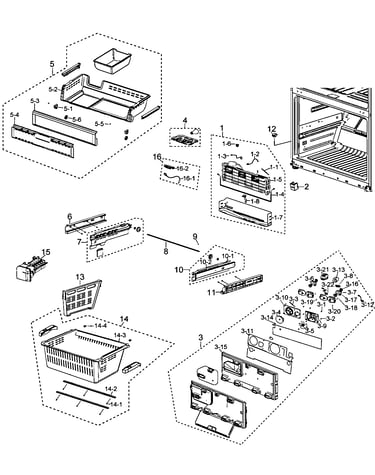

Refrigerator diagram

Refrigerator defrost bi-metal thermostat (replaces da47-00243b, da47-00243c, da47-00243j)

Part #DA47-00243K

BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Compressor (replaces Bk190cl2c/e01, Bk190cl2ce01, Bk190cl2ce02) BK190CL2C/E02
#17

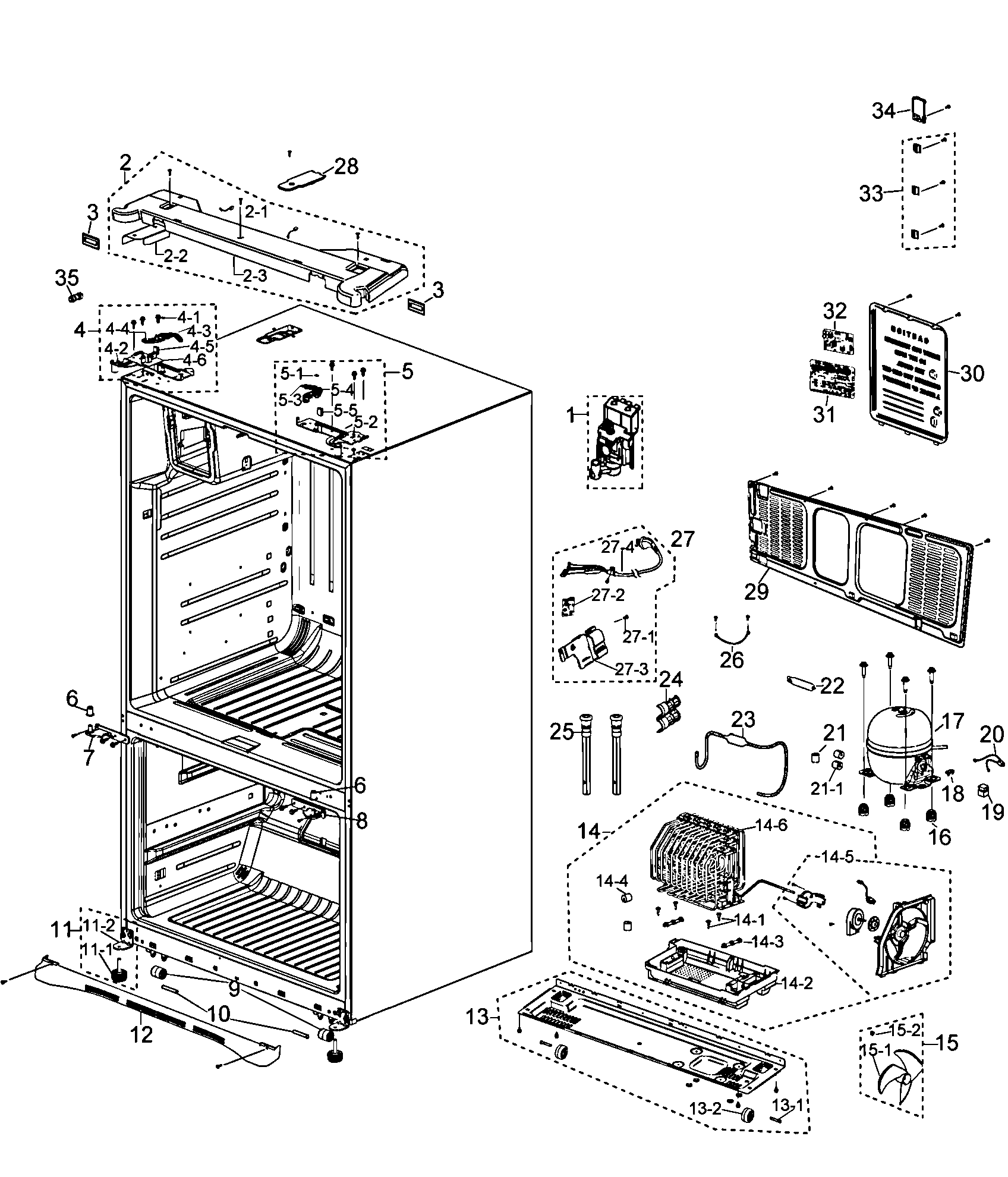

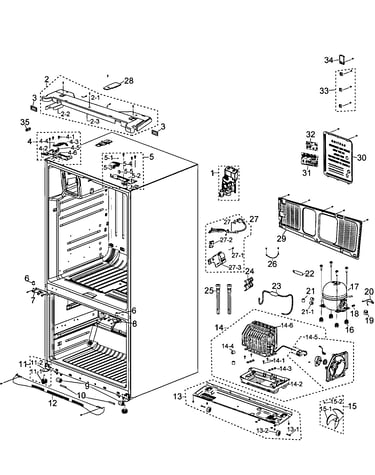

Cabinet diagram

Refrigerator compressor (replaces bk190cl2c/e01, bk190cl2ce01, bk190cl2ce02)

Part #BK190CL2C/E02

BEST SELLER
$278.27 |
$12.00 OFF Phone Price : $290.27
Back Order
Refrigerator Defrost Thermal Fuse (replaces Da47-00432a) DA47-00301D
#1-3

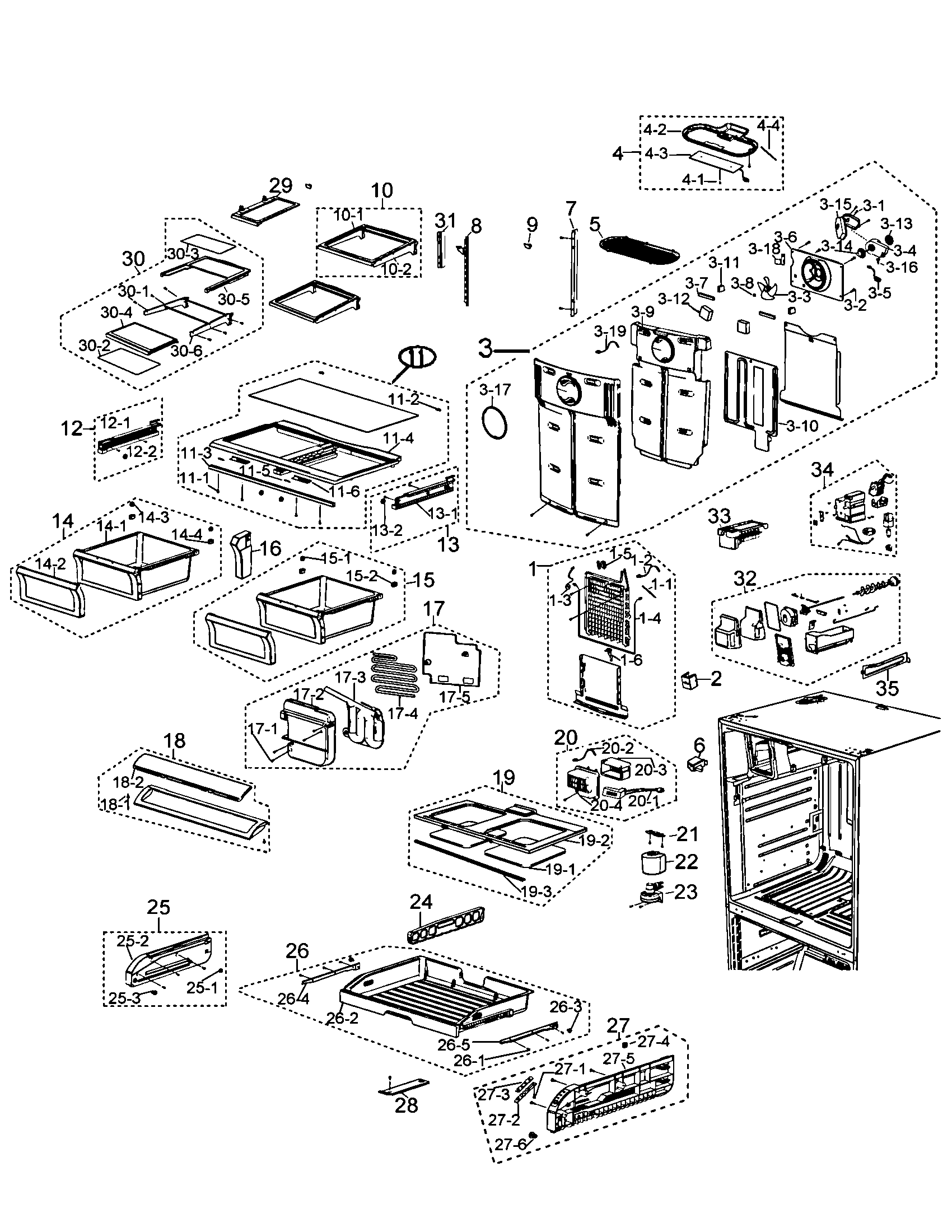

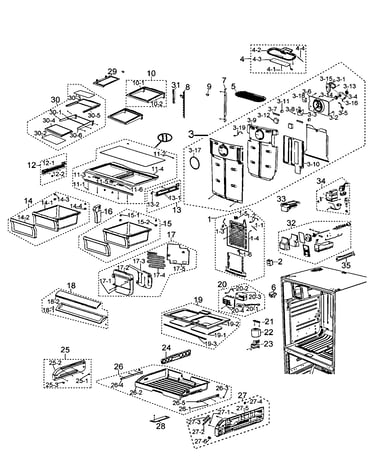

Freezer diagram

Refrigerator defrost thermal fuse (replaces da47-00432a)

Part #DA47-00301D

BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Refrigerator Door Gasket DA97-05557B
#2

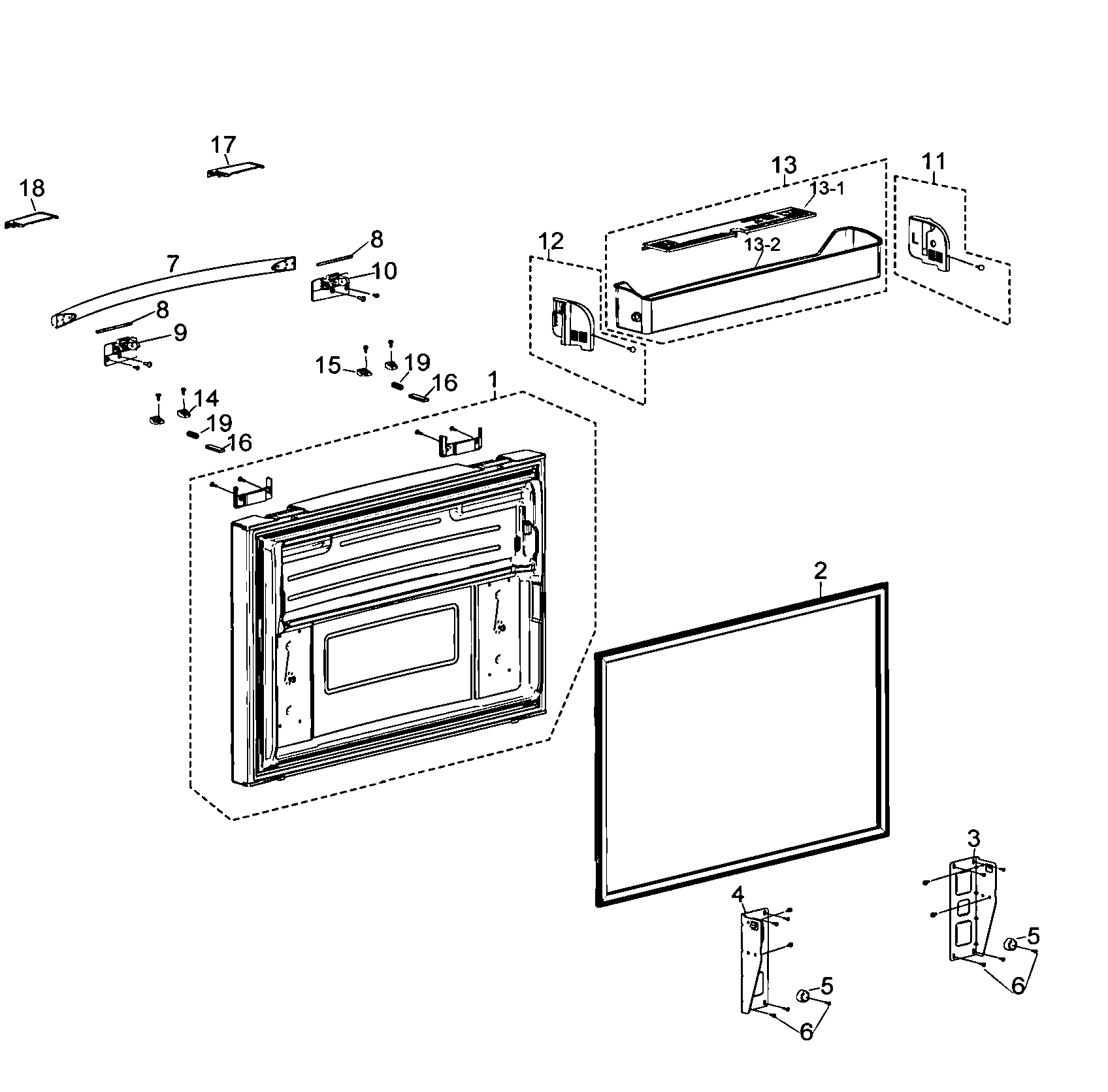

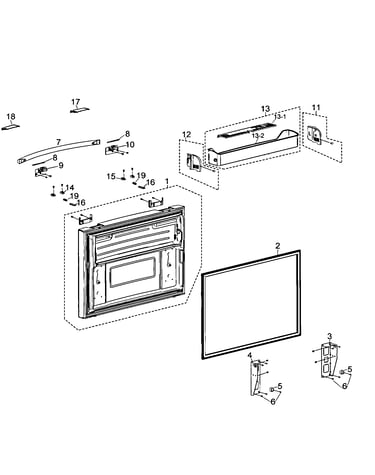

Freezer door diagram

Refrigerator door gasket

Part #DA97-05557B

Replaced by #DA97-05557Y

?
Manufacturer substitution
This part replaces DA97-05557B. Substitute parts can look different from the original.
BEST SELLER
$158.15 |
7% OFF Phone Price : $170.15
In Stock
Refrigerator Door Hinge DA61-03230B
#8-3

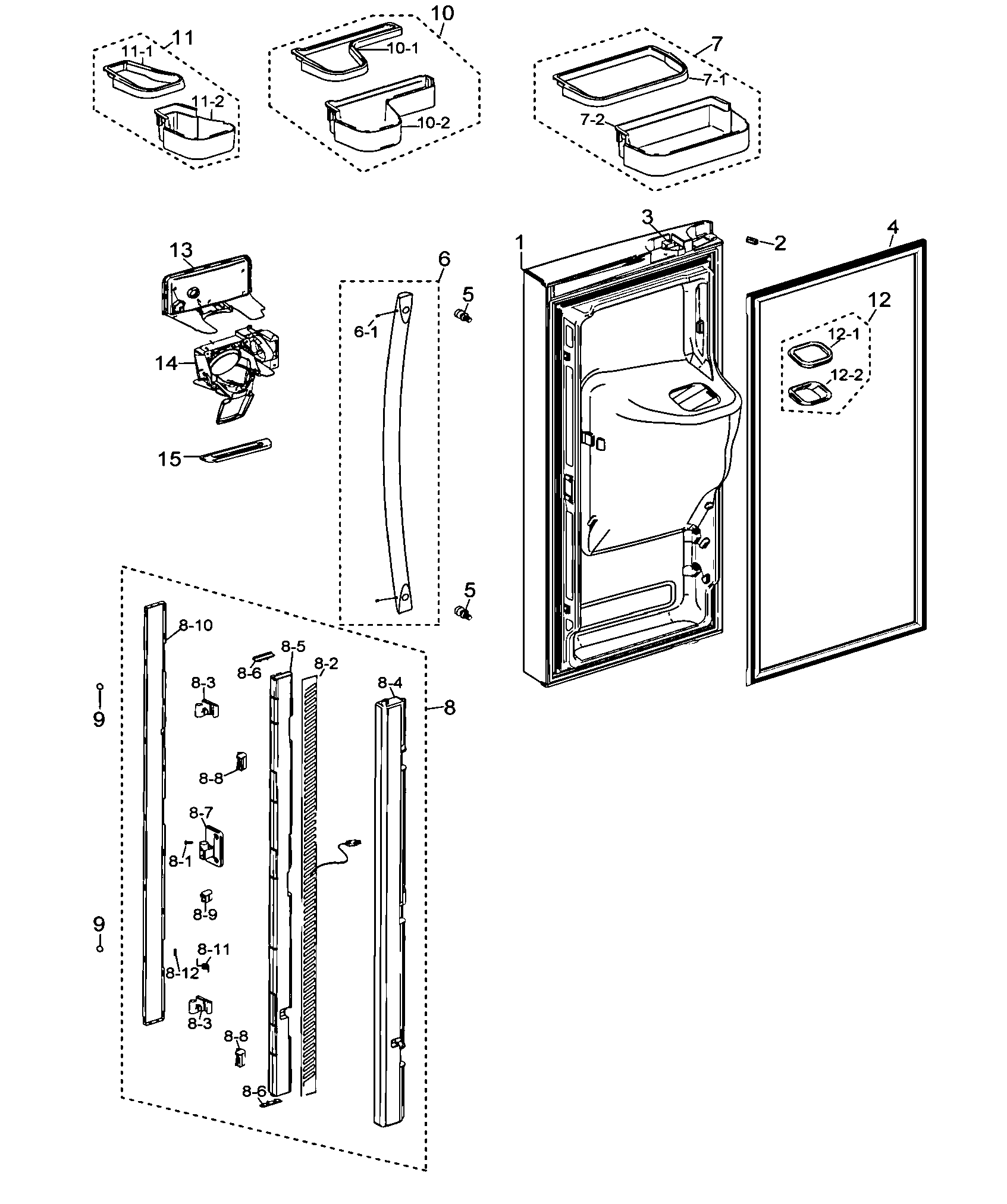

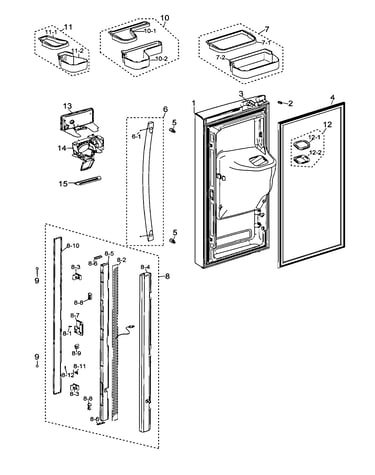

Left door diagram

Refrigerator door hinge

Part #DA61-03230B

BEST SELLER
This item is not returnable
$5.61 |
15% OFF Phone Price : $6.61
In Stock
Refrigerator Spring (replaces Da61-07471a, Da81-01345a) DA81-01345B
#8-11

Left door diagram

Refrigerator spring (replaces da61-07471a, da81-01345a)

Part #DA81-01345B

BEST SELLER
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Refrigerator Auger Motor DA97-05246G
#34

Freezer diagram

Refrigerator auger motor

Part #DA97-05246G

BEST SELLER
$185.06 |
6% OFF Phone Price : $197.06
In Stock
Refrigerator Dryer DA62-01514A
#22

Cabinet diagram

Refrigerator dryer

Part #DA62-01514A

Replaced by #DA81-06007A

?
Manufacturer substitution
This part replaces DA62-01514A. Substitute parts can look different from the original.
BEST SELLER
$65.48 |
8% OFF Phone Price : $71.48
In Stock
Refrigerator Water Filter Head (replaces Da97-06317e) DA97-06317A
#23

Freezer diagram

Refrigerator water filter head (replaces da97-06317e)

Part #DA97-06317A

BEST SELLER
$92.21 |
6% OFF Phone Price : $98.21
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Da62-02219a, Da62-02291b, Da97-07827e) DA97-07827B
#1

Cabinet diagram

Refrigerator water inlet valve assembly (replaces da62-02219a, da62-02291b, da97-07827e)

Part #DA97-07827B

BEST SELLER
$121.33 |
9% OFF Was : $133.33
In Stock
