$6.06
CONFIRM THE PART FITS
Part Information

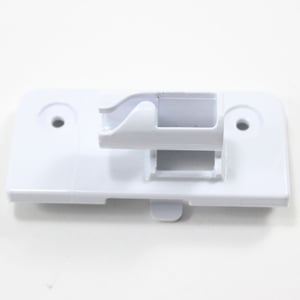

This flipper hinge (part number DA63-03454B) is for refrigerators.
Flipper hinge DA63-03454B allows the flipper assembly to pivot open and closed.
Safely store any food that could deteriorate while the power is off and unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $164.41 |7% OFF Phone Price : $176.41
- $8.00 |11% OFF Phone Price : $9.00
- $5.61 |15% OFF Phone Price : $6.61
- $4.19 |19% OFF Phone Price : $5.19
- $9.27 |10% OFF Phone Price : $10.27
- $2.26
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #RF265ABBP/XAA-00 Samsung bottom-mount refrigerator | RF265ABBP/XAA-00 | Left door |
| Model #RF28HFEDBBC/AA-03 Samsung bottom-mount refrigerator | RF28HFEDBBC/AA-03 | Fridge door l |
| Model #RF25HMEDBWW/AA-00 Samsung bottom-mount refrigerator | RF25HMEDBWW/AA-00 | Refrigerator door l |
| Model #RF28HMEDBWW/AA-02 Samsung bottom-mount refrigerator | RF28HMEDBWW/AA-02 | Refrigerator door l |
| Model #RF31FMEDBBC/AA-01 Samsung bottom-mount refrigerator | RF31FMEDBBC/AA-01 | Left door |
| Model #RF263BEAEWW/AA-02 Samsung bottom-mount refrigerator | RF263BEAEWW/AA-02 | Refrigerator door l |
| Model #RF25HMEDBWW/AA-03 Samsung bottom-mount refrigerator | RF25HMEDBWW/AA-03 | Refrigerator door l |
| Model #RF31FMEDBBC/AA-02 Samsung bottom-mount refrigerator | RF31FMEDBBC/AA-02 | Left door |
| Model #RF28HDEDTSR/AA-01 Samsung bottom-mount refrigerator | RF28HDEDTSR/AA-01 | Refrigerator door l |
| Model #RF28HFEDBSR/AA-02 Samsung bottom-mount refrigerator | RF28HFEDBSR/AA-02 | Door l-refrigerator |
Reviews
Thank you
I had ordered the full million assembly before realizing that hinges were available separately. Saved a hundred bucks and did repair in 10 minutes after YouTube tutorial.
tsg61, NJ
2 people thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Easy to install once I figured out how to do it
The Flipper Has to be removed from the door. If the heater hinge is not broken you have to remove the two screws and lift the flipper assy. up. The upper and lower hinges are slide ins. The heater wire connector is inside the door and will pull out to where you can disconnect it Next, you have to lay the flipper down with the dark gray side facing up and use a flat screwdriver to pry the gray cover off. Start on one side and work from one end to the other, once that side is up remove the cover. Above the heater hinge is a removable stop. Inside the flipper under the heater strip is a Phillips head screw. Remove this screw and the pry the stop away from the flipper. Then you can raise the hinge up and work the wire out. Reassemble in reverse.
WallyH, Jacksonville, Fl
2 people thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- More than 2 hours
