Model # JVM240AL01 Official GE microwave
Here are the diagrams and repair parts for Official GE JVM240AL01 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
JVM240AL01 Microwave
#1446

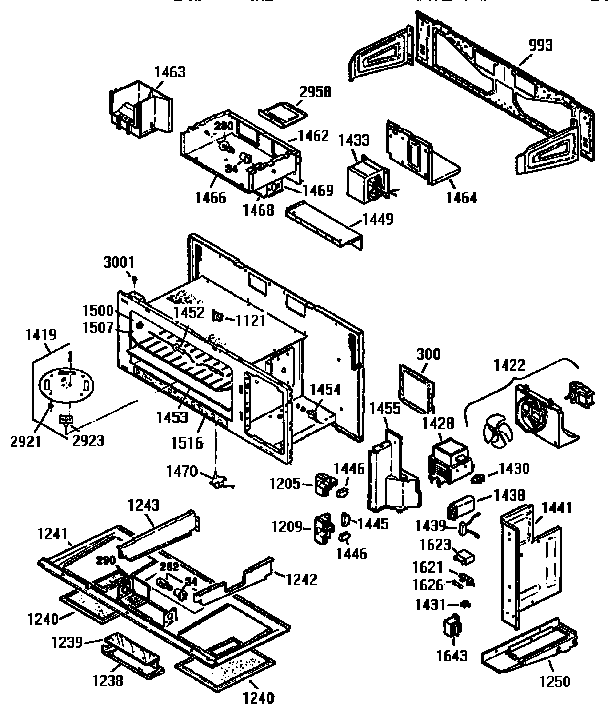

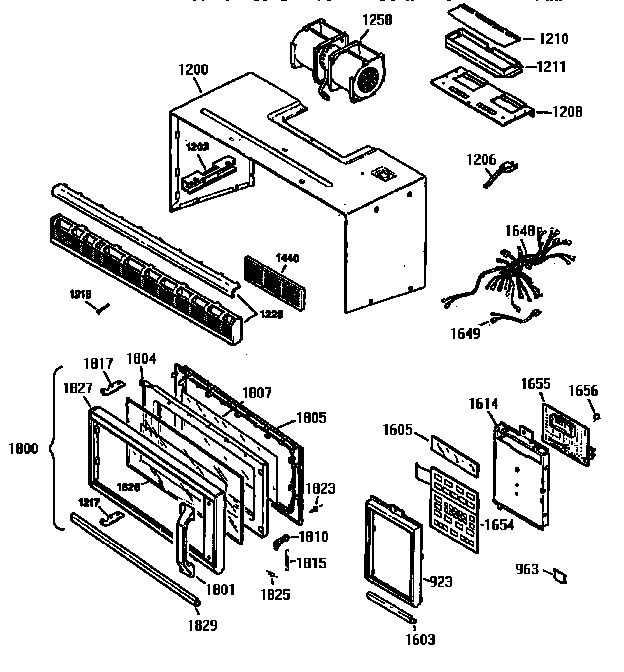

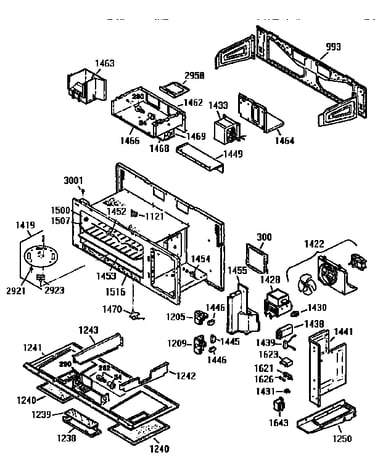

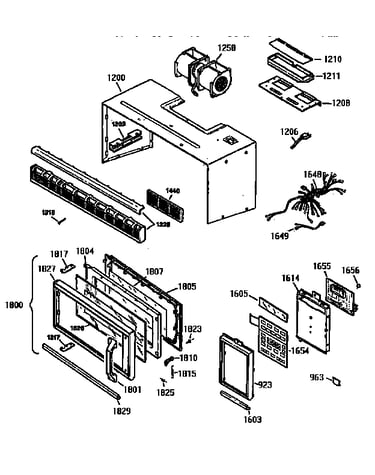

All parts diagram
Switch
Part #WB24X0801
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#1445
All parts diagram
Switch
Part #WB24X0800
Replaced by #WB24X830
?
Manufacturer substitution
This part replaces WB24X0800. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
#1439
All parts diagram
High-voltage diode
Part #WB27X0944
Replaced by #WB27X1160
?
Manufacturer substitution
This part replaces WB27X0944. Substitute parts can look different from the original.
$79.22 |
7% OFF Phone Price : $85.22
In Stock
#1428
All parts diagram
Magnetron
Part #WB27X0764
The manufacturer no longer makes this part, and there's no substitute part
#1438
All parts diagram
High-voltage capacitor
Part #WB27X0933
Replaced by #WB27X10240
?
Manufacturer substitution
This part replaces WB27X0933. Substitute parts can look different from the original.
$89.57 |
6% OFF Phone Price : $95.57
In Stock
#1240
All parts diagram
Air filter
Part #WB06X0378
Replaced by #WB6X60
?
Manufacturer substitution
This part replaces WB06X0378. Substitute parts can look different from the original.
$32.58 |
16% OFF Phone Price : $38.58
In Stock
#*96123
All parts diagram
U/c-manual
Part #49-8391
$17.99
In Stock
#*96124
All parts diagram
Cabinet
Part #49-8469
$8.49
In Stock
#280
All parts diagram
Oven lamp
Part #WB36X0822
Replaced by #WB36X10003
?
Manufacturer substitution
This part replaces WB36X0822. Substitute parts can look different from the original.
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
#1211
All parts diagram
Sub hood dam
Part #WB06X0388
Replaced by #WB06X10436
?
Manufacturer substitution
This part replaces WB06X0388. Substitute parts can look different from the original.
$30.80 |
16% OFF Phone Price : $36.80
In Stock
