Model # 91760015 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 91760015 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

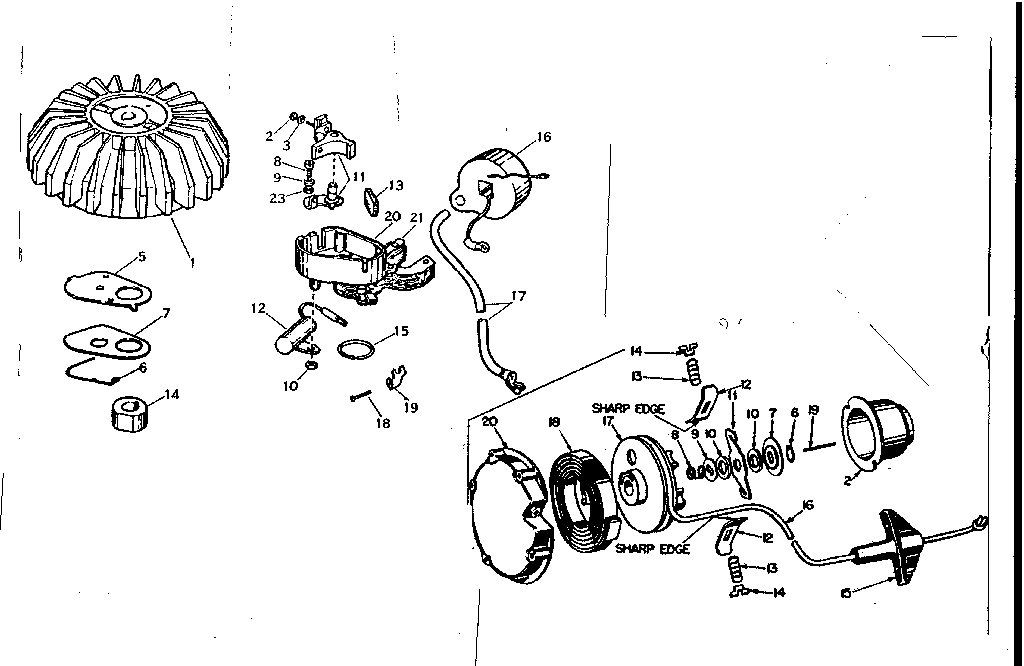

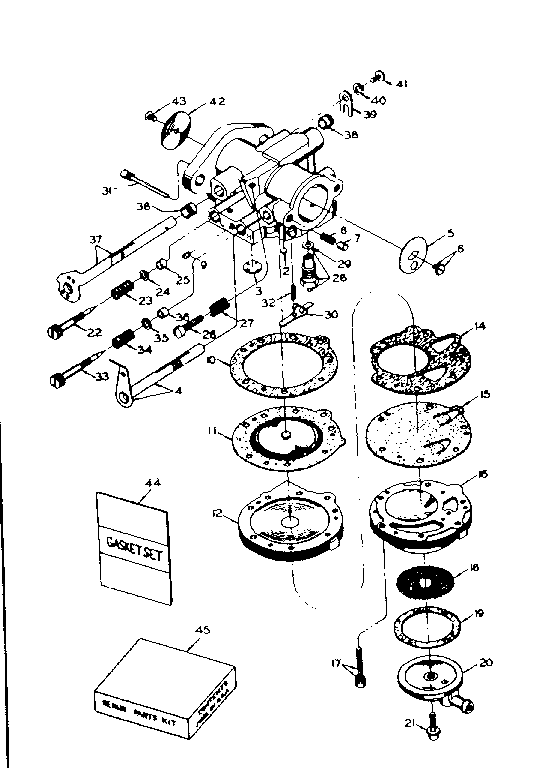

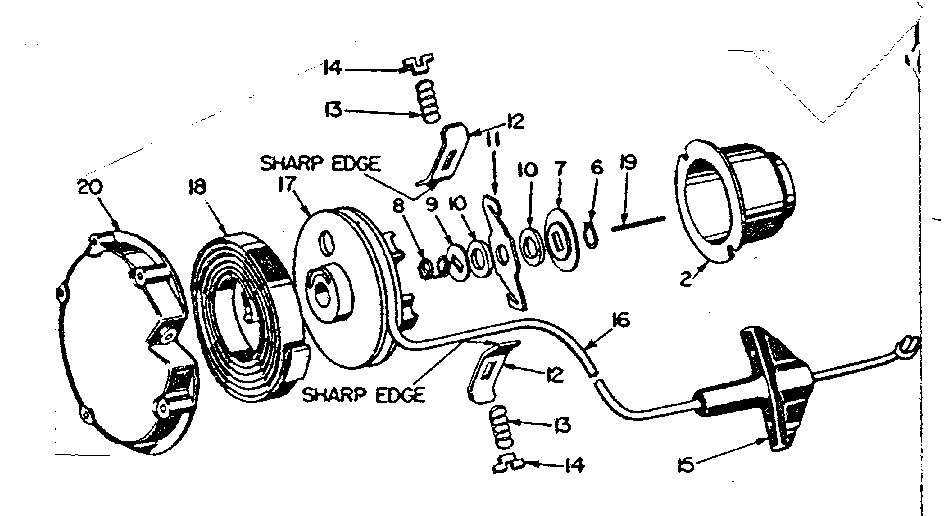

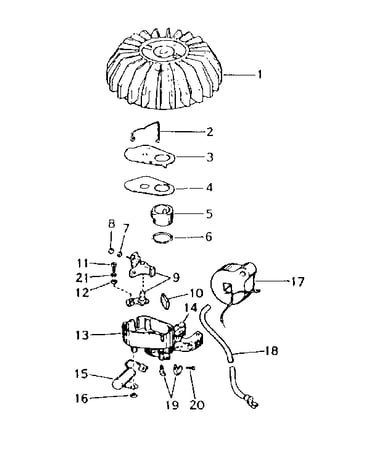

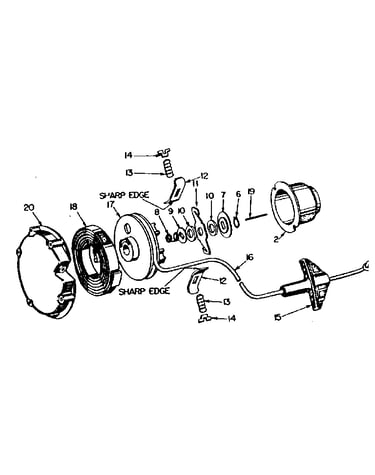

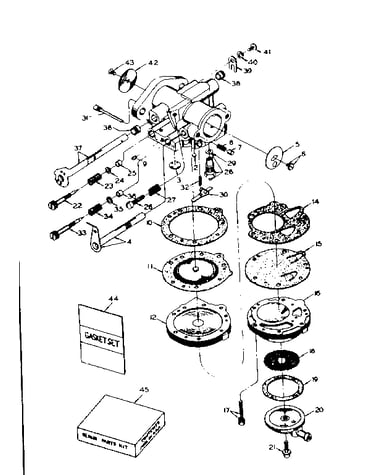

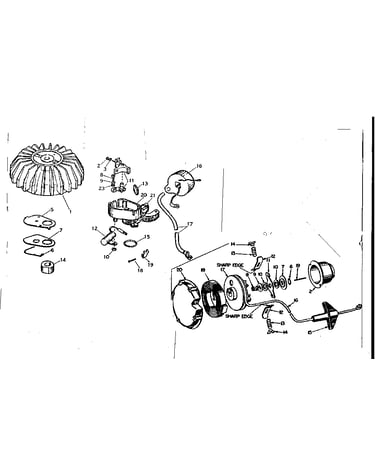

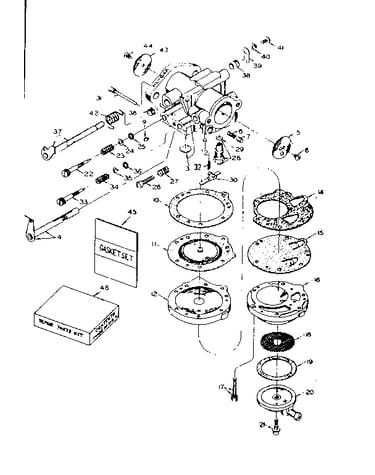

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |

Oil Seal 510105
Oil seal

Part #510105

Replaced by #510319

?
Manufacturer substitution
This part replaces 510105. Substitute parts can look different from the original.
In Stock
Nut 319H
#95

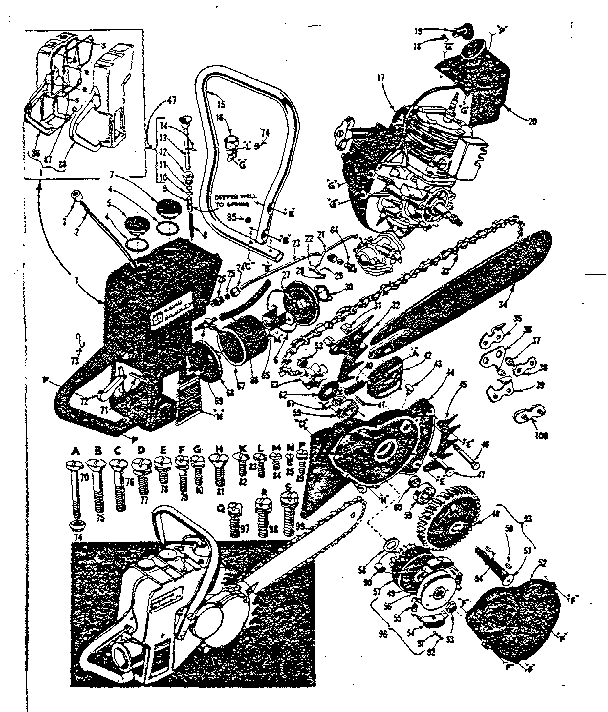

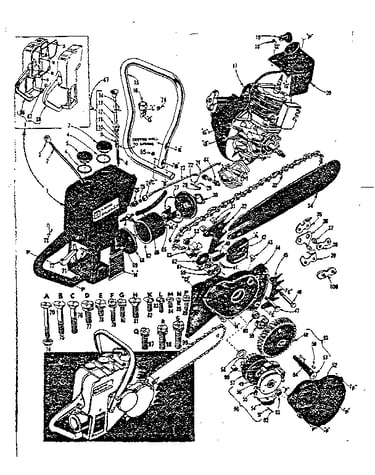

Main frame diagram

Nut

Part #319H

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 510109
Spring retainer

Part #510109

Replaced by #510109A

?
Manufacturer substitution
This part replaces 510109. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retainer 510106
Retainer

Part #510106

Replaced by #510106A

?
Manufacturer substitution
This part replaces 510106. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 650350
Screw

Part #650350

Replaced by #650702

?
Manufacturer substitution
This part replaces 650350. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retaining Ring 310167
Retaining ring

Part #310167

Replaced by #310296

?
Manufacturer substitution
This part replaces 310167. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cover 610118
Cover

Part #610118

Replaced by #610118

?
Manufacturer substitution
This part replaces 610118. Substitute parts can look different from the original.
This item is not returnable
$5.24
16% OFF Phone Price : $6.24
In Stock
Screw 650378
#81

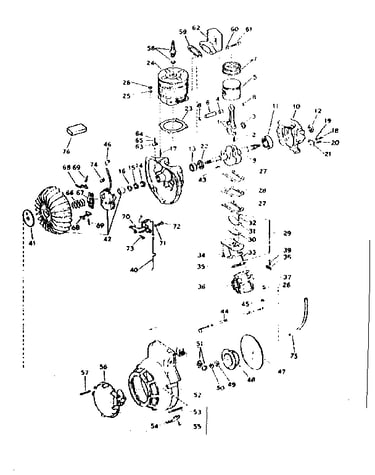

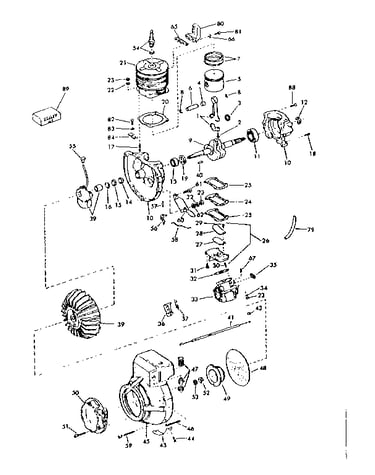

Engine diagram

Screw

Part #650378

Replaced by #650378

?
Manufacturer substitution
This part replaces 650378. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 650168
#62

Engine diagram

Washer

Part #650168

The manufacturer no longer makes this part, and there's no substitute part

Bearing 697H
#59

Main frame diagram

Bearing

Part #697H

Replaced by #532110485

?
Manufacturer substitution
This part replaces 697H. Substitute parts can look different from the original.
In Stock
