Frigidaire
Laundry Center

Model # LC248FL0 Official Frigidaire laundry center - lf31788060

Here are the diagrams and repair parts for Official Frigidaire LC248FL0 laundry center - lf31788060, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

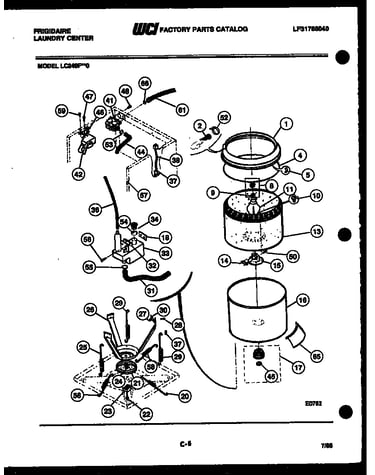

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 292 parts  |
Block 3016470
#51

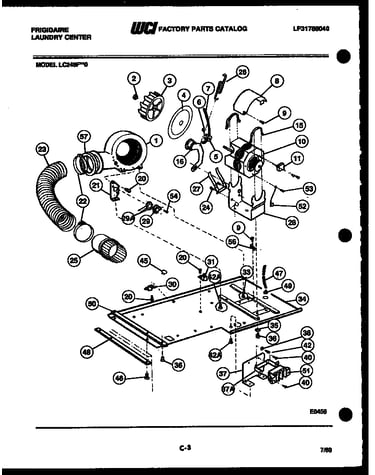

Dryer motor, blower and belt diagram

Block

Part #3016470

Replaced by #134037400

?
Manufacturer substitution
This part replaces 3016470. Substitute parts can look different from the original.
$42.56 |
12% OFF Phone Price : $48.56
In Stock
Belt 8004064
#7

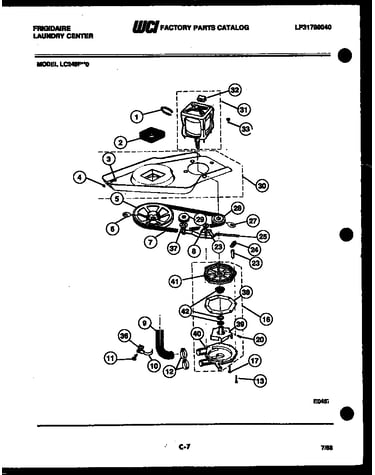

Washer drive system and pump diagram

Belt

Part #8004064

Replaced by #5303280326

?
Manufacturer substitution
This part replaces 8004064. Substitute parts can look different from the original.
This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Screw 8004125
Screw

Part #8004125

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8014903
#66

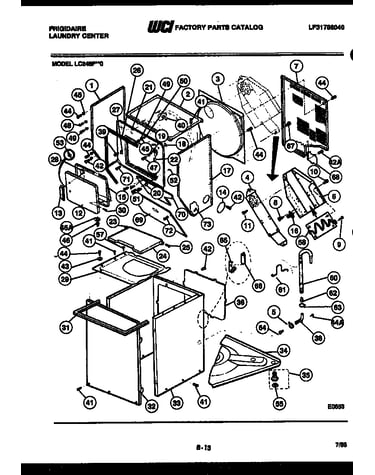

Cabinet parts and heater diagram

Capacitor

Part #8014903

The manufacturer no longer makes this part, and there's no substitute part

Drum Seal-rear 8016240
#25

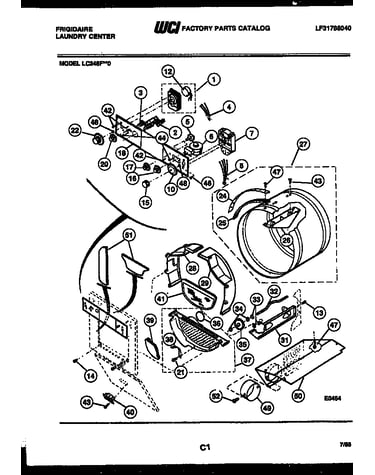

Console, control and drum diagram

Drum seal-rear

Part #8016240

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Tube 0633925
#23

Dryer motor, blower and belt diagram

Exhaust tube

Part #0633925

The manufacturer no longer makes this part, and there's no substitute part

Pad 1126012
#40

Cabinet parts and heater diagram

Pad

Part #1126012

The manufacturer no longer makes this part, and there's no substitute part

Gasket 8015863
#13

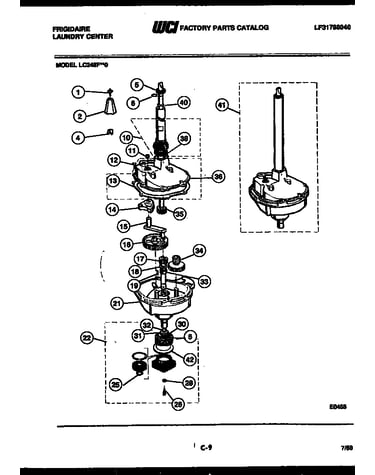

Transmission parts diagram

Gasket

Part #8015863

The manufacturer no longer makes this part, and there's no substitute part

Foot 3161045
#35

Cabinet parts and heater diagram

Foot

Part #3161045

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8004057
#5

Cabinet parts and heater diagram

Clamp

Part #8004057

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your laundry centers

Choose a symptom to see related laundry center repairs.

View all

Why won't my laundry center washer fill?

Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…

Read more

Why won't my laundry center's washer agitate or spin?

Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…

Read more

Why does my laundry'center dryer leaves clothes damp?

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …

Read more

Why won't my laundry center dryer tumble?

Main causes: broken dryer drive belt, weak drive motor, binding drum seals…

Read more

Why won't my laundry center dryer heat?

Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…

Read more

Why does my laundry center washer bang loudly?

Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…

Read more

Why won't my laundry center dryer start?

Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…

Read more

Why doesn't my laundry center washer drain?

Main causes: clogged drain system, blocked drain hose, bad drain pump…

Read more

Why won't my laundry center washer spin?

Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…

Read more
