Model # CWE4200ACB Official Maytag oven
Here are the diagrams and repair parts for Official Maytag CWE4200ACB oven, as well as links to manuals and error code tables, if available.

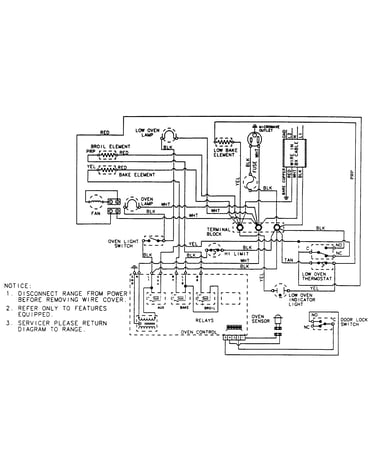

Error CodesBy Schematic
By Part

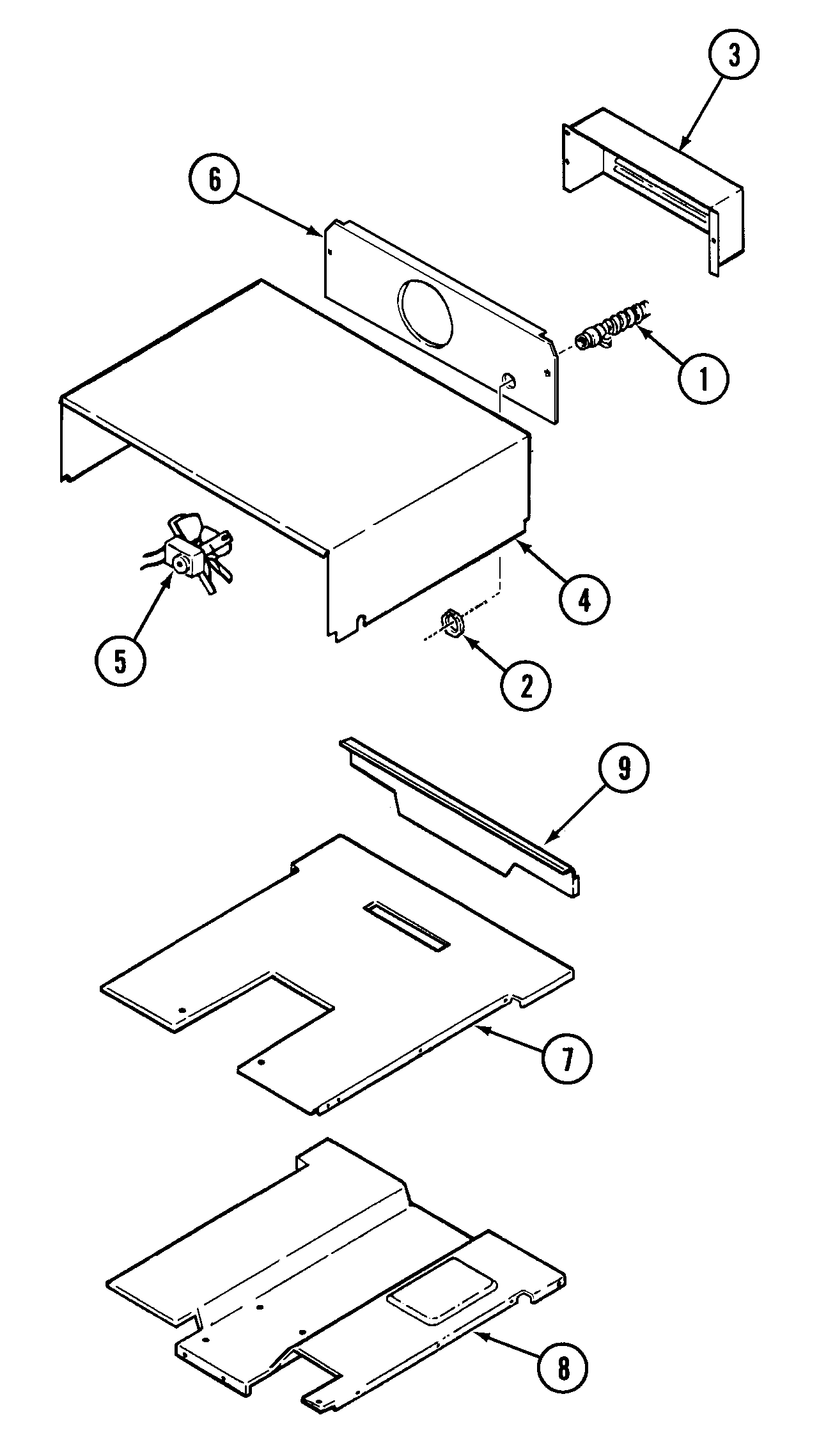

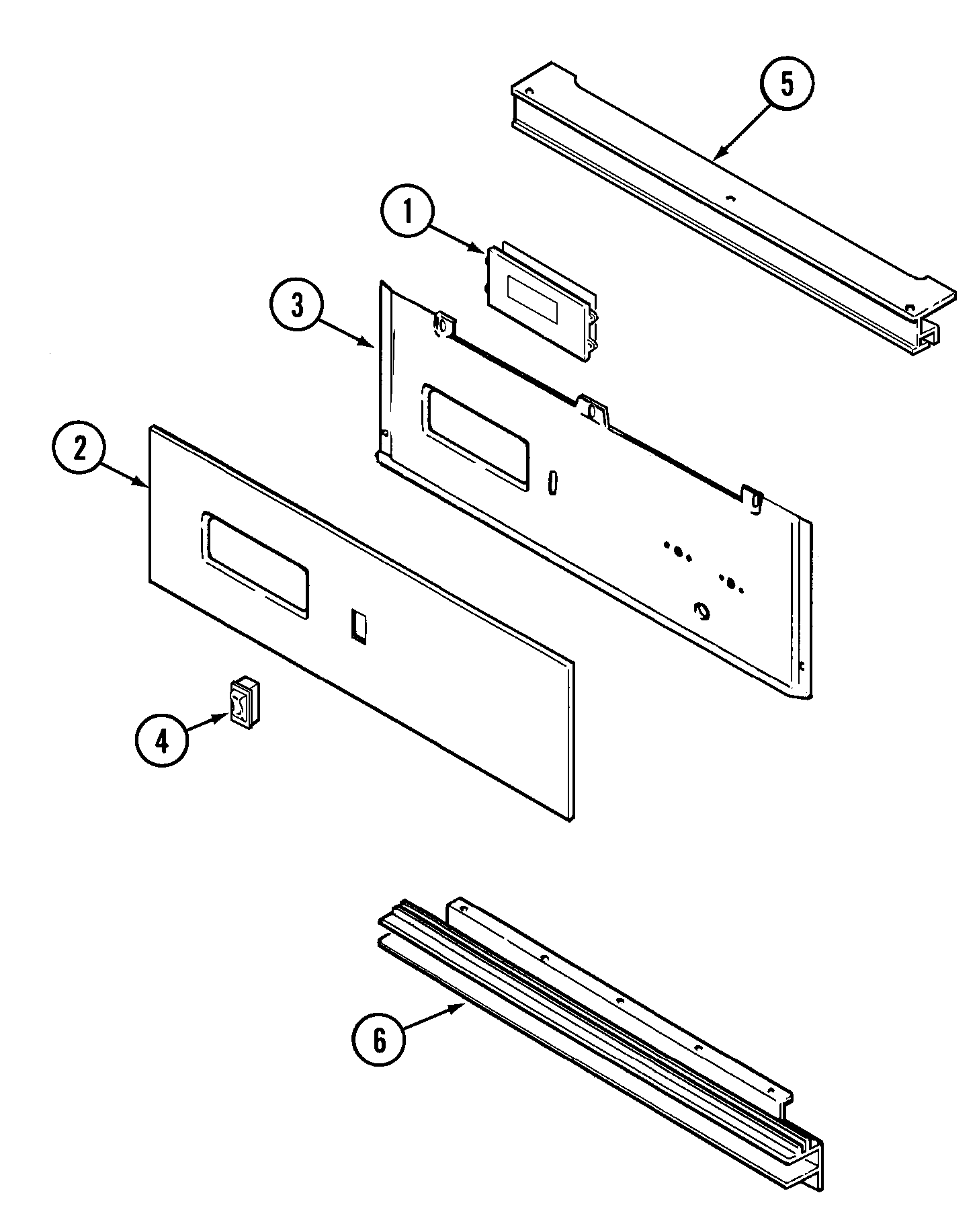

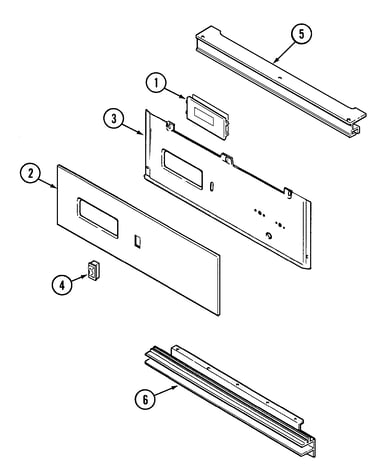

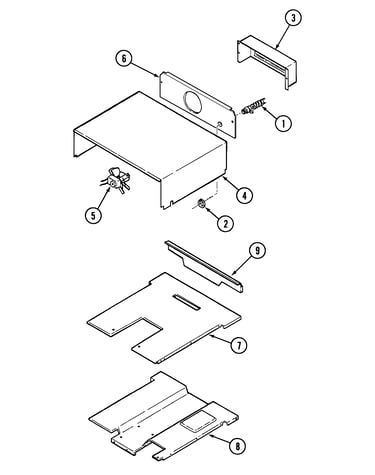

SELECT DIAGRAM
Browse Parts forCWE4200ACB Wall Ovens
- #13

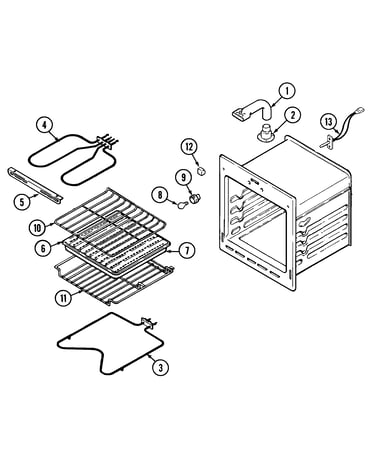

Oven diagram
Oven sensorPart #7430P010-60
Replaced by #12001656
?Manufacturer substitutionThis part replaces 7430P010-60. Substitute parts can look different from the original.$29.51 |15% OFF Phone Price : $34.65In Stock - #8

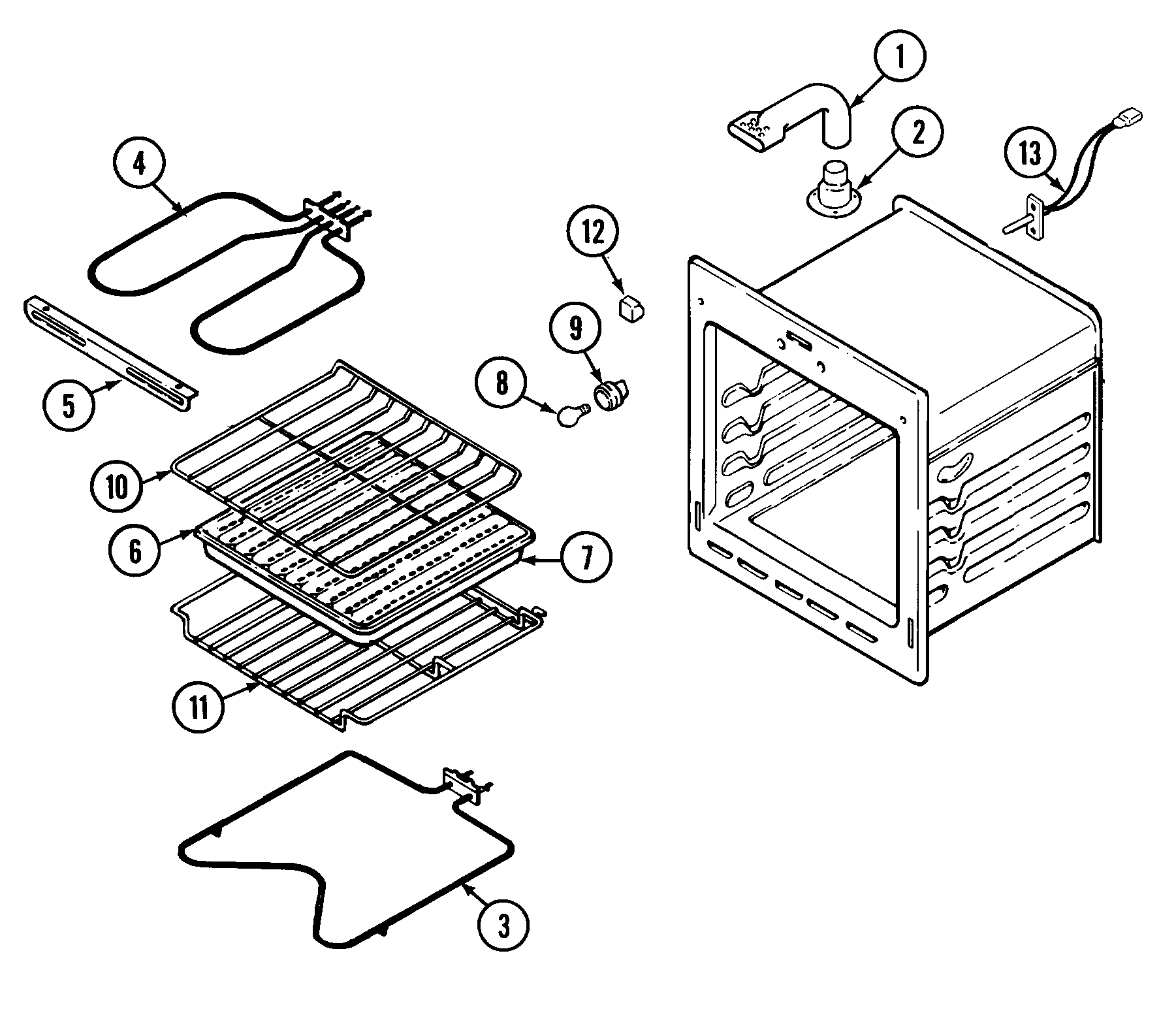

Oven diagram
Oven bulbPart #7407P103-60
Replaced by #8009
?Manufacturer substitutionThis part replaces 7407P103-60. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - Bracket screw
Part #7101P040-60
Replaced by #WP98008545
?Manufacturer substitutionThis part replaces 7101P040-60. Substitute parts can look different from the original.This item is not returnable$4.67 |18% OFF Phone Price : $5.67In Stock - #6

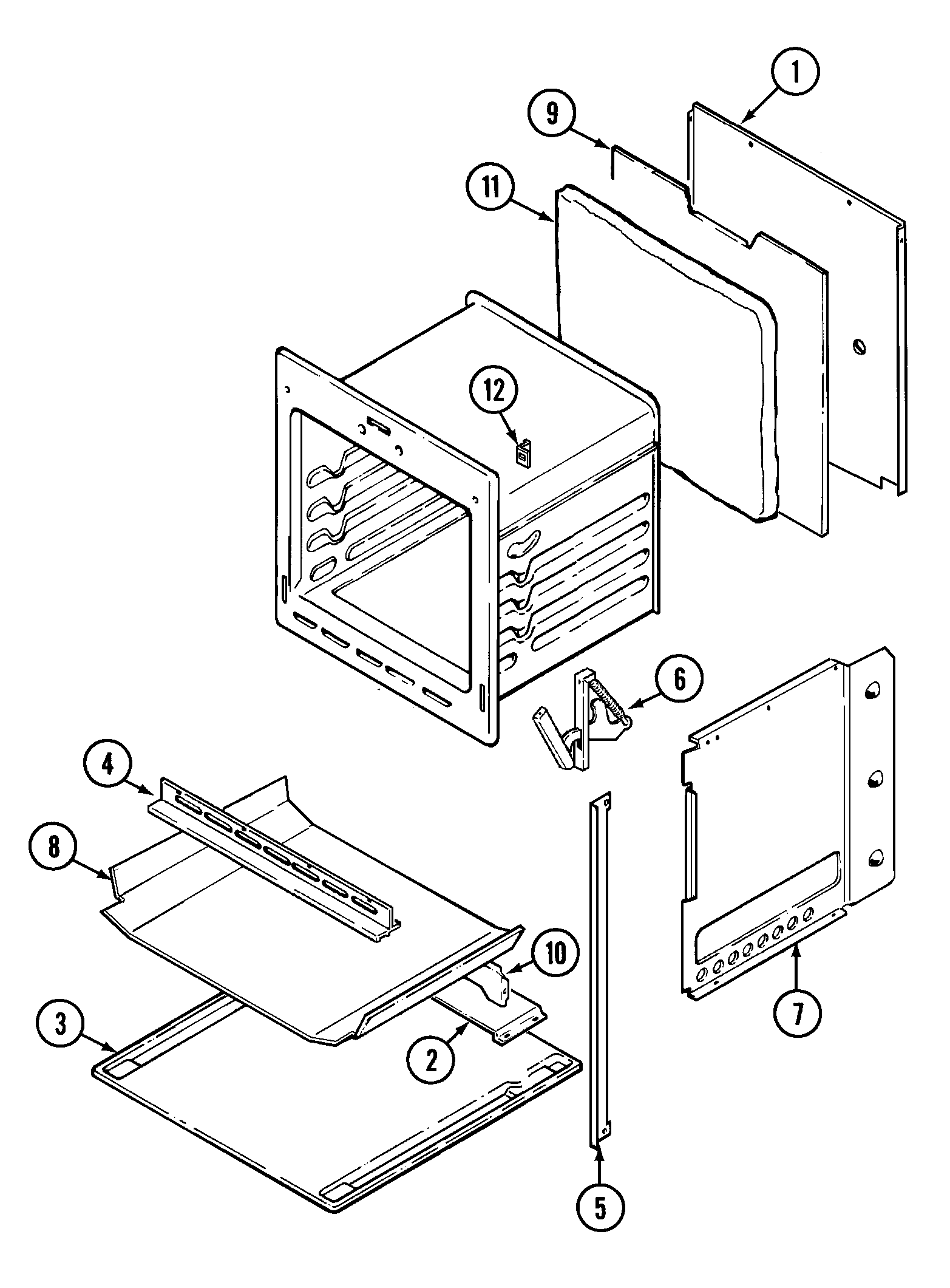

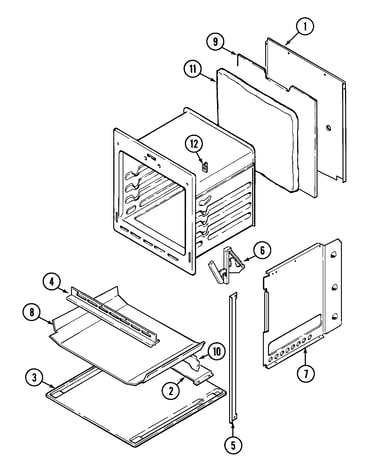

Body diagram
Crosley range oven door hingePart #74001856
$93.89In Stock - #6B
Body diagram
ScrewPart #7101P115-60
Replaced by #WP4159193
?Manufacturer substitutionThis part replaces 7101P115-60. Substitute parts can look different from the original.This item is not returnable$5.29 |16% OFF Phone Price : $6.29In Stock - #10

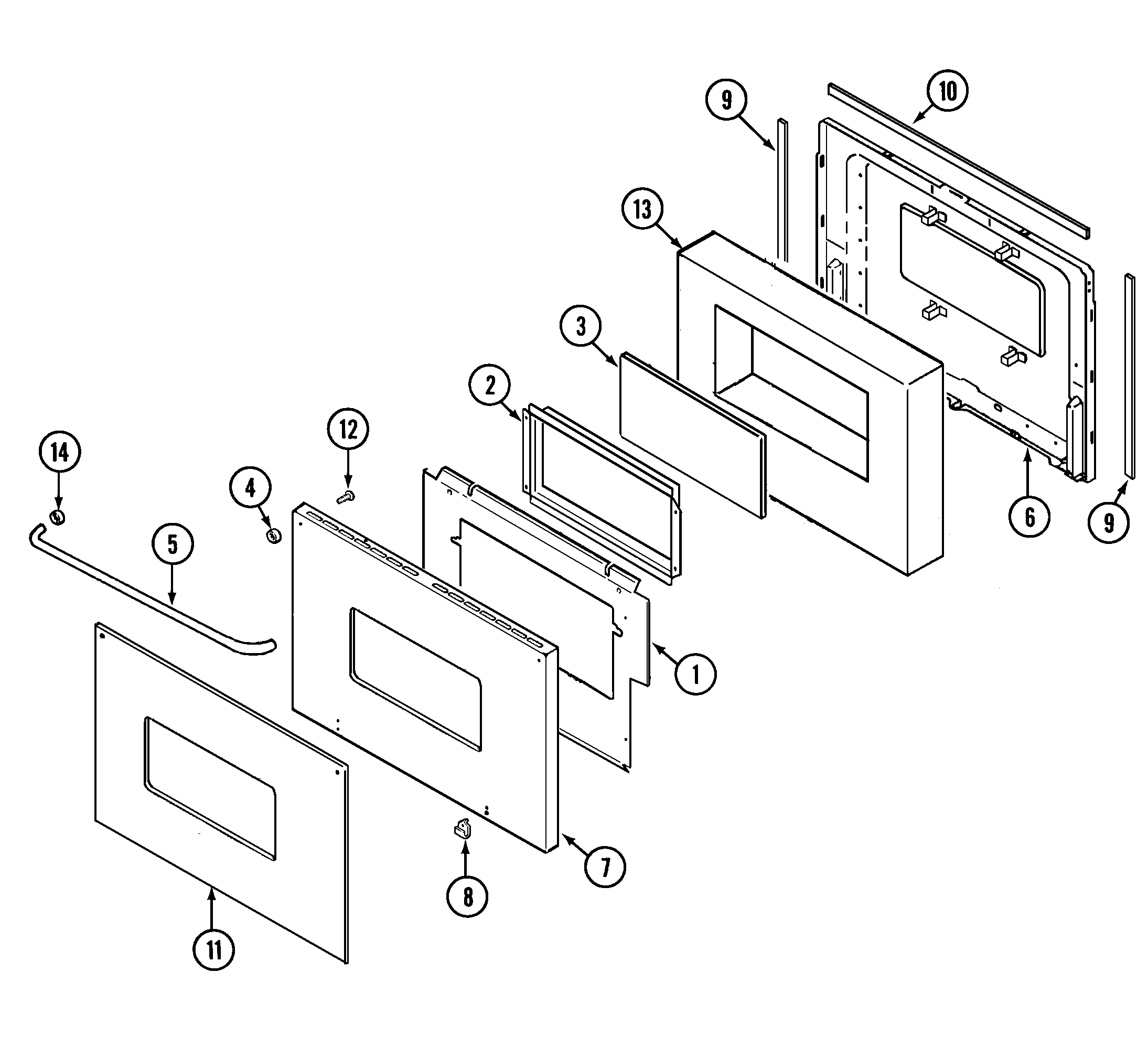

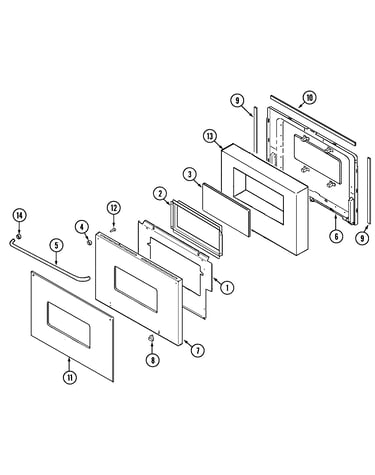

Door diagram
Range oven door sealPart #7212P006-60
Replaced by #WP7212P006-60
?Manufacturer substitutionThis part replaces 7212P006-60. Substitute parts can look different from the original.$50.49 |8% OFF Phone Price : $54.66In Stock - #7
Oven diagram
Broiler panPart #3401F020-19
Replaced by #4396923
?Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.$31.03 |13% OFF Phone Price : $35.55In Stock - #4
Door diagram
Glass spacerPart #8010P016-60
Replaced by #74003986
?Manufacturer substitutionThis part replaces 8010P016-60. Substitute parts can look different from the original.$33.98In Stock - #6
Oven diagram
Broiler insertPart #3413F016-19
Replaced by #4396923
?Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.$31.03 |13% OFF Phone Price : $35.55In Stock - Screw
Part #7101P356-60
Replaced by #WP7101P126-60
?Manufacturer substitutionThis part replaces 7101P356-60. Substitute parts can look different from the original.This item is not returnable$4.10 |20% OFF Phone Price : $5.10In Stock
