Bosch
Electric Wall Oven

Model # HBE5451UC/01 Official Bosch electric oven

Here are the diagrams and repair parts for Official Bosch HBE5451UC-01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Temperature Knob 00634534
#103

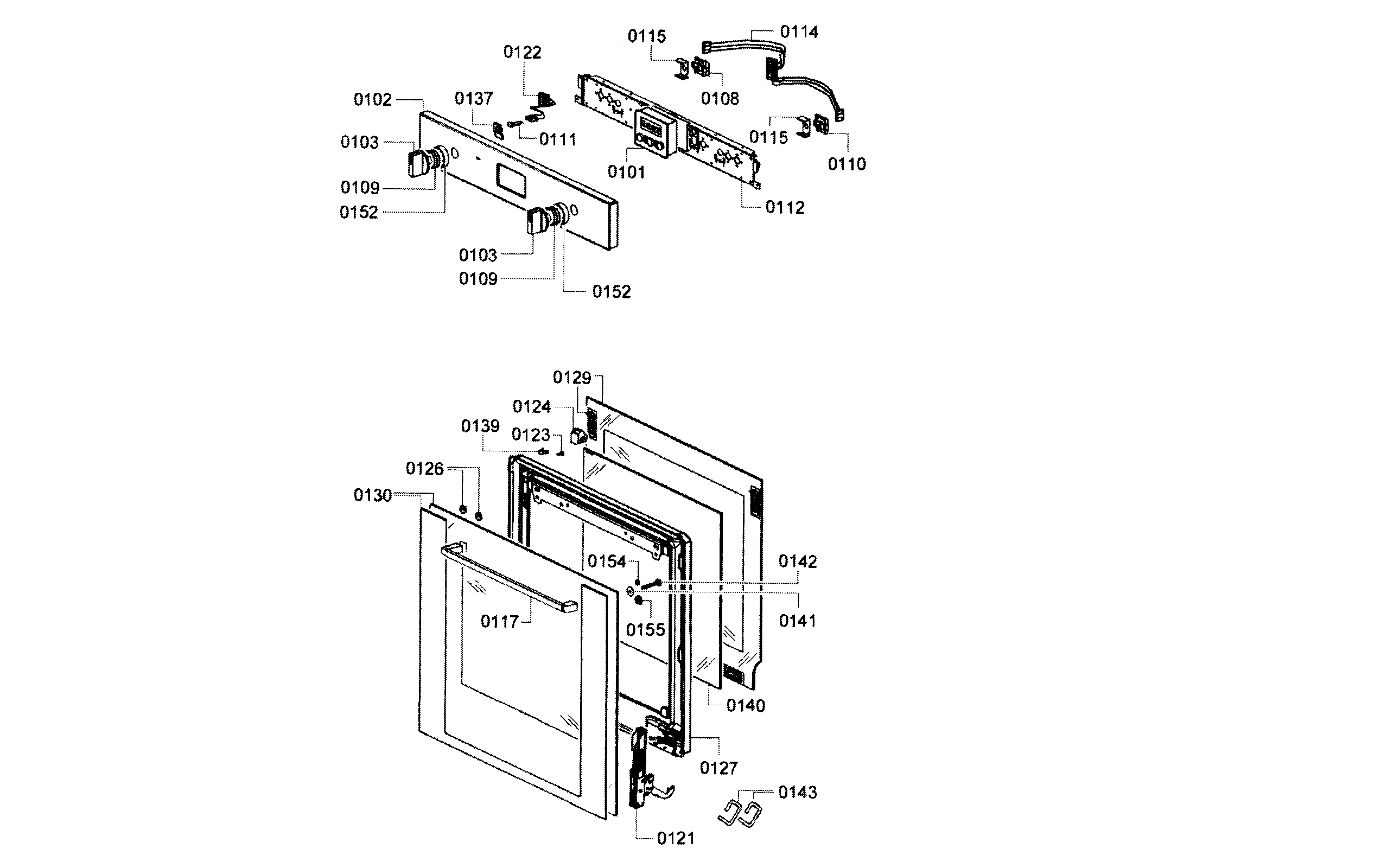

Cavity asy diagram

Temperature knob

Part #00634534

$24.91
In Stock
Bosch Potentiometer 00634543
#108

Cavity asy diagram

Bosch potentiometer

Part #00634543

$41.02
In Stock
Collar 00632816
#152

Cavity asy diagram

Collar

Part #00632816

$25.24
In Stock
Spring 00627352
#109

Cavity asy diagram

Spring

Part #00627352

$7.94
In Stock
Bosch Drive Holder 00634555
#115

Cavity asy diagram

Bosch drive holder

Part #00634555

$8.83
In Stock
Exrt Rail 12006236
#213

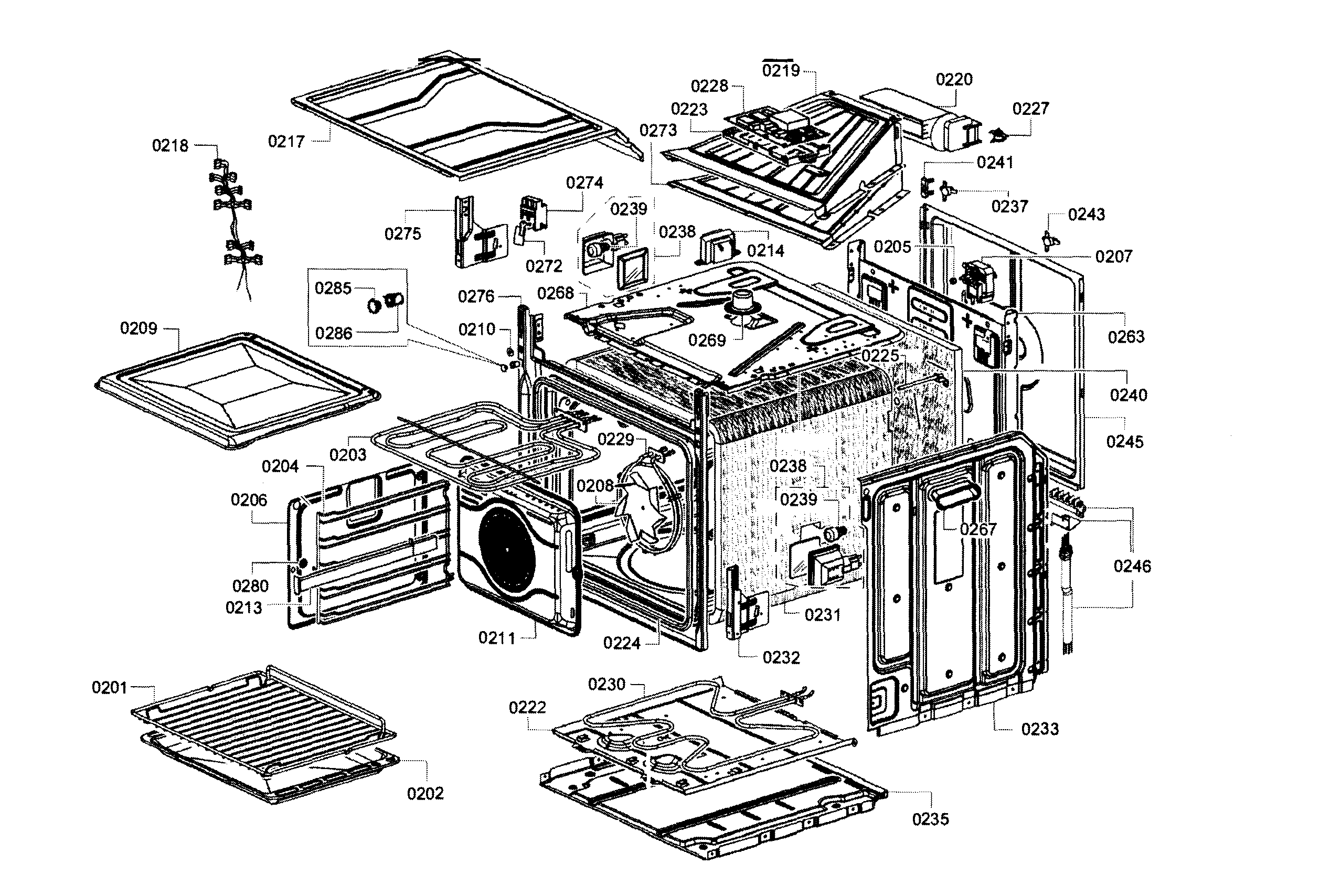

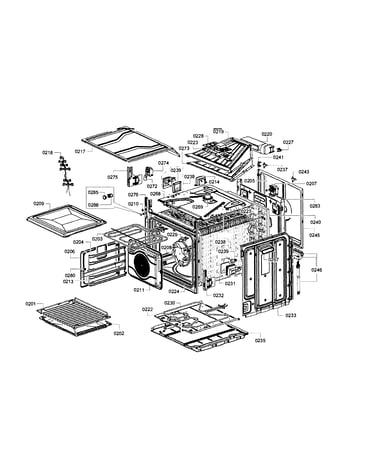

Door diagram

Exrt rail

Part #12006236

$117.94
In Stock
Element 00634536
#241

Door diagram

Element

Part #00634536

$35.04
In Stock
Fan Wheel 00659849
#208

Door diagram

Fan wheel

Part #00659849

$22.17
In Stock
Plate 11006095
#222

Door diagram

Plate

Part #11006095

$49.53
In Stock
Bosch Duct Vent 00743277
#219

Door diagram

Bosch duct vent

Part #00743277

$27.69
In Stock
