Jenn-Air
Wall Oven/Microwave Combo

Model # JMW2427WB03 Official Jenn-Air built-in microwave/oven combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2427WB03 built-in microwave/oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

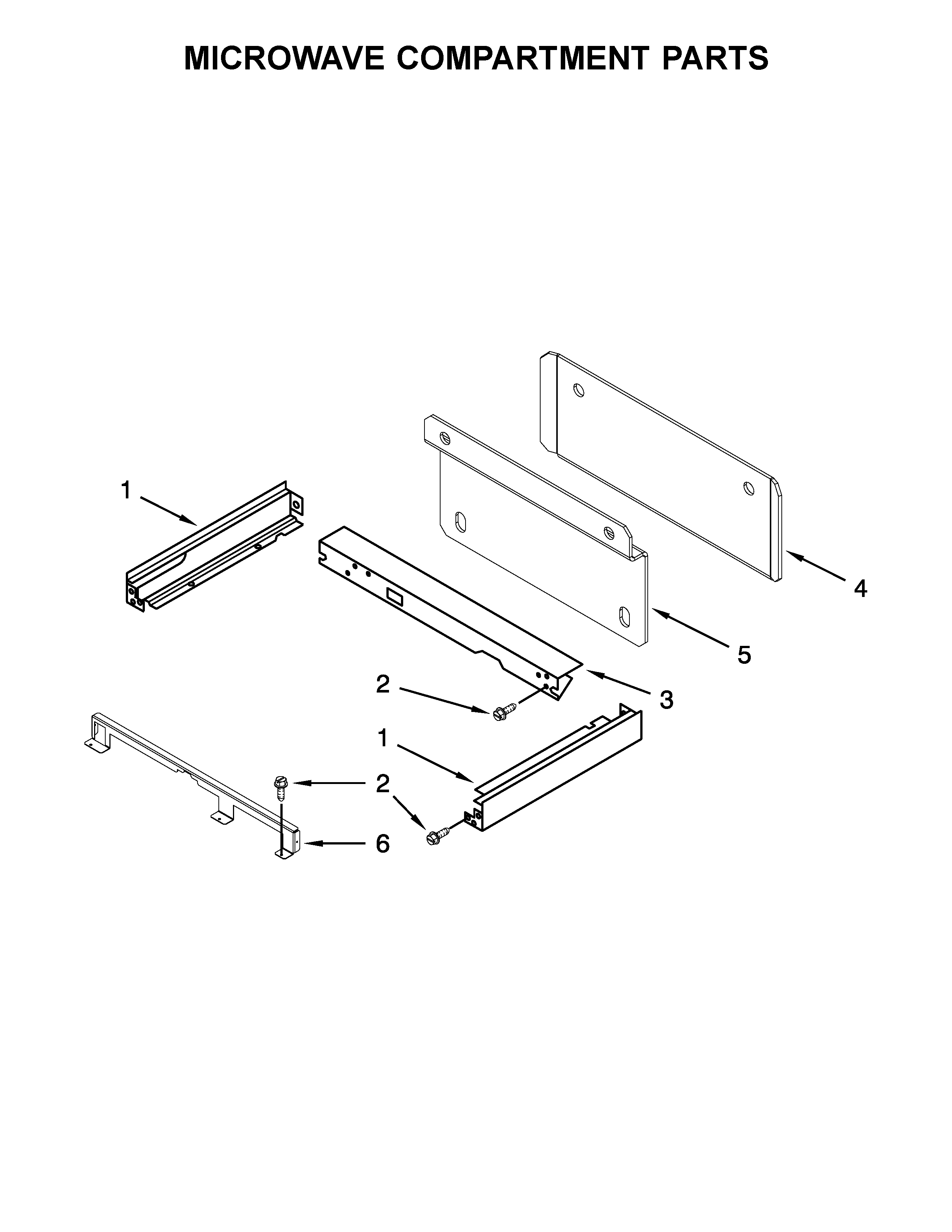

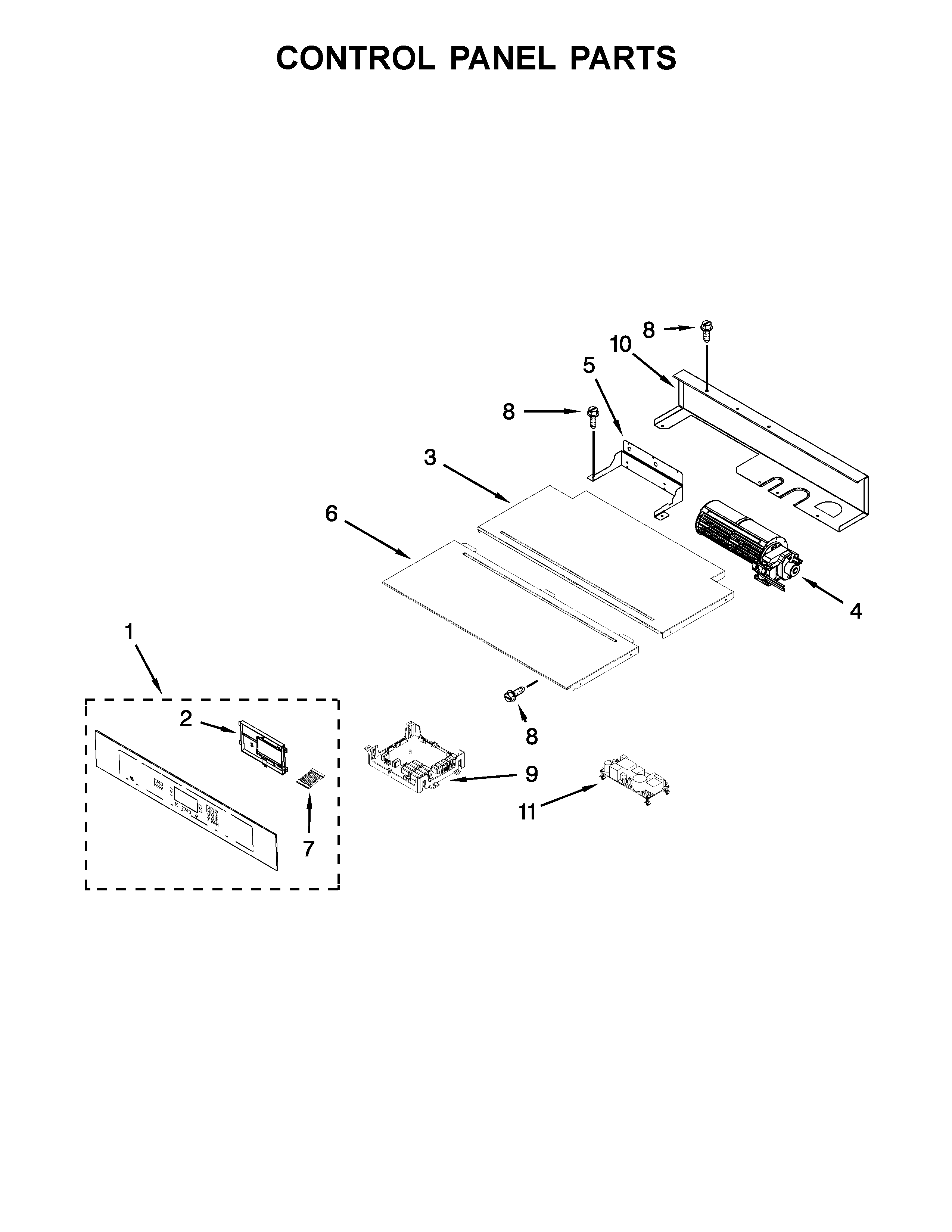

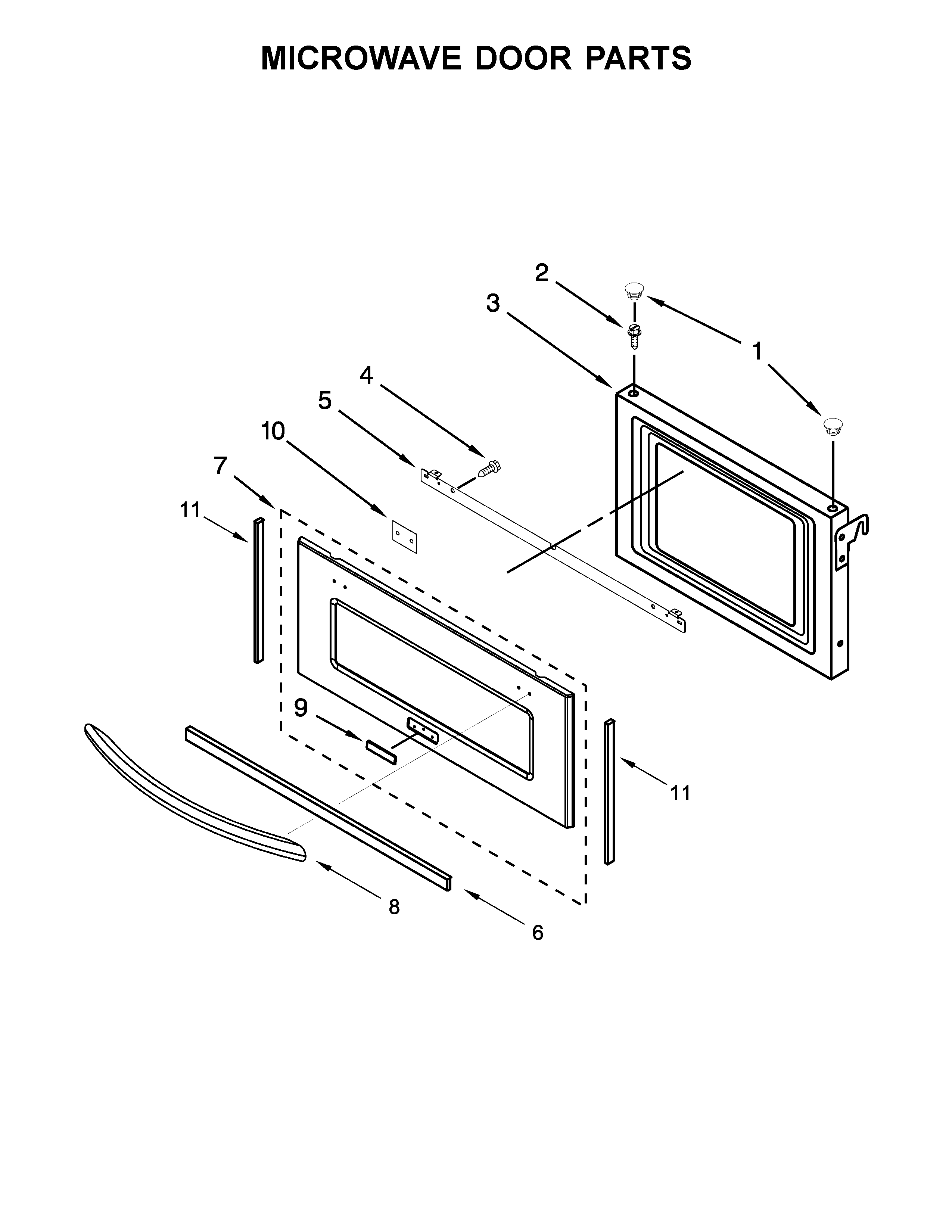

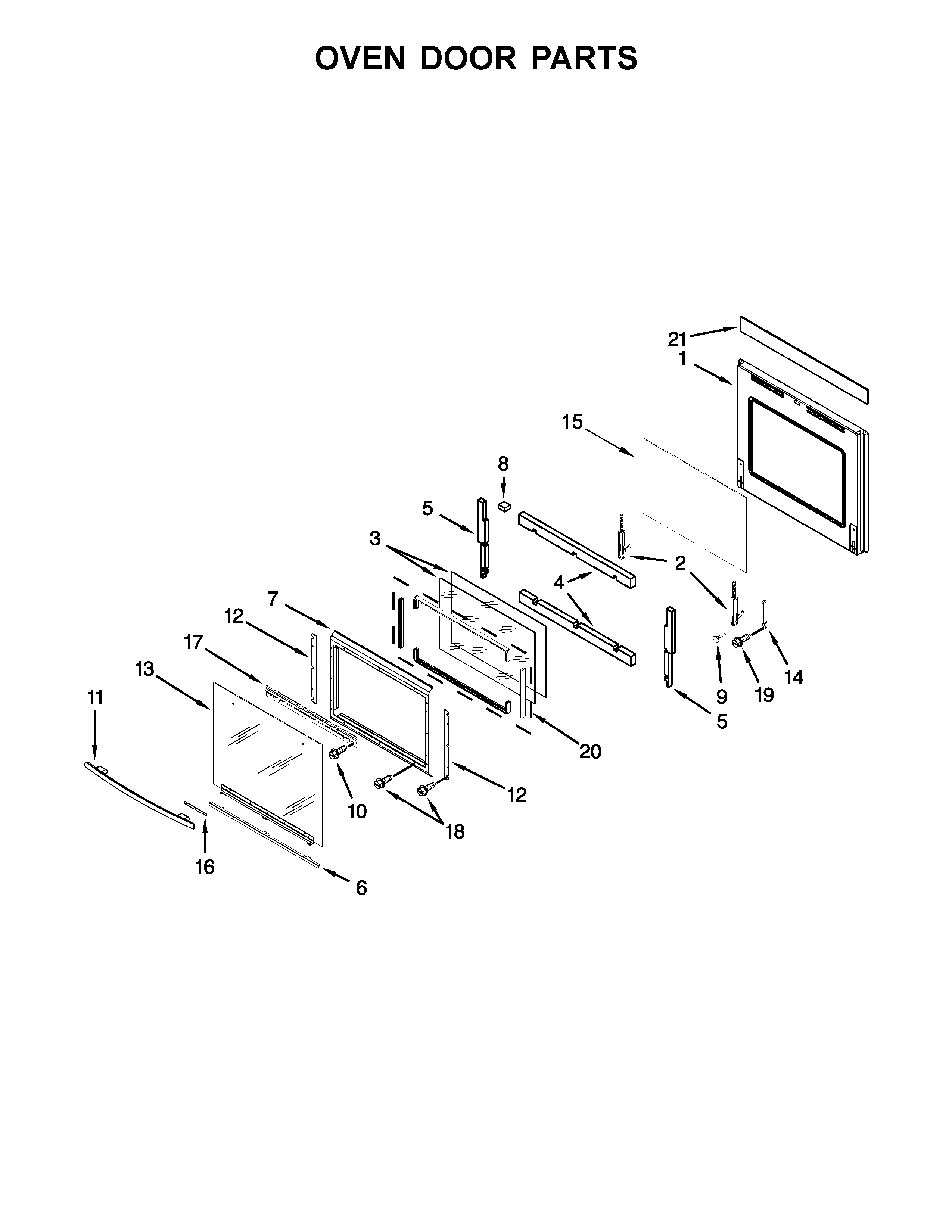

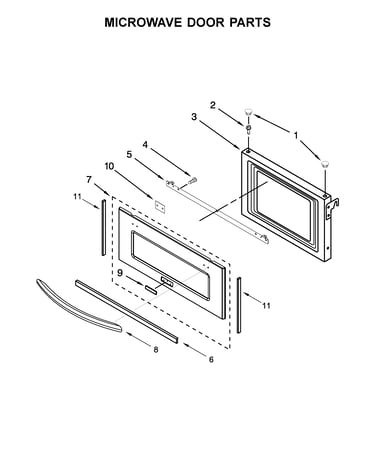

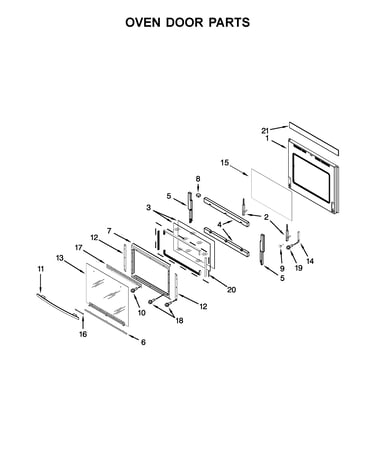

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Microwave Door Switch W10330566
#21

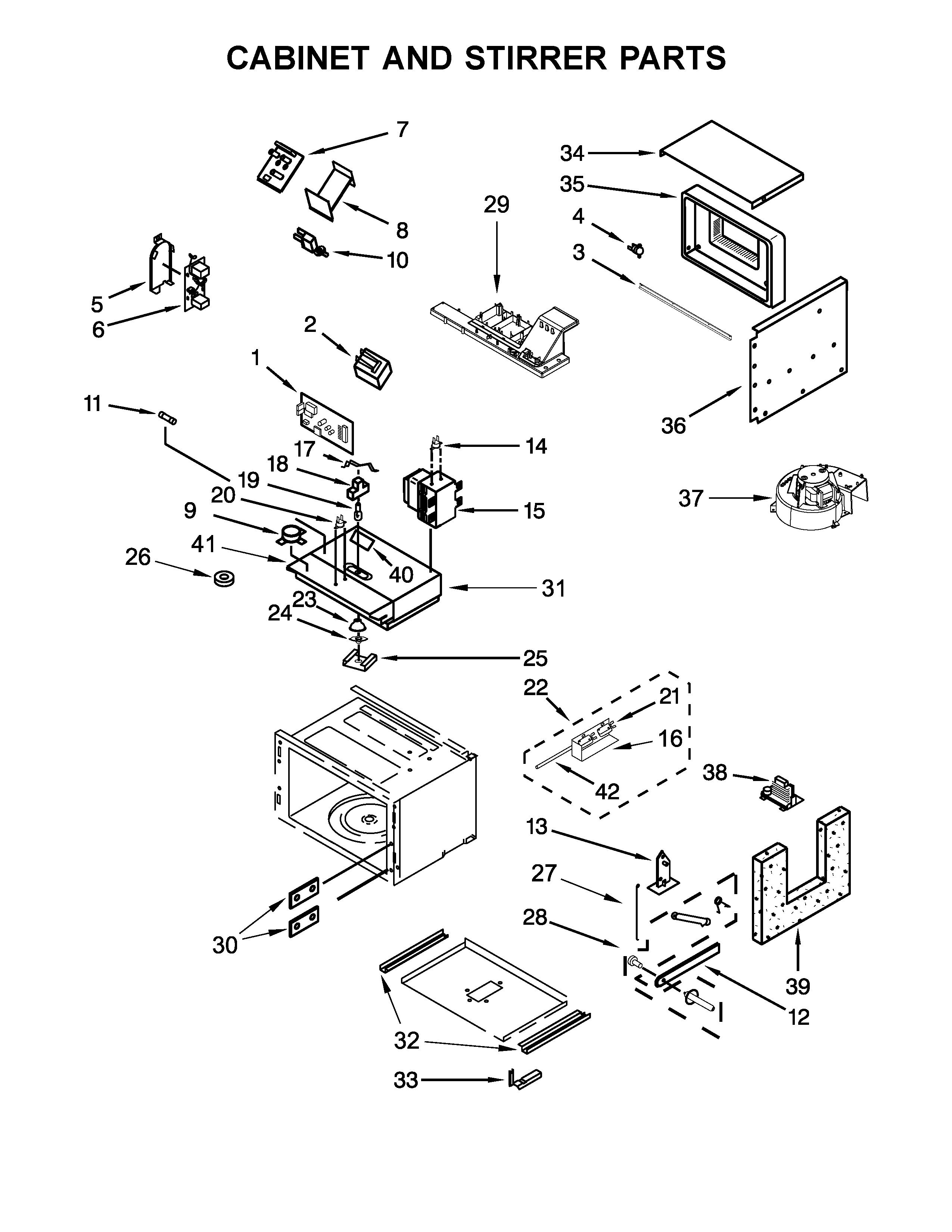

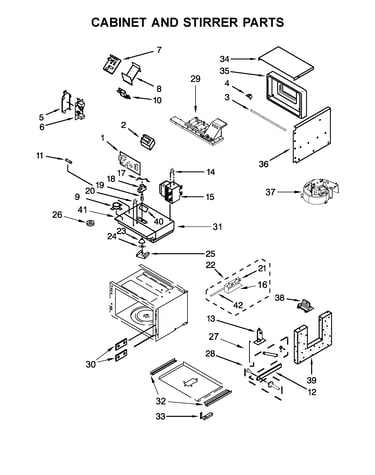

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Inverter W10468206
#38

Cabinet and stirrer parts diagram

Inverter

Part #W10468206

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
BEST SELLER
$203.20 |
6% OFF Phone Price : $215.20
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Microwave Turntable Motor 461967848971
#4

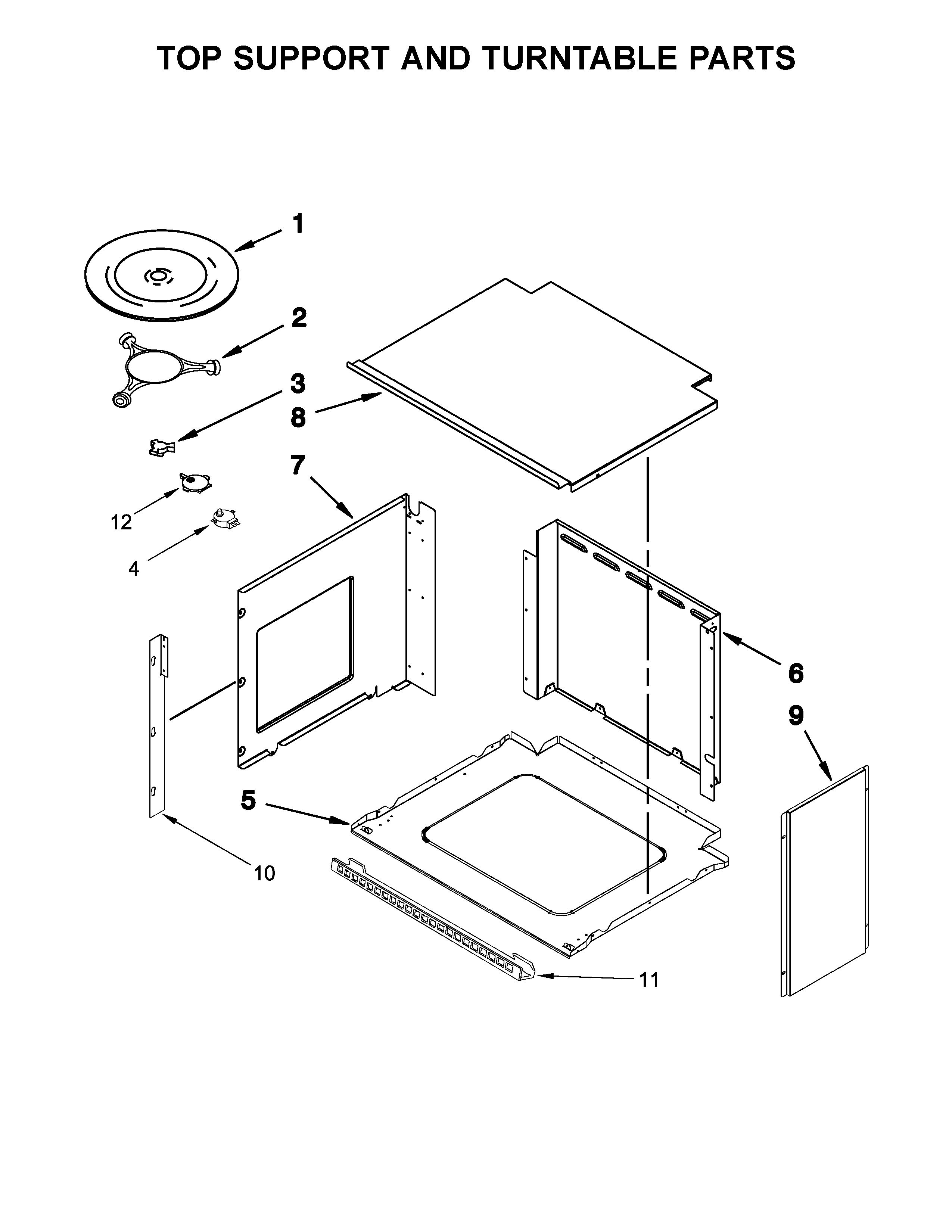

Top support and turntable parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
BEST SELLER
$69.43 |
8% OFF Phone Price : $75.43
In Stock
Lamp G4 Halo W10795595
#19

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Adhesive 482338
#NI

Optional parts (not included) diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Wall Oven Light Bulb W10169757
#29

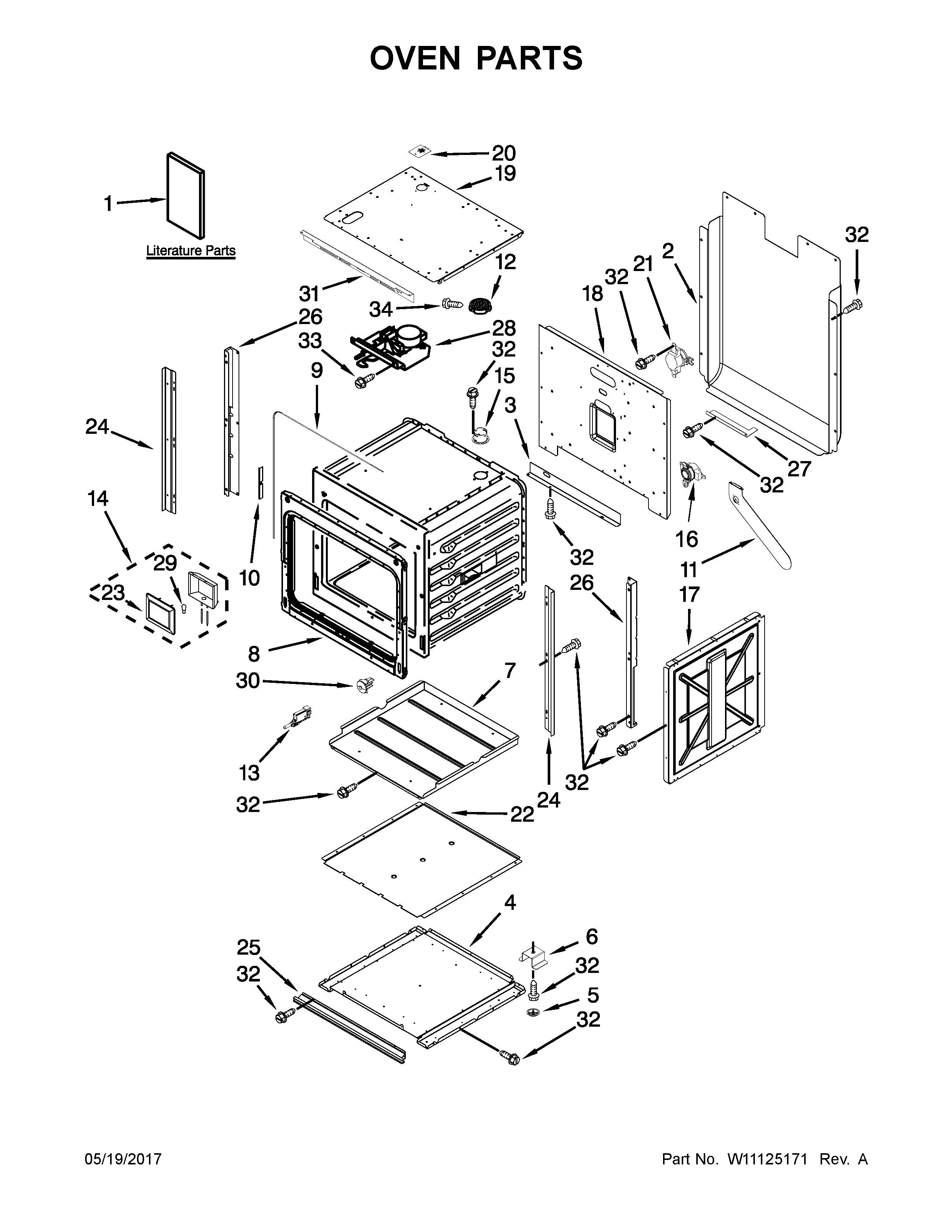

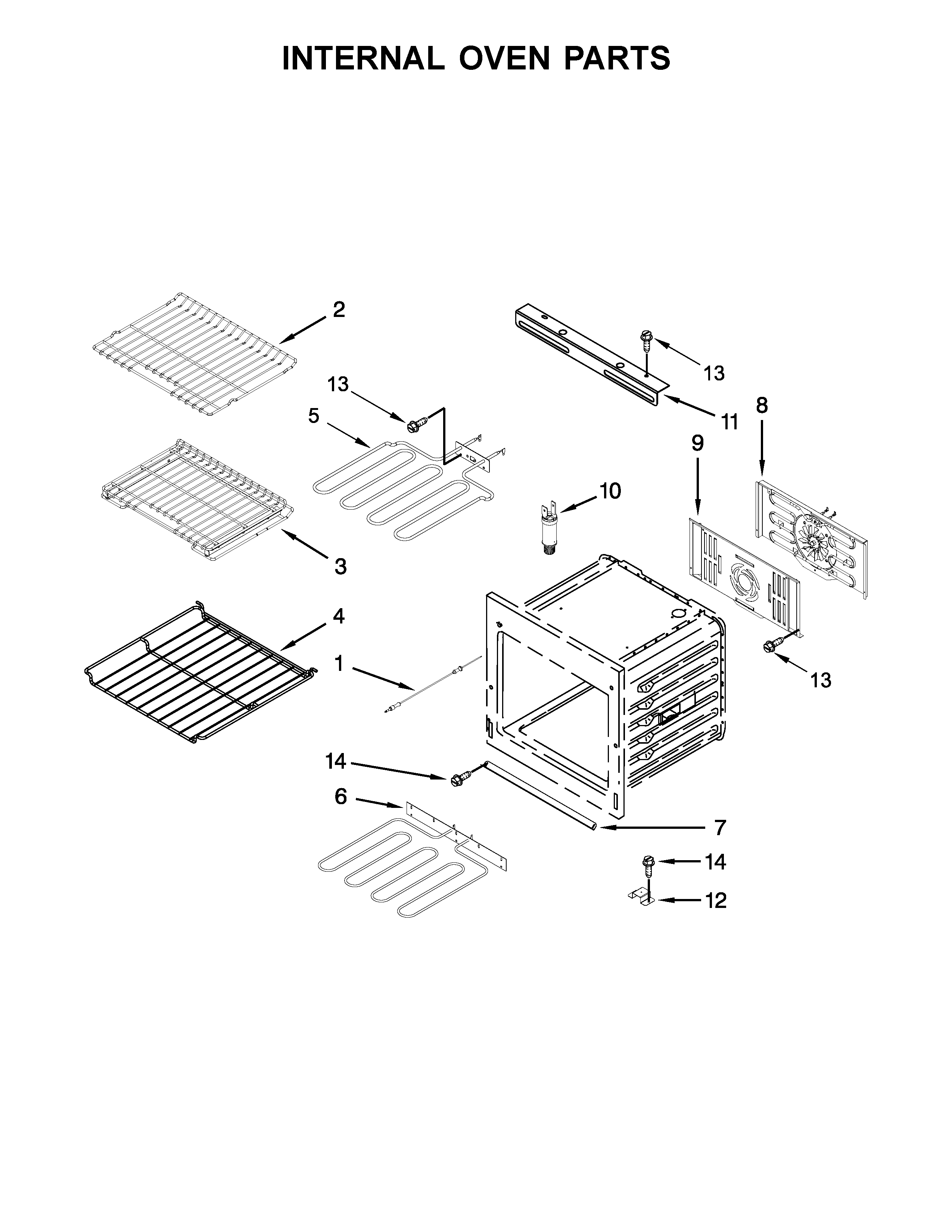

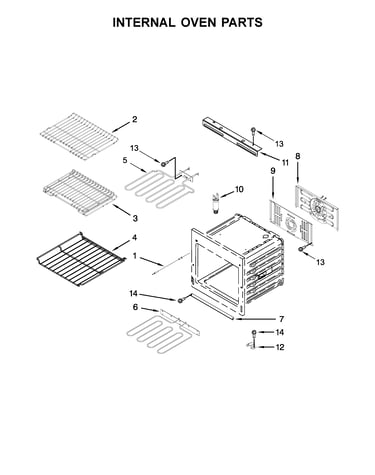

Oven parts diagram

Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$33.50 |
15% OFF Phone Price : $39.50
In Stock
Fuse W10017410
#NI

Oven parts diagram

Fuse

Part #W10017410

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces W10017410. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Hinge Nar Ob 461968979601
#33

Cabinet and stirrer parts diagram

Hinge nar ob

Part #461968979601

Replaced by #W10874474

?
Manufacturer substitution
This part replaces 461968979601. Substitute parts can look different from the original.
$33.00 |
15% OFF Phone Price : $39.00
In Stock
