Kenmore
Room Air Conditioner

Model # 58075180501 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075180501 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

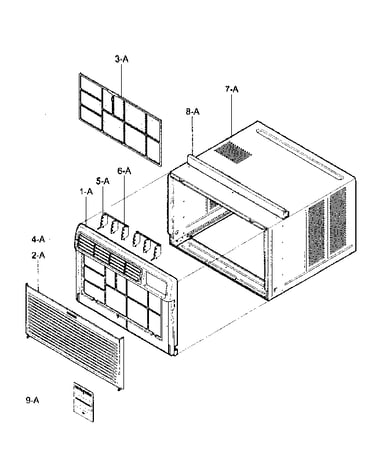

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Icp Room Air Conditioner Fan Motor Capacitor (replaces 16-05-00710-109, 2a00986n, 2h00841t, 6120ar2359b) 6120AR2194F
#6-B

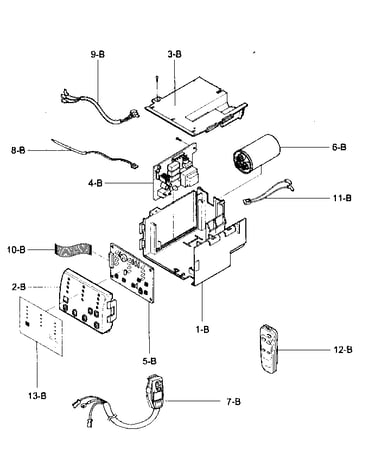

Control box assy diagram

Icp room air conditioner fan motor capacitor (replaces 16-05-00710-109, 2a00986n, 2h00841t, 6120ar2359b)

Part #6120AR2194F

$105.92
In Stock
Room Air Conditioner Power Cord 6411A20056N
#7-B

Control box assy diagram

Room air conditioner power cord

Part #6411A20056N

Replaced by #EAD63469505

?
Manufacturer substitution
This part replaces 6411A20056N. Substitute parts can look different from the original.
$79.70 |
7% OFF Phone Price : $85.70
In Stock
Sill Bracket 3H01395C
#5-E

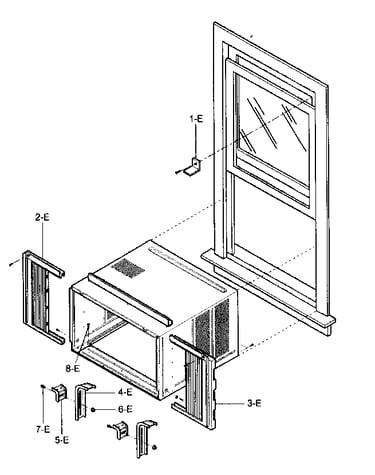

Installation kit assy diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Bracket Support 3H01479D
#4-E

Installation kit assy diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
M-screw 4H01482A
#8-E

Installation kit assy diagram

M-screw

Part #4H01482A

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$71.96
In Stock
Comfort-aire Room Air Conditioner Capillary Line 5211A30275Z
#13-D

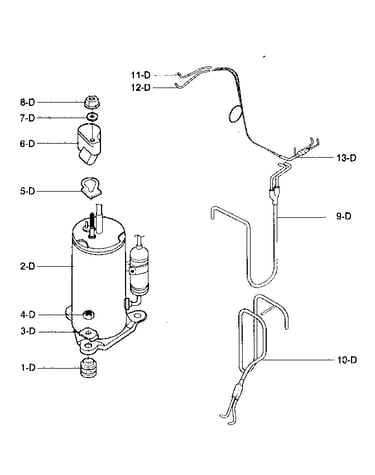

Compressor parts diagram

Comfort-aire room air conditioner capillary line

Part #5211A30275Z

$35.96
In Stock
Pipe Elbow 4H01010A
#19-C

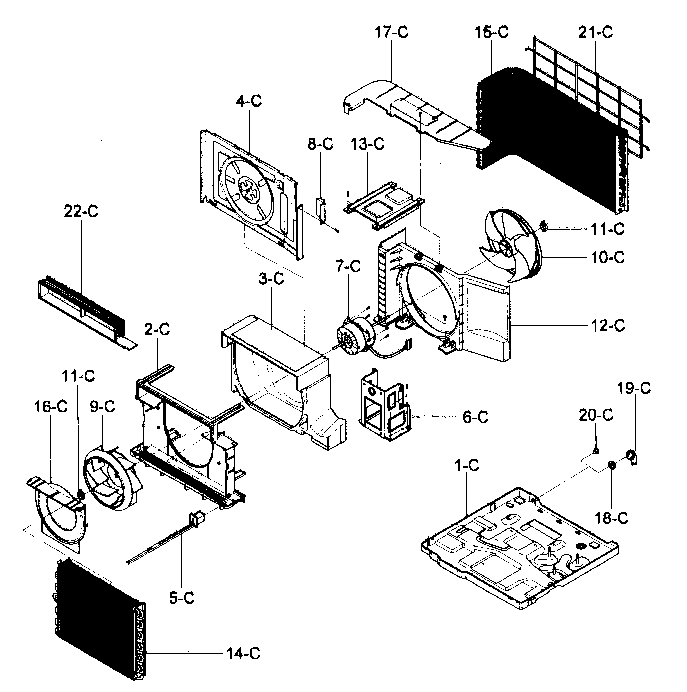

Air handling/cycle parts diagram

Pipe elbow

Part #4H01010A

This item is not returnable
$4.51
In Stock
Air Guide 5238A20014A
#22-C

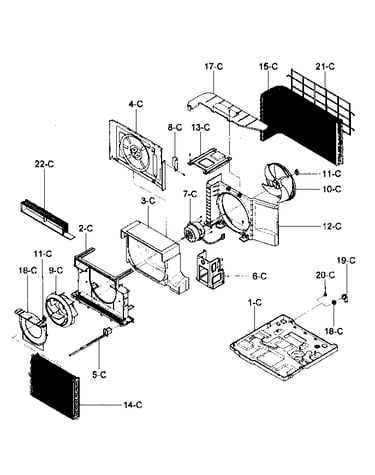

Air handling/cycle parts diagram

Air guide

Part #5238A20014A

$18.83
In Stock
Goldstar Orifice 4948A30008A
#16-C

Air handling/cycle parts diagram

Goldstar orifice

Part #4948A30008A

$15.49
In Stock
Comfort-aire Brace 4800A20001A
#13-C

Air handling/cycle parts diagram

Comfort-aire brace

Part #4800A20001A

$10.60
In Stock
