Model # BDV-E370 Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony BDV-E370 dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

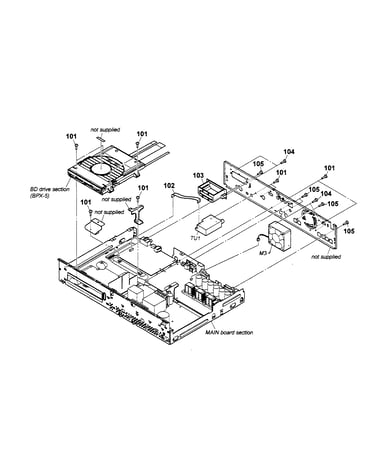

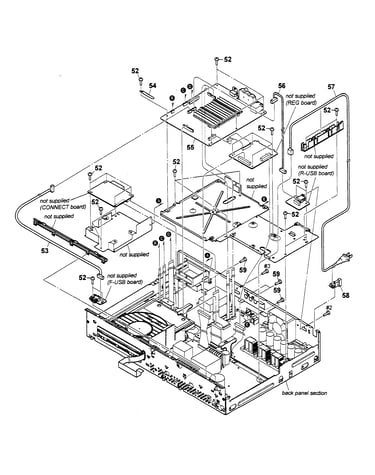

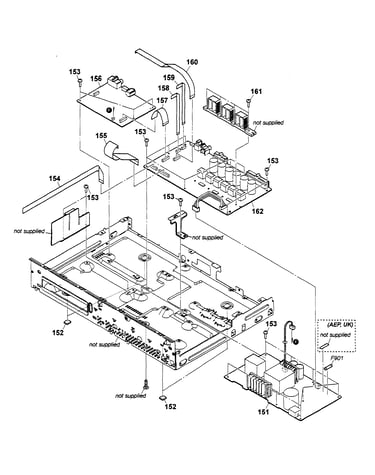

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Home Theater System Fm Antenna 179318441
#NI

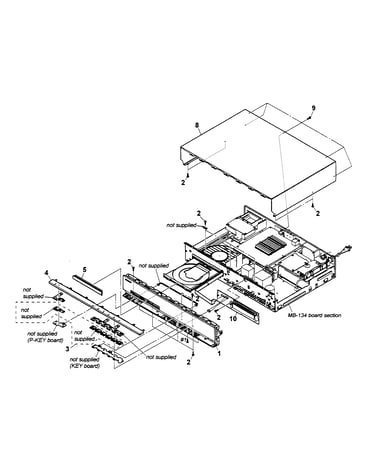

Cabinet parts diagram

Home theater system fm antenna

Part #179318441

The manufacturer no longer makes this part, and there's no substitute part

+b3.0x5.0 768254609
#S3

Cabinet parts diagram

+b3.0x5.0

Part #768254609

The manufacturer no longer makes this part, and there's no substitute part

Dc Transformer 144568611
#NI

Cabinet parts diagram

Dc transformer

Part #144568611

The manufacturer no longer makes this part, and there's no substitute part

Ic,amplifi 671447701
#NI

Cabinet parts diagram

Ic,amplifi

Part #671447701

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 111639311
#NI

Cabinet parts diagram

Capacitor

Part #111639311

The manufacturer no longer makes this part, and there's no substitute part

Diode 871906374
#NI

Cabinet parts diagram

Diode

Part #871906374

The manufacturer no longer makes this part, and there's no substitute part

Resistor 121887991
#NI

Cabinet parts diagram

Resistor

Part #121887991

The manufacturer no longer makes this part, and there's no substitute part

Wire 9core 183766051
#207

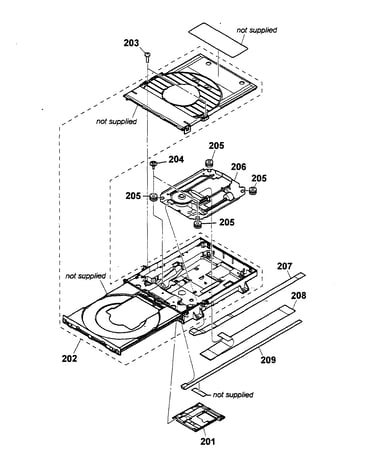

Drive assy diagram

Wire 9core

Part #183766051

The manufacturer no longer makes this part, and there's no substitute part

Thrmistor 180494911
#NI

Cabinet parts diagram

Thrmistor

Part #180494911

The manufacturer no longer makes this part, and there's no substitute part

Transformer 144532011
#NI

Cabinet parts diagram

Transformer

Part #144532011

The manufacturer no longer makes this part, and there's no substitute part
