Range Hood

Model # ES36 Official DCS vent hood

Here are the diagrams and repair parts for Official DCS ES36 vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Spring Clip, Blower Mount 97103
#36

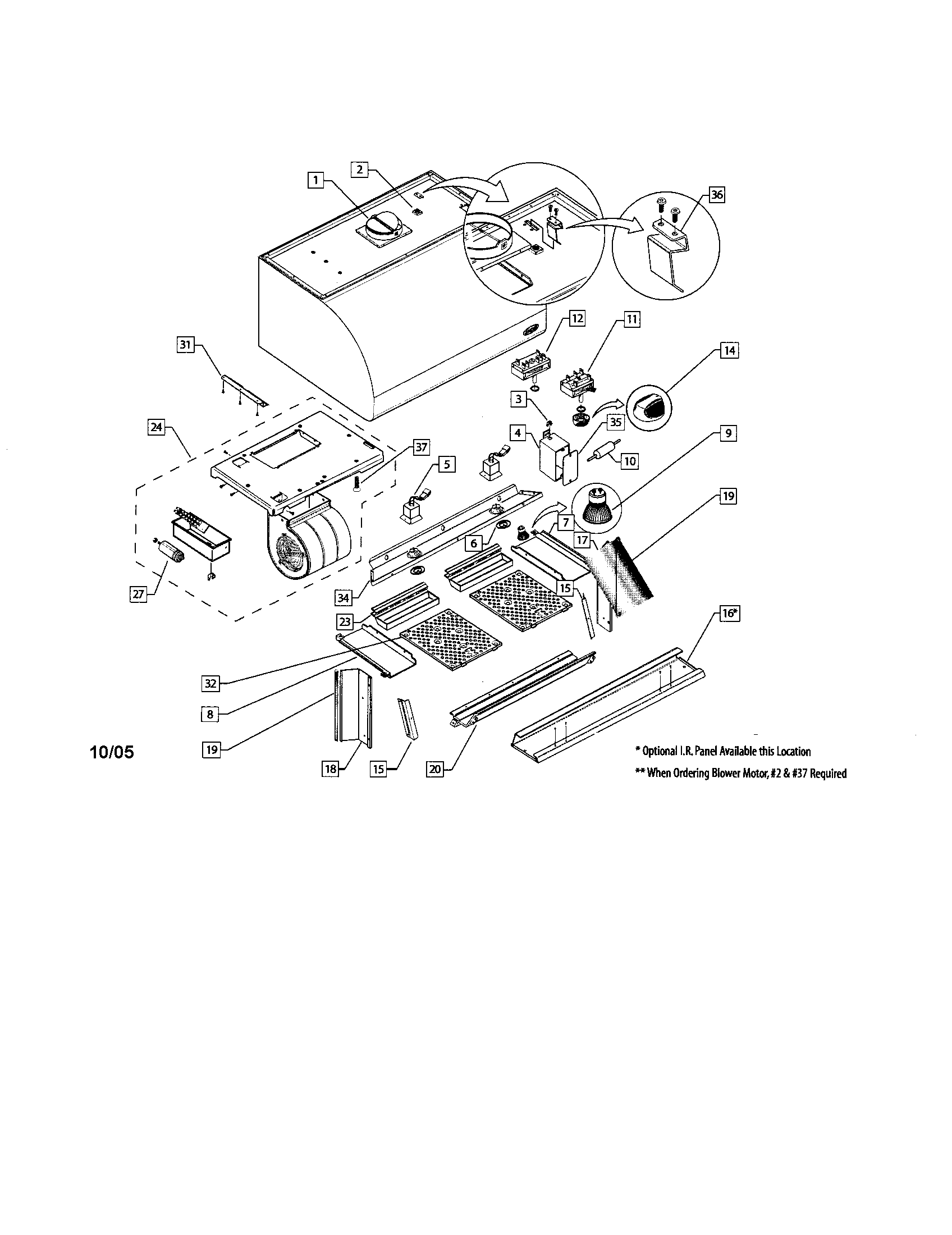

Euro hood assembly diagram

Spring clip, blower mount

Part #97103

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle (l/h) 97036
#18

Euro hood assembly diagram

Air baffle (l/h)

Part #97036

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor Assembly (single) (when Ordering Blower Motor, #2 And #37 Required) 97005
#24

Euro hood assembly diagram

Blower motor assembly (single) (when ordering blower motor, #2 and #37 required)

Part #97005

The manufacturer no longer makes this part, and there's no substitute part

Bulb Receptacle, (l/r) 97023
#1

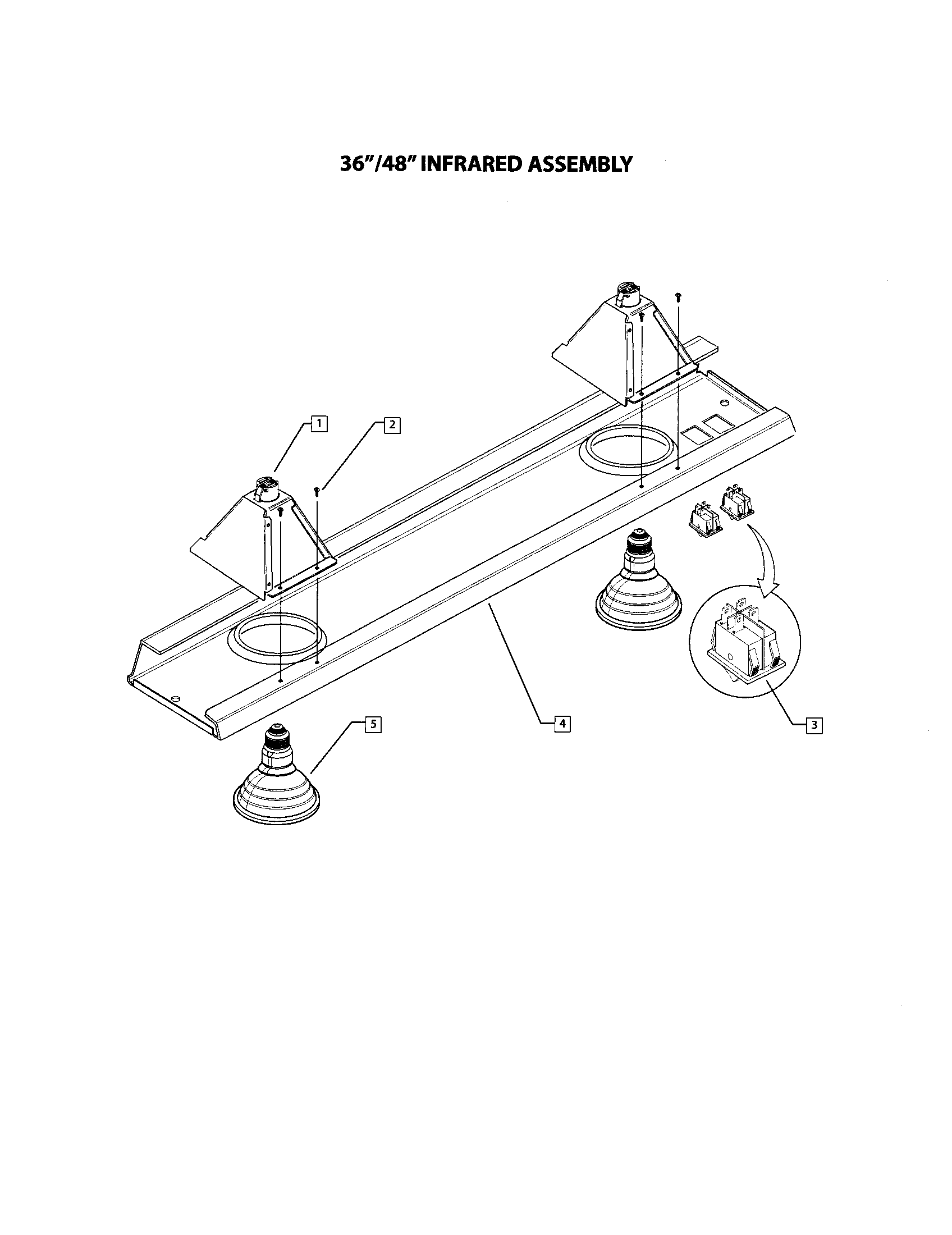

Optional heat lamp assembly diagram

Bulb receptacle, (l/r)

Part #97023

The manufacturer no longer makes this part, and there's no substitute part

Filter Retainer 97042
#20

Euro hood assembly diagram

Filter retainer

Part #97042

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness (not Shown) Ir48 97067

#NI04

All parts diagram

Wire harness (not shown) ir48

Part #97067

The manufacturer no longer makes this part, and there's no substitute part

Insulation Strip 97046
#19

Euro hood assembly diagram

Insulation strip

Part #97046

The manufacturer no longer makes this part, and there's no substitute part

Harness, Lights Vs1236,es30/36,vs30/36 (optional I.r. Panel Available This Location) 97069

#NI02

All parts diagram

Harness, lights vs1236,es30/36,vs30/36 (optional i.r. panel available this location)

Part #97069

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 97000
#27

Euro hood assembly diagram

Capacitor

Part #97000

The manufacturer no longer makes this part, and there's no substitute part

Bezel Light 97010
#6

Euro hood assembly diagram

Bezel light

Part #97010

The manufacturer no longer makes this part, and there's no substitute part
