Craftsman
Walk-Behind Mower

Model # 536902151 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 536902151 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Washer 8728
#3

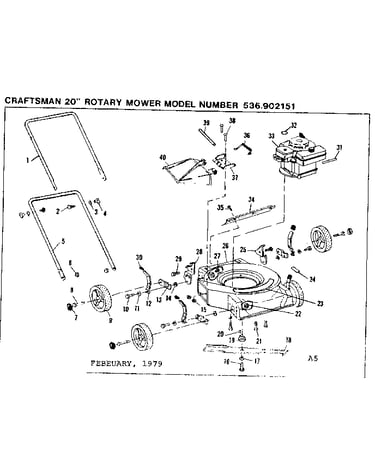

Replacement parts diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Lock Nut 45905
#22

Replacement parts diagram

Lock nut

Part #45905

Replaced by #45905MA

?
Manufacturer substitution
This part replaces 45905. Substitute parts can look different from the original.
$7.77
In Stock
Lock Nut 9424215
#15

Replacement parts diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Screw 274707
#35

Replacement parts diagram

Screw

Part #274707

Replaced by #12342MA

?
Manufacturer substitution
This part replaces 274707. Substitute parts can look different from the original.
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Walk-behind Lawn Mower Engine 14487
#33

Replacement parts diagram

Walk-behind lawn mower engine

Part #14487

The manufacturer no longer makes this part, and there's no substitute part

Upper Handle 42917
#1

Replacement parts diagram

Upper handle

Part #42917

The manufacturer no longer makes this part, and there's no substitute part

Spring 43151
#36

Replacement parts diagram

Spring

Part #43151

The manufacturer no longer makes this part, and there's no substitute part

Chute Deflector 44231
#40

Replacement parts diagram

Chute deflector

Part #44231

The manufacturer no longer makes this part, and there's no substitute part

Washer 36821
#14

Replacement parts diagram

Washer

Part #36821

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt 24246
#10

Replacement parts diagram

Shoulder bolt

Part #24246

The manufacturer no longer makes this part, and there's no substitute part
