Craftsman
Gas Walk-Behind Mower

Model # 917378300 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378300 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Lawn & Garden Equipment Nut 409148
#33

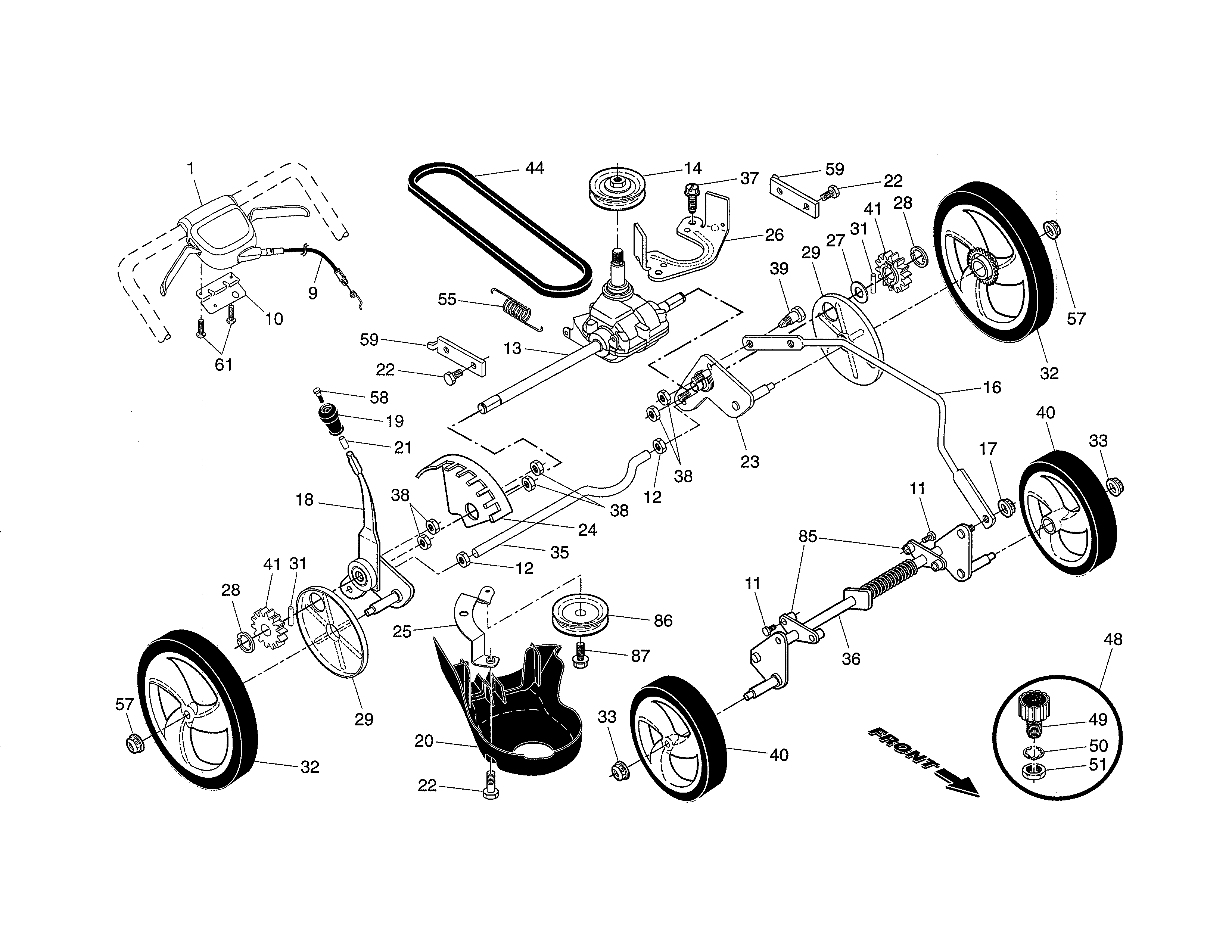

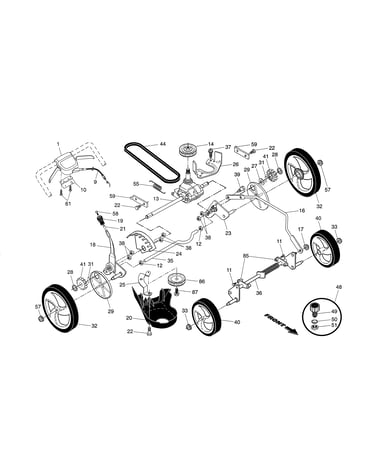

Drive control/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#57

Drive control/wheels diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#12

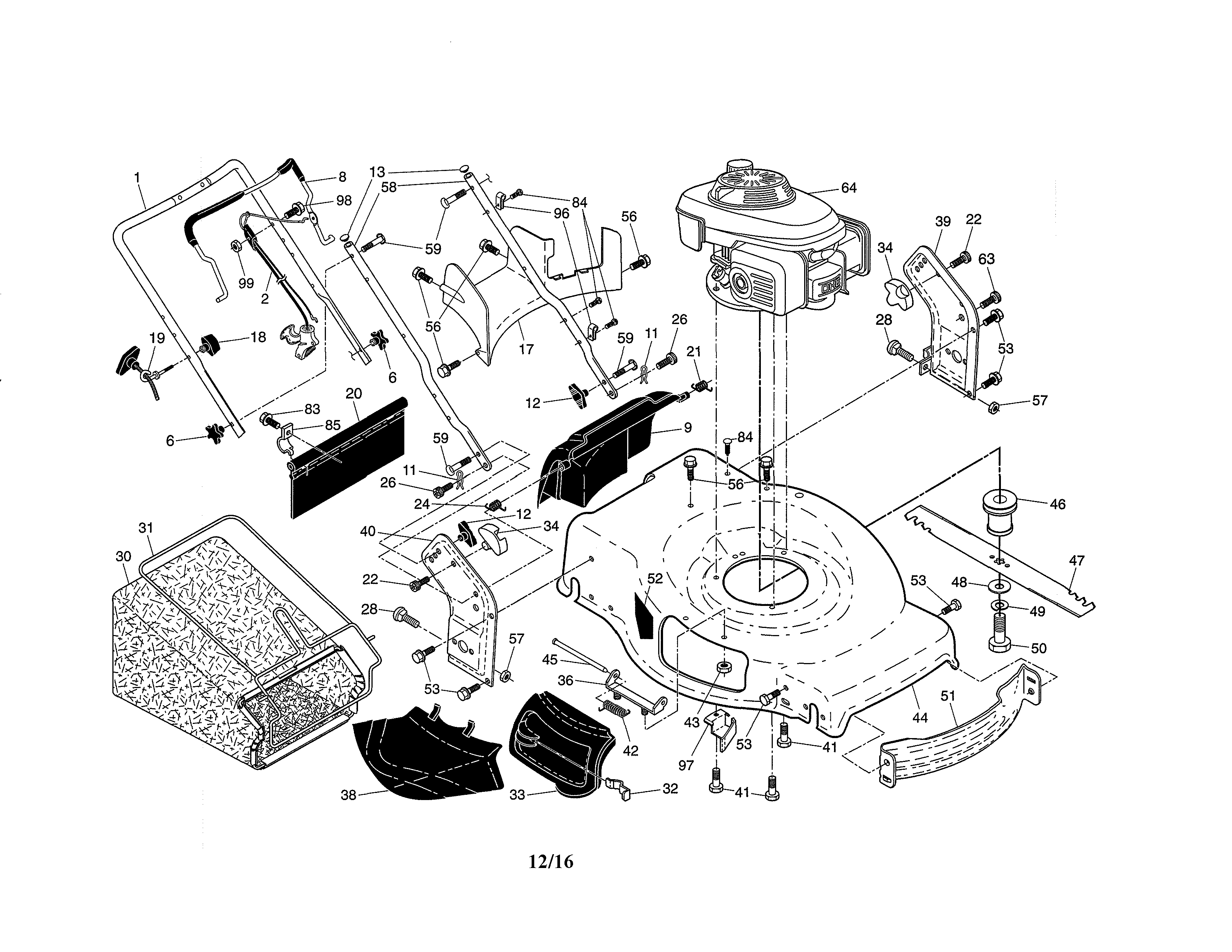

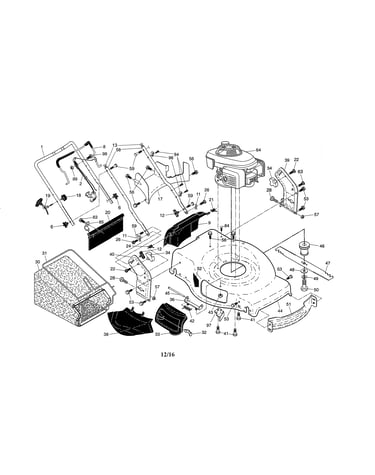

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Poulan Lawn Mower Ground Drive Belt, 3/8 X 35-1/2-in (replaces 406557, 580364611) 580364604
#44

Drive control/wheels diagram

Poulan lawn mower ground drive belt, 3/8 x 35-1/2-in (replaces 406557, 580364611)

Part #580364604

BEST SELLER

Get free shipping with Automatic Reorder

$15.99 |
11% OFF Phone Price : $17.99
In Stock
Poulan Lawn Mower Blade Adapter (replaces 581098501) 581851501
#46

Engine/housing/handle diagram

Poulan lawn mower blade adapter (replaces 581098501)

Part #581851501

BEST SELLER
This item is not returnable
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Bolt 17000510
Bolt

Part #17000510

Replaced by #817000510

?
Manufacturer substitution
This part replaces 17000510. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Cable Assembly 585650803
#2

Engine/housing/handle diagram

Cable assembly

Part #585650803

Replaced by #587326602

?
Manufacturer substitution
This part replaces 585650803. Substitute parts can look different from the original.
BEST SELLER
$37.47 |
14% OFF Phone Price : $43.47
In Stock
Poulan Lawn Mower Zone Control Cable 581952101
#9

Drive control/wheels diagram

Poulan lawn mower zone control cable

Part #581952101

BEST SELLER
This item is not returnable
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Nut.flange.5 155377
#57

Engine/housing/handle diagram

Nut.flange.5

Part #155377

Replaced by #596039201

?
Manufacturer substitution
This part replaces 155377. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Poulan Lawn Mower Idler Pulley (replaces 580364301, 596856601, 596856602) 587969201
#86

Drive control/wheels diagram

Poulan lawn mower idler pulley (replaces 580364301, 596856601, 596856602)

Part #587969201

This item is not returnable
$17.31 |
10% OFF Phone Price : $19.31
In Stock
