Model # 315115350 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315115350 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

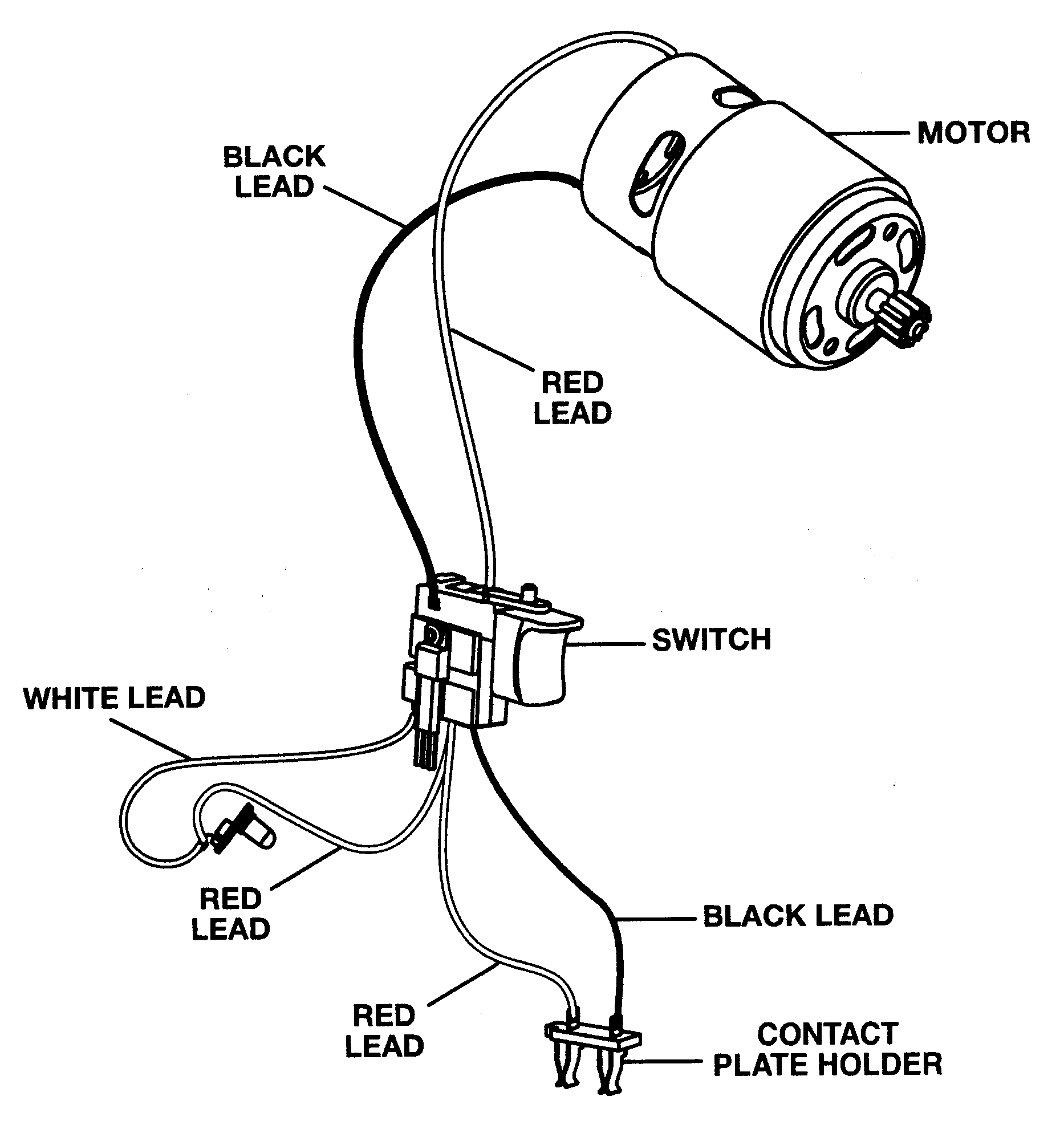

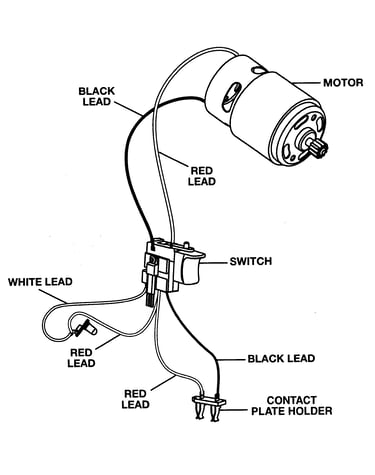

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Drill Level 3000909
#17

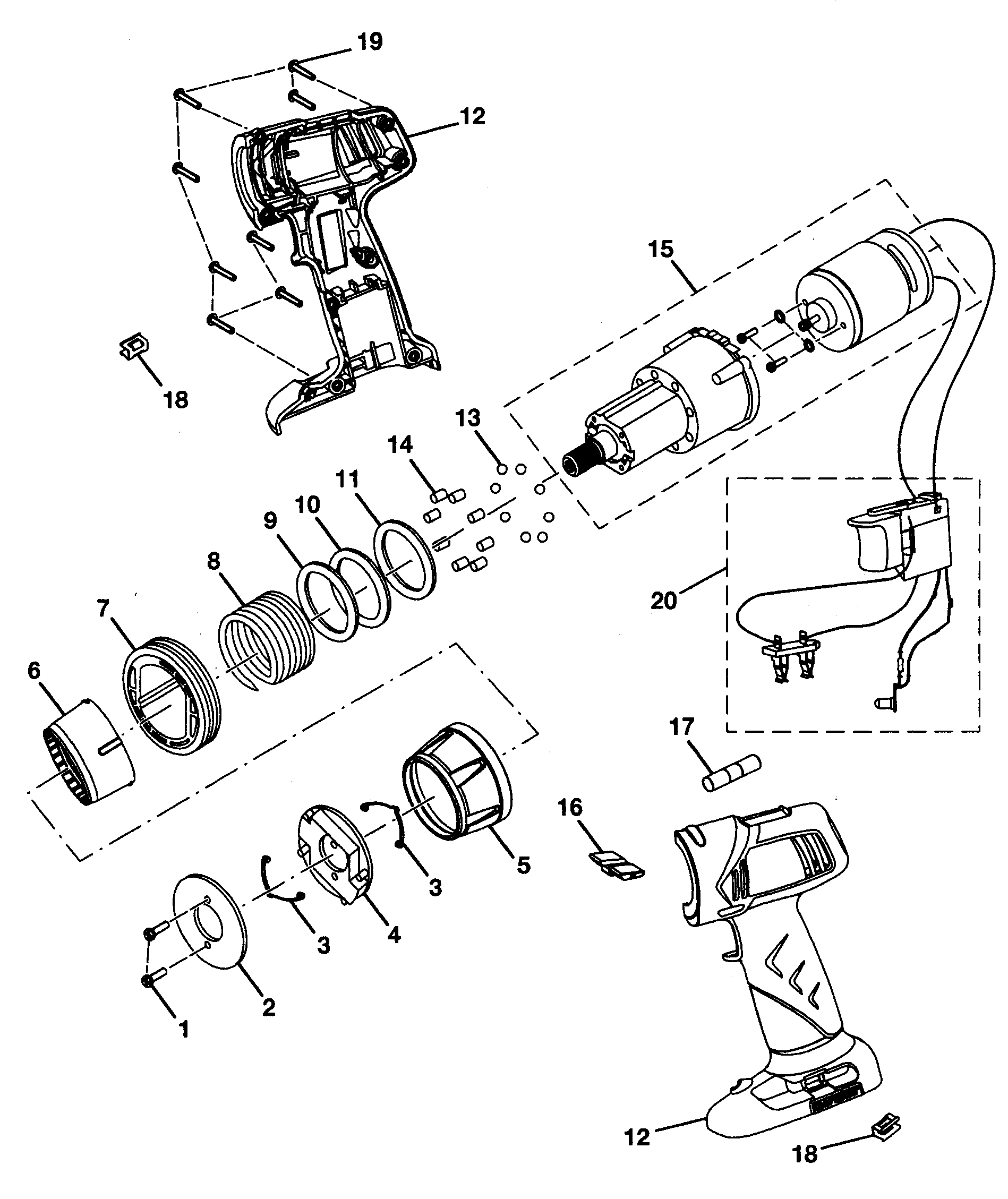

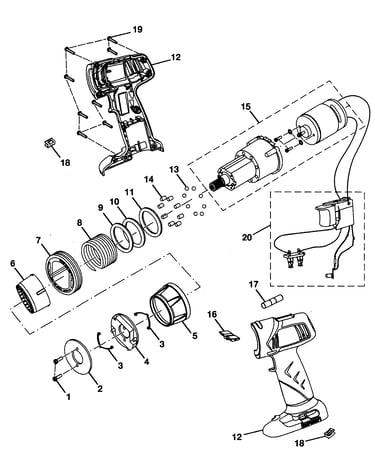

Motor assy diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Screw 6612001
#1

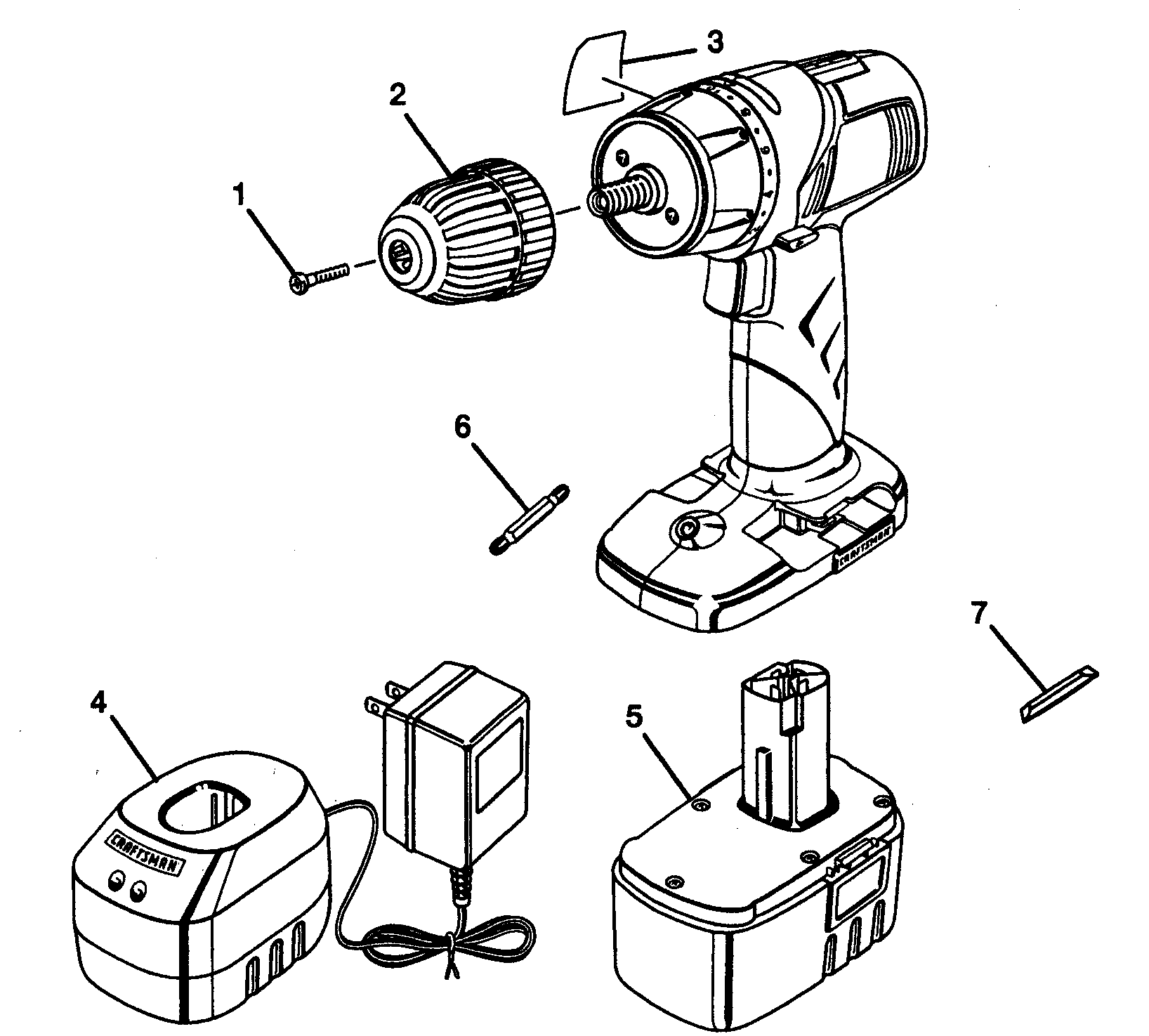

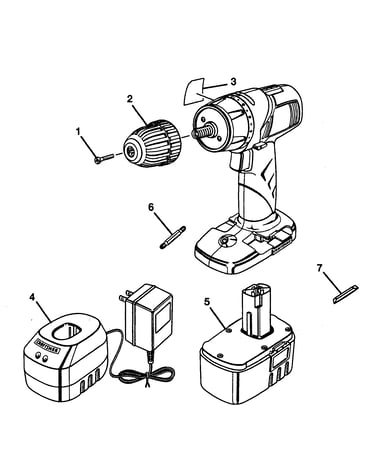

Drill diagram

Screw

Part #6612001

The manufacturer no longer makes this part, and there's no substitute part

Washer 690011005
#10

Motor assy diagram

Washer

Part #690011005

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 641001002
#5

Motor assy diagram

Clutch cap

Part #641001002

The manufacturer no longer makes this part, and there's no substitute part

Ball 670220001
#13

Motor assy diagram

Ball

Part #670220001

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 630922004
#4

Motor assy diagram

Spring plate

Part #630922004

The manufacturer no longer makes this part, and there's no substitute part

Spring 680943002
#8

Motor assy diagram

Spring

Part #680943002

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 270023060
#20

Motor assy diagram

Switch assembly

Part #270023060

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bit 6782408
#7

Drill diagram

Power tool bit

Part #6782408

The manufacturer no longer makes this part, and there's no substitute part

Carry Case 300912193
#NI

Drill diagram

Carry case

Part #300912193

The manufacturer no longer makes this part, and there's no substitute part
