KitchenAid
Gas Cooktop

Model # KGCS100SWH0 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCS100SWH0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

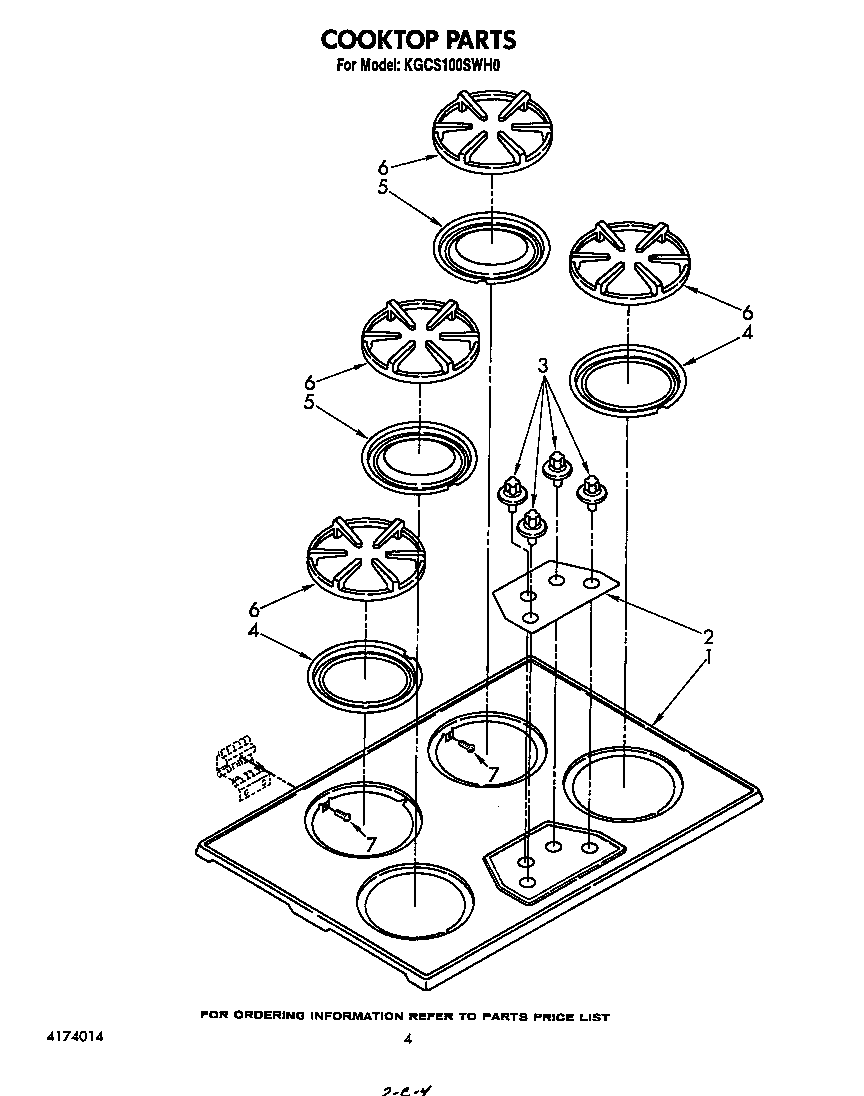

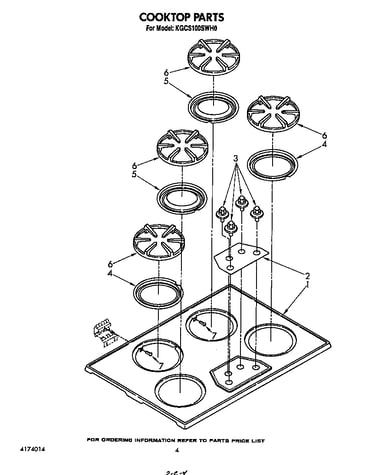

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Washer 4166436
#12

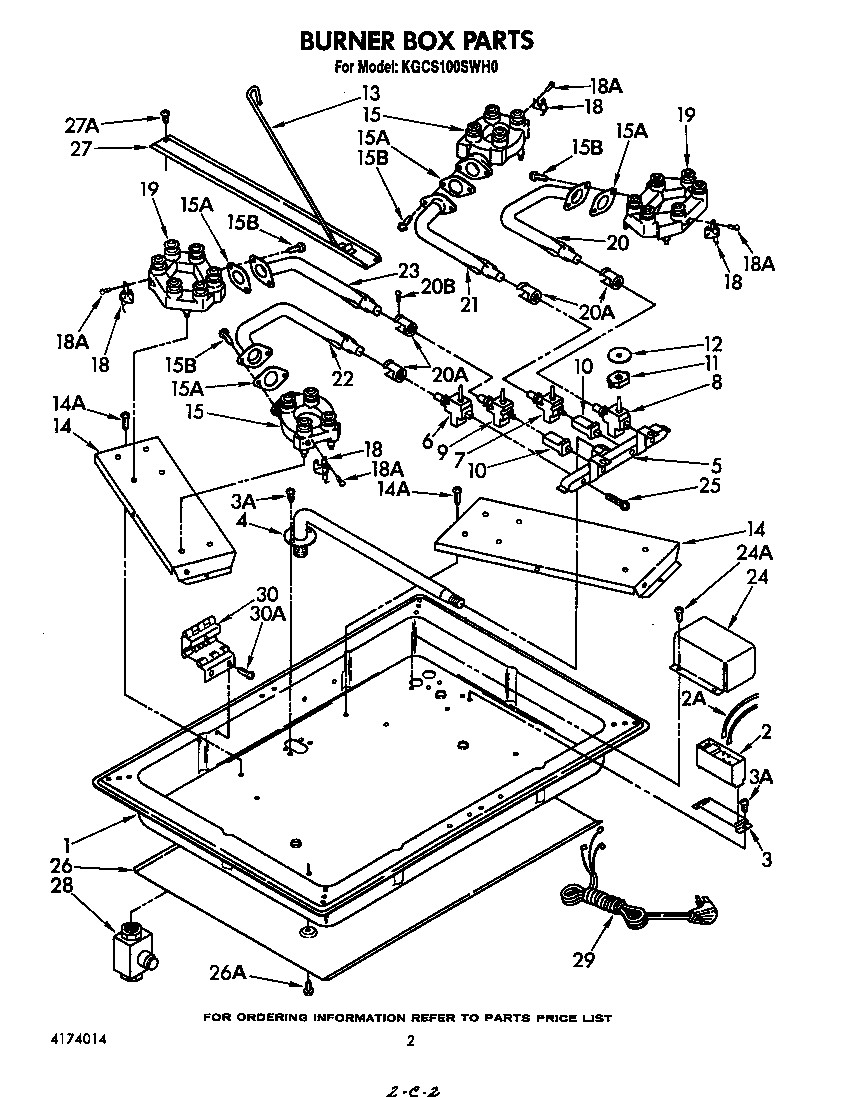

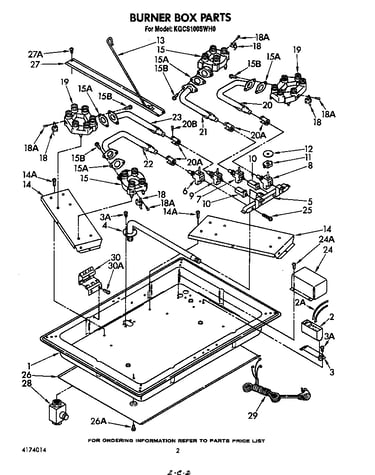

Burner box parts diagram

Washer

Part #4166436

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 4166436. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Screw 4159457
#18

Burner box parts diagram

Screw

Part #4159457

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 4159457. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Inlet 4169251
#4

Burner box parts diagram

Inlet

Part #4169251

$16.47
In Stock
Screw 4159431
Screw

Part #4159431

Replaced by #4159431

?
Manufacturer substitution
This part replaces 4159431. Substitute parts can look different from the original.
This item is not returnable
$3.93
In Stock
Igniter 4169265
#18

Burner box parts diagram

Igniter

Part #4169265

Replaced by #4175453

?
Manufacturer substitution
This part replaces 4169265. Substitute parts can look different from the original.
$189.09 |
6% OFF Phone Price : $201.09
In Stock
Lead Wire 4169245
#2A

Burner box parts diagram

Lead wire

Part #4169245

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 4173223
#7

Burner box parts diagram

Burner valve

Part #4173223

The manufacturer no longer makes this part, and there's no substitute part

Screw 4159323
#15

Burner box parts diagram

Screw

Part #4159323

The manufacturer no longer makes this part, and there's no substitute part

Valve, Daisy (bolt Thru) (includes Orifice Hood) 4169253
#6

Burner box parts diagram

Valve, daisy (bolt thru) (includes orifice hood)

Part #4169253

The manufacturer no longer makes this part, and there's no substitute part

Venturi 4169267
#20

Burner box parts diagram

Venturi

Part #4169267

The manufacturer no longer makes this part, and there's no substitute part
