Model # 45-03081 Official Agri-Fab 5-hp tow-behind tiller

Here are the diagrams and repair parts for Official Agri-Fab 45-03081 5-hp tow-behind tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#15

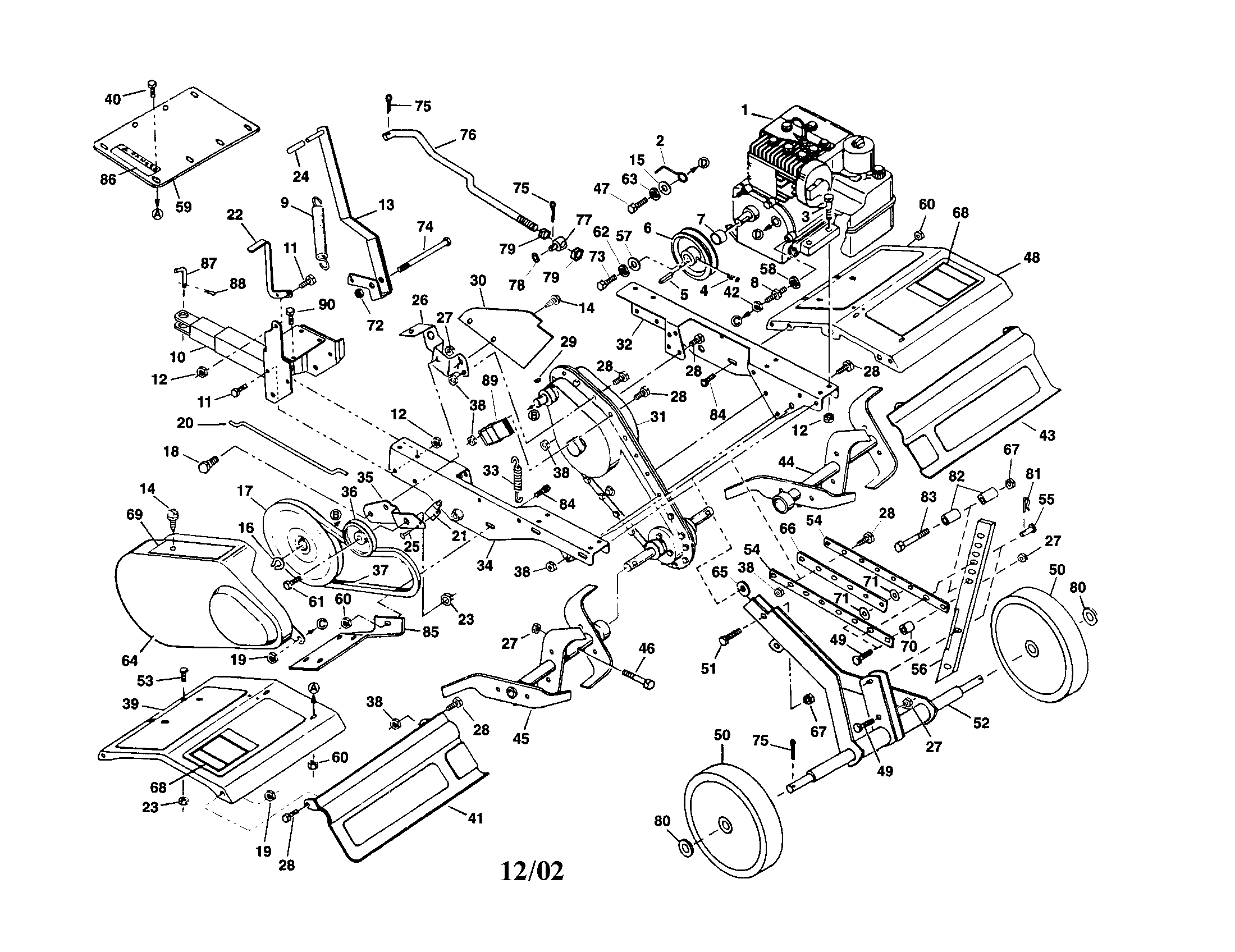

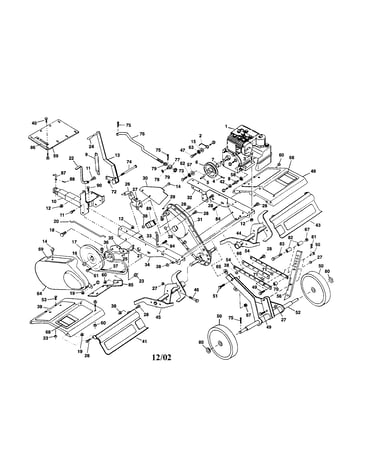

Engine/tine shield/tine & hub diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#63

Engine/tine shield/tine & hub diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#62

Engine/tine shield/tine & hub diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Carriage Bolt, 3/8-16 X 1-in 43350
#53

Engine/tine shield/tine & hub diagram

Lawn tractor attachment carriage bolt, 3/8-16 x 1-in

Part #43350

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Screw, 1/4-20 X 3/4-in 43012
#20

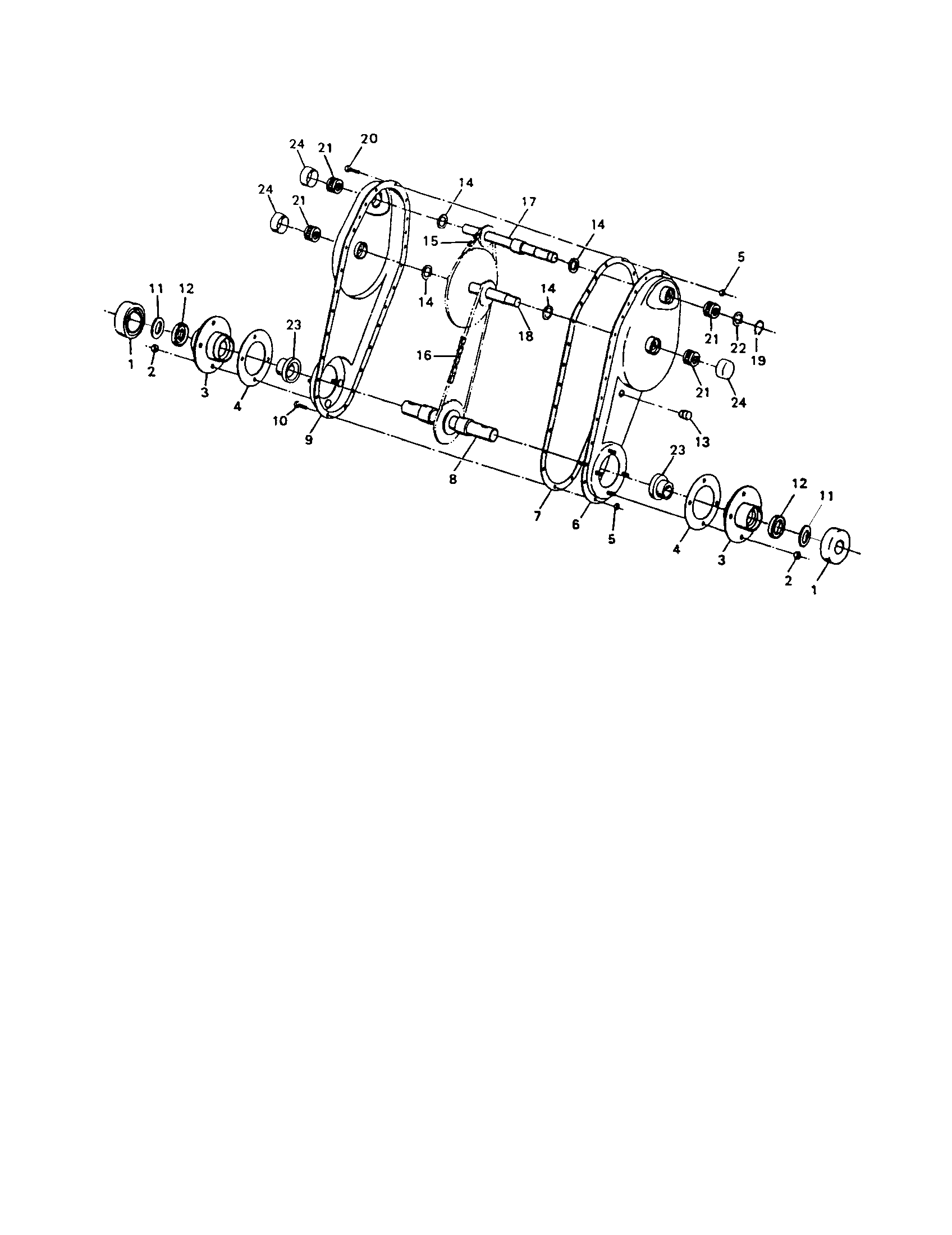

Chain/drive housing diagram

Lawn tractor attachment screw, 1/4-20 x 3/4-in

Part #43012

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Cotter Pin, 1-in 43010
#75

Engine/tine shield/tine & hub diagram

Lawn & garden equipment cotter pin, 1-in

Part #43010

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Nut 43082
#27

Engine/tine shield/tine & hub diagram

Lawn & garden equipment lock nut

Part #43082

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Tine HA20088
#45

Engine/tine shield/tine & hub diagram

Tine

Part #HA20088

Replaced by #66225BL3

?
Manufacturer substitution
This part replaces HA20088. Substitute parts can look different from the original.
$118.03 |
9% OFF Phone Price : $130.03
In Stock
Lawn Tractor Attachment Bolt, 5/16-18 X 1-in 43063
#11

Engine/tine shield/tine & hub diagram

Lawn tractor attachment bolt, 5/16-18 x 1-in

Part #43063

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Hex Bolt, 3/8-16 X 1 3/4-in 41576
#61

Engine/tine shield/tine & hub diagram

Lawn & garden equipment hex bolt, 3/8-16 x 1 3/4-in

Part #41576

This item is not returnable
$2.16
In Stock
