Model # 02876870-3 Official Kmart tractor
Here are the diagrams and repair parts for Official Kmart 02876870-3 tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

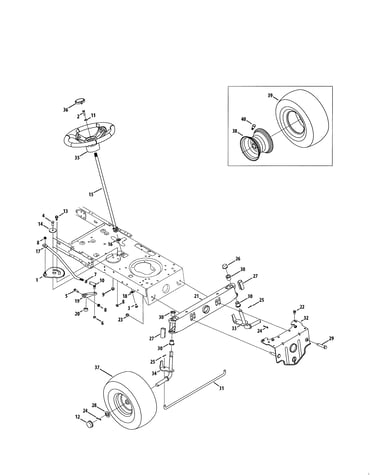

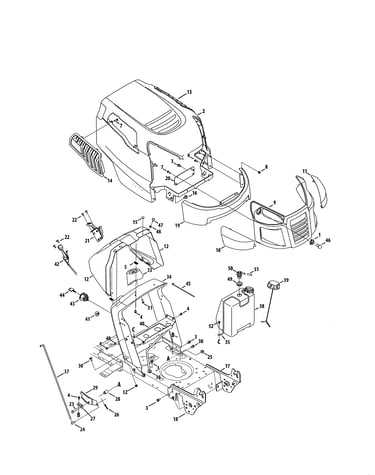

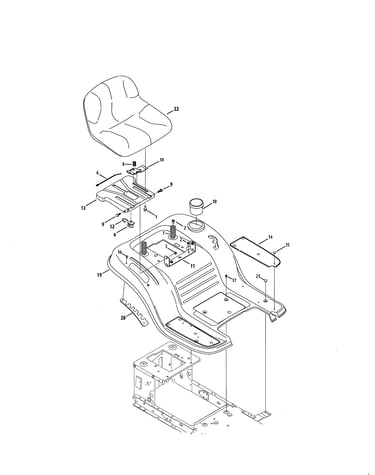

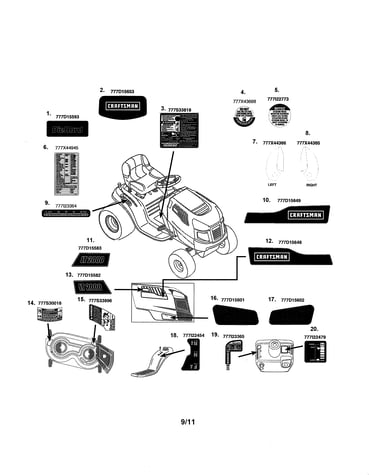

SELECT DIAGRAM
Browse Parts for
02876870-3 Riding Mowers & Tractors
#34

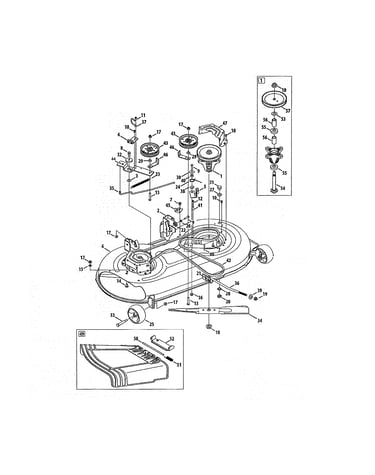

Deck/spindle pulley assembly diagram
Lawn tractor 42-in deck bagging blade
Part #942-04308
Replaced by #942-04308A
?
Manufacturer substitution
This part replaces 942-04308. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$24.51 |
20% OFF Phone Price : $30.51
In Stock
Lawn & garden equipment cotter pin, 1/4- to 5/16-in
Part #714-04040
This item is not returnable
$2.74 |
27% OFF Phone Price : $3.74
In Stock
#22

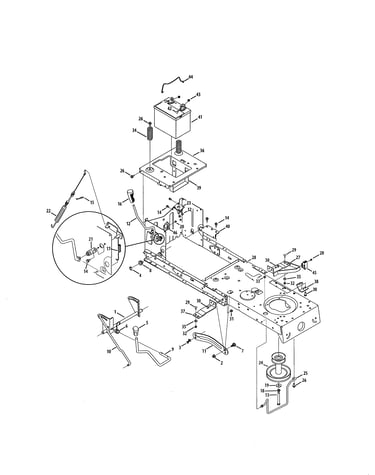

Frame/battery diagram
Lawn mower cable
Part #946-04173C
Replaced by #946-04173E
?
Manufacturer substitution
This part replaces 946-04173C. Substitute parts can look different from the original.
$49.00 |
11% OFF Phone Price : $55.00
In Stock
#7
31p677-3373-g2/g6 engine diagram
Exhaust gasket
Part #BS-692236
Replaced by #692236
?
Manufacturer substitution
This part replaces BS-692236. Substitute parts can look different from the original.
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)
Part #712-04063
This item is not returnable
$4.52 |
18% OFF Phone Price : $5.52
In Stock
#4

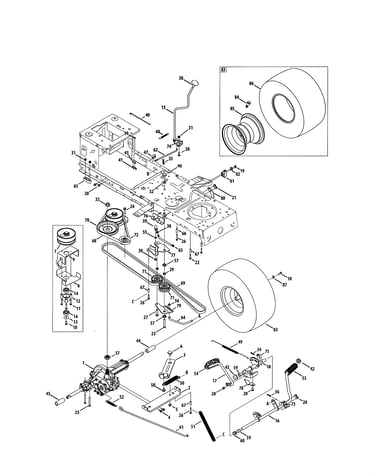

Drive/wheels diagram
Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)
Part #710-1260A
This item is not returnable
$4.34 |
19% OFF Phone Price : $5.34
In Stock
#69
Drive/wheels diagram
Lawn tractor ground drive belt, 2/3 x 90-4/5-in (replaces 754-0467a, 954-0467)
Part #954-0467A
Get free shipping with Automatic Reorder
$33.99 |
15% OFF Phone Price : $39.99
In Stock
Yard machines lawn & garden equipment nut
Part #712-04064
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
#43
Deck/spindle pulley assembly diagram
Lawn mower idler pulley
Part #753-08068
Replaced by #753-08171
?
Manufacturer substitution
This part replaces 753-08068. Substitute parts can look different from the original.
$33.29 |
15% OFF Phone Price : $39.29
In Stock
#1
Deck/spindle pulley assembly diagram
Lawn tractor mandrel assembly
Part #918-04822A
Replaced by #918-04822B
?
Manufacturer substitution
This part replaces 918-04822A. Substitute parts can look different from the original.
$143.73 |
8% OFF Phone Price : $155.73
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $7.36 |12% OFF Phone Price : $8.36
- $8.27 |11% OFF Phone Price : $9.27
- $44.70 |12% OFF Phone Price : $50.70
- $14.95 |12% OFF Phone Price : $16.95
- $31.00 |16% OFF Phone Price : $37.00
- $14.74
- $22.11
- $13.02 |13% OFF Phone Price : $15.02
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: clogged carburetor, damaged flywheel key, dirty spark plug, stale fuel, improper valve lash, engine needs a…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: damaged cutting blade, worn deck pulley, damaged mandrel pulley, loose fasteners on mower deck components…
