Dishwasher

Model # GPT225SGL2BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GPT225SGL2BB dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

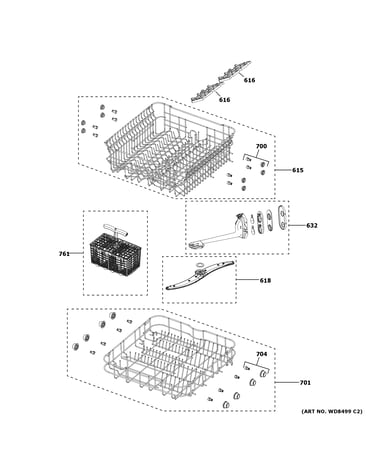

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
GPT225SGL2BB Dishwasher
Clamp WD01X24606
#429

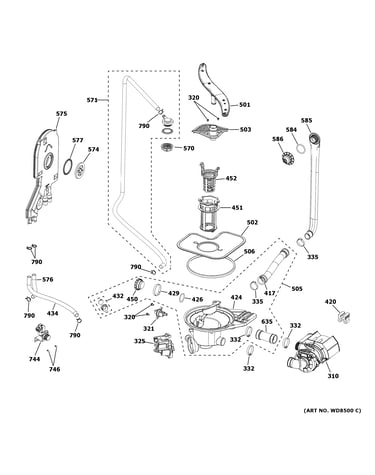

Motor-pump mechanism diagram

Clamp

Part #WD01X24606

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X24606. Substitute parts can look different from the original.
BEST SELLER
$59.51
9% OFF Phone Price : $65.51
In Stock
Dishwasher Electronic Control Board WD21X24676
#750

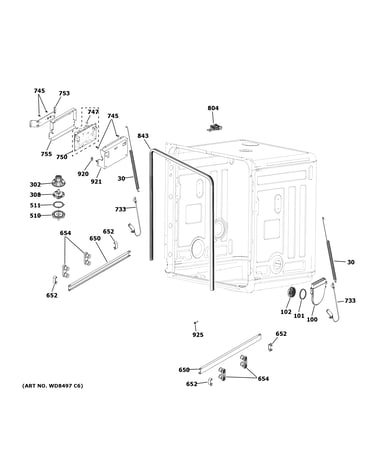

Body parts (1) diagram

Dishwasher electronic control board

Part #WD21X24676

BEST SELLER
This item is not returnable
$185.30
6% OFF Phone Price : $197.30
In Stock
Machine Control Fuse WD21X24482
#747

Body parts (1) diagram

Machine control fuse

Part #WD21X24482

Replaced by #WD21X25696

?
Manufacturer substitution
This part replaces WD21X24482. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.16
10% OFF Phone Price : $10.16
In Stock
Dishwasher Drain Pump WD19X24651
#325

Motor-pump mechanism diagram

Dishwasher drain pump

Part #WD19X24651

BEST SELLER
$48.01
11% OFF Phone Price : $54.01
In Stock
Unicouple Assembly With Faucet Adapter WD15X30838
#787

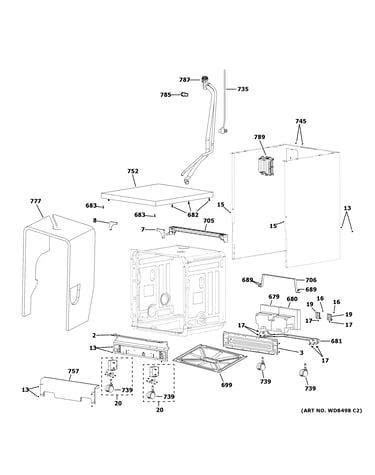

Body parts (2) diagram

Unicouple assembly with faucet adapter

Part #WD15X30838

In Stock
Dishwasher Door Latch WD12X24644
#803

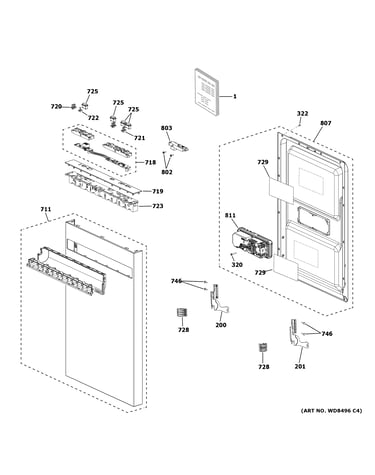

Escutcheon & door assembly diagram

Dishwasher door latch

Part #WD12X24644

$47.35
11% OFF Phone Price : $53.35
In Stock
Wash Pump Assembly WD19X24705
#310

Motor-pump mechanism diagram

Wash pump assembly

Part #WD19X24705

$162.71
17% OFF Was : $196.93
In Stock
Dishwasher Water Inlet Valve WD15X24711
#744

Motor-pump mechanism diagram

Dishwasher water inlet valve

Part #WD15X24711

$51.80
10% OFF Phone Price : $57.80
In Stock
Ui Control Assembly WD21X32839
#718

Escutcheon & door assembly diagram

Ui control assembly

Part #WD21X32839

In Stock
Power Cord WD02X25586
#735

Body parts (2) diagram

Power cord

Part #WD02X25586

$43.29
17% OFF Was : $52.16
In Stock
