Whirlpool
Gas Range

Model # SF5340ERW3 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF5340ERW3 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

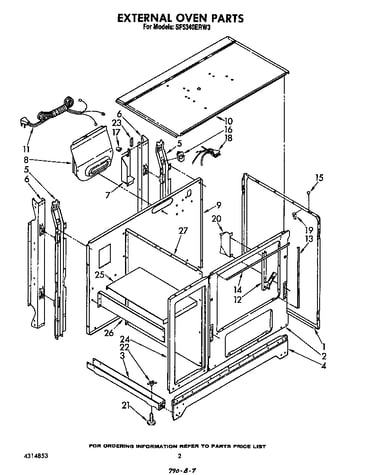

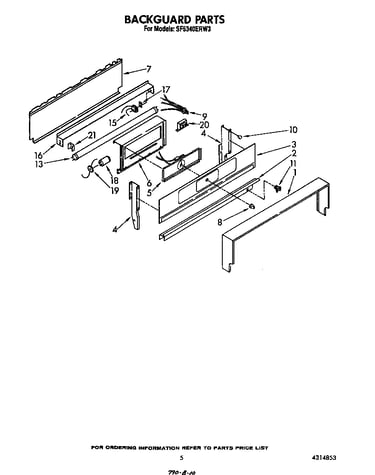

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Light Bulb 4157019
#8

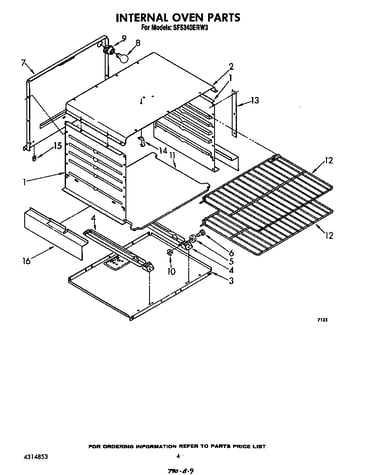

Internal oven diagram

Light bulb

Part #4157019

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4157019. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 4157111
Screw

Part #4157111

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157111. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4157117
Screw

Part #4157117

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Igniter Switch 4157210
#34

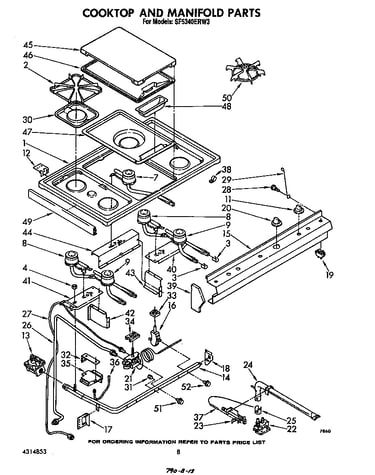

Cooktop and manifold diagram

Igniter switch

Part #4157210

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 4157210. Substitute parts can look different from the original.
$43.51
In Stock
Thermostat Knob 4179283
#20

Cooktop and manifold diagram

Thermostat knob

Part #4179283

Replaced by #WPY07506601

?
Manufacturer substitution
This part replaces 4179283. Substitute parts can look different from the original.
$35.27
In Stock
Lghtr-brnr 4157095
#23

Cooktop and manifold diagram

Lghtr-brnr

Part #4157095

The manufacturer no longer makes this part, and there's no substitute part

Igniter 4157792
#36A

Cooktop and manifold diagram

Igniter

Part #4157792

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 4157792. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Nut 4157120
#21D

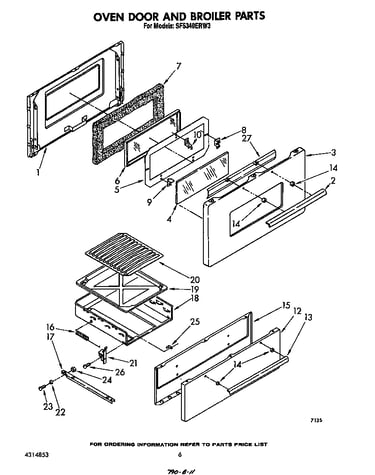

Oven door and broiler parts diagram

Nut

Part #4157120

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157120. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Igniter 4157793
#36B

Cooktop and manifold diagram

Igniter

Part #4157793

Replaced by #WPY07491203

?
Manufacturer substitution
This part replaces 4157793. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Igniter Switch 4157180
#33

Cooktop and manifold diagram

Igniter switch

Part #4157180

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 4157180. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
