GE
Laundry Center

Model # GTUP270EM1WW Official GE stacked laundry center

Here are the diagrams and repair parts for Official GE GTUP270EM1WW stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

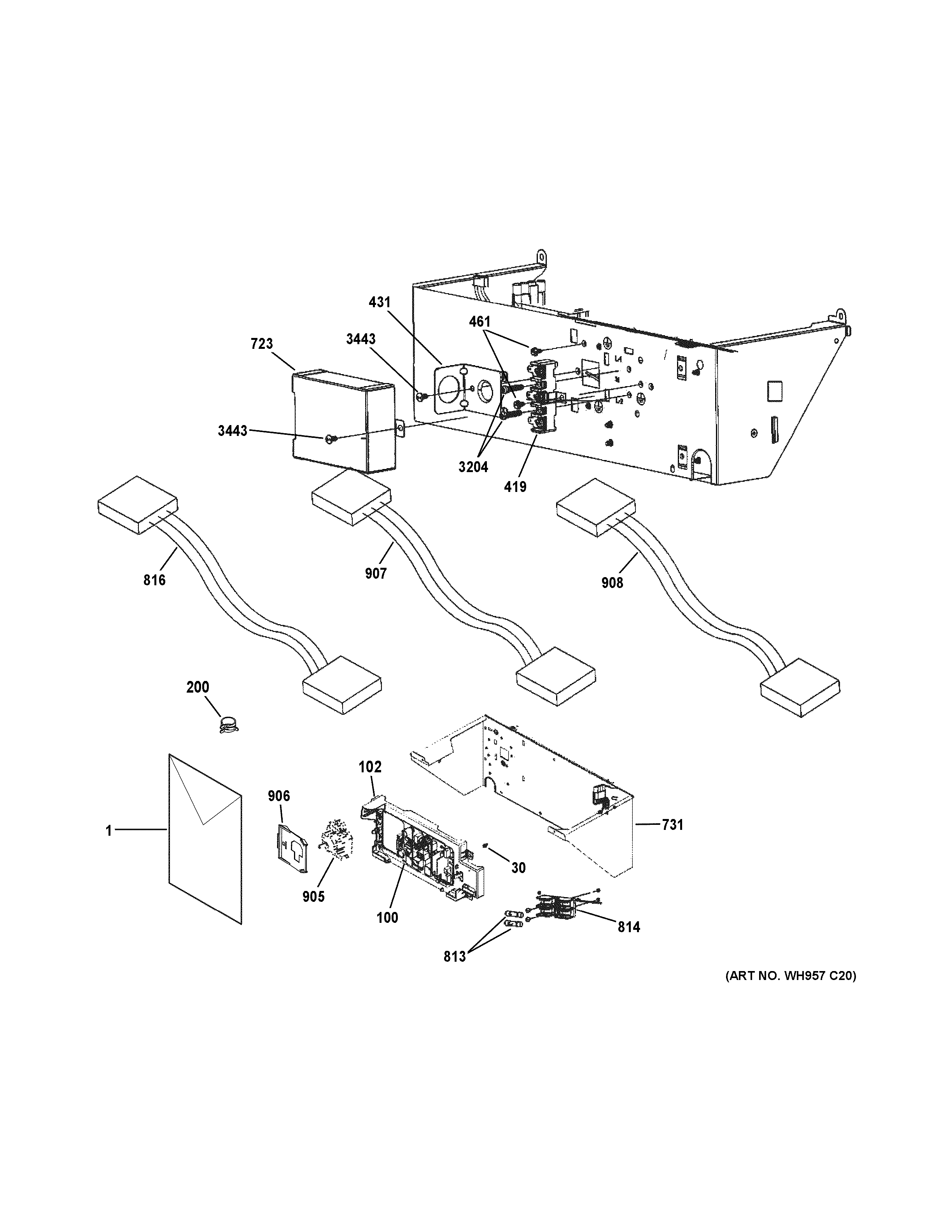

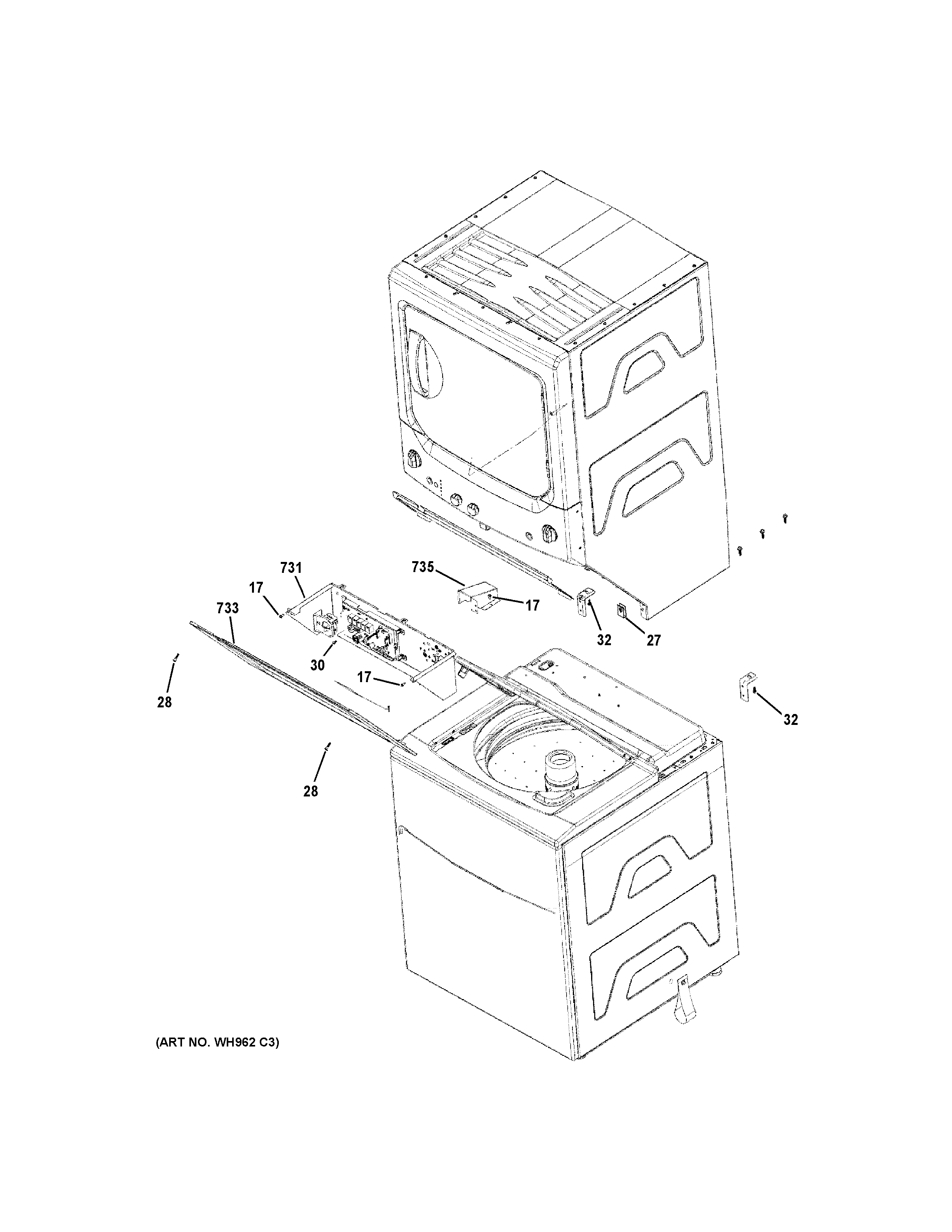

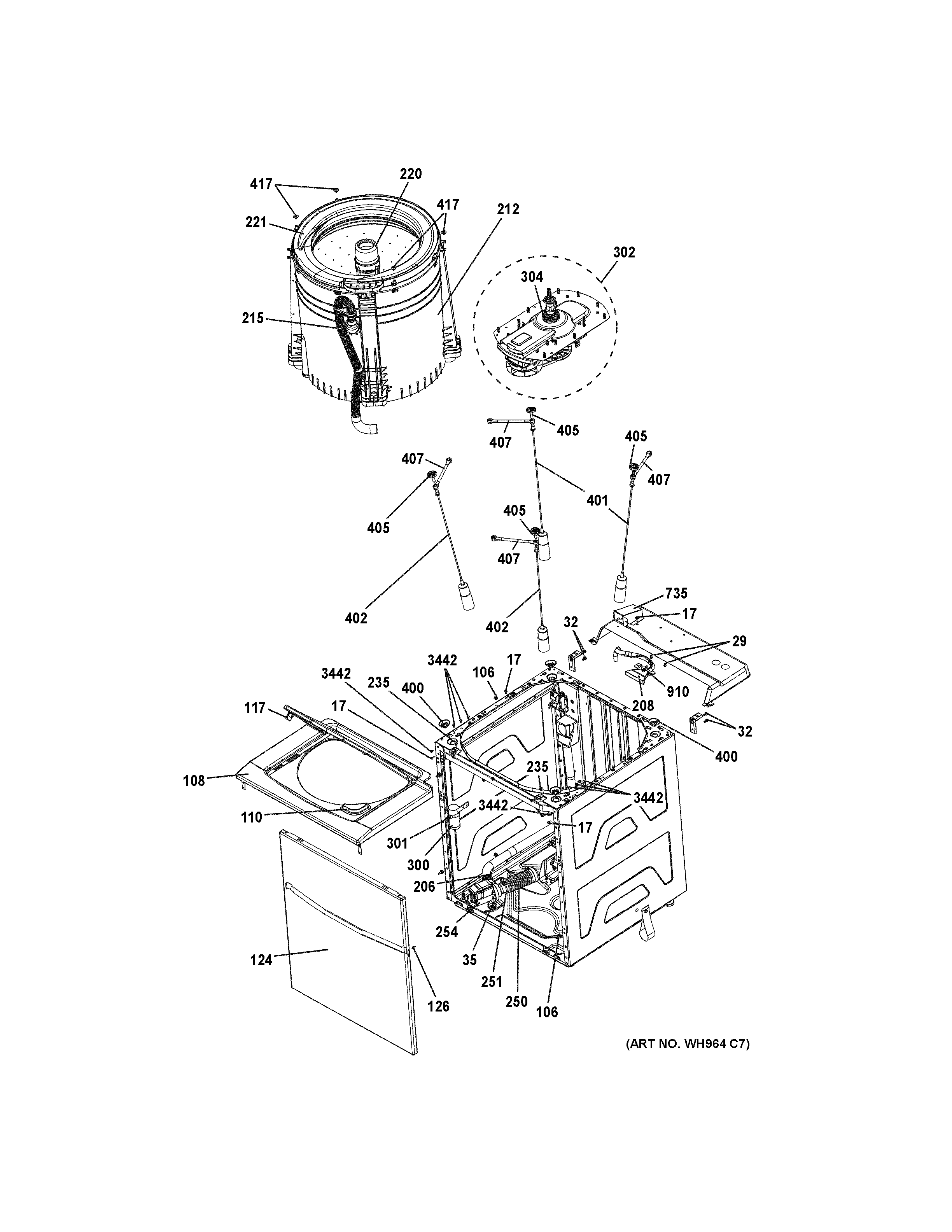

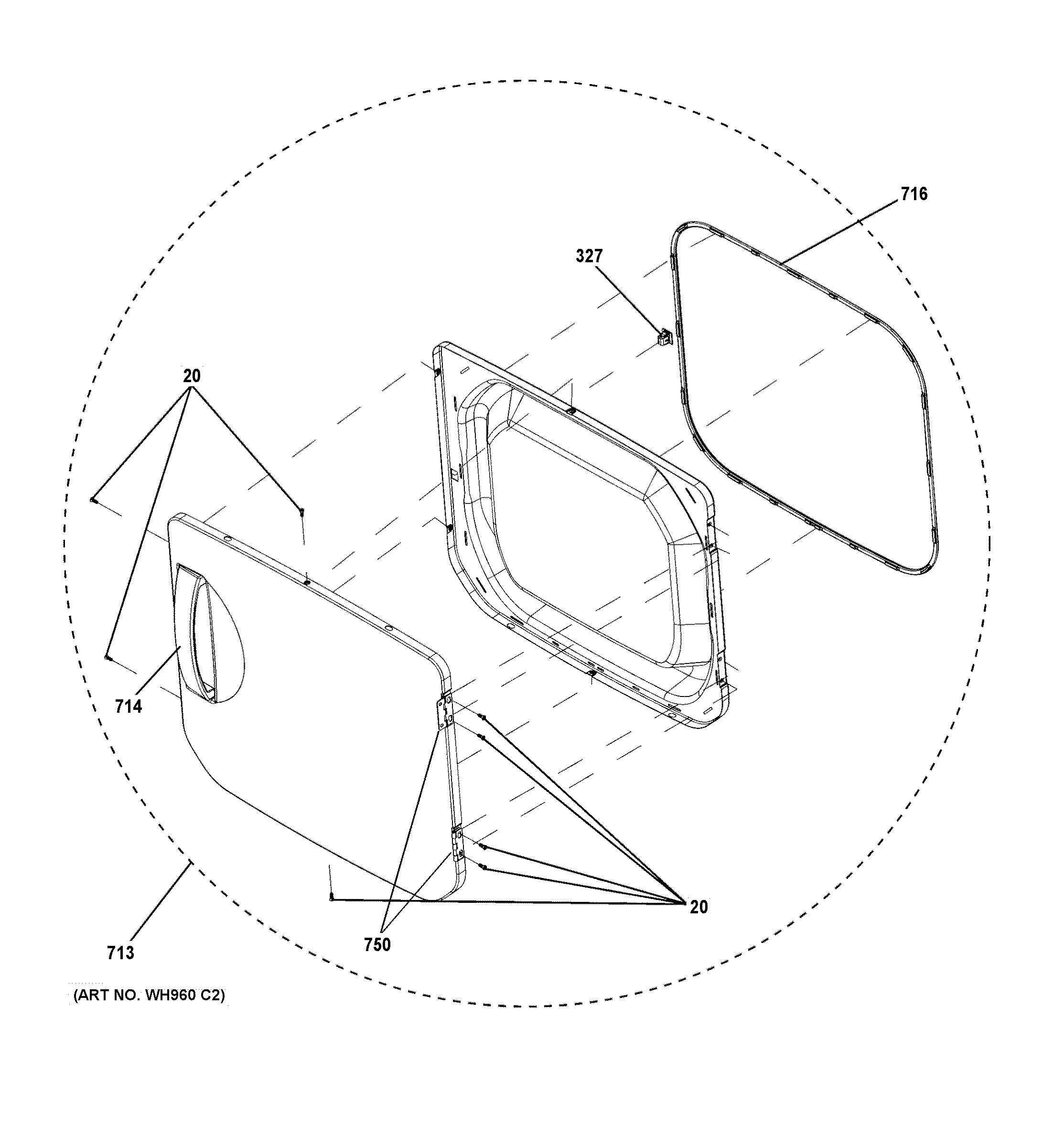

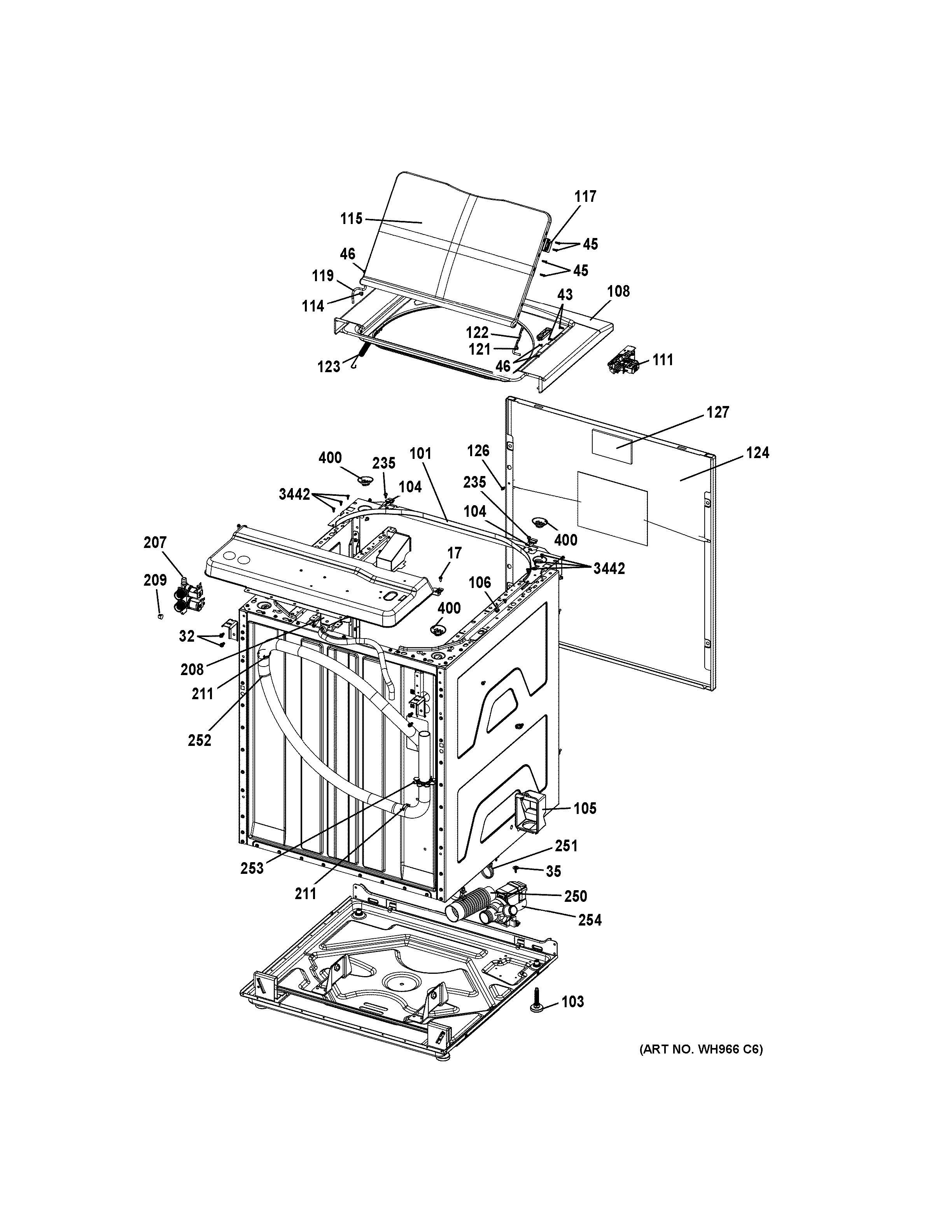

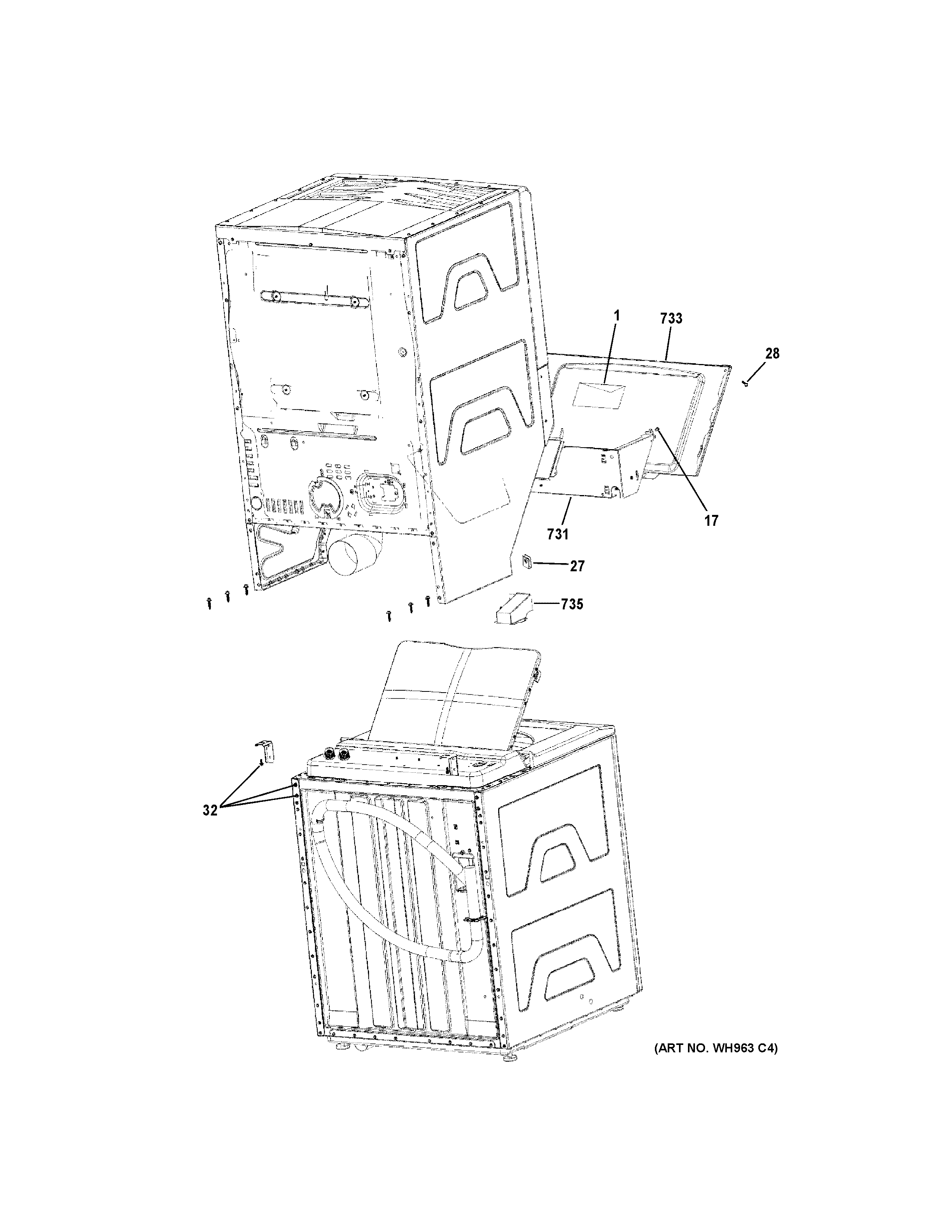

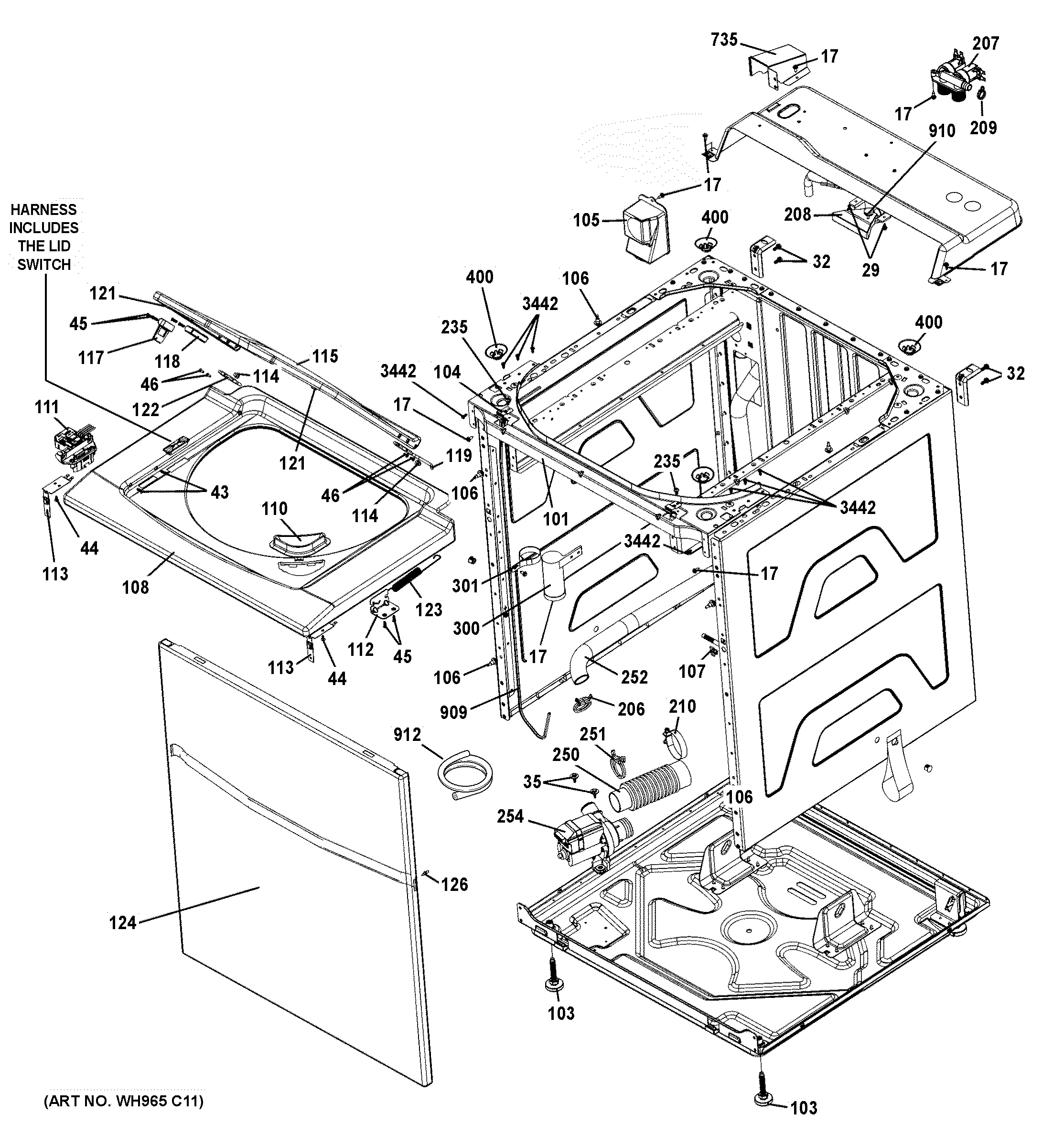

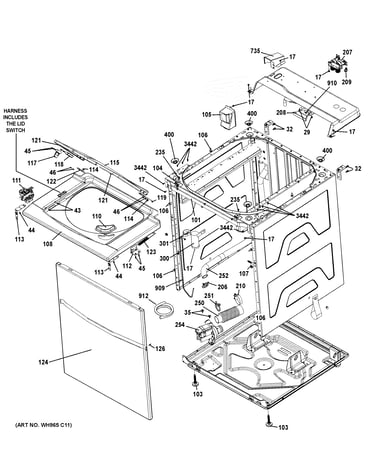

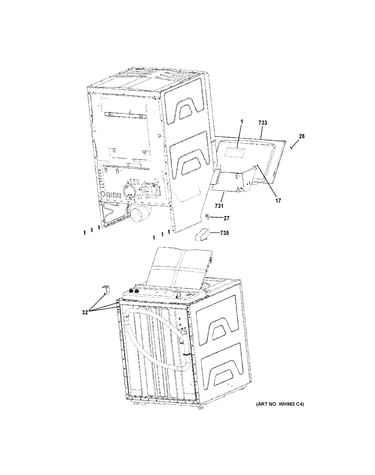

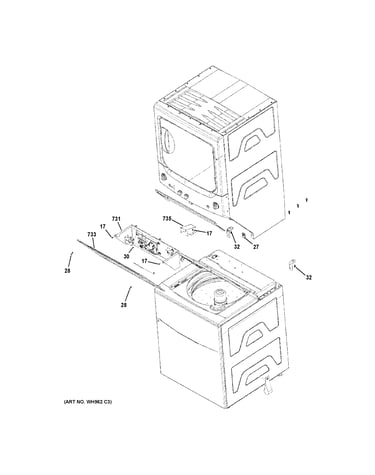

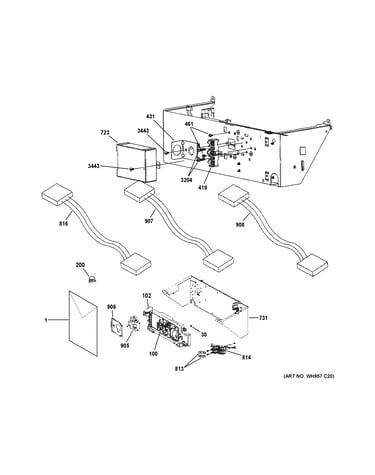

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |

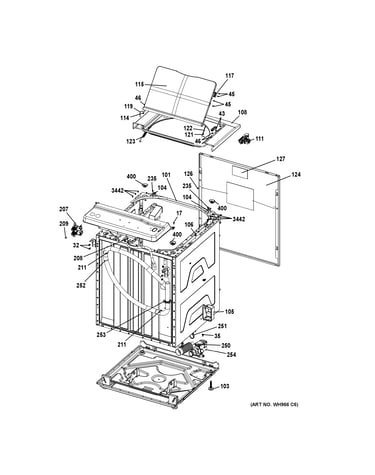

Washer Lid Lock WH44X10288
Washer lid lock

Part #WH44X10288

BEST SELLER
$74.29 |
8% OFF Was : $80.81
In Stock
Kenmore Dryer Drum Support Shaft (replaces We03m0033) WE3M33
#508

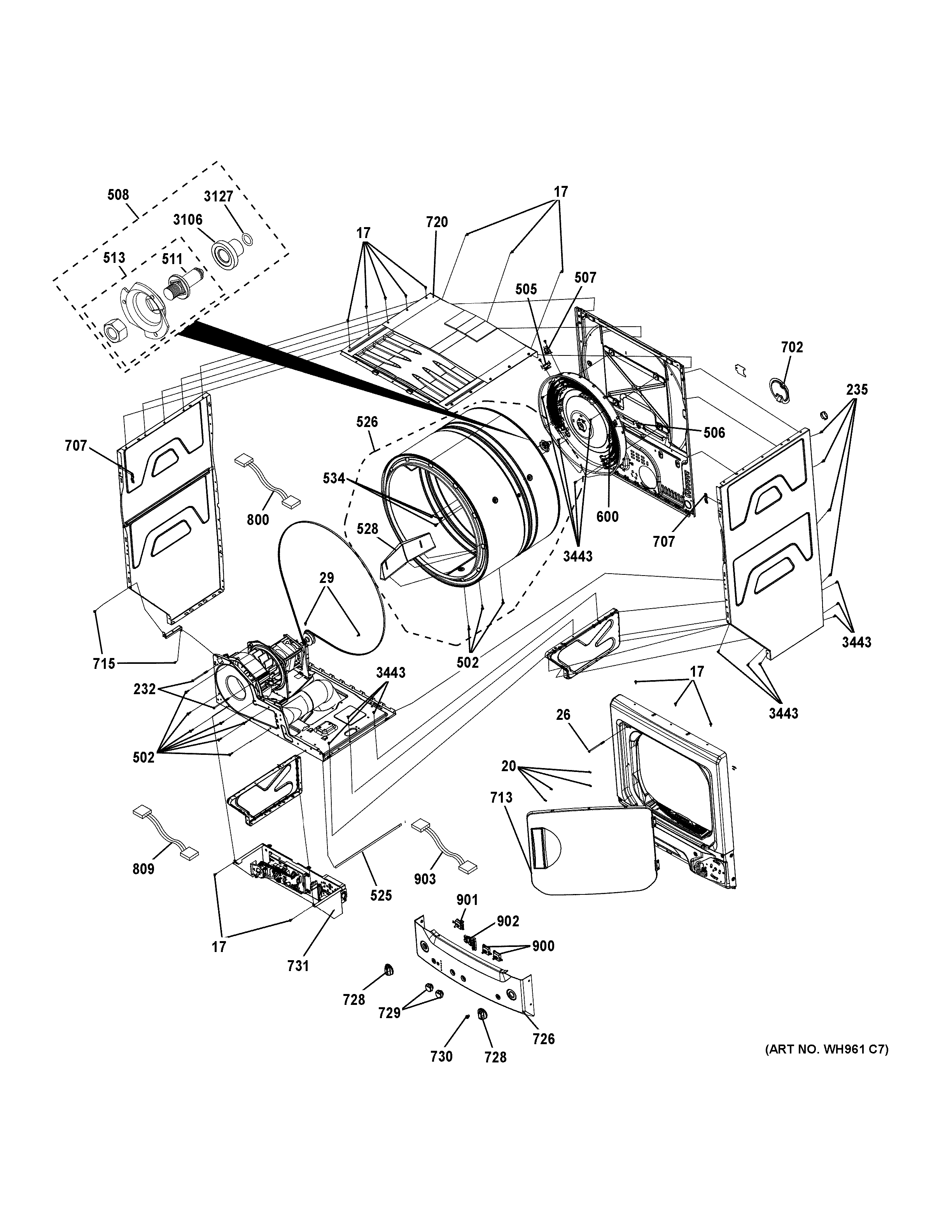

Cabinet (1) diagram

Kenmore dryer drum support shaft (replaces we03m0033)

Part #WE3M33

BEST SELLER
$31.67 |
16% OFF Phone Price : $37.67
In Stock
Dryer Push-to-start Switch (replaces We04m0416, We4m367) WE4M416
#808

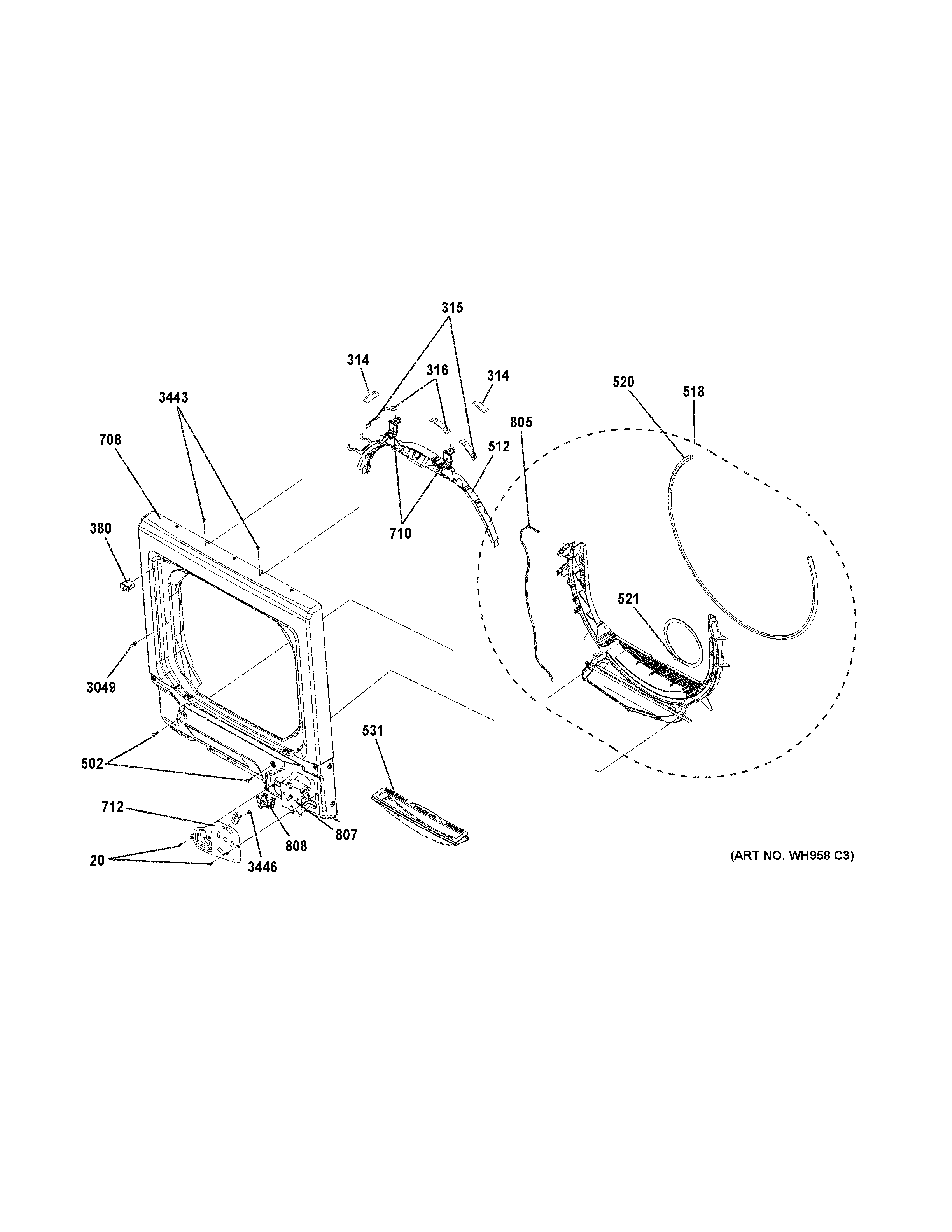

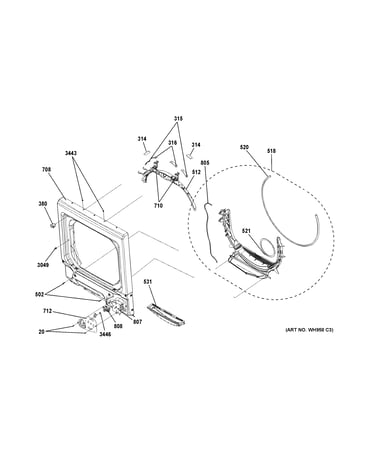

Front panel diagram

Dryer push-to-start switch (replaces we04m0416, we4m367)

Part #WE4M416

BEST SELLER
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Cabinet (1) diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Laundry Center Dryer Blower Wheel (replaces We16m17, Wh16x20270) WE16X20393
#201

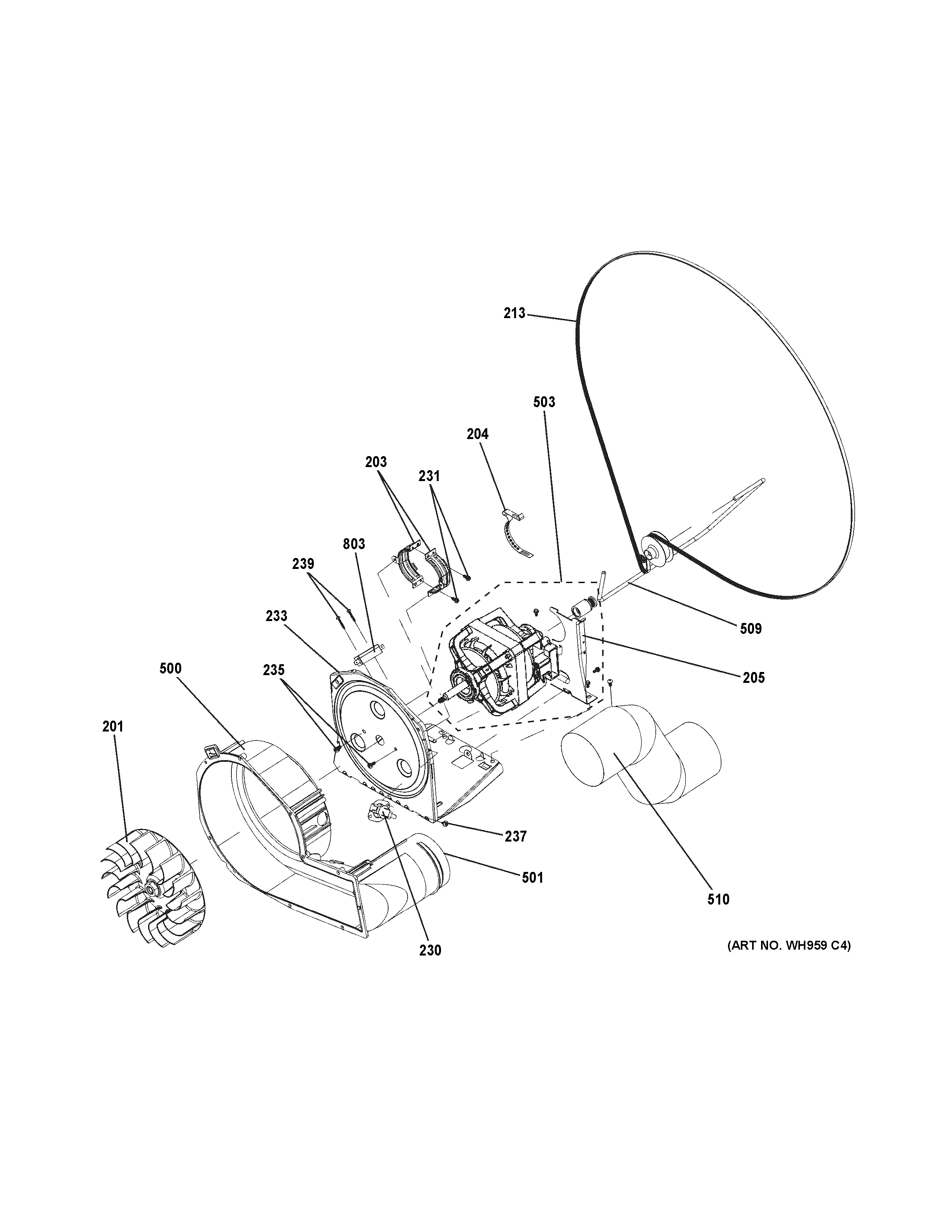

Blower & motor diagram

Laundry center dryer blower wheel (replaces we16m17, wh16x20270)

Part #WE16X20393

BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Dryer Operating Thermostat (replaces We04m0181, We4m0181, We4m245) WE4M181
#505

Cabinet (1) diagram

Dryer operating thermostat (replaces we04m0181, we4m0181, we4m245)

Part #WE4M181

BEST SELLER
$31.33
In Stock
Washer Fork Support Assembly WH16X10147
#307

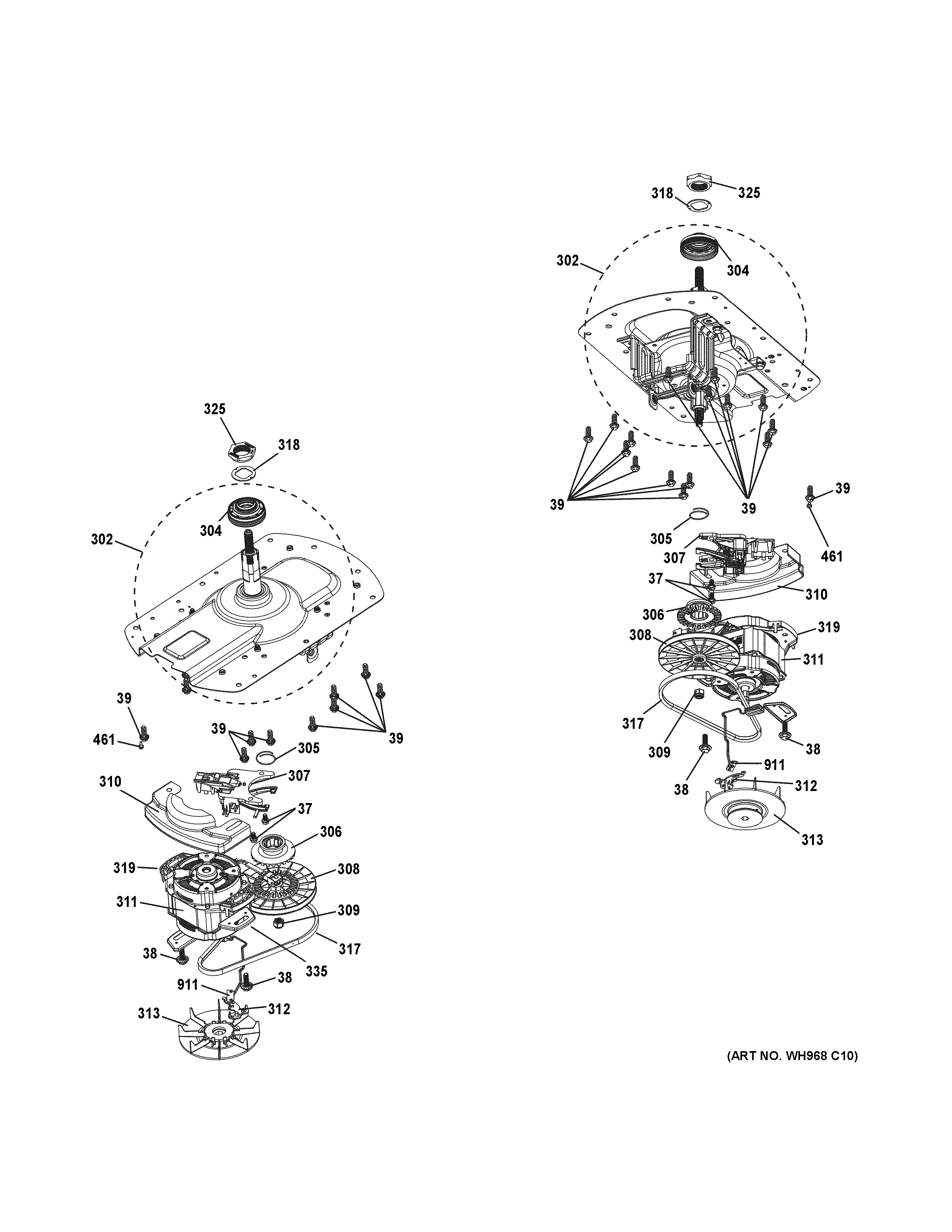

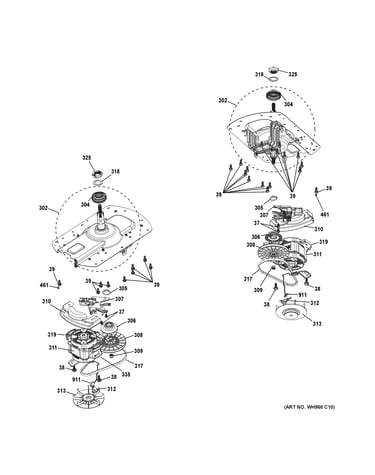

Motor & drive assembly diagram

Washer fork support assembly

Part #WH16X10147

BEST SELLER
$61.88 |
9% OFF Phone Price : $67.88
In Stock
Speed Sensor WH12X10515
#911

Motor & drive assembly diagram

Speed sensor

Part #WH12X10515

Replaced by #WL49X20360

?
Manufacturer substitution
This part replaces WH12X10515. Substitute parts can look different from the original.
BEST SELLER
$28.47 |
17% OFF Phone Price : $34.47
In Stock
Laundry Center Dryer Safety Thermostat (replaces We04m0528) WE4M528
#507

Cabinet (1) diagram

Laundry center dryer safety thermostat (replaces we04m0528)

Part #WE4M528

BEST SELLER
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Laundry Center Washer Drive Motor Pulley WH01X10608
#313

Motor & drive assembly diagram

Laundry center washer drive motor pulley

Part #WH01X10608

BEST SELLER
$60.02 |
9% OFF Phone Price : $66.02
In Stock
