Sony
Camera

Model # DSC-W300 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W300 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Zoom Motor 147986511
#M901

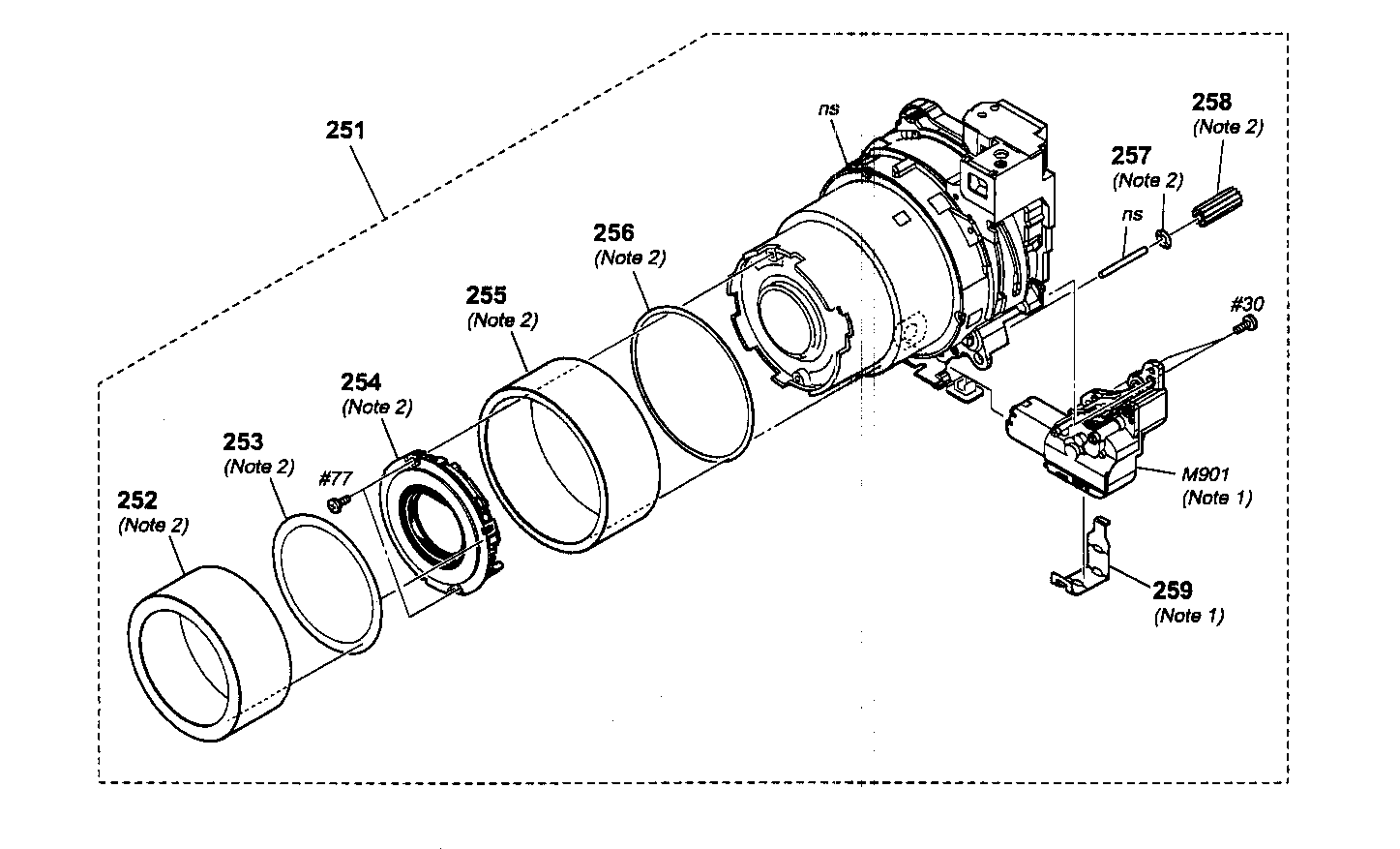

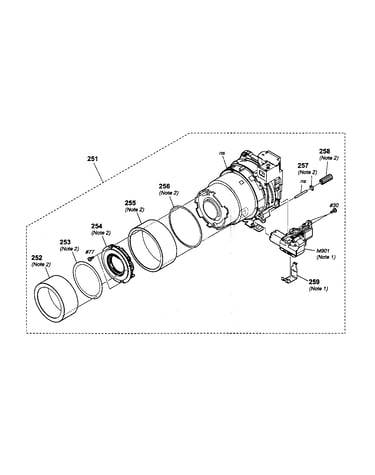

Lens section 2 diagram

Zoom motor

Part #147986511

$35.34
In Stock
Sony Battery Lid 330078301
#207

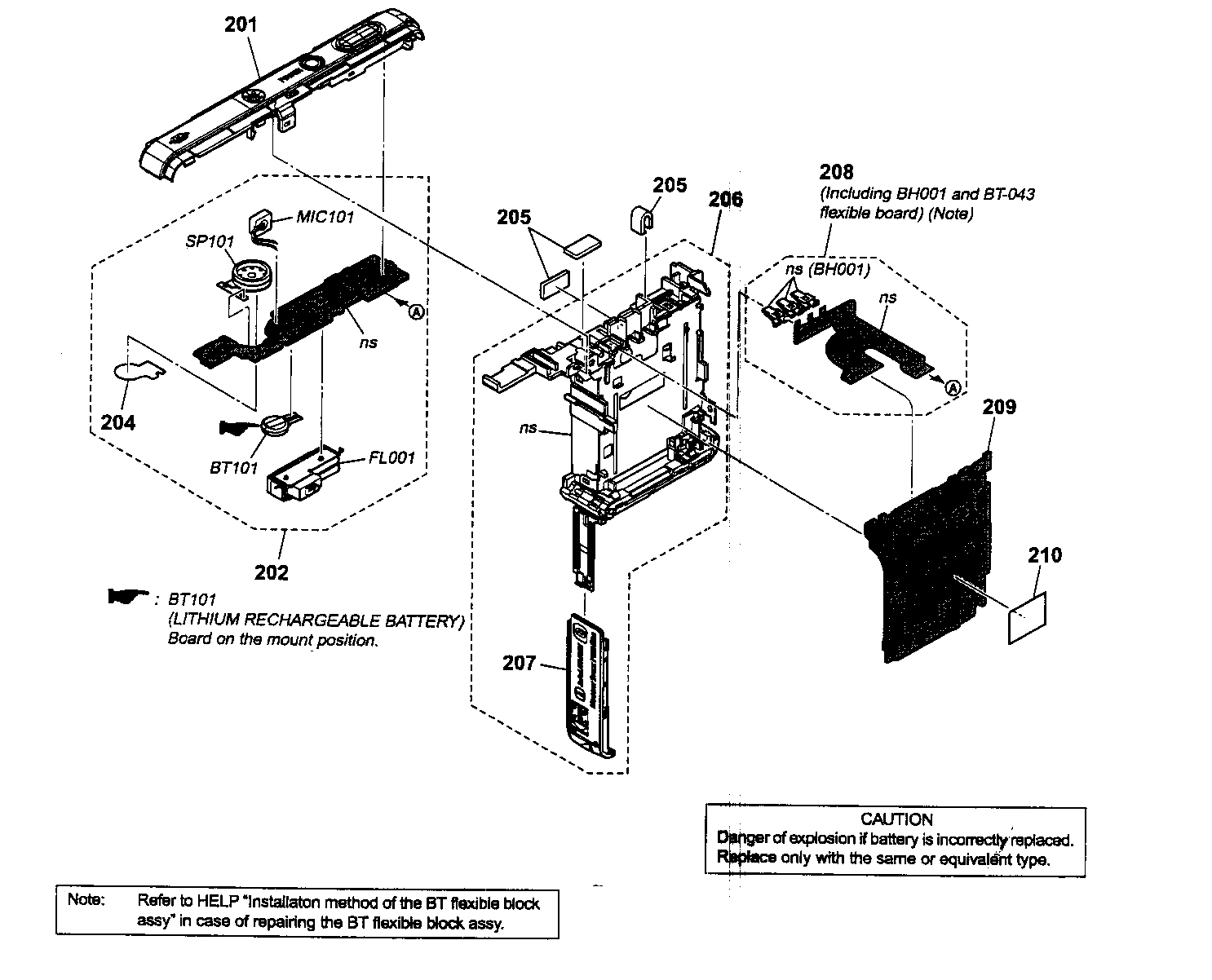

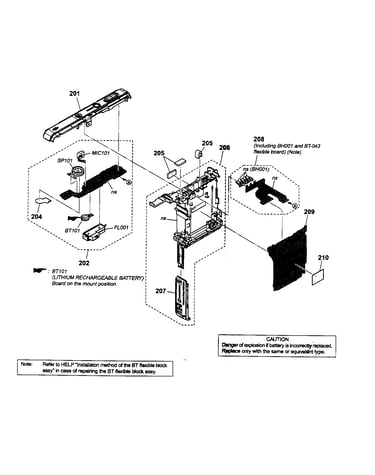

Main section diagram

Sony battery lid

Part #330078301

$22.99
In Stock
Sony Pwb Sw-354 187691111
#52

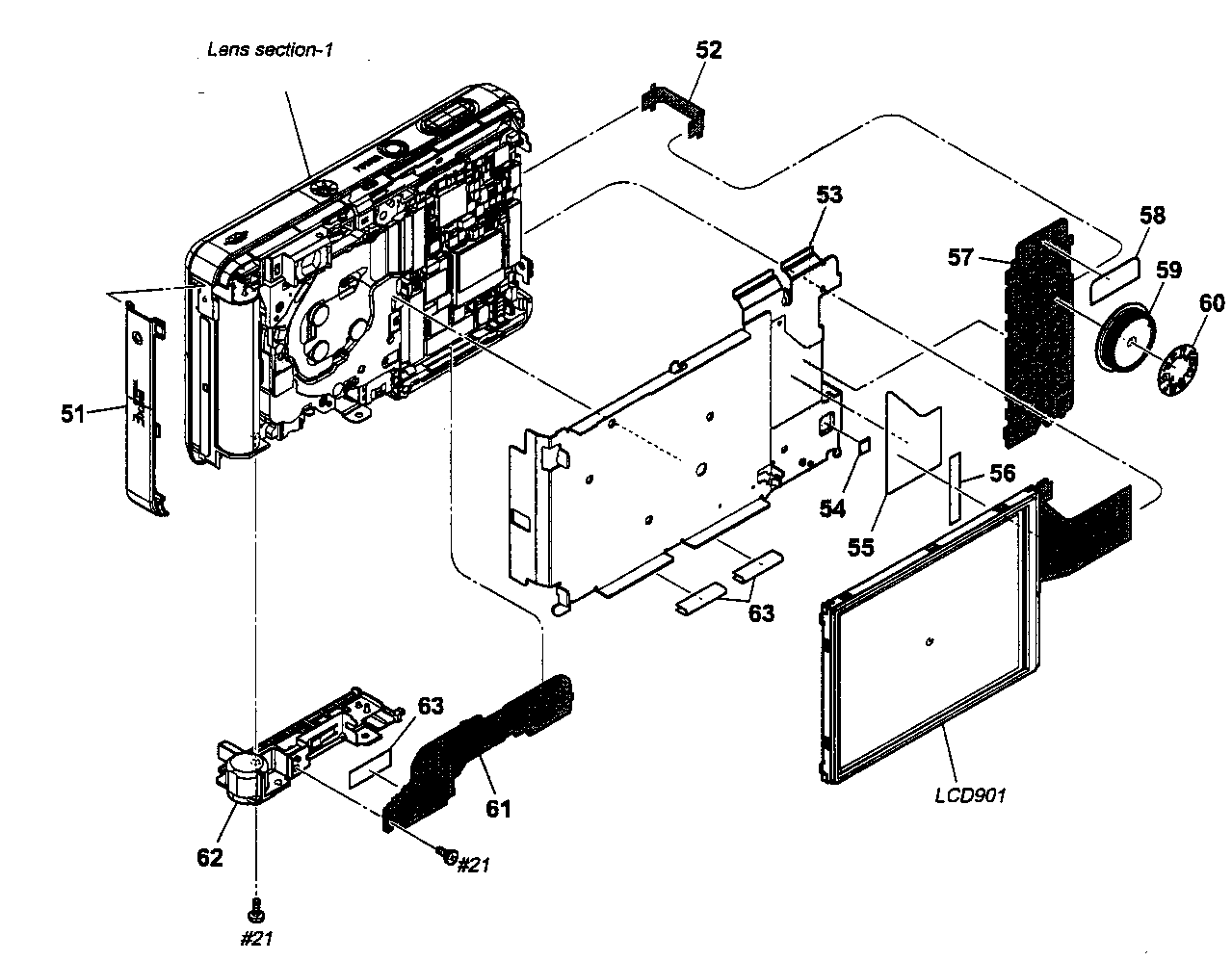

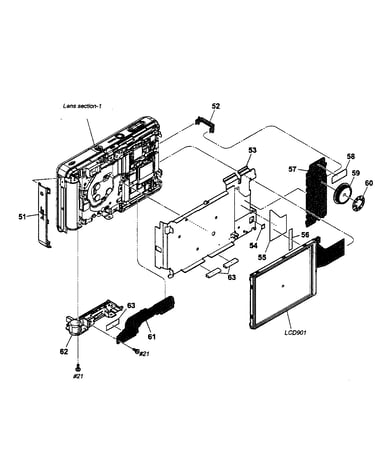

Lcd assy diagram

Sony pwb sw-354

Part #187691111

This item is not returnable
$6.49
In Stock
Flash Unit 148055611
#NI

Main section diagram

Flash unit

Part #148055611

$124.21
In Stock
Sony Cabinet 330080001
#51

Lcd assy diagram

Sony cabinet

Part #330080001

$25.34
In Stock
Sony Sy-199 Pcb A1543570A
#209

Main section diagram

Sony sy-199 pcb

Part #A1543570A

$299.29
In Stock
Sony St-191 Pcb A1540778A
#202

Main section diagram

Sony st-191 pcb

Part #A1540778A

$87.87
In Stock
Transistor 655170201
#NI

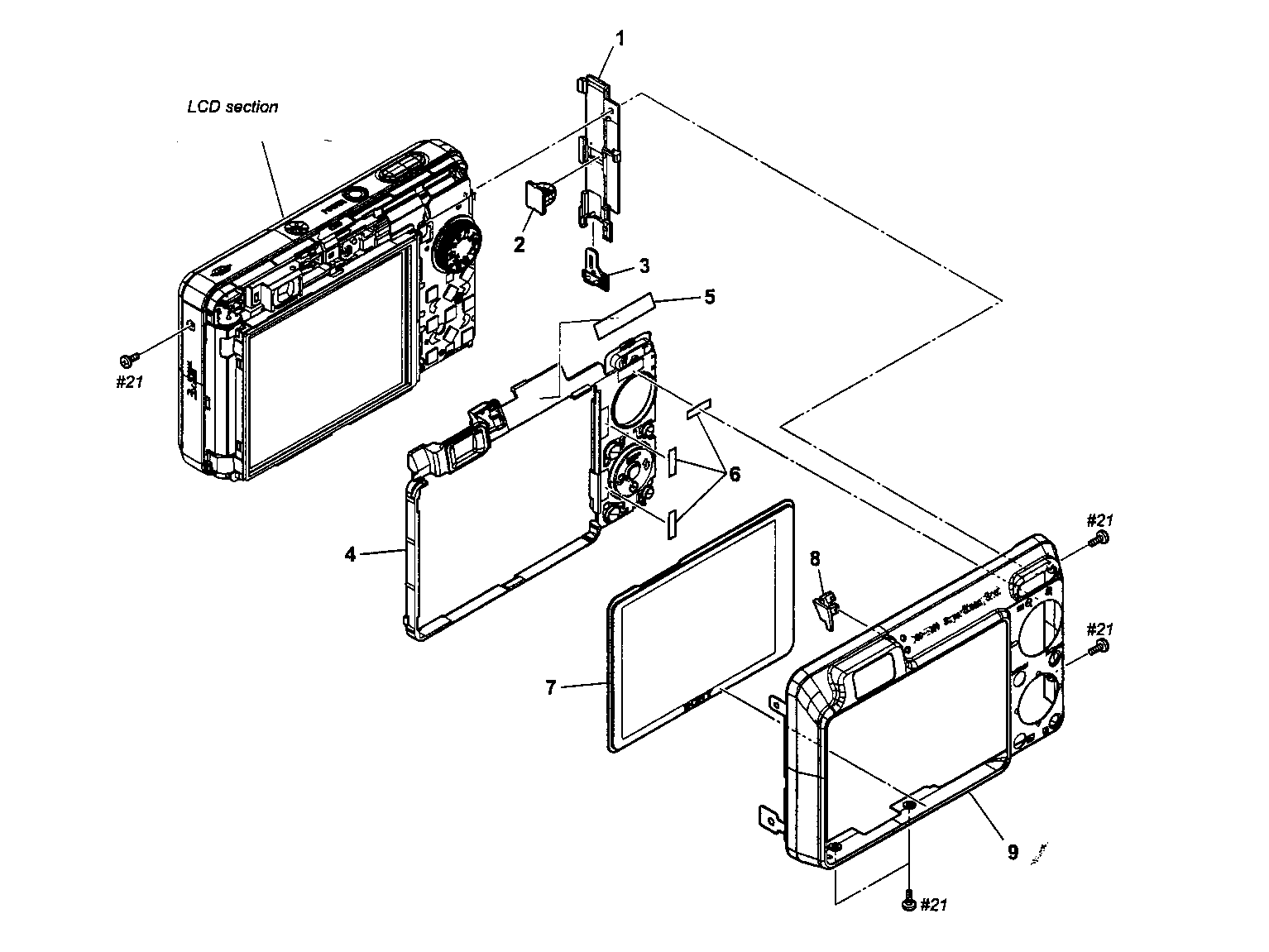

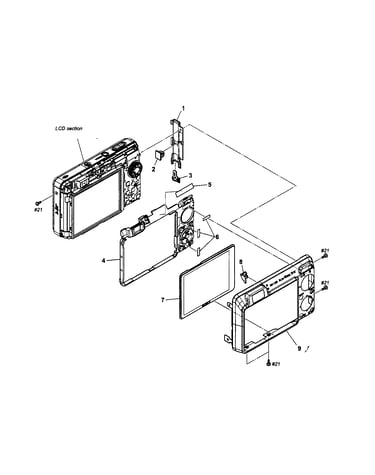

Rear cabinet diagram

Transistor

Part #655170201

$11.90
In Stock
Sony Cover Assembly X21900061
#3

Rear cabinet diagram

Sony cover assembly

Part #X21900061

$25.34
In Stock
Sony Strap 330080401
#2

Rear cabinet diagram

Sony strap

Part #330080401

$19.71
In Stock
