Model # 106856410 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106856410 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Screw 489073
#8

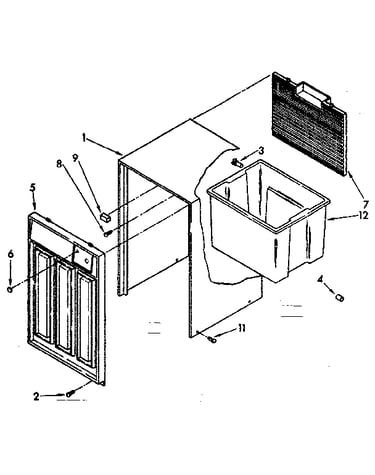

Cabinet parts diagram

Screw

Part #489073

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, 8 X 1 488480
#20

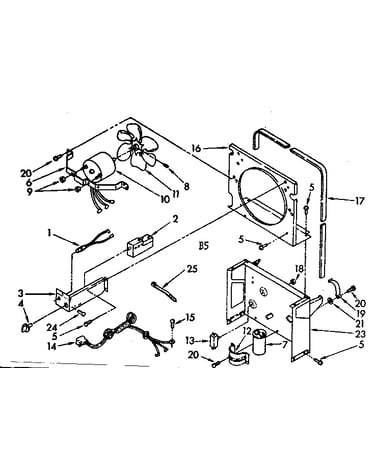

Air flow and control parts diagram

Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer 647338

#NI

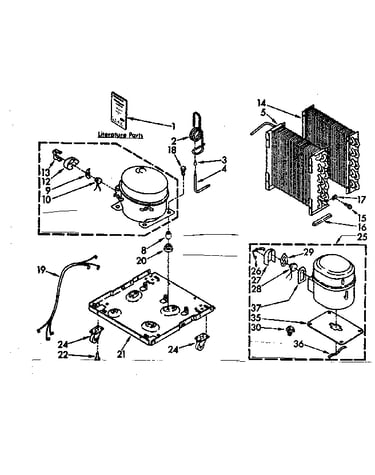

All parts diagram

Washer

Part #647338

Replaced by #285448A

?
Manufacturer substitution
This part replaces 647338. Substitute parts can look different from the original.
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Wire Tie 602851
#25

Air flow and control parts diagram

Wire tie

Part #602851

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 602851. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerant Access Valve, 5/8-in 978029

#NI

All parts diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Kenmore Sheet H 978512

#NI

All parts diagram

Kenmore sheet h

Part #978512

This item is not returnable
$2.29
In Stock
Sealer 212643

#NI

All parts diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Valve Kit 978025

#NI

All parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Capacitor 951363
#7

Air flow and control parts diagram

Capacitor

Part #951363

Replaced by #PAKTRCF7.5

?
Manufacturer substitution
This part replaces 951363. Substitute parts can look different from the original.
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
In Stock
Valve Kit 978030

#NI

All parts diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
