Bosch
Gas Range

Model # HGS3053UC/06 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HGS3053UC-06 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Range Oven Temperature Sensor 00617708
#324

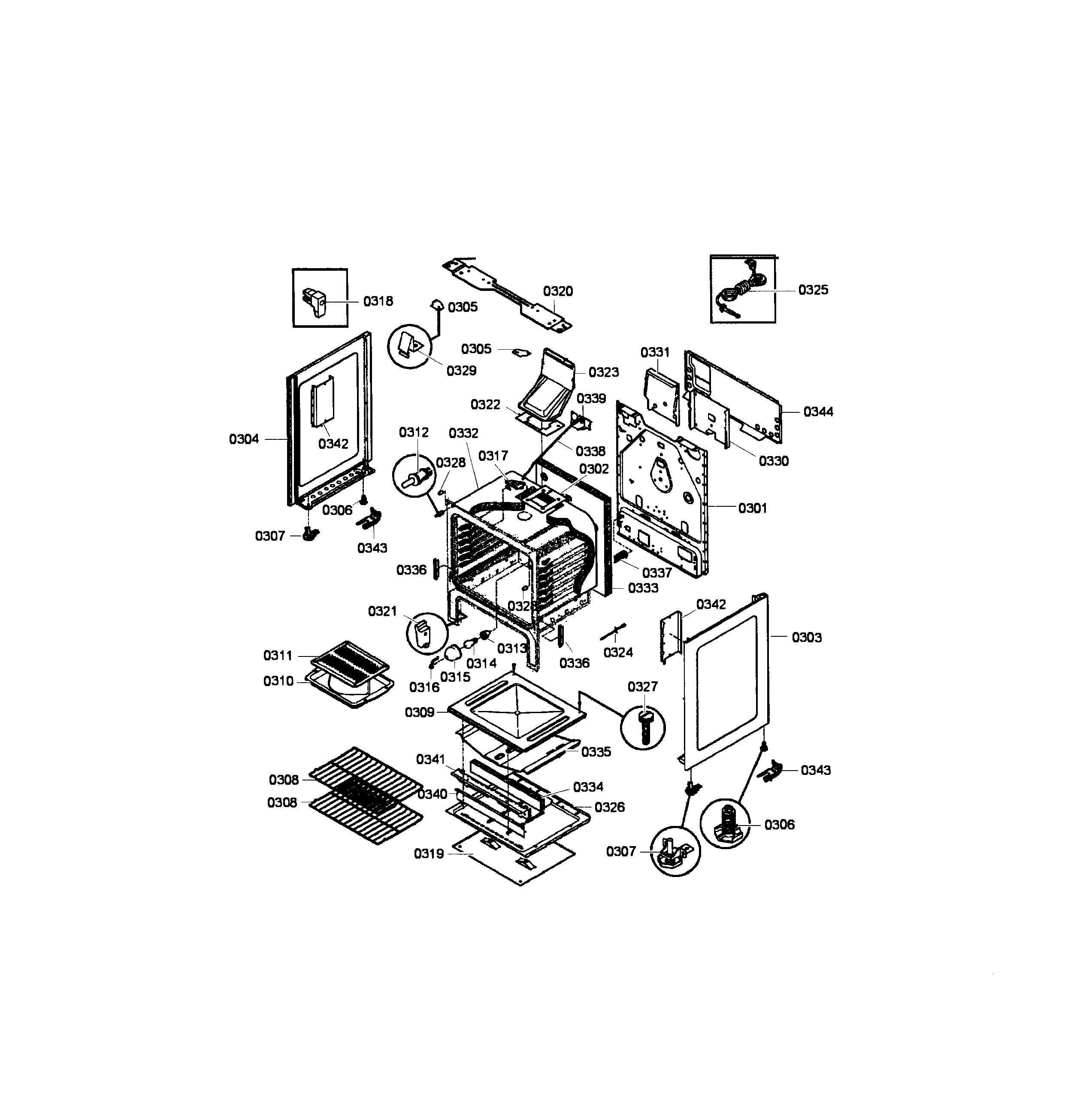

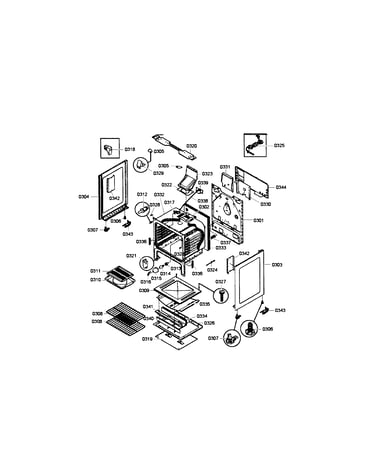

Frame & cavity diagram

Range oven temperature sensor

Part #00617708

$142.72
In Stock
Range Oven Door Outer Glass (black) 00684141
#501

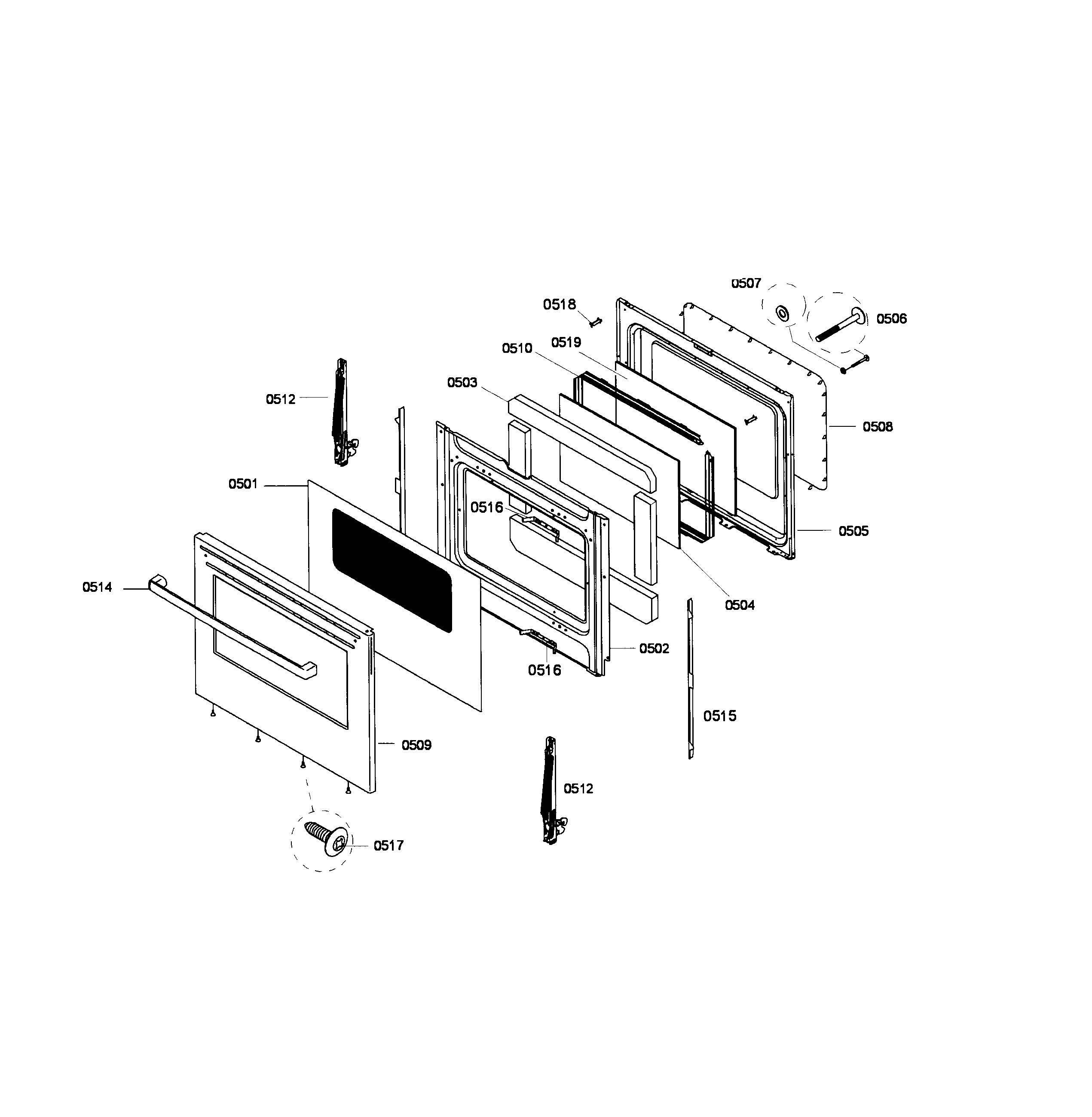

Door diagram

Range oven door outer glass (black)

Part #00684141

$170.67 |
7% OFF Phone Price : $182.67
In Stock
Sheet Cover 00676767
#107

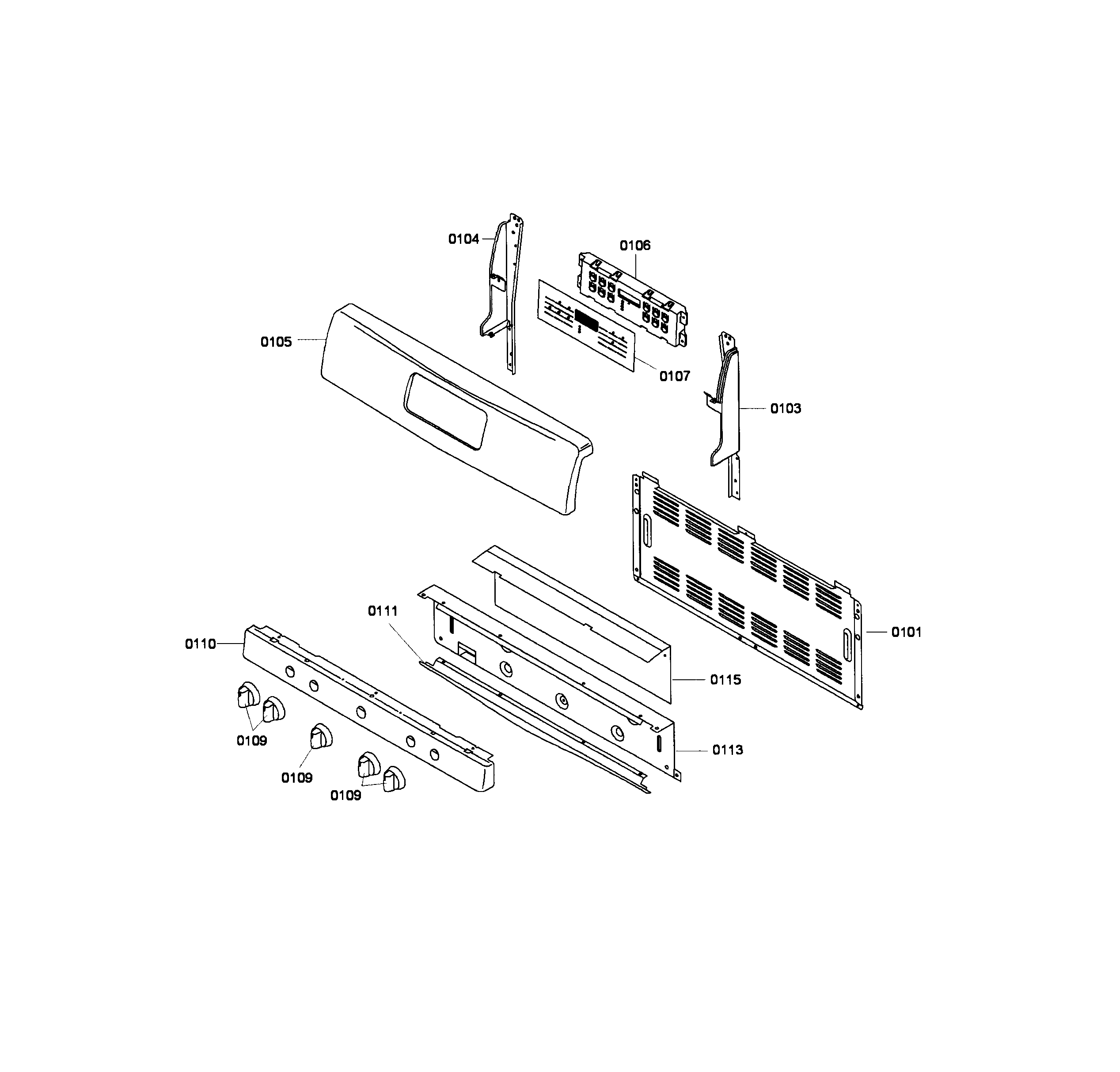

Control panel diagram

Sheet cover

Part #00676767

$41.00
In Stock
Tube 00676870
#218

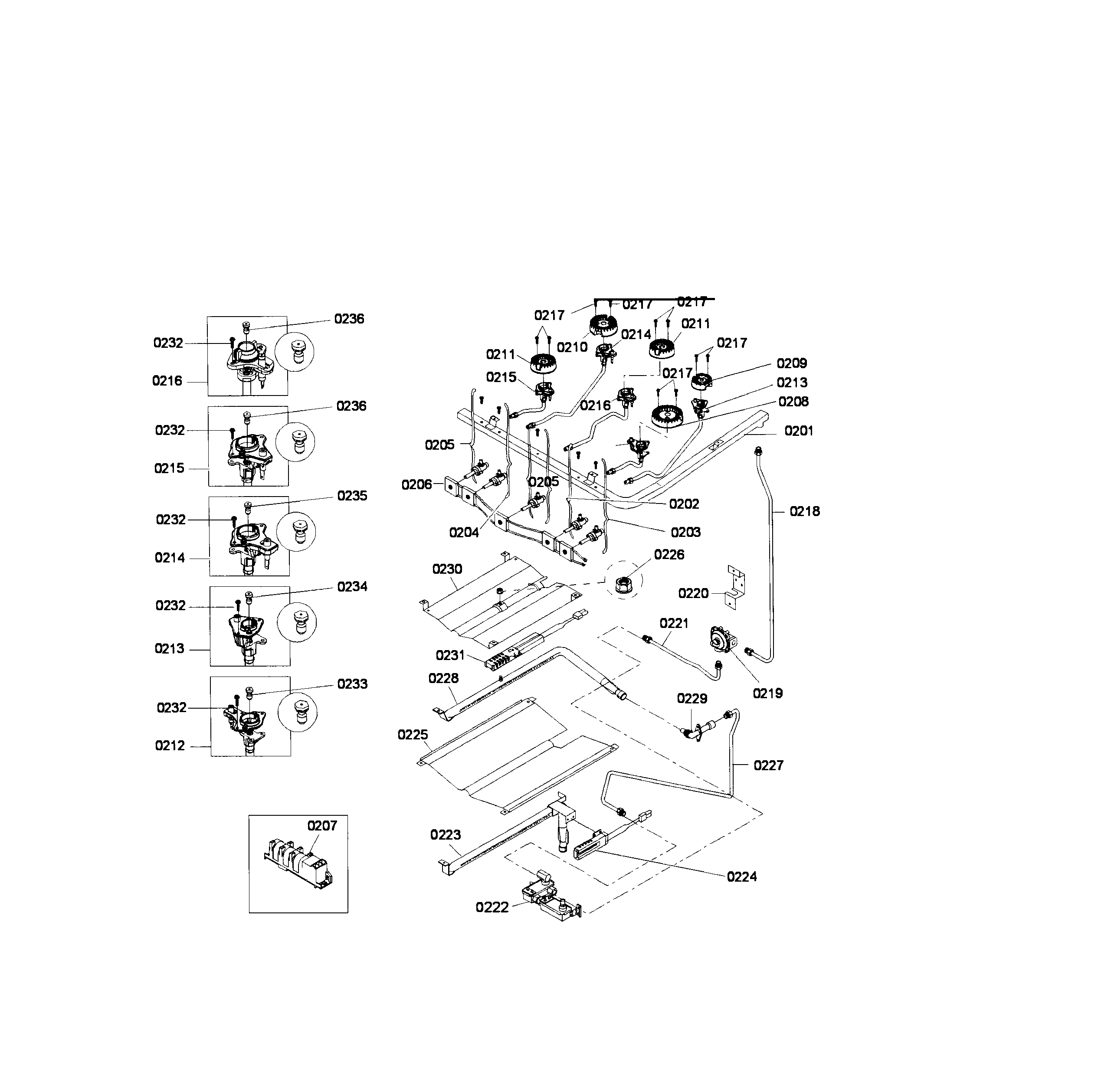

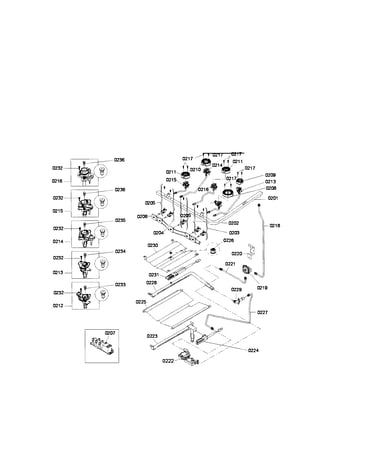

Valve assy diagram

Tube

Part #00676870

$341.95
In Stock
Burner 00676871
#223

Valve assy diagram

Burner

Part #00676871

$270.45
In Stock
Range Oven Door Inner Glass 00684076
#504

Door diagram

Range oven door inner glass

Part #00684076

$377.83
In Stock
Rod 00649274
#338

Frame & cavity diagram

Rod

Part #00649274

$139.84
In Stock
Panel 00248786
#303

Frame & cavity diagram

Panel

Part #00248786

$243.69
In Stock
Tube 00649261
#221

Valve assy diagram

Tube

Part #00649261

$120.42
In Stock
Cover 00684133
#335

Frame & cavity diagram

Cover

Part #00684133

$222.80
In Stock
